Descriptions

• Available in Piano Black, Piano White or Piano Rosewood with different power supply options
• Please note: The price quoted includes the turntable without tonearm and without Power Supply / Speed Control.

SIMPLY GORGEOUS

“What grabs you immediately is that this deck extracts maximum smile factor from any record you play. It’s as simple as that, and could you ask for more?”

What Hi-Fi?

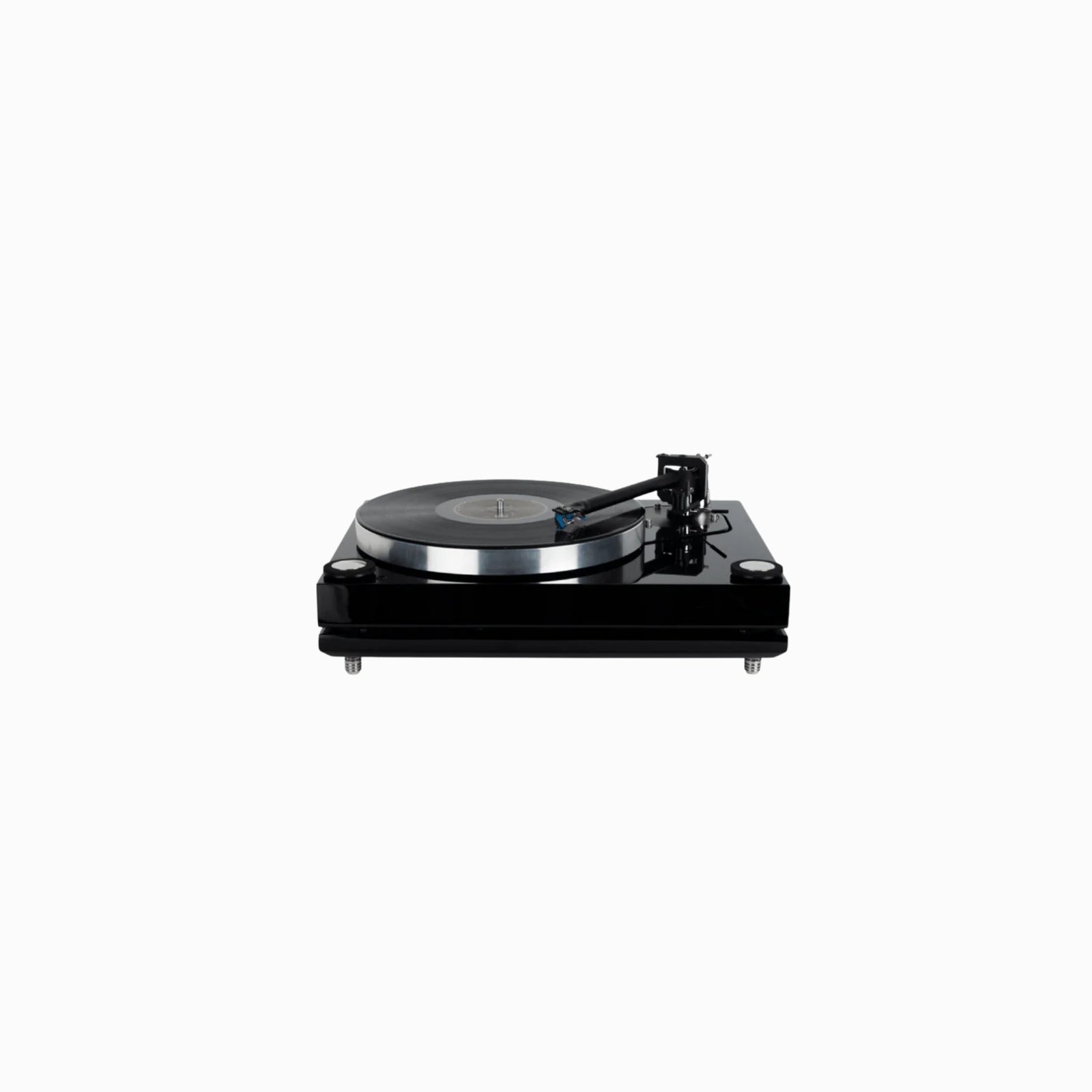

The original Xerxes launched in 1985 was one of the most important turntables of the eighties. With advanced engineering techniques and radical solutions to address the inherent problems suffered by other turntables, the Xerxes offered a more enjoyable and accurate presentation of music.

Xerxes 20 plus is the result of over 20 years of research and development and refinement of the Xerxes.20 based on Roksan’s most advanced record player, the TMS 3.

The elegance in engineering is visible through the compact clean lines and robust construction of the Xerxes.20plus’s three plinths and triple layer isolation system. The hardened tool steel spindle, the tungsten carbide ball and the two-piece solid phosphor bronze housing, which is machined to an accuracy of 5 microns, provide the unique self centering, self aligning true single point main bearing.

The Xerxes.20plus can be fitted with any of Roksan’s three arms or any other high quality arm to offer a powerful and expansive sound displaying a fine midband, a fast and deep bass and a very smooth and open treble. Musicians are firmly located within the soundstage, with the tempo and musicality combined to create a compelling sense of live music being played.

Caspian system DX2 turntable speed control for this record playing system, uses the same motor drive module as that of the TMS 2 reference record player. The DX2 utilises a massive 350 VA ultra low noise internally and externally shielded Toroidal transformer that feeds the DS1.5 or the smaller DSU internal DC power supply for the motor drive. The DX2 is a modular system and can be configured to include the Artaxerxes X phono stage.

RECOMMENDED:

• Tabriz Z1 Tonearm
• Shiraz cartridge

Utilised in the Xerxes.20plus are TMS 3’s main Bearing Ball, Inner and Outer Platter design that are refined to ensure the record remains almost undisturbed by the internally induced vibrations. This provides the cartridge with an almost silent passage to retrieve the vital audio information. The combination of the Plinth material, density, linear damping, vibration absorbing weight blocks, lowered decoupling frequency and controlled harmonic structure delivers a performance second to none.

SPECIFICATIONS:

• Main Bearing Spindle Hardened tool steel
• Roundness & Concentricity < 5 Microns
• Length to Diameter ratio 11:1
• Main Bearing Ball Super precision Tungsten Carbide
• Roundness < 1 Micron
• Diameter 2mm
• Main Bearing Housing Solid Phosphor Bronze
• Clearance 2/1,0000″
• Inner Platter 2 Piece Solid Aluminium alloy, Interference-fitted non-resonant
• Outer Platter 2 Piece Solid Aluminium alloy, Interference-fitted non-resonant
• Structure 3 Plinth Design
• Isolation 3 Level De-coupling
• Motor Custom made 24 pole synchronous
• Pulley Solid Aluminium alloy
• Roundness & Concentricity < 1 Micron
• Belt Precision ground Neoprene
• Motor Mount Unique synchronizing bearing
• Motor Drive External speed controller
• Wow & Flutter < 0.02%
• Rumble < -80dB
• Dimensions 450 x 370 x 115mm
• Weight 12 Kg
