Revel W253L -In-wall multi-purpose Speaker (Each)

Key Features

Performance & Sound Quality

Two-way in-wall speaker design with dedicated tweeter and woofer for balanced, natural sound
Aluminum dome tweeter for smooth, detailed high-frequency performance
Cone woofer for accurate midrange and controlled low frequencies
Well-tuned crossover for seamless integration between drivers and consistent tonal balance

Cabinet & Build

Slim, low-profile in-wall enclosure for discreet installation
Rigid baffle and internal bracing to minimize resonance and coloration
Designed to blend visually with wall surfaces for a clean, unobtrusive look

Installation & Compatibility

Designed for flush in-wall mounting in custom audio and home theatre installations
Works with a wide range of amplifiers and AV receivers
Impedance and sensitivity optimized for typical home audio use
Includes mounting hardware and installation template

Application

Ideal for distributed audio systems, home theatre surround channels, or whole-home audio
Delivers clear, articulate sound while remaining visually integrated into wall spaces

Description

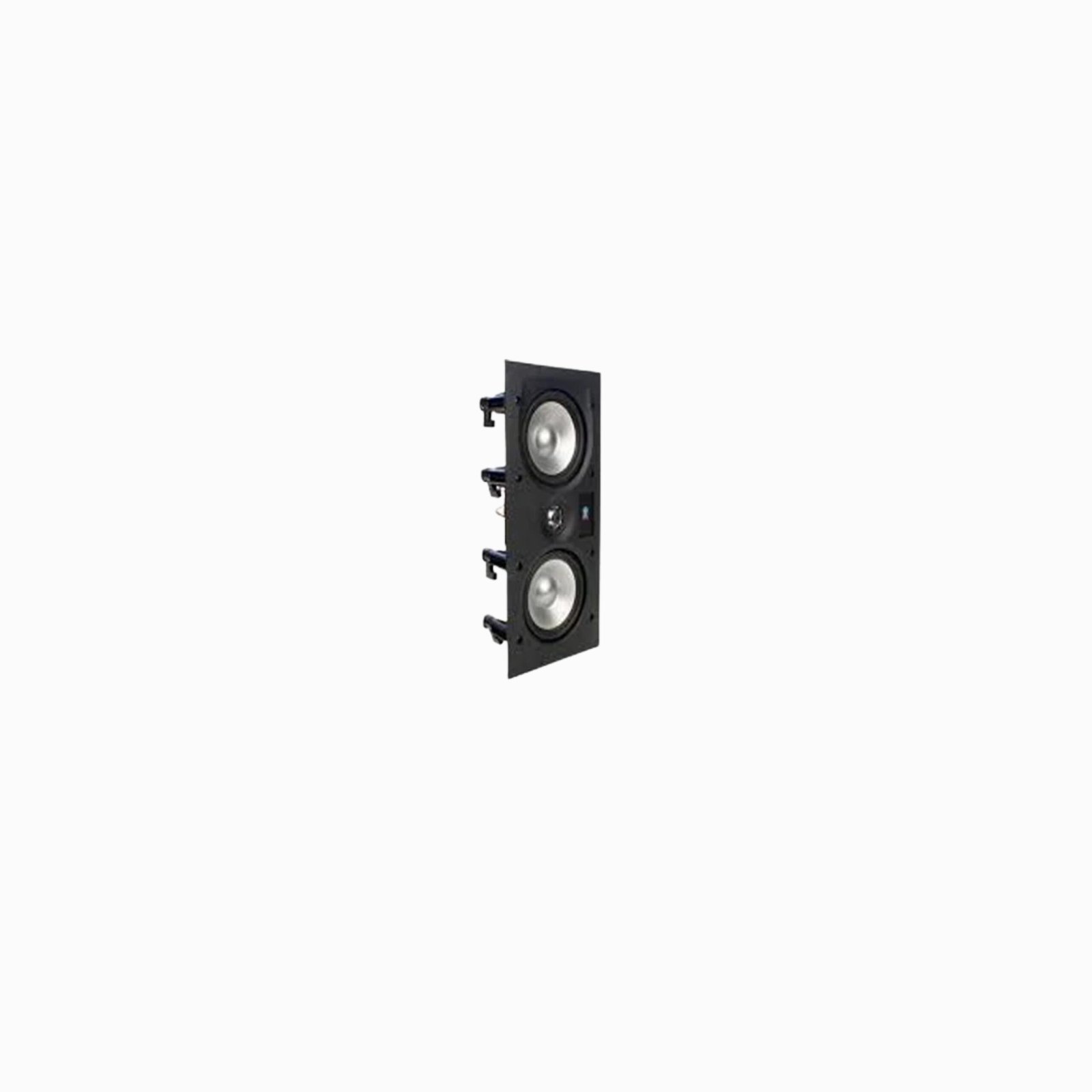

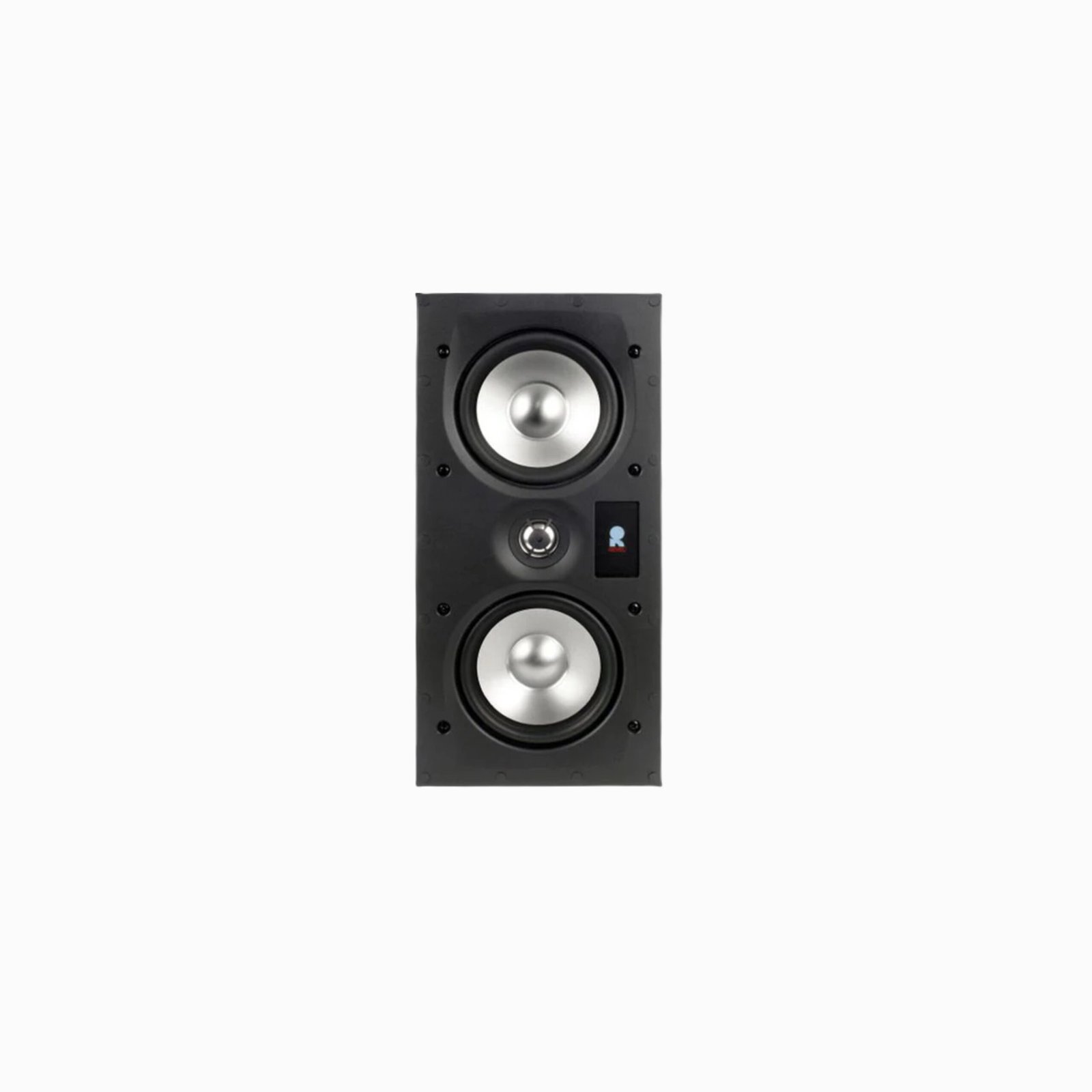

A multi-purpose in-wall speaker from Revel

If you’re planning an in-wall home theater system, consider Revel’s W253L LCR speaker for your left, right, and center channel locations. This versatile in-wall speaker can be installed either vertically or horizontally, making it an excellent choice for a seamless front soundstage. Its pair of 5-1/4″ woofers and centrally mounted 1″ tweeter deliver balanced, full-range sound that’s ideal for movie soundtracks, dialogue and special effects.

High-quality design for long-term performance

The W253L has a few other notable design highlights. Its tweeter waveguide helps provide great sound for listeners directly in front of the speaker, as well as those positioned off to the side. And its high-order crossover network allows the woofer and tweeter to blend together seamlessly. A lifetime warranty ensures long-term performance.

Install Revel’s W253L in-wall speaker vertically or horizontally as a left, right, or center channel speaker.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

Additional Information

ideal for the left, right, or center channel locations of an in-wall home theater system

dual 5-1/4″ aluminum woofers with cast-aluminum frames

long-throw woofer design with rubber surround for high output and low distortion

1″ aluminum dome tweeter

integrated waveguide provides excellent on- and off-axis performance

high-order crossover network delivers accurate timbre reproduction

spring clip speaker connectors

paintable zero-bezel magnetic grille

recommended amplifier power: 10-130 watts

sensitivity: 91 dB

cutout dimensions: 6-7/16″W x 14-1/8″H

overall dimensions: 7-7/16″H x 15-1/8″H

mounting depth: 3-1/2″

weight: 5.6 lbs.
