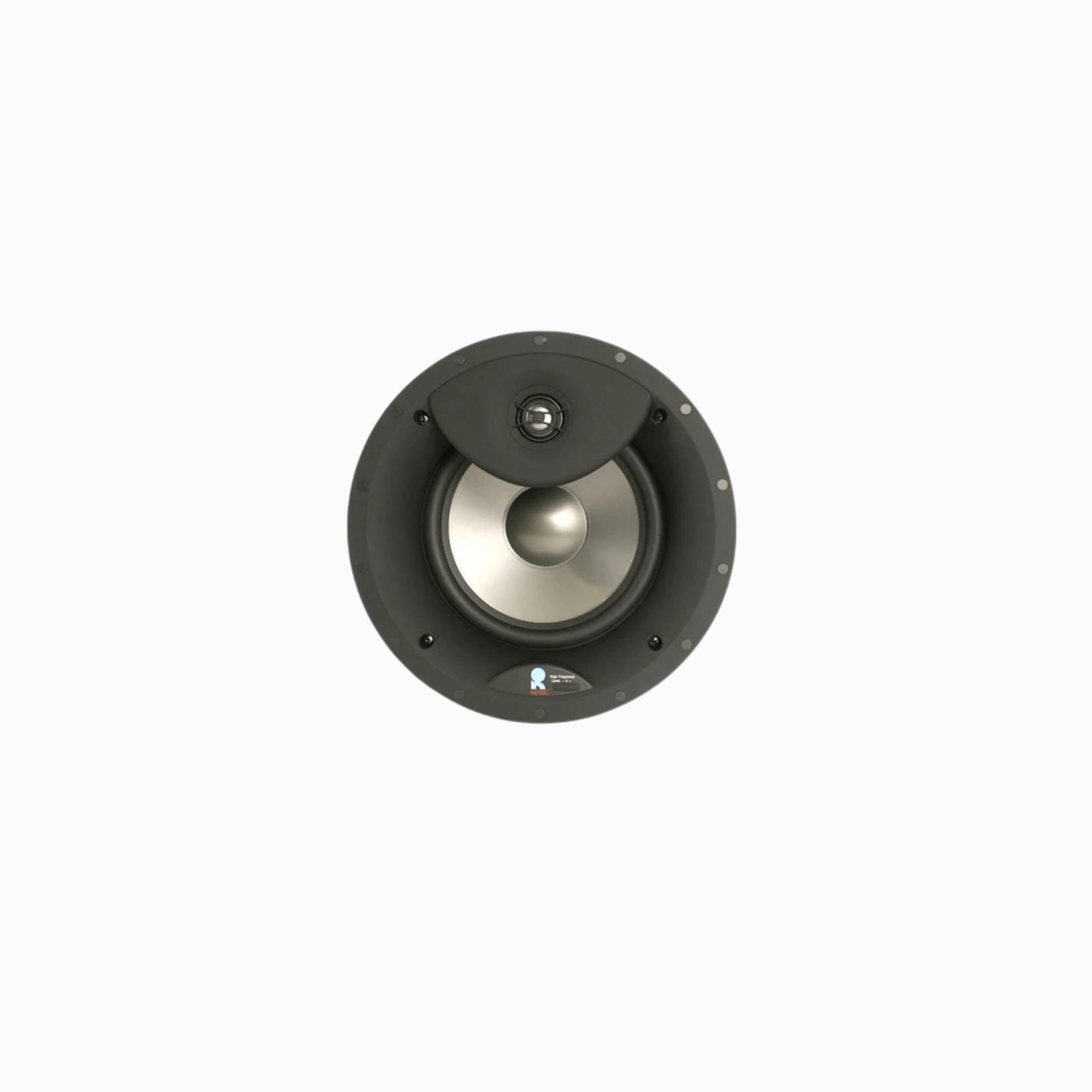

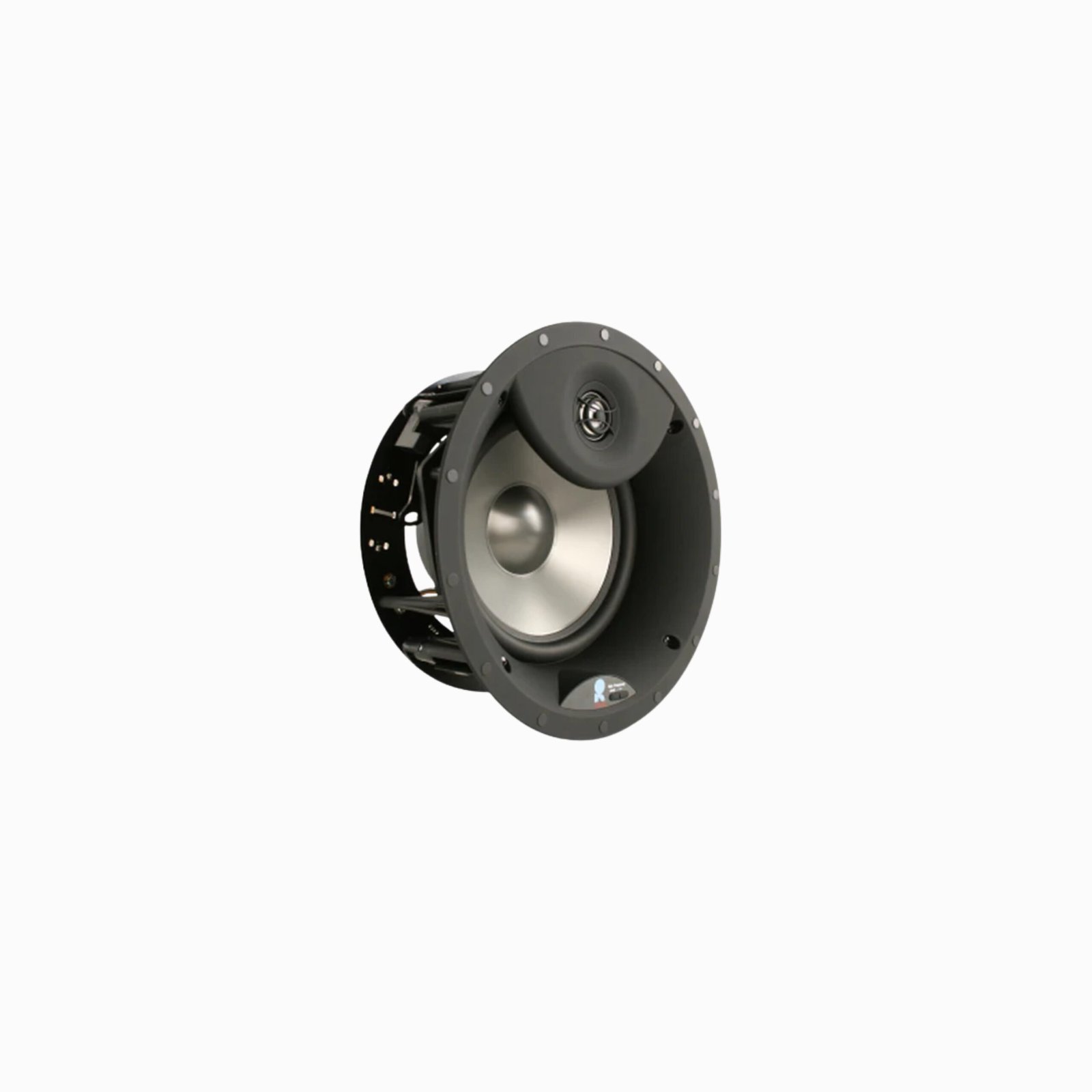

Revel C583 -8'' In-ceiling speaker (Each)

Performance & Sound Quality

Two-way in-ceiling speaker design with a dedicated tweeter and an 8-inch woofer for enhanced low-frequency response
Aluminum dome tweeter for smooth and detailed high-frequency output
Large cone woofer for strong midrange and deeper bass compared to smaller ceiling speakers
Precision crossover network for seamless integration between drivers and balanced overall sound

Cabinet & Build

Low-profile design for flush ceiling installation and a clean, unobtrusive look
Rigid construction to reduce resonance and coloration
Back-can enclosure to improve acoustic performance and reduce interference from ceiling materials

Installation & Compatibility

Designed for easy flush mounting in ceilings, with included mounting hardware and cut-out template
Works with a wide range of amplifiers and AV receivers
Impedance and sensitivity optimized for typical home audio use

Application

Ideal for distributed audio systems, background music, or home theatre surround channels
Delivers clear, articulate sound with enhanced low-frequency impact while remaining visually subtle in ceiling installations

Description

An acoustically adaptable in-ceiling speaker

Revel’s C583 in-ceiling speaker combines accurate sound with versatile installation options. Its 1″ aluminum dome tweeter is aimable, so you can direct sound towards your listening position. The tweeter also has a three-position output level switch, which lets you tailor the sound to the acoustics of your room.

The C583 is an excellent choice for an in-ceiling stereo system, or as an overhead effects channel of a Revel home theater system. Its 8″ woofer provides solid bass and smooth midrange. It even includes both square and round grilles to match your décor.

The Revel C583 in-ceiling speaker features a three-position tweeter level control which cuts or boosts high-frequency output to suit your room’s acoustics.

Trickle-down technology

The C583 benefits from the research and design work that went into Revel’s higher-end in-ceiling speakers. For instance, the speaker’s integrated tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend together seamlessly.

The C583 also features high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty ensures excellent long-term performance.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

ideal for an in-ceiling music system or overhead surround effects in a home theater system

8″ micro-ceramic composite (MCC) woofer with cast-aluminum frame

long-throw woofer design with rubber surround for high output and low distortion

1″ aluminum dome tweeter

three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room’s acoustics

integrated waveguide provides excellent on- and off-axis performance

tweeter is aimable to direct high-frequency details towards you

high-order crossover network delivers accurate timbre reproduction

recommended amplifier power: 10-135 watts

includes both round and square zero-bezel magnetic grilles

grilles are paintable to match your décor

sensitivity: 88 dB

speaker cutout diameter: 9-5/8″

mounting depth: 5-1/4″

square grille dimensions: 10-3/4″W x 10-3/4″H

weight: 2.8 lbs.
