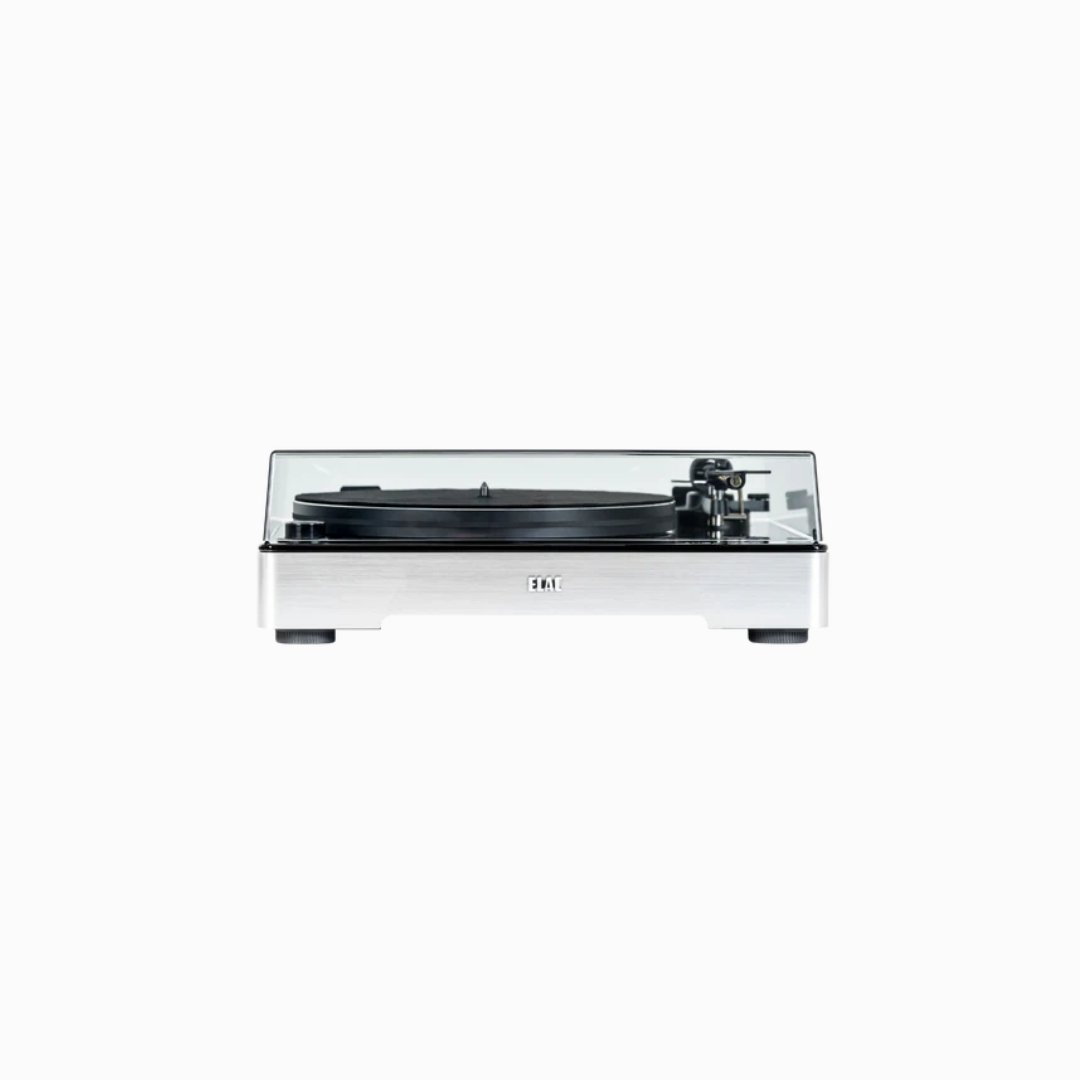

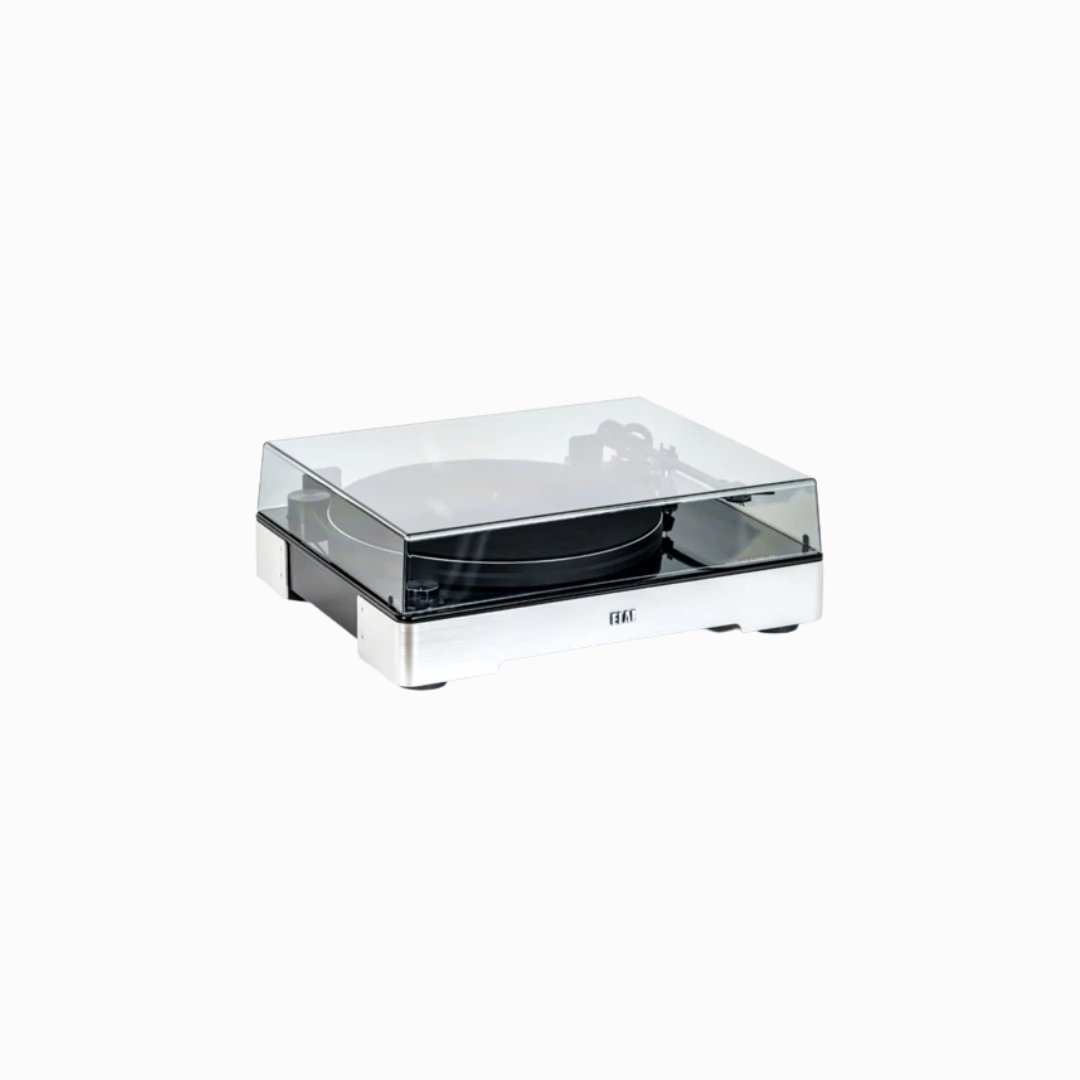

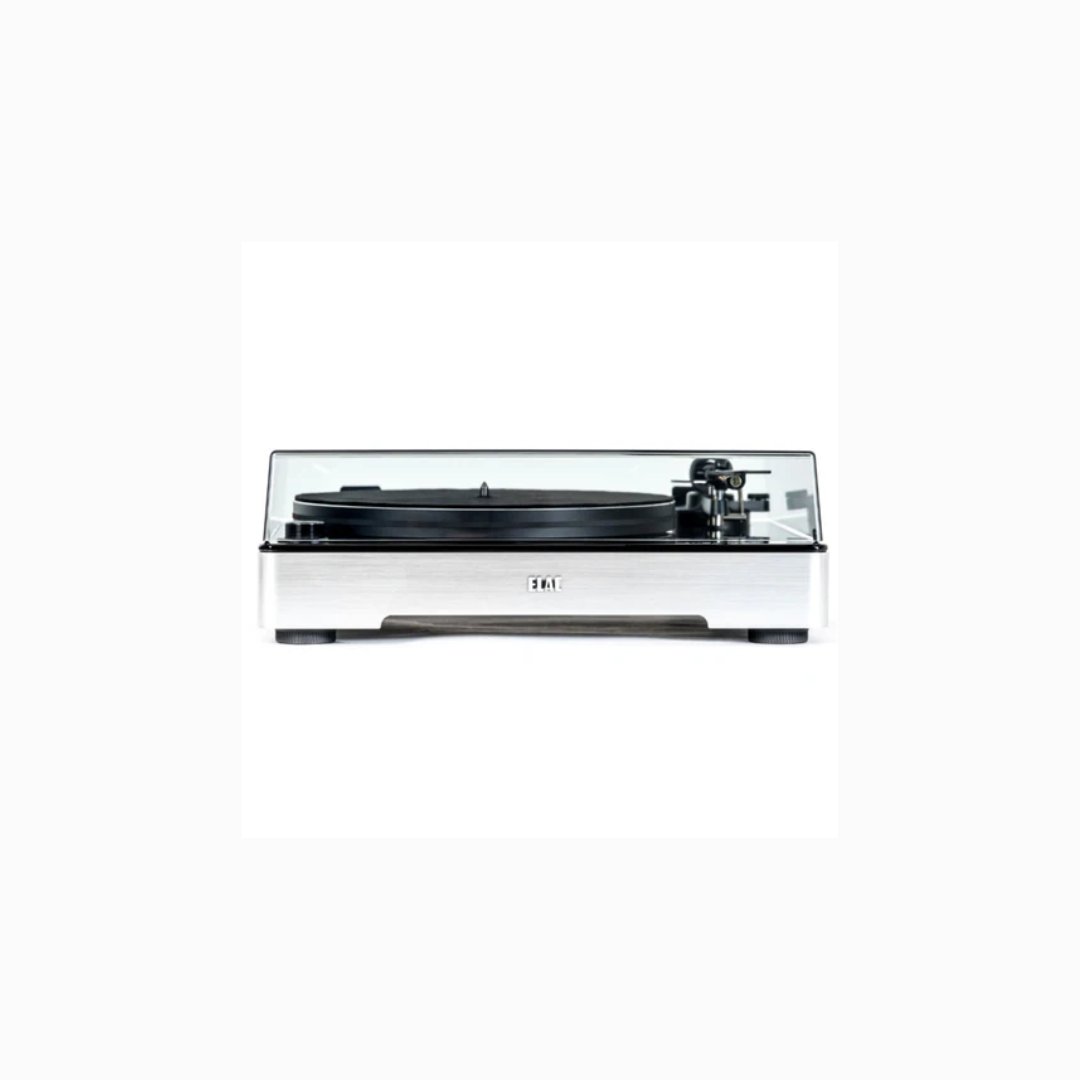

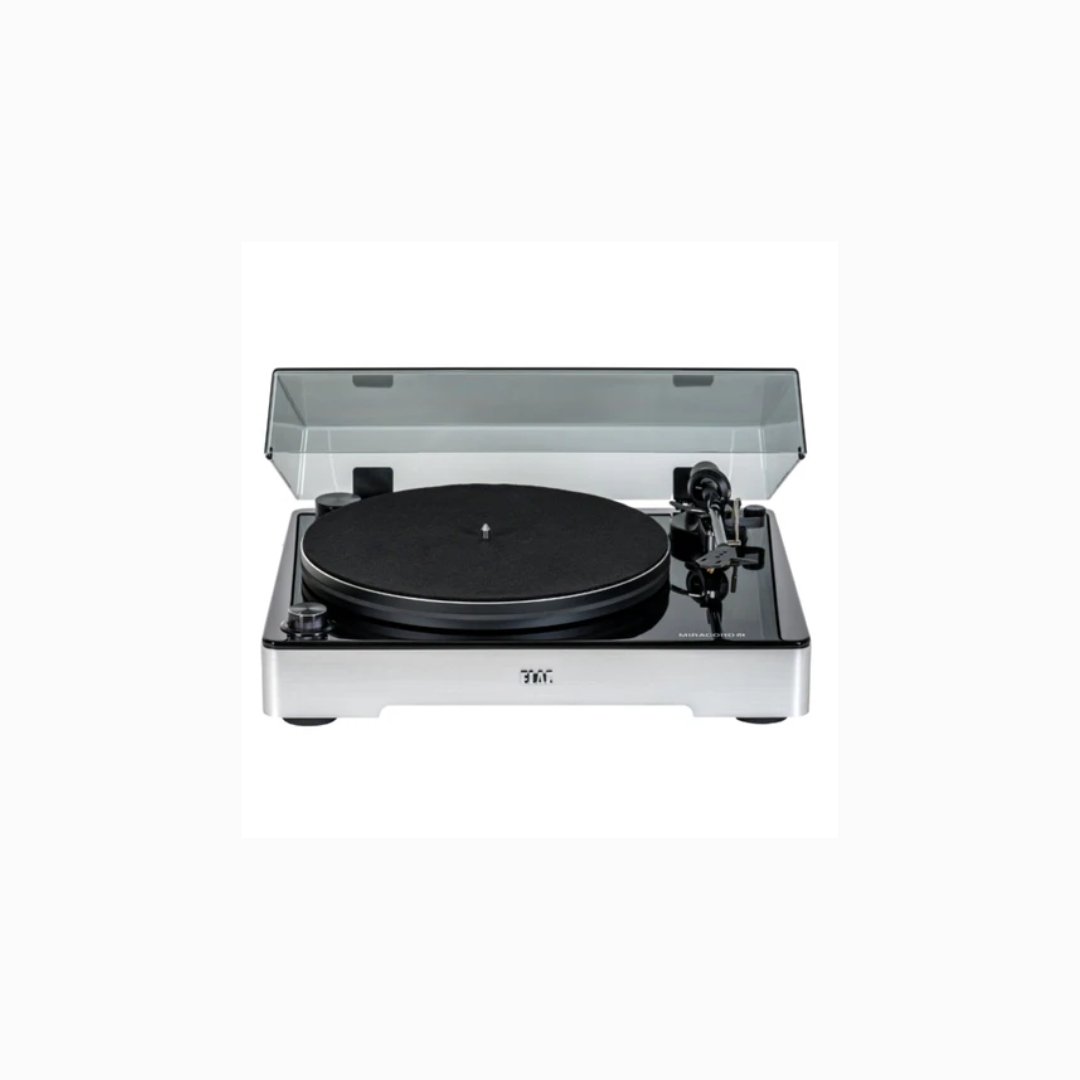

ELAC Miracord 60 Turntable – MRC-601

The ELAC Miracord 60 (MRC-601) is a belt-driven audiophile turntable that combines high-precision engineering and elegant design for serious vinyl playback. It features a 22 mm thick die-cast aluminum platter for excellent rotational stability, and a lightweight carbon-fibre tonearm with gimbal bearing and removable headshell for maximum cartridge compatibility. B&H Photo Video+2Creative Audio+2 Speed control is managed by a servo-controlled DC motor with an optical sensor and PID algorithm to correct speed deviations — the spec shows rotation-speed variation of ±0.33% and wow & flutter under 0.12%. soundapproach.com+2vinylsound.ru+2 The plinth is machined from a solid 50 mm block of MDF, CNC-braced to minimise resonance and vibration. Altitudo Audio+1 Supplied with a hinged dust cover, the unit offers a manual two-speed setup (33⅓ and 45 rpm) and outputs via stereo RCA (with ground screw) for integration with an external phono stage or amplifier. B&H Photo Video The Miracord 60 presents high-end build quality and a clean aesthetic, making it a strong choice for those looking to elevate their analog setup.

Description

In 2016, the name Miracord was re-established in the high-end audio community.

3 years and 3 product launches later, the Miracord 60 is ready to continue the unique ELAC Audiophile Turntable Saga.

The Miracord 60 was designed to bring the world-renowned and eye-catching design of the successful Miracord 90 to a new class of ELAC turntables. The result is a turntable that does not deny its lineage while emphasizing its individuality. The new Miracord 60 embodies the meaning of smooth vinyl precision to perfection and timeless, elegant design.

Warranty:

1-year manufacturer’s warranty

Features:

Plays 33 1/3 and 45 rpm Vinyl Records
Aluminum Die-Cast Platter
Carbon-Fiber Tonearm
Stereo RCA Output
Includes Hinged Dust Cover

Carbon Fibre Tone Arm
A light-weight carbon fibre tonearm with gimbal bearing and a removable headshell offers flexibility in the choice of cartridge.

Aluminium Platter
The Miracord 60 is equipped with a massive diamond chamfered piece of engineering art made of 22 mm die-cast aluminum.

Servo-controlled DC motor
A built-in optical sensor that sends its signal to a PID algorithm in the microcontroller, which will then tune the speed of the DC motor.

Technical Specifications:

Turntable
Drive System	Belt Drive
Motor	Servo-Controlled DC Motor
Speeds	33 1/3 and 45 rpm
Rotation Speed	Variation: ±0.33%
Wow and Flutter	<0.12%
Signal to Noise Ratio	Not Specified by Manufacturer
Turntable Platter	Material: Die-Cast Aluminum Thickness: 0.87″ / 22 mm Diameter: Not Specified by Manufacturer

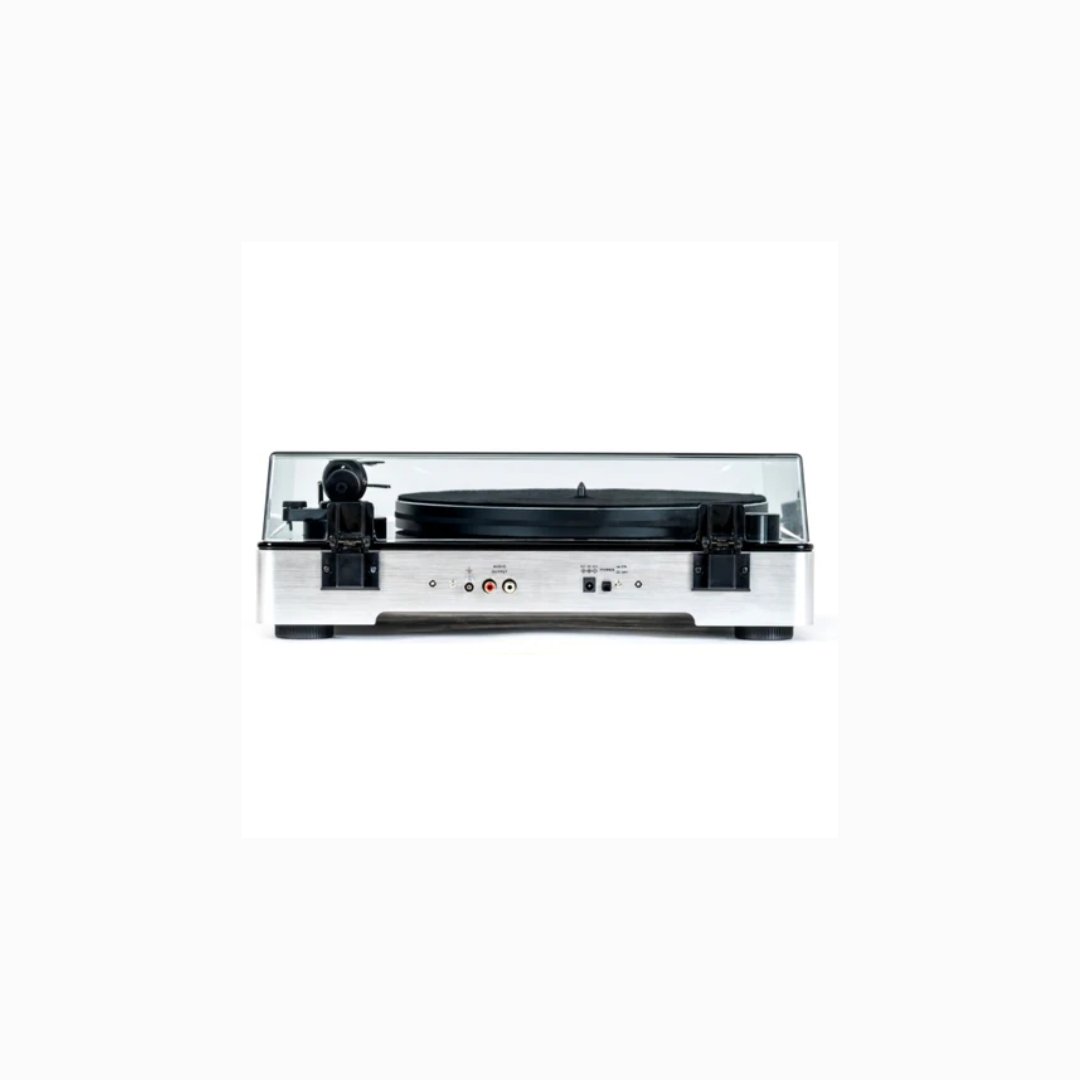

Output	Stereo RCA with Ground Screw
Tonearm
Type	Carbon Fiber Tube
Effective Arm Length	Not Specified by Manufacturer
Overhang	0.73″ / 18.6 mm
Offset Angle	25°
Bearing	Stainless Steel
Anti-Skating Adjustment	0 to 4
Cartridge
Headshell	Removable
Physical Specifications
Voltage	100 to 240 VAC, 50/60 Hz
Power Consumption	Operational: 1.5 W Standby: <0.5 W
