Ortofon OM 10 MM Phono Cartridge (Black)

Key Features

Audio Performance

  • Moving Magnet (MM) design for clear, balanced, and musical vinyl playback

  • Smooth frequency response with good detail retrieval across lows, mids, and highs

  • Excellent tracking ability for reliable groove contact and reduced distortion

Stylus & Tracking

  • Elliptical stylus profile improves high-frequency detail and accurate groove tracing

  • Low tip mass reduces record wear and improves overall tracking stability

Design & Compatibility

  • Universal mounting configuration fits most standard tonearms easily

  • Durable, lightweight cartridge body designed for consistent long-term performance

  • Works well with a wide range of turntables and phono stages

User Experience

  • Easy to install and align, ideal for both beginners and experienced vinyl listeners

  • Offers a noticeable upgrade in clarity and musicality compared with entry-level cartridges

  • Great value choice for everyday listening and varied music genres

Description

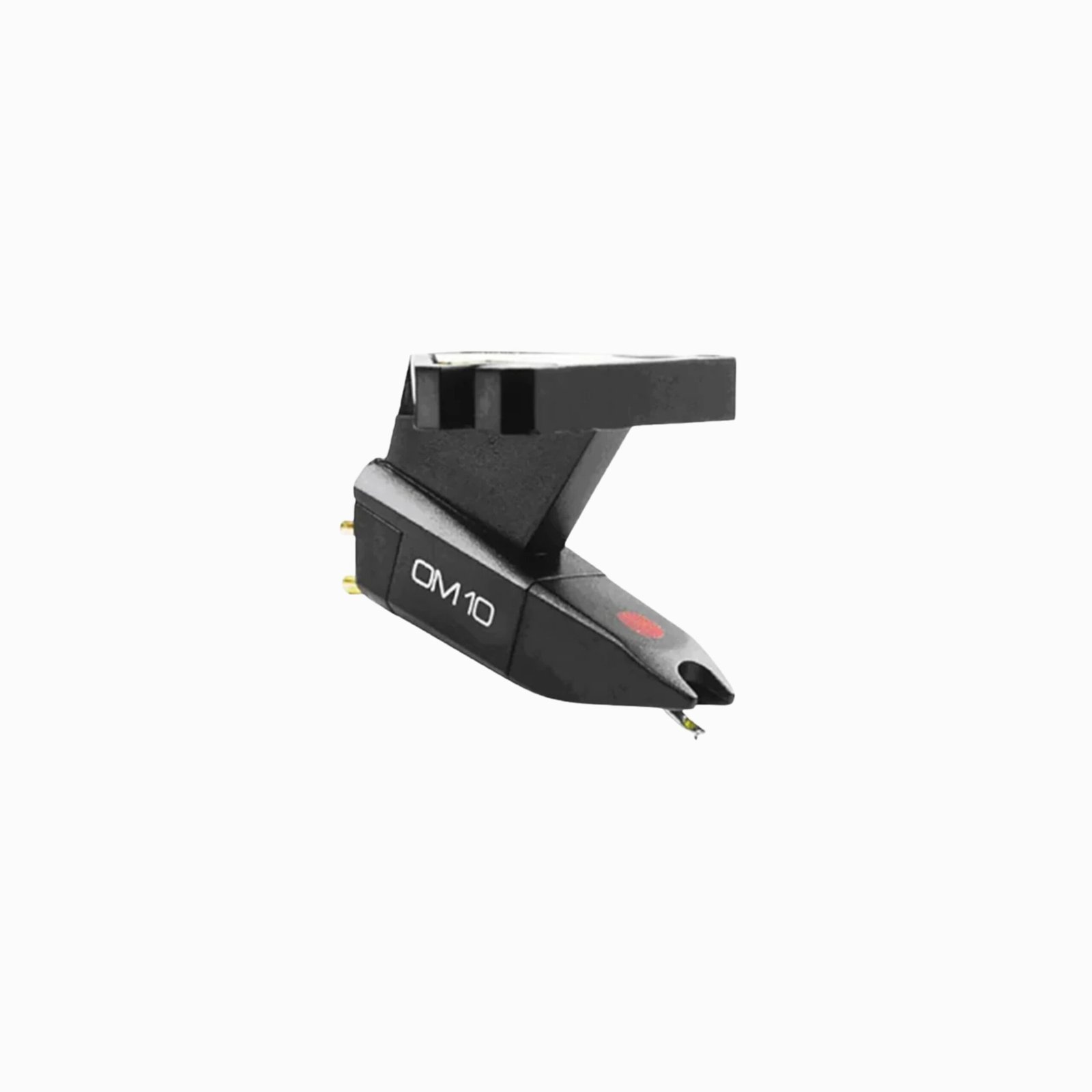

ORTOFON OM 10 PHONO CARTRIDGE

Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at any one of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight plate.

  •  If your tonearm is a standard tonearm, just leave the weight plate.
  • If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.



Specifications

Output voltage at 1000 Hz, 5cm/sec
4 mV
Channel balance at 1 kHz
2 dB
Channel separation at 1 kHz
22 dB
Frequency response
20-22.000 Hz ± 2 dB
Tracking ability at 315Hz at the recommended tracking force *)
70 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1,25-1,75 g (15-20 mN)
Tracking force, recommended
1,5 g (17,5 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge colour, body/stylus
Black/Black
Cartridge weight
5 g
Replacement stylus unit
Stylus 10
