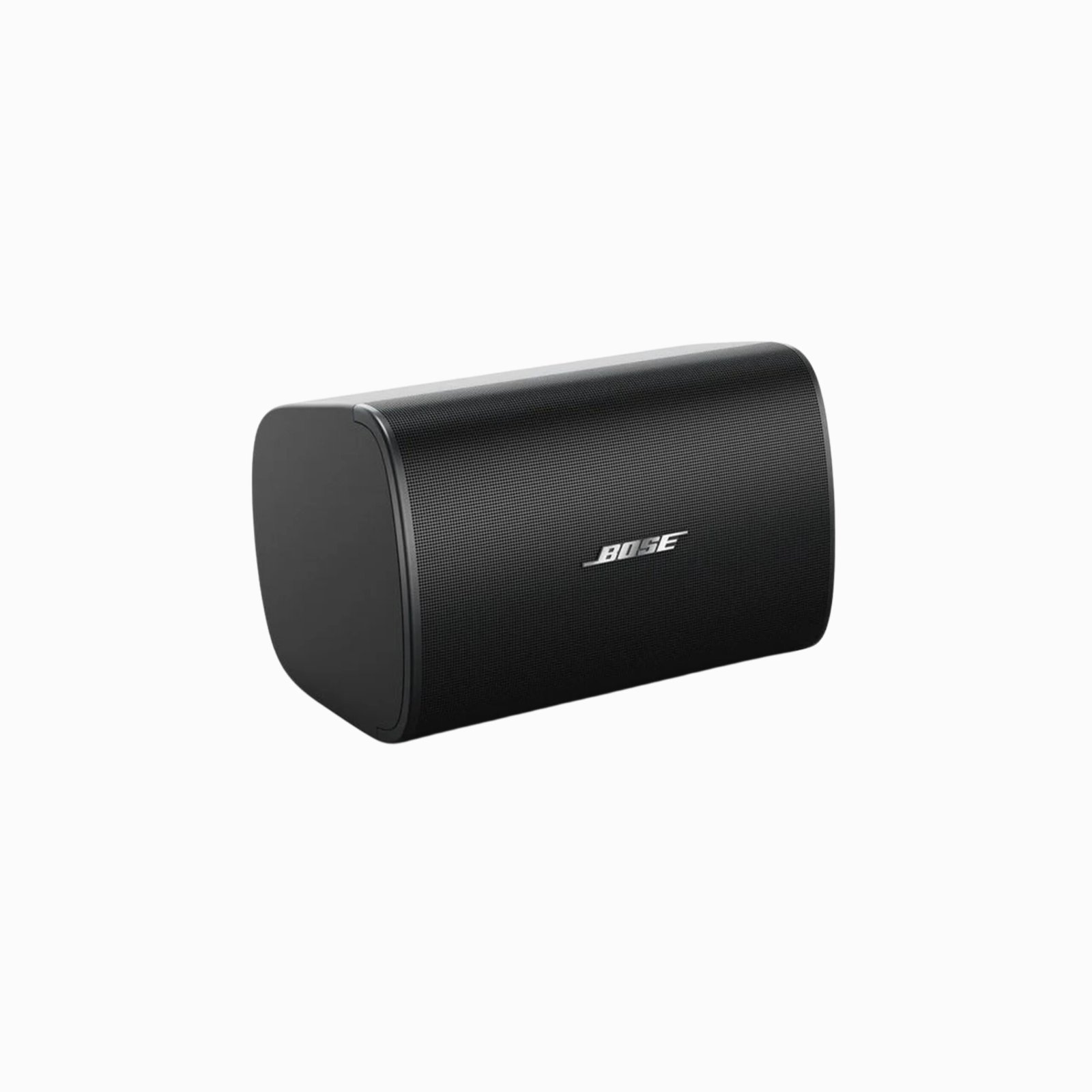

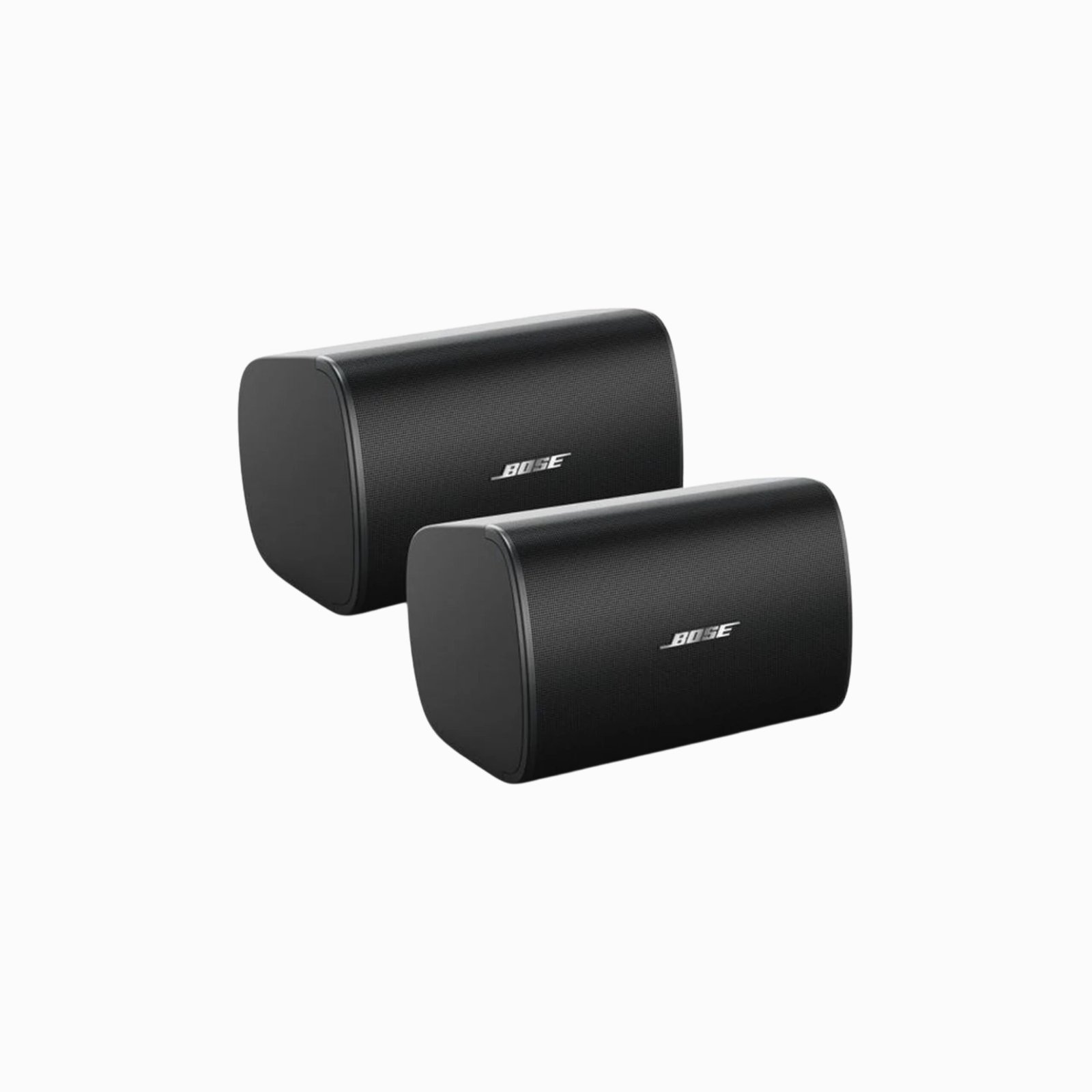

Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair) - Image 2
Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair) - Image 3
Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair)
Category: Loud Speakers

Bose DesignMax DM6SE Surface Mount Loudspeaker (Black)(Pair)

Key Features

Balanced Audio Performance

  • Wide-range frequency response tuned for clarity and intelligibility

  • Suitable for both background music and foreground listening

  • Consistent tonal balance across listening areas

Surface Mount Flexibility

  • Designed for wall or ceiling surface mounting

  • Adjustable mounting brackets allow precise aiming and positioning

  • Compact form factor blends with modern interiors or commercial spaces

Durable and Reliable Construction

  • Robust cabinet built for long-term use

  • Black finish integrates discreetly with darker décor or design schemes

  • Moisture-resistant materials support indoor environments

Easy Installation

  • Includes mounting brackets and hardware

  • Quick-connect speaker terminals for straightforward wiring

  • Can be oriented vertically or horizontally as needed

Ask a question
Delivery & Return

Description

With coaxial two-way drivers, the 125-watt DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

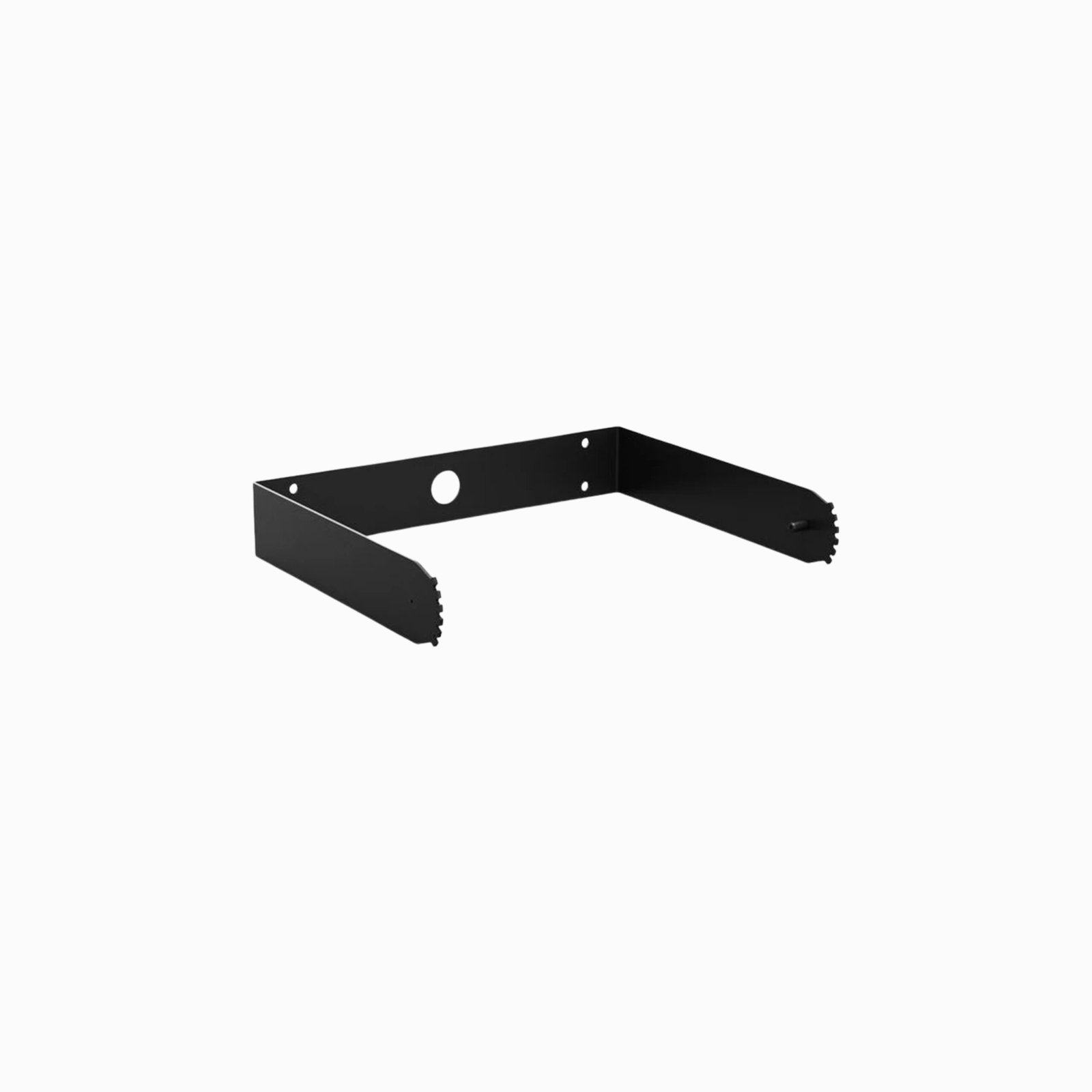

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM6SE outside — IP55 rating with standard aluminum grille for outdoor use



SPECS

Technical Summary

Frequency Response (+/-3 dB)
70 – 20,000 Hz

Nominal coverage (H x V)
125° conical

Power Handling, peak
500 W

Maximum SPL @ 1m
111 dB

Frequency Range (-10 dB)
59 – 20,000 Hz

Power Handling, long-term continuous
125 W

Sensitivity (SPL/1W @ 1 m)
90 dB

Nominal Impedance
8 Ω (transformer bypass)
