Description
JBL HDI Series
The HDI Series is a showcase of JBL’s industry-leading acoustic technologies, delivering unrivaled performance in combination with elegant cabinetry and a contemporary aesthetic. The foundation of the series is JBL’s patented High-Definition Imaging waveguide technology coupled with the patented 2410H-2 high-frequency compression driver. With a sophisticated curved shape, modern design with no visible fasteners, magnetically attached grilles, and a choice of premium finish options, the HDI Series is the embodiment of today’s JBL high-performance loudspeaker.

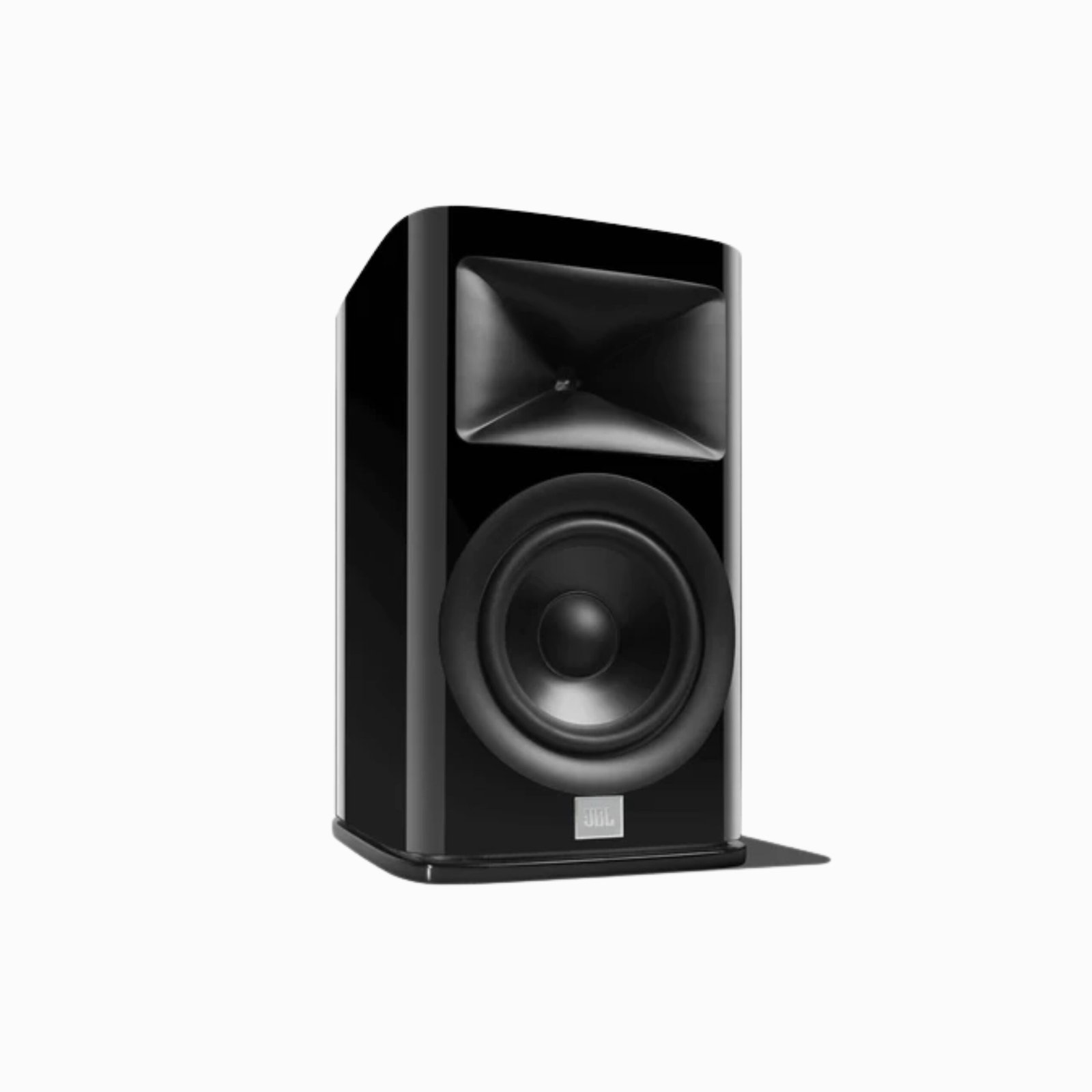

JBL HDI-1600 Bookshelf Loudspeaker
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) waveguide technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation and incorporates a bass-reflex design with dual rear-firing and computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille, completes the luxurious appearance.
Warranty:
1-year manufacturer’s warranty
Features:
• Patented HDI™ (High-Definition Imaging) waveguide technology
• Patented 2410H-2 high-frequency compression driver
• 6.5-inch (165mm) cast frame, Advanced Aluminum Matrix cone woofer with 1.5-inch voice coil
• Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer
Engaging sound from a bookshelf speaker
The JBL HDI-1600 was carefully designed and engineered in JBL’s Northridge, California, labs, with the intent of creating a compact speaker for discerning hi-fi enthusiasts. This stand-mount speaker is loaded with top-notch JBL technology, and it comes in three elegant finishes that can complement just about any home decor.
A solid foundation
The speaker’s 6-1/2″ woofer is a lightweight, rigid Advanced Aluminum Matrix cone. It features a long-throw voice coil for high output and low distortion, serving up midrange detail and solid bass. The drivers are housed in a rounded cabinet made from 3/4″-thick MDF and heavily braced to eliminate sound-muddying vibrations. And we recommend mounting them on JBL’s HDI-FS stands to make them sound even better.
Technical Specifications:
| Brand | jb |
| Model | HDI-1600 |
| Year | 2021 |
| Color | black |
| Enclosure Type | Bass-reflex design with a rear-firing port |
| High-Frequency Transducer | 1-inch (25mm) Teonex compression driver |
| Low-Frequency Transducer | 6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofer |
| Crossover Frequency | 1900Hz |
| Sensitivity (2.83V @ 1M) | 85dB |
| Nominal Impedance | 4 Ohm |
| Recommended Amplifier Power | 15W – 200W |
| Frequency Response | 40Hz – 30kHz (-6dB) |
| Matching Stand | HDI-FS |
| Dimension | 370.0 x 230 x 288.9mm |
| Weight | 9.96kg |
