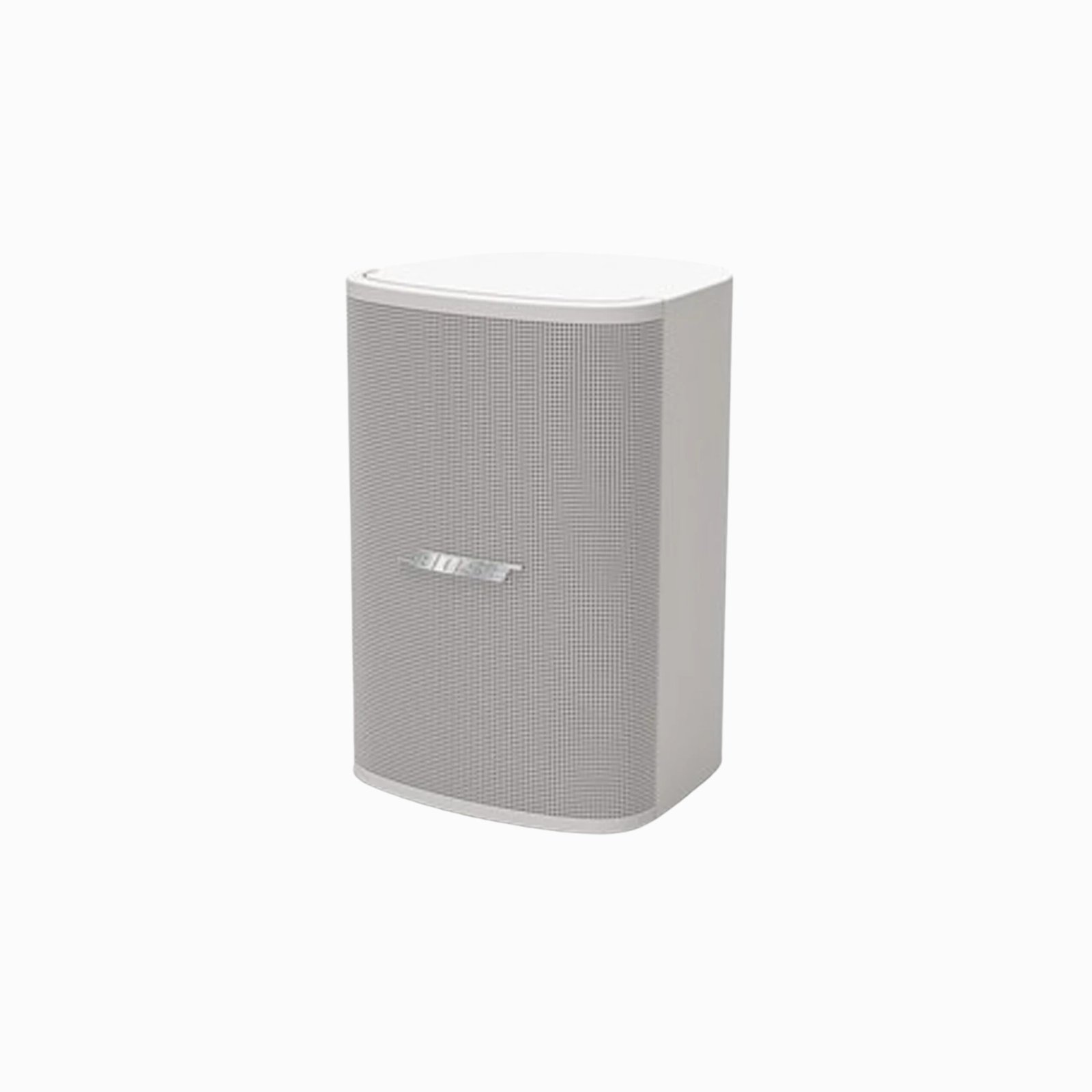

Bose Designmax DM3SE Surface Mount loudspeaker (White)(Pair)

Key Features

Balanced Audio Performance

  • Wide-range frequency response tuned for clarity

  • Suitable for both background music and foreground listening

  • Consistent sound quality across the coverage area

Surface Mount Design

  • Compact enclosure ideal for wall or ceiling surface installation

  • Adjustable brackets allow precise aiming of sound

  • Works well in rooms where in-ceiling installation is not feasible

Durable Construction

  • Robust, moisture-resistant enclosure designed for reliable performance

  • White finish blends with most interiors without drawing attention

  • Built for long-term use in active spaces

Easy Installation

  • Includes mounting brackets and hardware

  • Quick-connect speaker terminals simplify wiring

  • Can be mounted in horizontal or vertical orientation

Description

With coaxial two-way drivers, the 30-watt DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and .75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use



SPECS

Technical Summary

Frequency Response (+/-3 dB)
85 – 20,000 Hz

Nominal coverage (H x V)
140° conical

Power Handling, peak
120 W

Maximum SPL @ 1m
101 dB

Frequency Range (-10 dB)
75 – 20,000 Hz

Power Handling, long-term continuous
30 W

Sensitivity (SPL/1W @ 1 m)
86 dB

Nominal Impedance
8 Ω (transformer bypass)
