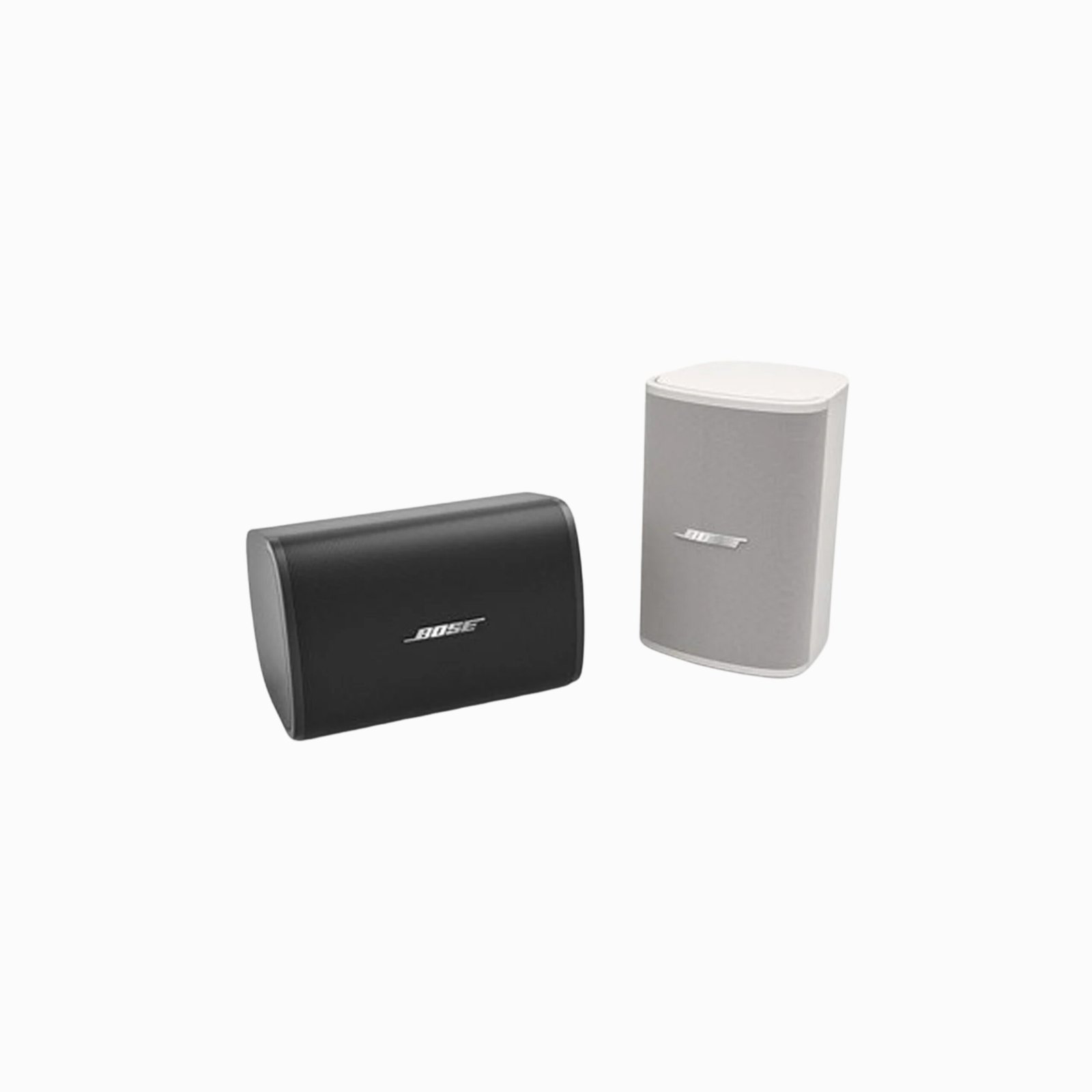

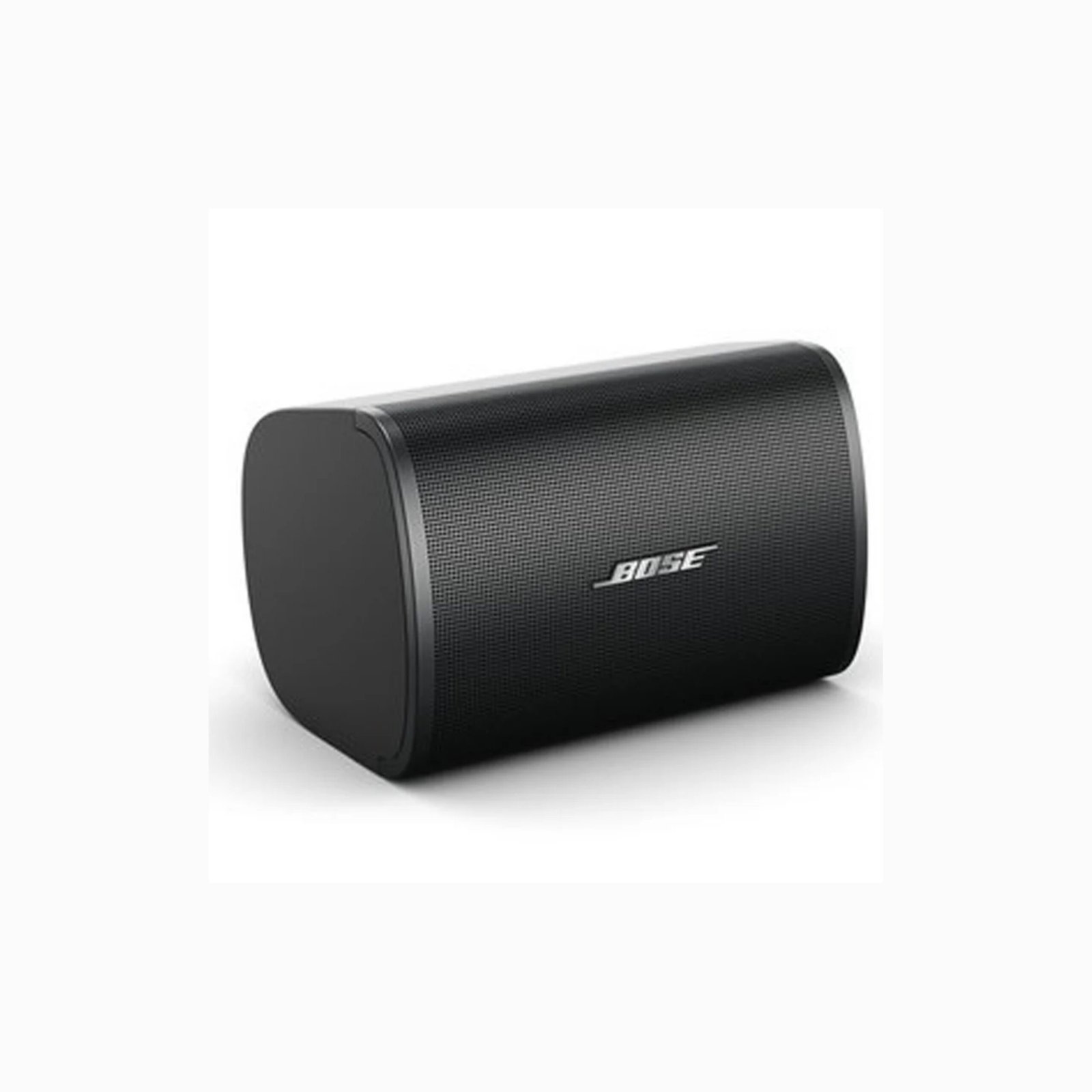

Bose Designmax DM3SE Surface Mount loudspeaker (Black)(Pair)

Key Features

Balanced Audio Performance

  • Wide-range frequency response tailored for clear sound

  • Suitable for background music and foreground listening

  • Consistent tonal clarity across listening areas

Surface Mount Flexibility

  • Compact enclosure designed for wall or ceiling surface installation

  • Adjustable brackets enable precise aiming of sound

  • Ideal where in-ceiling installation isn’t practical

Durable Construction

  • Robust, moisture-resistant enclosure for long-term use

  • Black finish integrates with darker décor and interior schemes

  • Built to perform reliably in varied indoor environments

Easy Installation

  • Includes mounting brackets and hardware

  • Quick-connect speaker terminals for straightforward wiring

  • Can be installed vertically or horizontally

Description

With coaxial two-way drivers, the 30-watt DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and .75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use



SPECificationS

Technical Summary

Frequency Response (+/-3 dB)
85 – 20,000 Hz

Nominal coverage (H x V)
140° conical

Power Handling, peak
120 W

Maximum SPL @ 1m
101 dB

Frequency Range (-10 dB)
75 – 20,000 Hz

Power Handling, long-term continuous
30 W

Sensitivity (SPL/1W @ 1 m)
86 dB

Nominal Impedance
8 Ω (transformer bypass)
