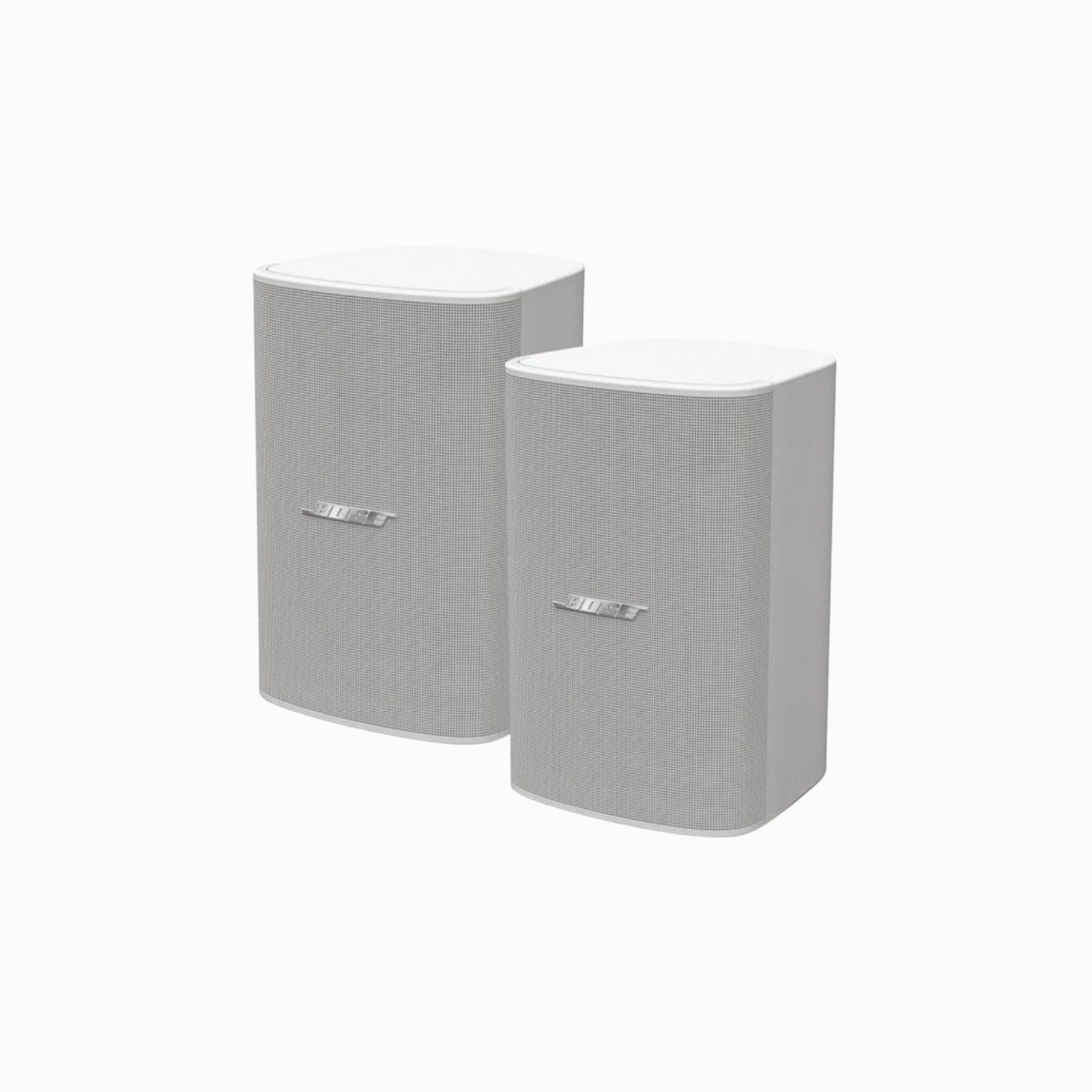

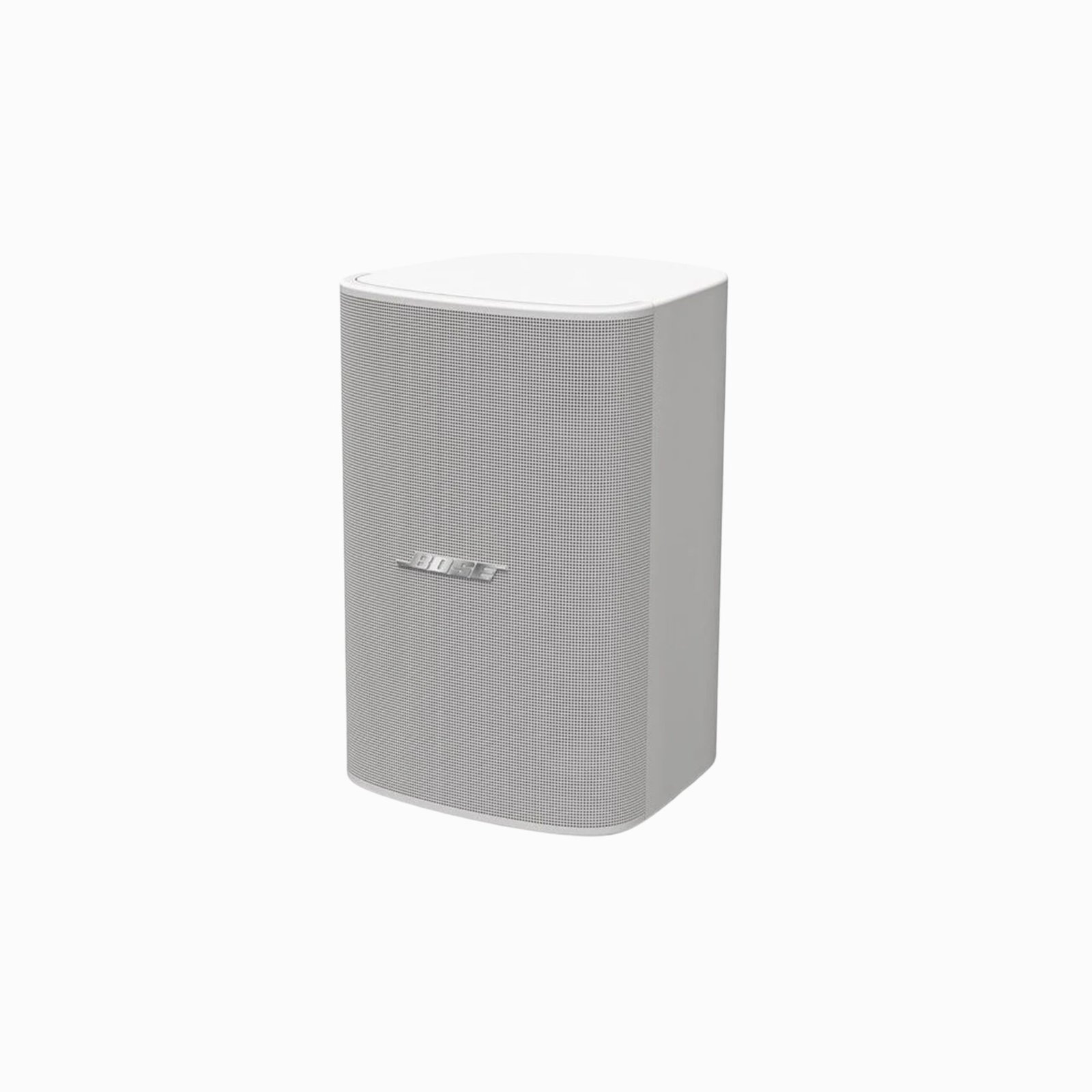

Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair) - Image 2
Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair) - Image 3
Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair)
Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair)
Category: Loud Speakers

Bose DesignMax DM6SE Surface Mount Loudspeaker (White)(Pair)

Key Features

High-Quality Audio Performance

  • Wide-range frequency response tuned for clarity

  • Balanced sound suitable for music playback and speech reinforcement

  • Designed to provide consistent coverage across listening areas

Surface Mount Design

  • Compact enclosure ideal for wall or ceiling surface mounting

  • Adjustable mounting brackets allow precise aiming

  • Suitable for retail, hospitality, office, and home audio applications

Durable Construction

  • Robust, moisture-resistant cabinet for reliable performance

  • White finish blends discreetly with most interiors

  • Designed for long-term use in varied environments

Easy Installation

  • Includes mounting brackets and hardware

  • Quick-connect terminals for straightforward wiring

  • Flexible placement options for both vertical and horizontal orientation

Ask a question
Delivery & Return

Description

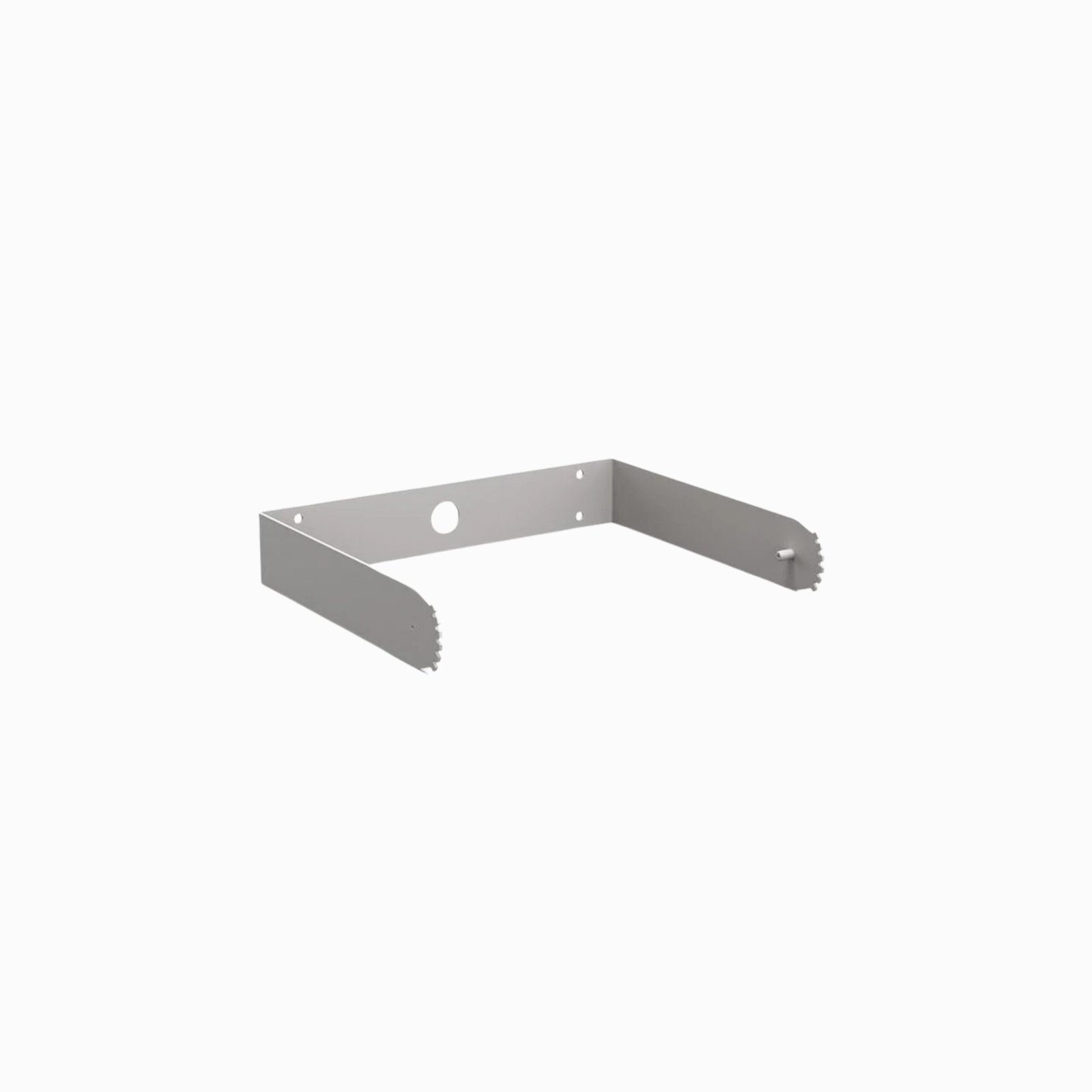

With coaxial two-way drivers, the 125-watt DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM6SE outside — IP55 rating with standard aluminum grille for outdoor use



SPECS

Technical Summary

Frequency Response (+/-3 dB)
70 – 20,000 Hz

Nominal coverage (H x V)
125° conical

Power Handling, peak
500 W

Maximum SPL @ 1m
111 dB

Frequency Range (-10 dB)
59 – 20,000 Hz

Power Handling, long-term continuous
125 W

Sensitivity (SPL/1W @ 1 m)
90 dB

Nominal Impedance
8 Ω (transformer bypass)
