The third edition of TAV-606, one of our top-selling speakers is now introduced in a highly redesigned version with revised, more stylish cabinets, upgraded drivers and crossovers, and better-fine-tuned sound performance.
Adding high value to the price ratio, the TAV-606 is a great bargain both for hi-fi stereo as well as home theatre systems.

Although the price of speakers is extremely attractive, there was no place for compromises during the process of designing and production, and our sound engineers have used the best components and technology to ensure sound performance exceeding the level set by most of the competitors.

The sound performance is light, fast, well-defined, and with great dynamics and deep, rich low bass.

The TAV-606 v.3 can be described as “transparent” speakers, as well as their performance focuses on natural playback and sonic accuracy.

Warranty:

1-year manufacturer’s warranty

Taga Harmony TAV-606 Features:

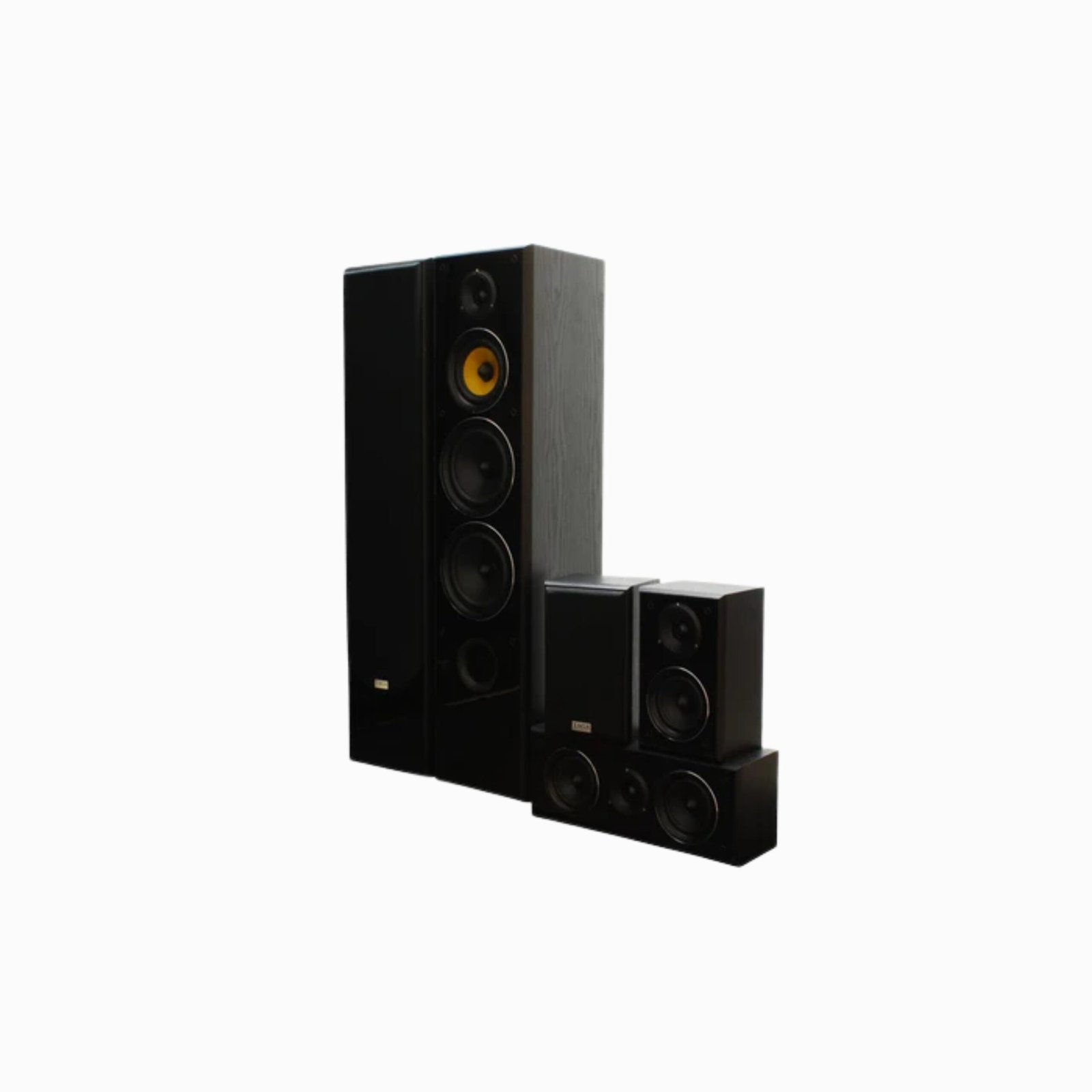

  • 2 x Front channel: Taga Harmony TAV-606F V3 – 3-way floor standing speakers.
  • 2 x Surround channel: Taga Harmony TAV-606S V3 – 2-way bookshelf speakers.
  • 1 x Center channel: Taga Harmony TAV-606C V3 – 2-way center speaker.
  • Better-fine-tuned sound performance crossovers, upgraded drivers.
  • The sound performance is light, fast, and well-defined.
  • Highly redesigned version with more stylish cabinets.
  • Great dynamics and deep, rich low bass.

CABINETS
TLIE – Taga Low Interference Enclosures are made of high-quality MDF boards (Front floor-standing speaker: 12mm thick PVC coated with 15mm front panel; Center and Surrounds speakers: 9mm with 12mm painted front panel) to increase stiffness and limit any unwanted resonances.
The shapes are perfectly crafted not only to look wonderful and modern but mainly to lower any unwanted vibrations, diffractions, or turbulences, which can affect the sound performance.

HIGH-FREQUENCY DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Black silk dome
6-A, 6-B. TWG Front faceplate
8. Flat wire aluminum voice coil
1” (25mm) silk dome tweeter with oversized Φ70 magnet, ferrofluid cooling, and heavy-duty voice coil can handle high power, and its performance is very accurate, clear, smooth, and detailed.
Specialized horn-like, TWG TAGA Waveguide design of tweeter’s faceplate utilizing concave diffusers supports equal and flat dispersion of sound in and off the axis of the driver.

MIDRANGE DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
7. Ferrum injection-molded chassis with anti-oxidation surface process
8. Flat wire copper voice coil
9. Terminal
10. Spider
11. Yellow glass fiber cone and rubber surround
12. PP bullet shape dust cap
A rigid and ultra-light yellow glass fiber cone with the elastic rubber suspension can move very fast and frequently allow mid-range frequencies to be very rich, spacious, and sweet. The heavy-duty voice coil and Φ70 magnet can stand high temperatures and power inputs. The dust cap in the form of bullets improves dispersion at the higher range of mid frequencies.

BASS-MIDRANGE DRIVER / BASS DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
7. Ferrum injection-molded chassis with anti-oxidation surface process
8. Flat wire copper voice coil
9. Terminal
10. Spider
11. Paper cone and rubber surround
12. PP bullet shape dust cap
Woofer utilizing paper cone (Φ80 magnet for bass; Φ70 magnet for bass-midrange) and heavy-duty voice coil and coil former for increased power handling, can play deep, precise, and detailed bass as well as clear, rich, and spacious mid frequencies.
The dust cap in the form of bullets improves dispersion at the higher range of low and mid frequencies.

BASS-REFLEX
BOM Bassreflex Omnidirectional Module – low-turbulence and high-velocity ports utilizing concave diffusers for increased dispersion of low frequencies.

CROSSOVER
High-quality, close-tolerance, and precisely selected crossovers’ components and internal wires for absolute sound neutrality, high long-term power, and reliability.

INTERNAL WIRING
TAGA Harmony utilizes high-quality internal wiring connecting crossovers with drivers, assuring that incoming audio signals from the receiver or amplifier will not lose any important details on the path to the drivers.

BINDING POSTS
High-quality, gold-plated banana binding posts accepting raw speaker cables up to 10AWG and the most popular types of connectors.
High-end banana binding posts allowing bi-wiring are used in the floor-standing speakers for wider dispersions and spaciousness, higher sonic accuracy, and more precise location.

Taga Harmony TAV-606 Technical Specifications:

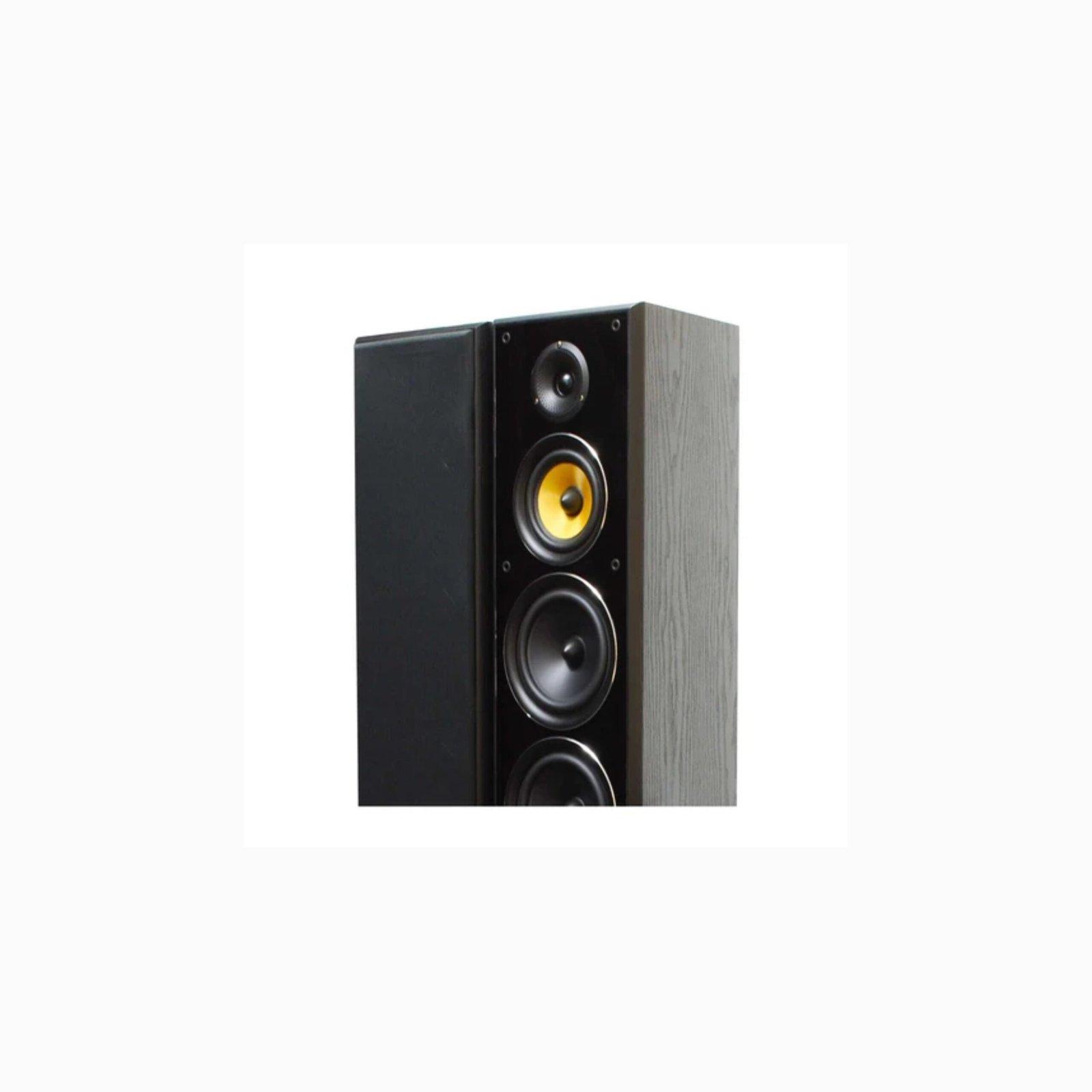

FRONT SPEAKER
Design Floorstanding, 3-way

4 drivers

Bi-wiring, bi-amp

TLIE enclosure

Crossover points: 500Hz, 3.8kHz
Power handling 20 – 120W (recommended amplifier power)

90W RMS
Frequency response 40Hz – 25kHz
Bass-reflex Front single
Impedance 6ohm
Sensitivity 90dB
High-frequency driver 25 mm (1″), TWG
Midrange driver 133 mm (5.25″)
Bass driver 2 x 165 mm (6.5″)
Dimensions (H x W x D) 98 x 23 x 25 cm (excl. spikes)
Weight 13.5 kg / pc.
CENTER SPEAKER
Design Center, 2-way, 3 drivers

TLIE enclosure

Crossover points: 4.5kHz
Power handling 20 – 100W (recommended amplifier power)

50W RMS
Frequency response 55Hz – 25kHz
Impedance 6ohm
Sensitivity 88dB
High-frequency driver 25 mm (1″), TWG
Bass-Midrange driver 2 x 102 mm (4″)
Features/accessories Wall mounts
Dimensions (H x W x D) 16.5 x 43 x 14.5 cm
Weight 3.32 kg / pc.

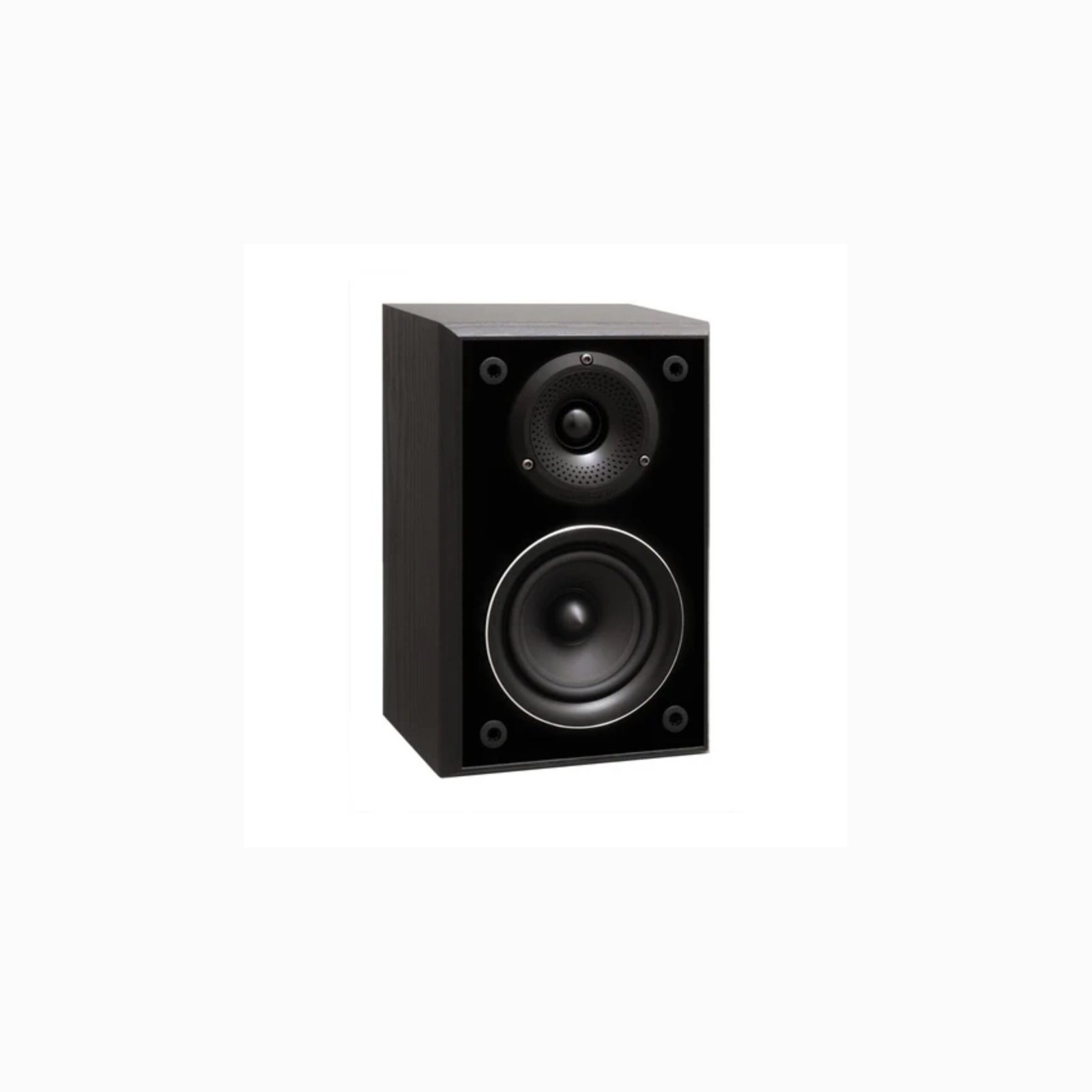

SURROUND SPEAKER
Design Surround, 2-way, 2 drivers

TLIE enclosure

Crossover points: 4.5kHz
Power handling 20 – 100W (recommended amplifier power)

50W RMS
Frequency response 55Hz – 25kHz
Impedance 6ohm
Sensitivity 86dB
High-frequency driver 25 mm (1″), TWG
Bass-Midrange driver 102 mm (4″)
Features/accessories Wall mount
Dimensions (H x W x D) 26.5 x 16.5 x 14.5 cm
Weight 2.34 kg / pc.
