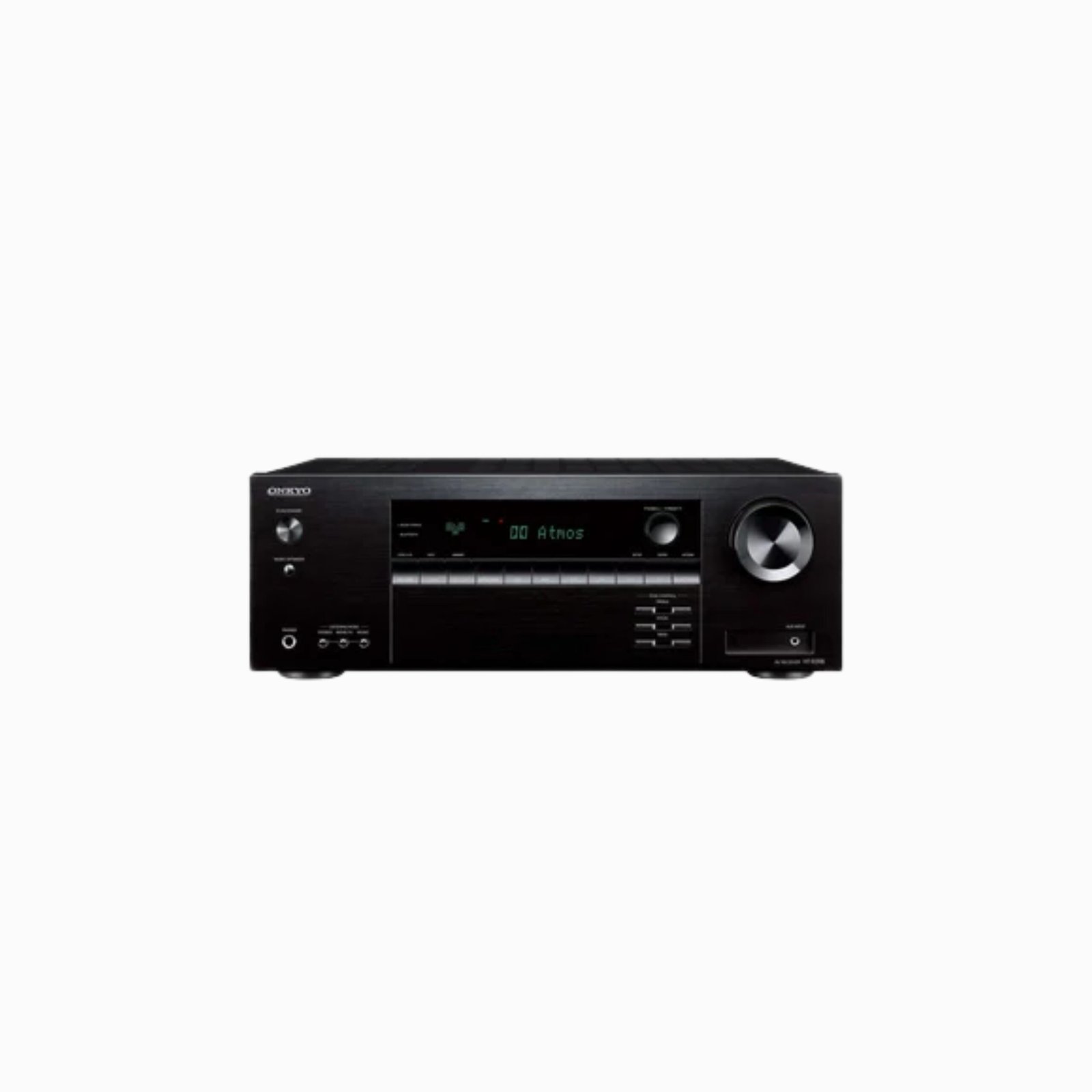

Onkyo HT-S3910 5.1 Channel Home Theater Package

Experience the ultimate in pure sound flexibility. The powerful yet compact HT-S3910 transforms tinny TV sound into a thrilling sonic sensation with Dolby Atmos® and DTS: X® playback through 3.1.2 channels. Legacy soundtracks are remapped to localize sound and add height dimensionality or enjoy 3D immersion without height or rear speakers connected, thanks to Dolby Atmos Height Virtualizer* and DTS Virtual: X™ technologies, which place you at the heart of the event. Support for 4K/60p and HDR primes you for next-gen Ultra HD content. Power an HDMI® network dongle via a USB terminal or enjoy streaming audio with Bluetooth® technology. Advanced Music Optimizer™ works magic on lossy audio. Everything you need is in the box, right down to cables to connect factory-matched speakers. These full-range units love high-current power, so turn it up and enjoy home entertainment as it’s meant to be.

Warranty:

1-year manufacturer’s warranty

Features:

• Surround yourself in Dolby Atmos® and DTS: X® sound
• Dolby Atmos Height Virtualizer
• Elevated sound with DTS Virtual: X™
• Space-saving speakers pack a punch
• Supports new 4K HDR video formats
• 155 watts per channel
• Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision®, BT.2020)
• Dolby Atmos® and DTS: X® playback
• Dolby Atmos Height Virtualizer* and DTS Virtual: X™
• Discrete high-current analog amp system with 4-ohm drive capability
• Bluetooth® technology and Advanced Music Optimizer™
• The vocal Enhancer function improves voice audibility
• Zone B analog RCA line output connects compatible devices such as wireless headphone transmitters or hi-fi systems to enable audio playback in Zone B or Main + Zone B simultaneously (including HDMI®/SPDIF)
• OSD window shows media format data for quick confirmation

Surround yourself in Dolby Atmos® and DTS: X® sound

The HT-S3910 supercharges your Dolby Atmos and DTS X experience. Object-based audio is mixed in 3D space and lets individual sounds play through any speaker, tracking the action and placing sounds all around you. Dolby Surround® and DTS® Neural X complement 3D audio playback. These technologies find localization cues in legacy stereo or multichannel soundtracks and upmix these elements to create immersive top-to-bottom dimensionality.

Dolby Atmos Height Virtualizer

When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without additional surround or height speakers.

Elevated sound with DTS Virtual: X™

DTS Virtual:X is a new sound virtualization technology that creates an immersive 3D sound field from any speaker layout, such as 2.1, 3.1, and 5.1 setups, with no need for height, surround, or rear surround speaker connections. It uses DSP-based algorithms to place the audience at the center of a multidimensional sound field with height and surround spatiality, and is effective in large or small spaces. DTS Virtual:X works with DTS:X, DTS® formats, and non-encoded stereo.

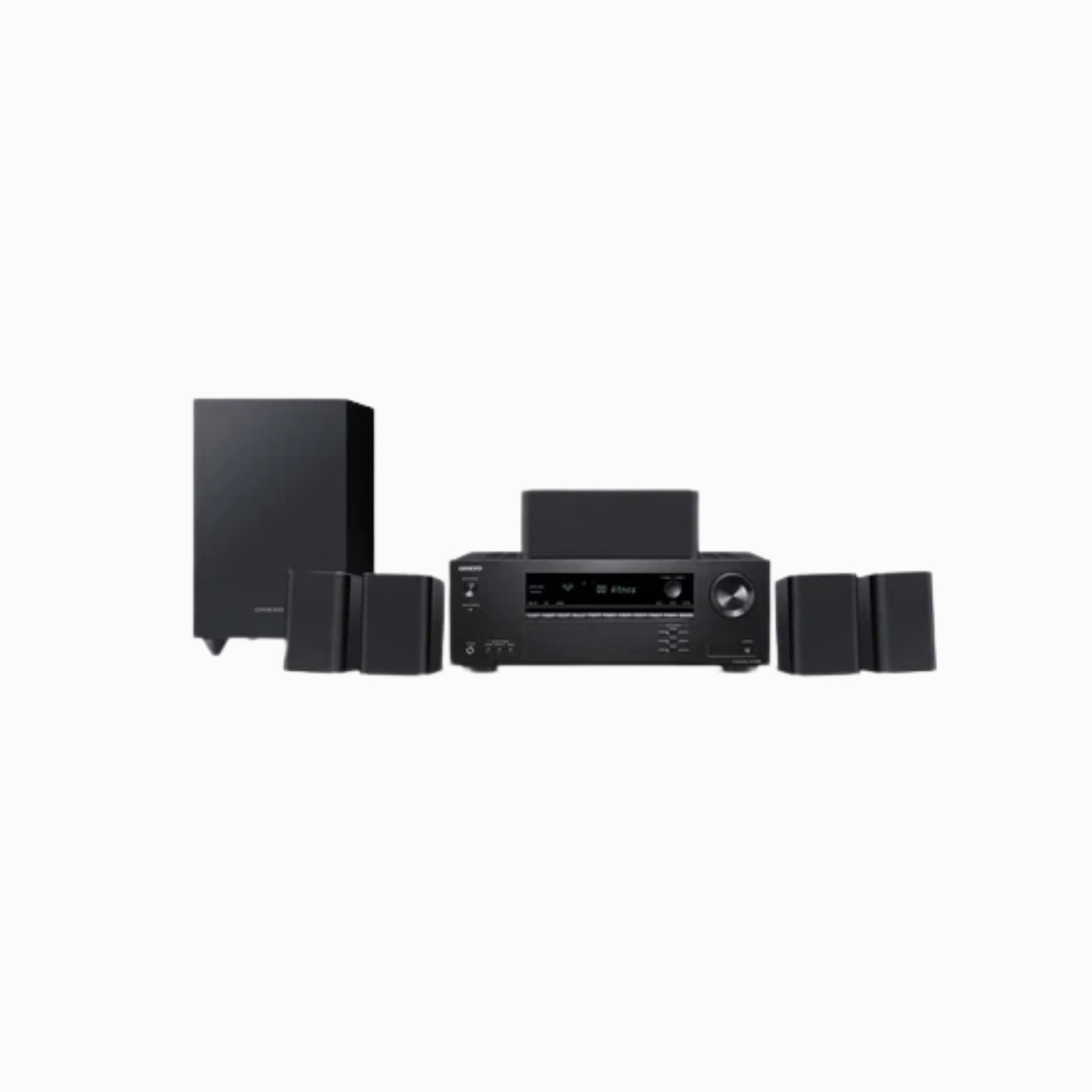

Space-saving speakers pack a punch

Want space-filling sound without speakers dominating the room? The supplied Onkyo system is factory-matched to harmonize with the amp’s unique sound signature. These compact units are pleasingly heavy thanks to large magnets and full-range drivers. The neat size makes for easy placement, even on the wall, while cloth-wrapped baffles protect against curious young fingers. With a small footprint and down-firing 16 cm cone, the powerful 120 W sub can be placed wherever you want—deep bass adds impact to LFEs in games and movies.

Supports new 4K HDR video formats

This receiver has four HDMI® inputs and one ARC-enabled output that support 4K/60p video, HDR formats (HLG, HDR10, Dolby Vision®, and BT.2020), and the ultra-large 4:4:4 color space. Video passes from the player to your 4K HDR-ready TV, while the receiver decodes and amplifies the audio. It’s easy to check that your player, receiver, and TV are working in harmony by calling up a new media input-output on-screen display using the remote control.

High current, great sound

Watts seems like the most important number on an amp’s spec sheet. However, they only indicate loudness, not audio quality. Amperes—current—are the secret to good sound. More current gives a tighter grip on the speaker cones, helping to control their travel with greater precision. Speaker control means faster dynamics, clearer detail, and more life. The HT-S3910 features a High-Current Low-Noise Power Transformer, large custom audio capacitors, and discrete high-current amps that deliver the highest flows of current in their class. Expect rhythmically exciting, energetic sound from any source.

Fix inaudible dialog at the touch of a button

We include a quick and effective function to solve the problem of inaudible dialogue in TV programs and movies. DSP-controlled Vocal Enhancer identifies vocal frequencies and allows you to raise or lower them to taste using keys on the remote or via the tone controls on the receiver’s front panel.

Share sound or enjoy privately
Any hi-fi system with an analog RCA input can be connected to the A/V receiver’s Zone B line output. Now you can share audio (including SPDIF and HDMI) to the hi-fi in Zone B, or play in both the Main Room and Zone B simultaneously. Alternatively, connect a compatible transmitter and enjoy audio from any A/V source on your wireless headphones.

Simple steps to a sweet surround

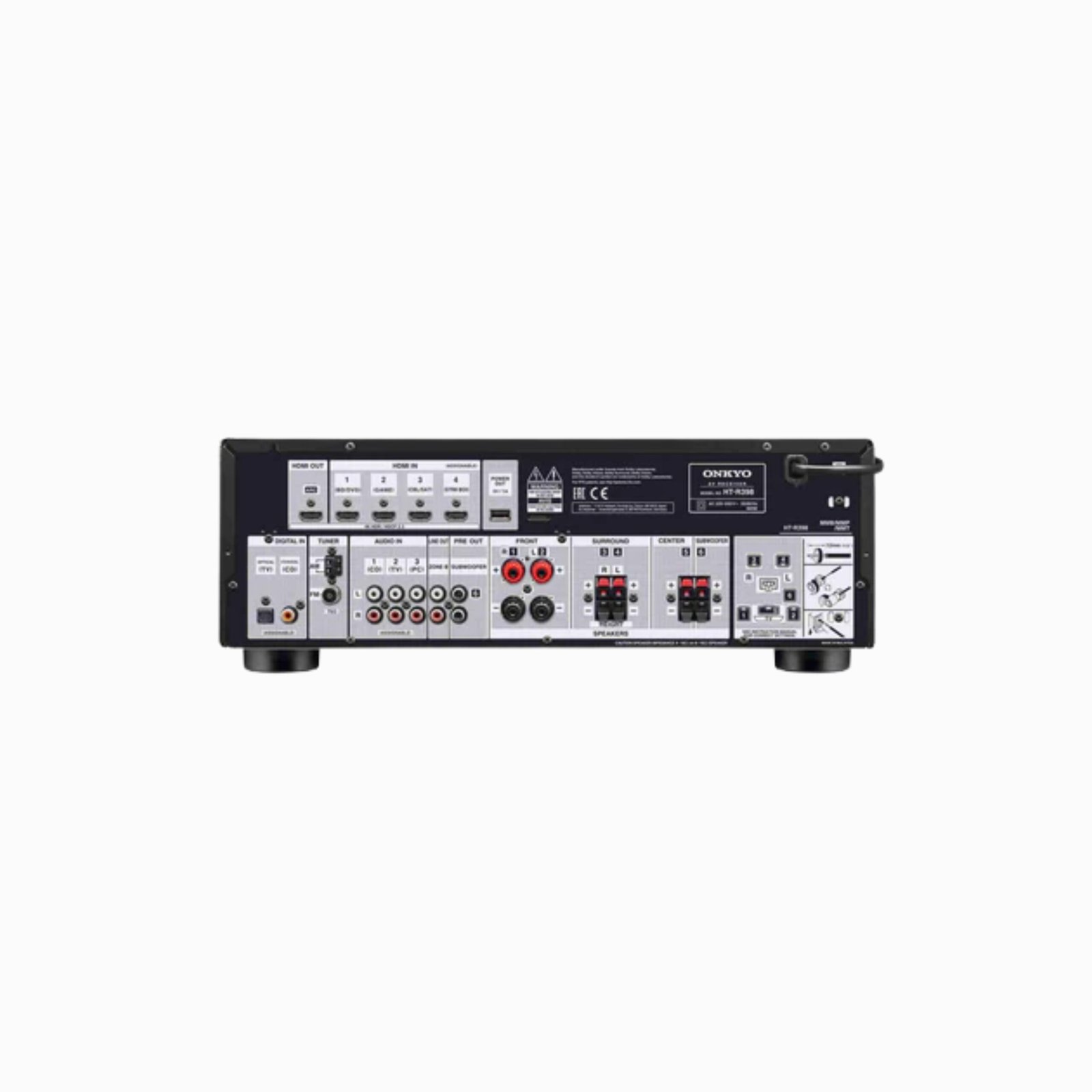

The HT-S3910 simplifies your home entertainment setup. Conceal the receiver and players in an entertainment unit. A single HDMI cable links the TV to the receiver for a super-clean look. Check the easy-to-follow diagram on the rear panel to hook up the speakers. The process takes moments; enjoyment is limitless.

Bluetooth® wireless technology with Advanced Music Optimizer™

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Compressed audio commonly stored on or streamed from smartphones, such as MP3 or AAC, is enhanced by Advanced Music Optimizer, a DSP technology that restores high-frequency bit data for rich, clear sound.

USB power for streaming dongles

A USB terminal on the rear panel powers any media streaming stick plugged into an adjacent HDMI input—great if you don’t have enough power points.

Technical Specifications:

Channels	5.1 3.1.2 in Dolby Atmos or DTS:X Setups
Power Output per Channel	80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC 155 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven Subwoofer: 80 W @ 8 Ohms, 100 Hz, 0.08% THD, FTC Subwoofer: 125 W @ 6 Ohms, 100 Hz, 10% THD
THD & Noise	0.08% (20 Hz to 20 kHz, Half Power)
Input Sensitivity and Impedance	200 mV RMS / 47 kohms (Line)
Tone Control	±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	109 dB (Line, IHF-A)
Speaker Impedance	4 to 16 Ohms
Tuning Frequency Range	FM: 87.5 MHz to 107.9 MHz AM: 530 kHz to 1710 kHz
FM/AM Preset Memory	40 Stations
Bluetooth	Yes
Audio Return Channel (ARC)	Yes
Inputs	4 x HDMI 1 x Optical TOSLINK 1 x RCA Digital Coaxial 3 x Stereo RCA 1 x 1/8″ / 3.5 mm Aux (Front)
Outputs	1 x HDMI 1 x 1/4″ / 6.35 mm Headphone (Front) 1 x Stereo RCA Zone B 2 x Subwoofer Pre-Out
Other Connections	1 x AM Antenna In 1 x FM Antenna In 1 x USB Type-A Power Out
Speaker Connectors	2 x Banana Plug-Compatible Binding Post Pairs (Front L/R) 4 x Spring Clip Pairs (Rear/Height L/R, Center, Subwoofer)
Speaker Type	Front, Center, Surround: Full-Range, Acoustic Suspension, Passive Subwoofer: Bass Reflex, Passive
Drivers	Front, Center, Surround: 1x 3″ / 7.7 cm Cone Subwoofer: 1x 6.44″ / 16 cm Cone
Frequency Response	Front, Surround: 80 Hz to 20 kHz Center: 70 Hz to 20 kHz Subwoofer: 28 Hz to 5 kHz
Output Sound Pressure Level	Front, Center, Surround: 80 dB/W/m Subwoofer: 78 dB/W/m
Maximum Input Power	Front, Center, Surround: 150 W Subwoofer: 120 W
Nominal Impedance	6 Ohms
Power Consumption	Active: 445 W Standby: 0.1 W
Dimensions (W x H x D)	Receiver: 17.1 x 6.3 x 12.9″ / 435 x 160 x 328 mm Each Front/Surround Speaker: 3.9 x 5.5 x 4.2″ / 98.5 x 140.5 x 106 mm Center Speaker: 9.6 x 3.8 x 4″ / 244 x 96 x 102 mm Subwoofer: 9.1 x 15.3 x 13.1″ / 230 x 389 x 331.5 mm
Weight	Receiver: 18.1 lb / 8.2 kg Each Front/Surround Speaker: 1.1 lb / 0.5 kg Center Speaker: 1.3 lb / 0.6 kg Subwoofer: 10.1 lb / 4.6 kg
