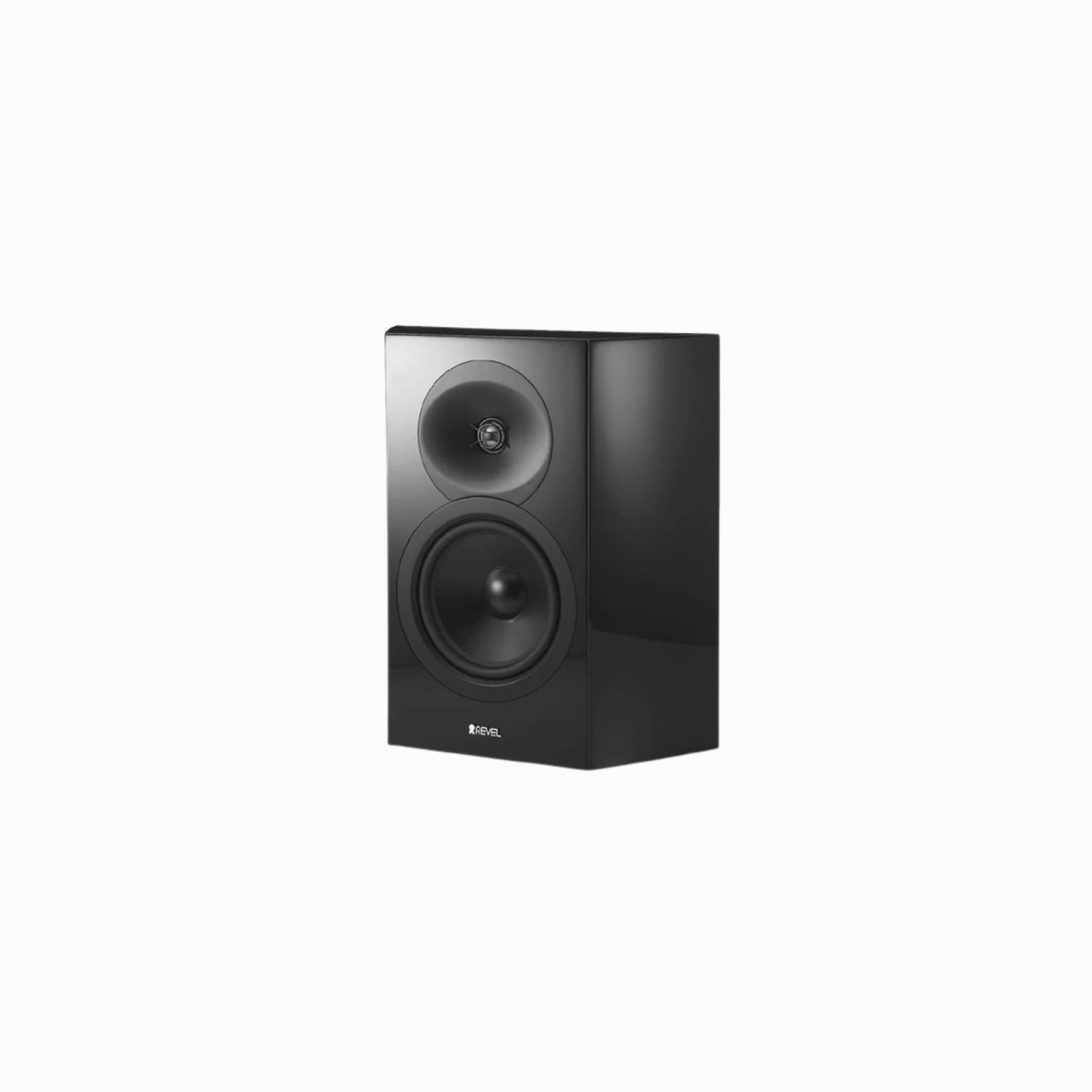

Revel Concerta2 S16 -Multi-purpose speaker

Clear Revel sound wherever you need it

The S16 is the can-do utility player in Revel’s Concerta2 speaker family. This compact 2-way design delivers clear, spacious sound whether placed on stands or a bookshelf, or mounted on the wall.

A true multi-purpose speaker, the S16 performs admirably in the role of front LCR and/or as a side/rear surround sound speaker. With S16s all around you’ll experience a realistic, enveloping surround sound environment.

Custom-designed drivers reduce bad vibrations

Revel designs and builds every driver that goes into their speakers. The S16’s 6-1/2″ woofer uses an aluminum cone that’s coated on both sides with a micro-ceramic composite compound. This stiffens the cone to help it move in a more piston-like fashion, and also reduces resonances that can color the sound.

The S16’s 1″ aluminum dome tweeter sits in Revel’s concave Acoustic Lens waveguide, which increases the tweeter’s dispersion at higher frequencies, and also helps create a more seamless match between the tweeter and the woofer just below it. The result is a very smooth, consistent sound both on-axis and off-axis, creating a larger sweet spot.

Tested by instrument and by ear

Revel’s world-class speaker design and testing facility features an anechoic chamber and the latest high-tech measurement gear. But some of their most critical test instruments are the ears of their trained listening panel. When working on a new design, Revel’s engineers set up a series of controlled auditions comparing their design to several competing speakers.

Speakers under comparison sit on a rotating platform, and each model is moved into the identical position by a computer-controlled belt drive system. An acoustically transparent screen hides the speakers from the listeners to avoid visual bias. These double-blind listening tests provide an essential reality check, and help the engineers correlate measurements with what listeners actually hear and prefer.

Who is Revel?

Revel is a high-performance audio company within the global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.
