Revel C363DT -In-ceiling stereo input speaker (Each)

Key Features

Performance & Sound Quality

Dual-voice-coil design for true stereo input from a single ceiling speaker
Two tweeters for left and right high-frequency channels, delivering wider sound coverage
Two woofers for separate left and right midrange and low-frequency output
Built-in crossover networks optimized for clear stereo separation and balanced audio

Cabinet & Build

Low-profile ceiling design for discreet, flush installation
Rigid construction to minimize resonance and coloration
Rear enclosure (back-can) for improved acoustic performance and reduced interference

Installation & Compatibility

Designed for easy flush mounting with included hardware and cut-out template
Works with standard stereo amplifier or AV receiver speaker outputs
Impedance and sensitivity optimized for typical home audio use

Application

Ideal for ceiling-mounted stereo audio in living rooms, kitchens, or commercial spaces
Delivers wide, articulate stereo sound while remaining visually unobtrusive in ceiling installations

Description

Stereo sound from a single in-ceiling speaker

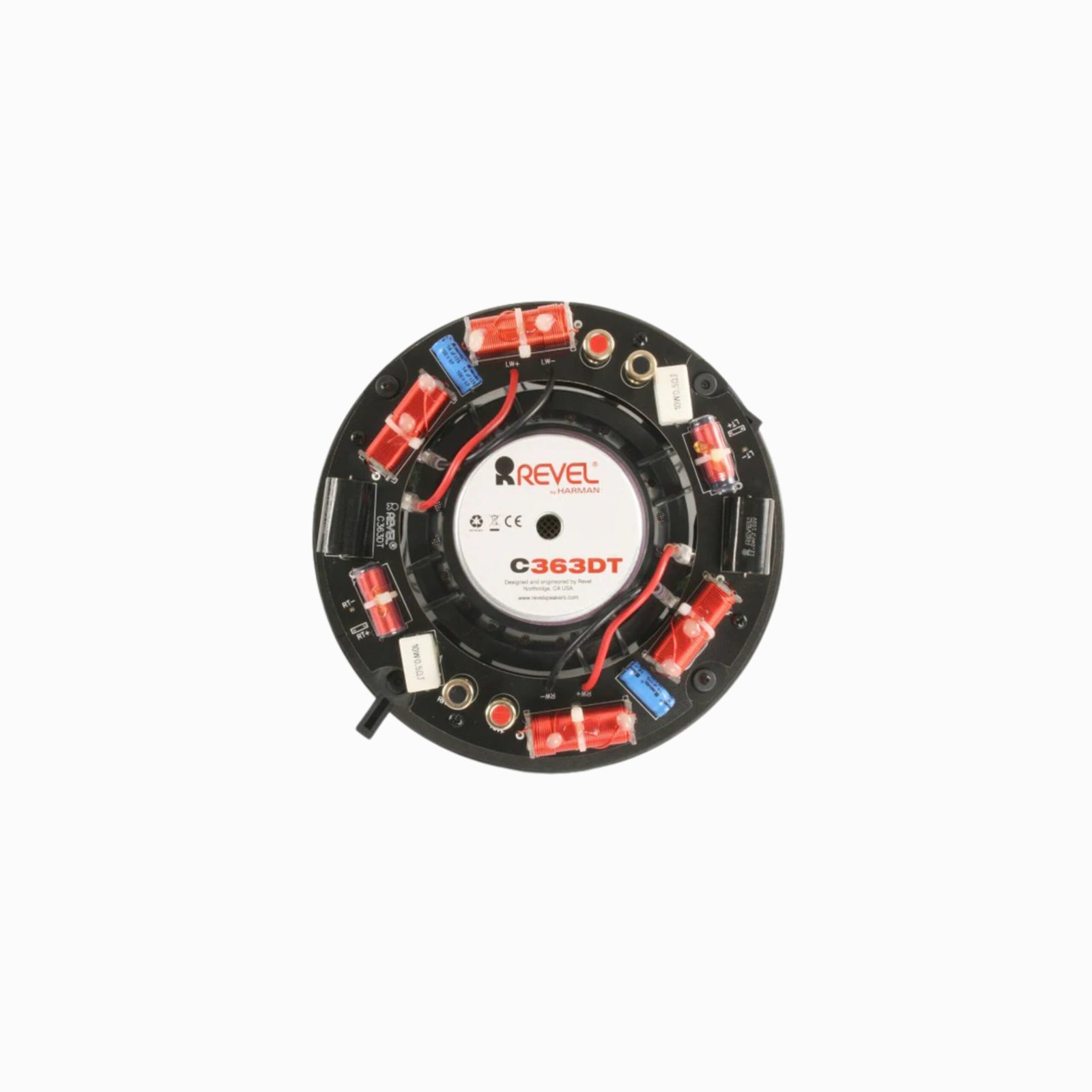

Here’s a cleverly designed solution from the audio pros at Revel. The C363DT in-ceiling speaker lets you enjoy stereo music from a single overhead speaker. Use it in areas where a pair of in-ceiling speakers may be impractical, such as hallways, entryways, small offices, or walk-in closets. Crisp bass response comes courtesy of a 6-1/2″ woofer, and smooth highs are dished out from twin 1″ aluminum dome tweeters.

The Revel C363DT’s dual-tweeter design reproduces both the left and right channels of your stereo music sources with a single speaker.

Trickle-down technology

The C363DT benefits from the research and design work that went into Revel’s higher-end in-ceiling speakers. For instance, each tweeter has an integrated waveguide, which helps provide great sound across a wide listening area. And this speaker’s high-order crossover network allows the woofer and tweeters to blend together seamlessly.

The C363DT also features two pairs of high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty ensures excellent long-term performance.

Also great for big rooms

The C363DT is an excellent choice for overhead music in large rooms. Install one in each corner of your spacious living room or bedroom and get stereo sound no matter where you’re standing. Its dual-tweeter design gives you the full song without worrying about being too close to one speaker, and too far from another. That way you aren’t hearing the guitar and vocals from the left speaker, and bass and drums from the right.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

stereo-input design plays both the left and right channels of the stereo mix

ideal for use in a hallway, walk-in closet, entryway, or small office

6-1/2″ micro-ceramic composite (MCC) woofer with cast-polymer frame

long-throw woofer design with rubber surround for high output and low distortion

two 1″ aluminum dome tweeters

integrated waveguides provide excellent on- and off-axis performance

high-order crossover network delivers accurate timbre reproduction

recommended amplifier power: 10-120 watts

includes both round and square zero-bezel magnetic grilles

grilles are paintable to match your décor

sensitivity: 88 dB

speaker cutout diameter: 8″

mounting depth: 4-13/16″

square grille dimensions: 9-1/8″W x 9-1/8″H

weight: 1.9 lbs.
