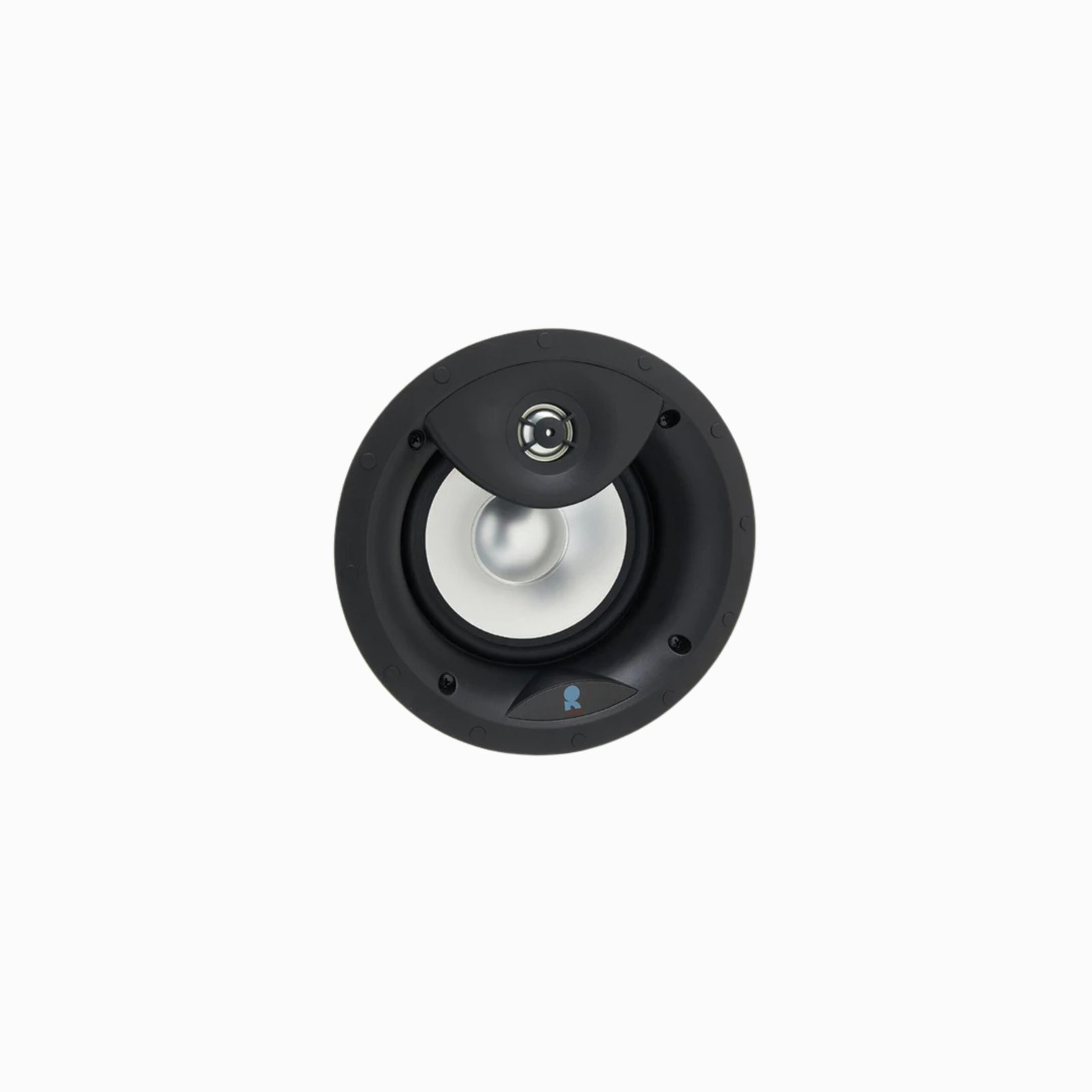

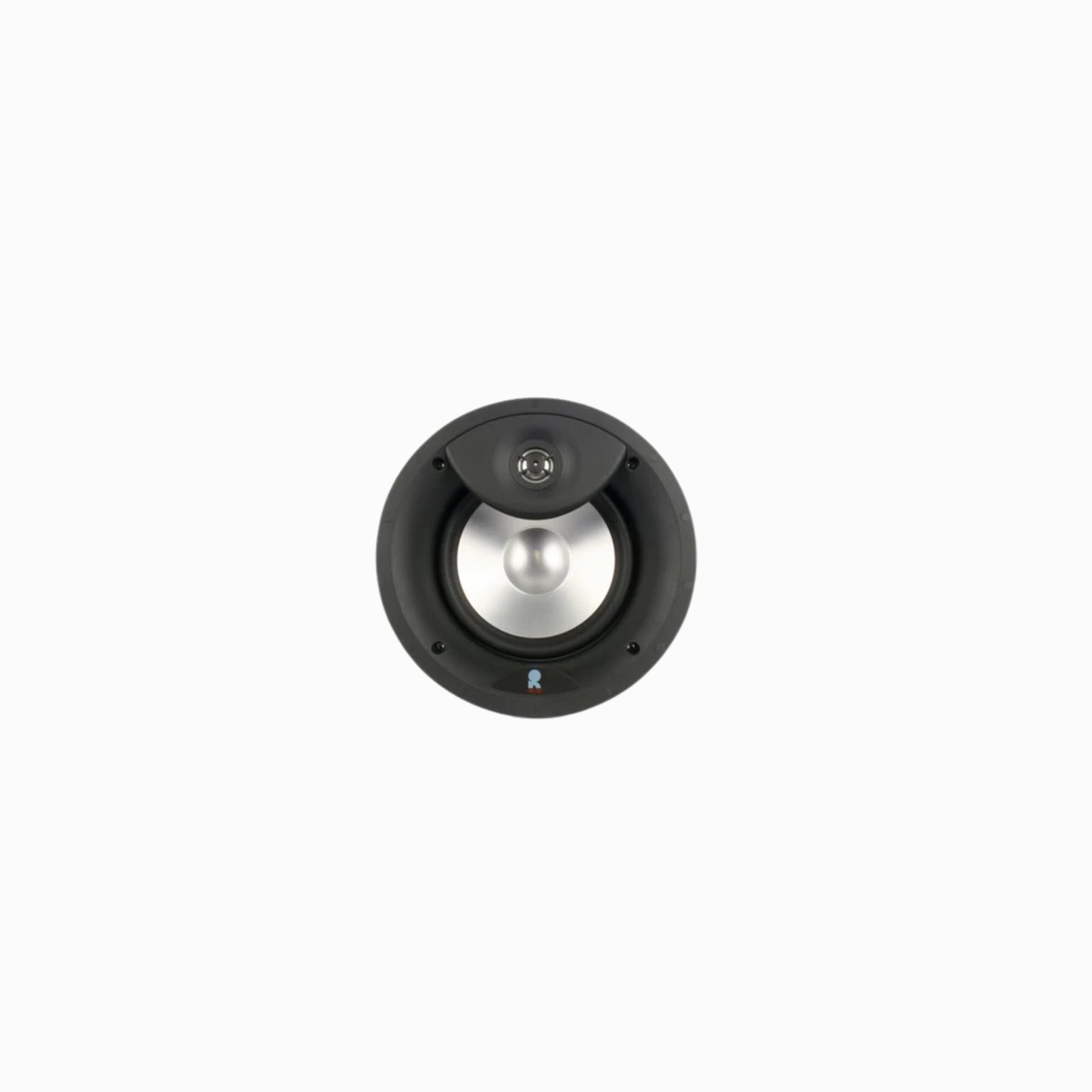

Revel C283 -8'' In-ceiling speaker (Each)

Key Features

Performance & Sound Quality

Two-way in-ceiling speaker with a dedicated tweeter and a large 8″ woofer for extended low-frequency performance
Aluminum dome tweeter for smooth, detailed high-frequency response
8″ cone woofer for strong midrange and deeper bass compared with smaller in-ceiling models
Well-engineered crossover network for seamless integration between drivers and balanced audio

Cabinet & Build

Low-profile design for flush installation in ceilings with a clean, unobtrusive appearance
Rigid construction and internal bracing to reduce resonance and coloration
Back-can enclosure to improve acoustic performance and minimize interference from ceiling materials

Installation & Compatibility

Designed for easy flush mounting with included mounting hardware and cut-out template
Compatible with a wide range of amplifiers and AV receivers
Impedance and sensitivity optimized for typical home audio applications

Application

Ideal for distributed audio systems, background music, or home theatre surround channels
Delivers clear, articulate sound with enhanced low-frequency impact while remaining visually subtle in ceiling installations

Description

A value-packed in-ceiling speaker from Revel

The Revel C283 might be the company’s least expensive 8″ in-ceiling speaker, but it shares some of the same technologies as Revel’s higher-end speakers. Its integrated tweeter waveguide provides great sound for listeners directly under the speaker, as well as those positioned off to the side. And its high-order crossover network allows the 8″ woofer and 1″ tweeter to blend together seamlessly.

The Revel C283 in-ceiling speaker features an integrated tweeter waveguide, which provides excellent on- and off-axis listening performance.

Space-saving long-term performance

Looking for clear, natural sound without the bulk of a traditional box speaker? The C283 is a great choice for a stealthy stereo system, or as an overhead effects channel of a surround sound system. A lifetime warranty ensures excellent long-term performance.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

ideal for an in-ceiling music system or overhead surround effects in a home theater system

8″ aluminum cone woofer with cast-polymer frame

long-throw woofer design with rubber surround for high output and low distortion

1″ aluminum dome tweeter

integrated waveguide provides excellent on- and off-axis performance

tweeter is aimable to direct high-frequency details towards you

high-order crossover network delivers accurate timbre reproduction

spring post speaker connectors

recommended amplifier power: 10-100 watts

paintable zero-bezel magnetic grille

sensitivity: 87 dB

speaker cutout diameter: 9-5/8″

mounting depth: 4-3/4″

weight: 3.9 lbs.
