Founded in 2006, Q Acoustics quickly built a reputation for designing and manufacturing class-leading loudspeakers. Concept 500 is the culmination of Q Acoustics’ continual evolution and refinement, resulting in what we believe is sonic perfection
Designed to appeal to discerning audiophiles, the Concept 500 achieves a perfect balance between art and science. It is a loudspeaker that is at once stylish, contemporary, fine-sounding, and astonishingly accurate. It couples low directivity with wide bandwidth, good sensitivity, and sensible impedance. This makes the new Concept 500 both room-friendly and an easy load to drive, allowing amplifiers to deliver their best performance

Warranty:

1-year manufacturer’s warranty

Features:

  • The High-end Concept 500 Floorstanding Speakers adopt advanced, innovative technologies to deliver pure audio excellence and a sensational sound stage.
  • Concept 500 pairs Point-to-Point (P2P™) bracing to deal with low-frequency panel vibrations with Helmholtz Pressure Equalizers (HPE™) to balance pressure irregularities.
  • Three separate layers are filled with a non-setting gel, which dampens the cabinet walls and converts higher frequency vibrations into heat for better performance.

Crossover
Great care has been taken in both the design of the crossover and the selection of high-grade components to introduce virtually zero noise and distortion. The 4th-order Linkwitz-Riley topology
which gives an excellent response both on and off-axis.

High-Frequency Driver

Mechanically decoupled mounting effectively isolates the HF driver and speaker cabinet from reciprocal vibrations that would otherwise be transmitted between them.

Cabinet Bracing

A method, known as P2P™ (Point to Point) bracing, supports the parts of the cabinet that need to be stiffened to deal with low-frequency panel vibrations.

Mid/Bass Drivers
The Mid/Bass voice coil has an uncommonly large diameter of 35mm, which allows increased ‘shove’ and higher power handling and reduces compression.

Cabinet Walls
Constructed in three separate layers and filled under pressure with a non-setting gel, this damps
The cabinet walls convert higher frequency vibrations into heat.

Pressure Equalisers
Tall loudspeakers tend to suffer from resonances caused by unwanted pressure gradients. Specially
designed Helmholtz Pressure Equalisers (HPE™) to balance out these pressure irregularities.

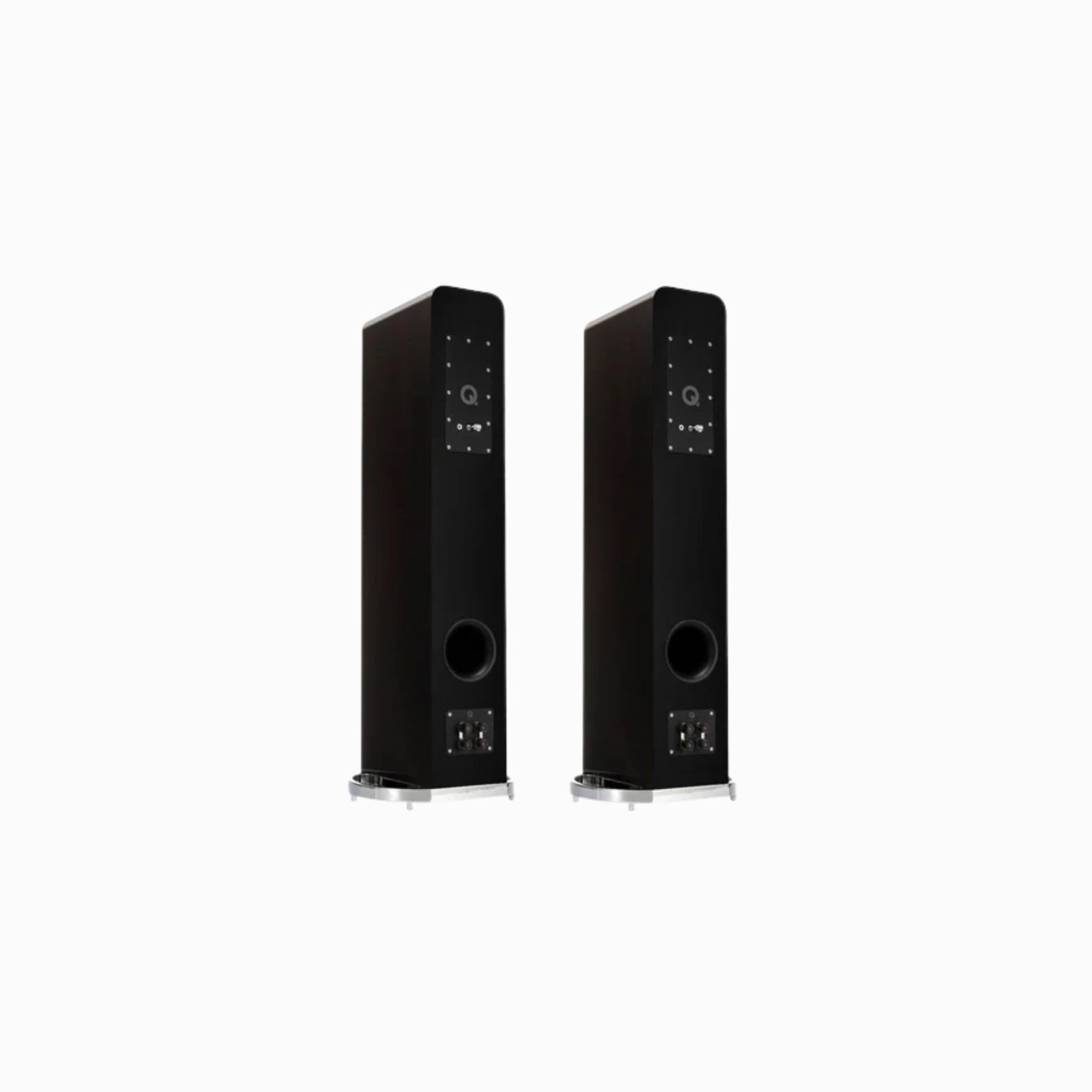

Terminals and Rear:
Access Panel – The rear access panel has been constructed to maintain the integrity of the Dual Gelcore™ cabinet. The Concept 500 is equipped for bi-wiring or bi-amping with terminals that can accept bare wires, spades, or 4 mm banana plugs.

Cabinet Plinth:
The cast aluminum base of Concept 500 is designed without large flat areas or additional adornments to discourage unwanted acoustic reflections. The resulting elegant design is underpinned by a choice of carefully engineered feet to immovably couple the loudspeaker to any surface.
Concept 500 is the embodiment of the elegant design, compatible with a contemporary living space and not specific to any particular style of interior. The appearance has been pared back to be as clean looking as possible, with rear-mounted mid / bass drivers keeping the baffle uncluttered and embedded magnets securing the grille so no fixings are visible.
Gloss black or gloss white finishes have each been combined with Italian real wood veneer, chosen for its consistency in color and pattern. The veneer is used sparingly in a subtle strip to create
a cabinet that is visually light and clean. The white gloss finish has been attractively paired with pale oak, and the black gloss with deep rosewood. Multiple coats of lacquer have then been added to give a deep piano gloss finish.

Technical Specifications:

Frequency Response 41 Hz – 30 kHz
Average Impedance 6 Ω
Minimum Impedance 3.7 Ω
Recommended Power 25 – 200 W
Distortion (120 Hz – 20 kHz) 0.20%
Crossover Frequency 2.5 kHz
Mid-Bass / Driver 2 x 165 mm
High-Frequency Unit 28 mm
Size (W x H x D) 400 x 1150 x 350 mm
Weight 42 kg
Links are provided to adjust the high frequency + or – 0.5 dB
