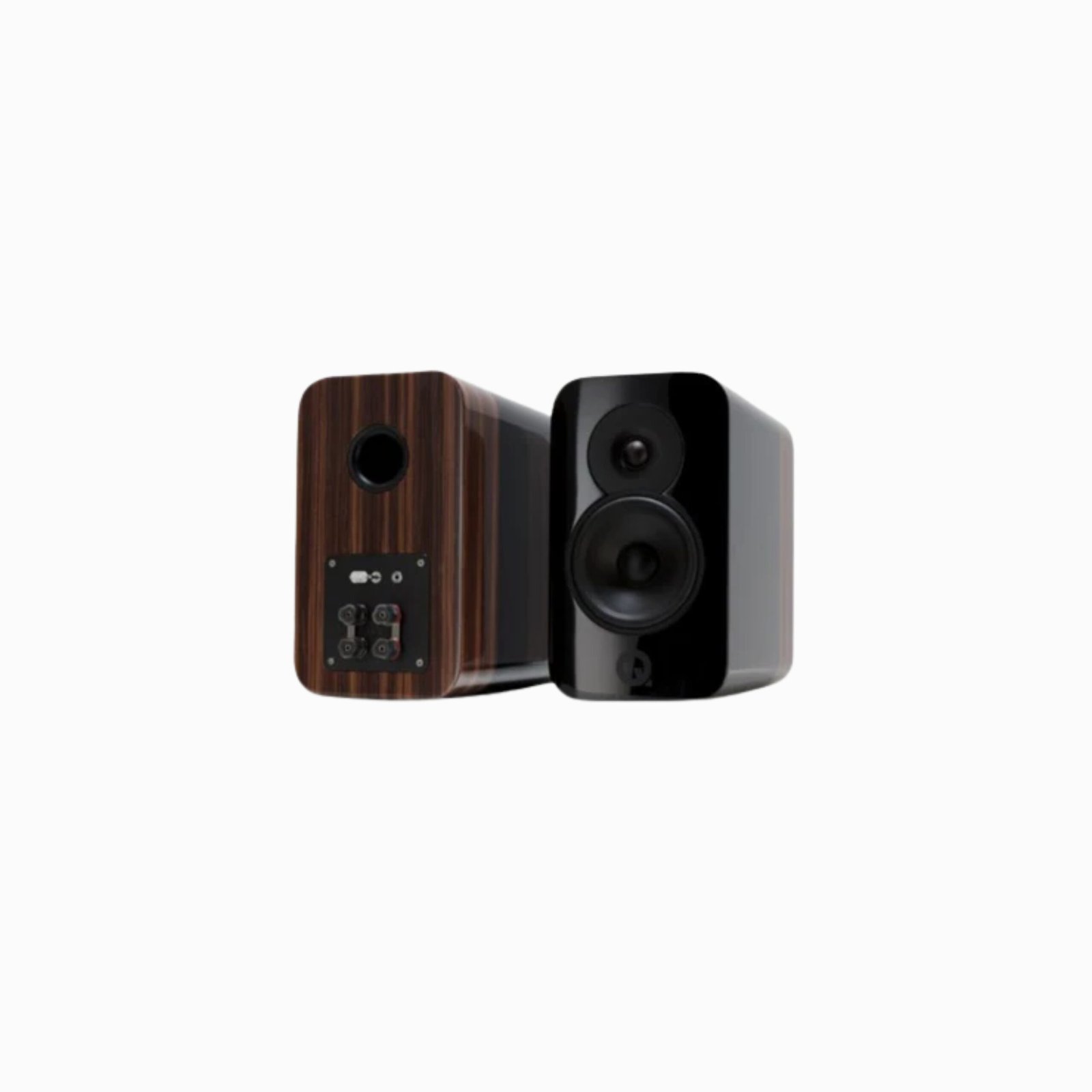

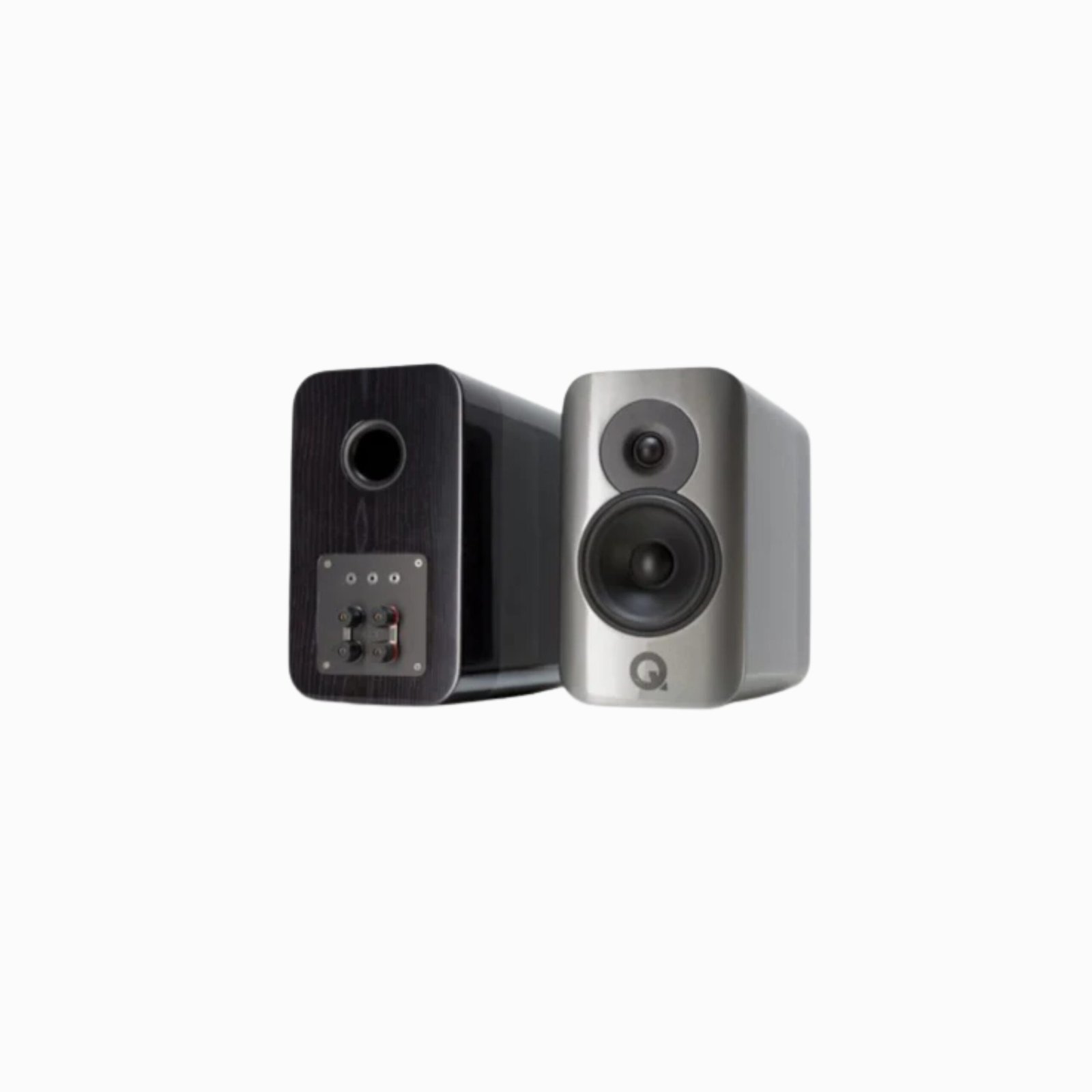

The Concept 300 is a high-end, high-performance loudspeaker that’s respectfully sophisticated and able to interact discreetly with any interior design vocabulary. On the outside, numerous lacquer coats produce a high-quality gloss finish, which is combined with real-wood veneers. This results in a cabinet that manages to be clean and understated, but at the same time sophisticated and stylish.

Since its founding in 2006, Q Acoustics has built an unrivalled reputation for designing, engineering, and manufacturing innovative, high-performance, and class-leading loudspeakers at every price point. This ongoing and concerted demonstration of excellence has all led to Concept 300.

The brief for Concept 300 is simple, yet staggeringly ambitious. Build on the runaway success of the floor-standing Concept 500 and deliver a stand mounting alternative that’s at once more affordable, of utterly uncompromised performance, and stylish, understated elegance.

There follows a brief explanation of just how Q Acoustics has made this happen and, by extension, why Concept 300 represents the state of loudspeaker art in the 21st century.

Warranty:

1-year manufacturer’s warranty

Features:

  • Concept 300 redefines the relationship between speaker and stand by using a completely new Tensegrity stand design
  • The Tensegrity stands comprise a structure of load-bearing solid stainless steel bars to form an inherently stable tripod
  • An Isolation Base Suspension System prevents vibrations from moving in either direction through the bottom of the speaker
  • Point 2 Point™ cabinet bracing damps the speaker cabinet walls, eliminating unwanted energy and reducing distortion
  • Dual Gelcore™layered cabinet converts higher-frequency vibrations into heat for ultra-quiet cabinet construction
  • High-quality drivers, also decoupled from the cabinet, combined with the crossover, to give superior wide dispersion

Design
The days of performance being the be-all and end-all of a loudspeaker are long gone. Aesthetic considerations are perfectly valid and, to this end, in the Concept 300 Q Acoustics has designed a high-end, high-performance loudspeaker that’s unshowy, sophisticated, and able to interact discreetly with any interior design vocabulary.
On the outside, numerous lacquer coats produce a high-quality gloss finish, which is combined with real-wood veneers. This results in a cabinet that manages to be clean and understated at the same time as being of obviously high perceived value. The uncluttered look of the cabinets is further enhanced by innovative drive unit mounting. Both the tweeter and mid/bass driver are fixed, from behind, by strong spring-tensioned retaining bolts which negate the need for any exposed bolt-heads on the speaker’s face.

At the rear of the speaker, Concept 300 features an over-specified terminal panel that is designed to resist vibrations from the cabinet. It’s equipped for bi-wiring (or bi-aping) via its electrically isolated terminals – these can accept bare wire, spade connectors, or 4mm banana plugs.

Cabinet and Stand
Ideally, the only vibrations a loudspeaker produces are the ones required to generate its sound. Of course, it’s not possible to entirely rid a loudspeaker cabinet of unwanted vibrations that can interfere with its performance – but, as Q Acoustics has demonstrated with Concept 300, it is possible to keep cabinet vibrations to an absolute minimum in order to deliver entirely uncorrupted sound. Q Acoustics uses MDF rather than one of the more glamorous and/or expensive alternatives to construct the Concept 300 cabinet. There are a couple of reasons for this: a) alternative materials offer no benefits in terms of damping, or even ease and simplicity of construction, over the very high-performance MDF delivers, and b) more expensive materials simply drive up the eventual price of the speaker for no audio gain whatsoever.

Point 2 Point Bracing™
The intelligence of the design of the Concept 300 cabinet is evident in its use of P2P (point-to-point) bracing. Q Acoustics is able to measure the performance of the cabinet structure at a microscopic level and identify the precise positions that require support.

So the P2P targeted cabinet-bracing method means the cabinet has exactly the support it needs, and no more. In this instance, a long and involved analysis of a problem results in a simple and brilliantly effective solution.

Dual Gel core™
Having dealt with lower-frequency vibrations using P2P bracing, Q Acoustics then negates higher-frequency cabinet vibrations using its bespoke Dual Gel core technology.

The Concept 300 cabinet is comprised of three individual layers, each separated by a non-setting gel – the gel acts rather like a high-tech and extremely effective gasket. Any stray high-frequency vibrations are converted into heat, which dissipates within the gel.

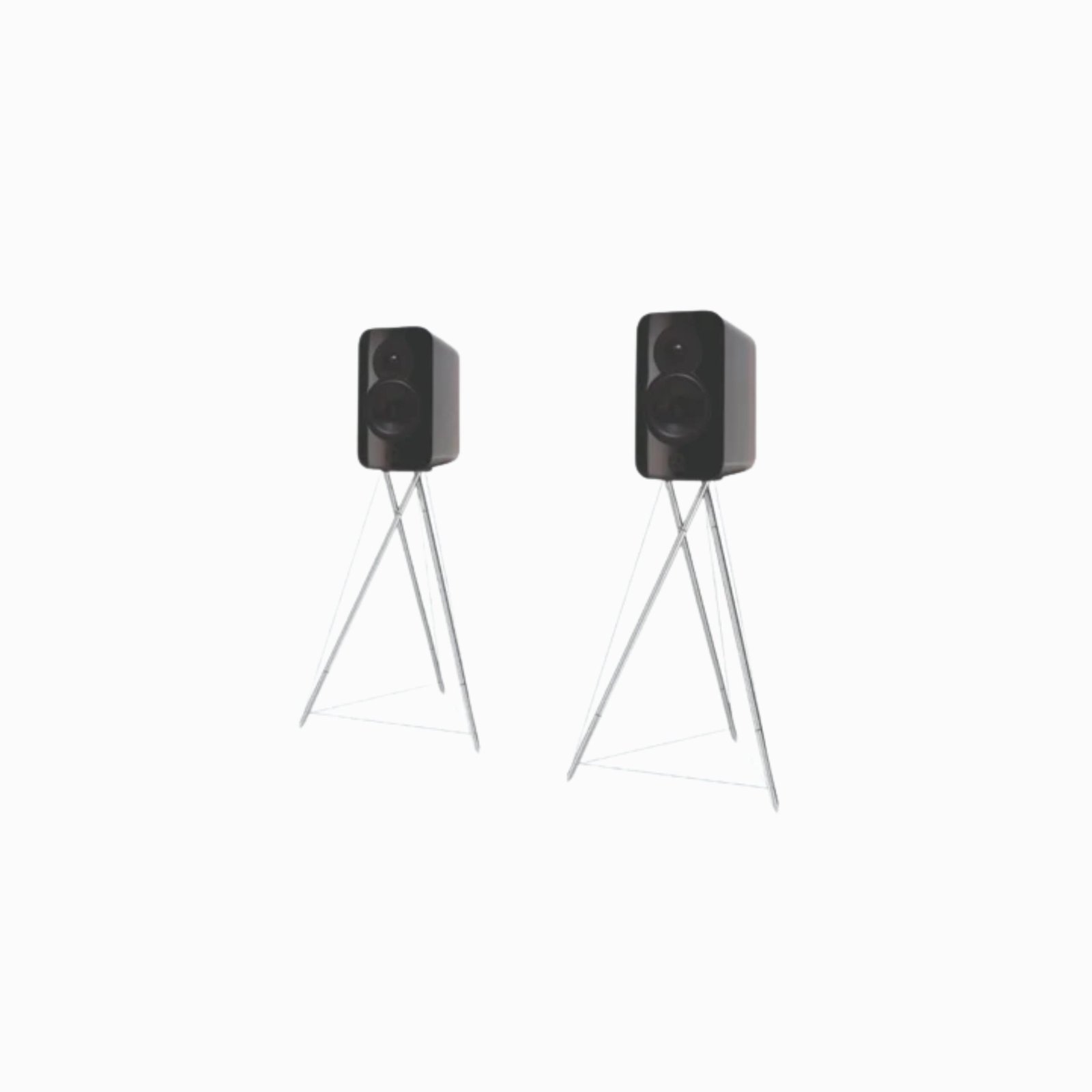

Tensegrity Stand & Isolation Base System

With a standmounting speaker design like this, of course, the speaker’s relationship with its stand is of fundamental importance. It’s the design of the new Tensegrity stand, and the new isolation base suspension system that joins Concept 300 to it, that allows Q Acoustics to redefine the level of performance that’s possible from a smaller loudspeaker.

Tensegrity is a tripod – by definition, an extremely stable structure. It’s built from lightweight aluminium tubes (which are the load-bearing elements) and thin stainless steel cables (which maintain the position of the load-bearing tubes). The result is a light, exceptionally rigid and self-supporting structure with a remarkably low surface area and – let’s not pretend otherwise – beautifully elegant appearance. It’s not so much a speaker stand, it’s more an entirely new loudspeaker support concept.

But, of course, it’s of little consequence how efficient your speaker cabinet is, or how ingenious the design of the stand it works from, if the union between the two is unsympathetic or inefficient. Q Acoustics joins the Concept 300 speaker to the Tensegrity stand with the new isolation base suspension system, which is about as sympathetic and efficient as it gets.

The entire mass of Concept 300 is suspended on the four springs of the newly developed integrated base plate. This isolation base system works in multiple ways: it prevents energy from the speaker leaking into the Tensegrity stand and affecting the sound, it prevents vibrations from the floor making their way from the stands into the speaker, and in every circumstance, it provides a rigid coupling between speaker and stand.

Thanks to the combination of Tensegrity stand and isolation base suspension, the performance of Concept 300 is entirely unhindered by internal or external influences.

Driver Units and Crossover
Q Acoustics has taken its proven (and acclaimed) driver technology from the Concept 500 floor-standing speaker and enhanced its performance to perfectly match the requirements of Concept 300’s smaller cabinet. The mid/bass driver is a 165mm impregnated/coated paper cone with very low resonance thanks to its high-performance rubber surround. It sits in front of a large (35mm) glass fibre voice coil and equally substantial ferrite magnet. The result is a midrange and bass response that’s as punchy and dynamic as it is poised and eloquent.

Above it, the 28mm high-frequency driver, made of super-fine strands of coated microfiber, is decoupled from the speaker cabinet using a rubber gasket. This protects the tweeter from sending or receiving unwanted vibrations and allows it to be mounted close to the mid-bass driver. This improves integration with the larger driver, and the very subtle horn-shaped profile to the tweeter’s front plate allows perfect impedance-matching with its environment without colouring performance.

Results

A combination of rigorous engineering, uncompromised industrial design, and inspirational aesthetics makes Concept 300 the most fully realised loudspeaker Q Acoustics has yet delivered. In combination with the equally meticulous Temerity stand, Concept 300 represents a step-change in loudspeaker design and a redefinition of what is possible at its price.

In The Box

  • 2 x Concept 300 Speakers
  • 1 x User Manual
  • 2 x Cleaning Cloth
  • 2 x Jumper
  • 2 x Foam Bungs
  • 2 x Speaker stands (Optional)
  • 6 x Spikes
  • 6 x Rubber Spike Covers
  • 6 x Top Plate Screws
  • 8 x Speaker Screws
  • 1 x Manual

Technical Specifications:

Enclosure type 2-way reflex
Mid/bass driver 165mm
High-frequency unit 28mm
Frequency response 55Hz – 30kHz
Nominal impedance 6 ohms
Minimum impedance 4.7 ohms
Sensitivity 84dB
Stereo Amplifier Power 25-200w
Crossover Frequency 2.5kHz
Effective Volume 11.4L
Dimensions W/H/D 220 x 355 x 400mm
Weight 14.5kg (per speaker)
Carton Dimensions W/H/D 320 x 500 x 520mm
Packaged Weight 16.6kg (per speaker)
Dimensions W/H/D 492 x 690 x 430mm
Weight 3.9kg (per stand)
Carton Dimensions W/H/D 740 x 780 x 460mm
Packaged Weight 12.3kg (pair)
