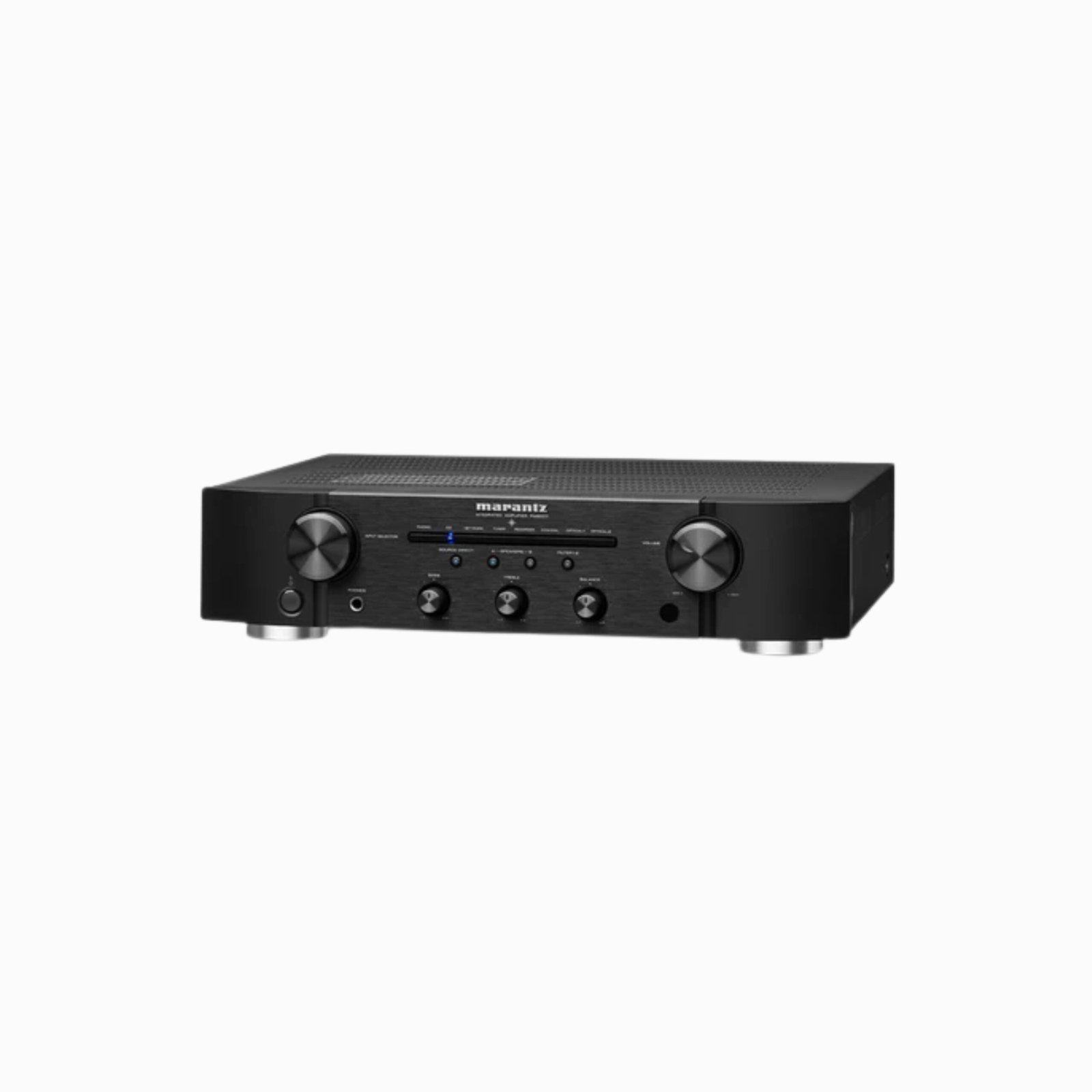

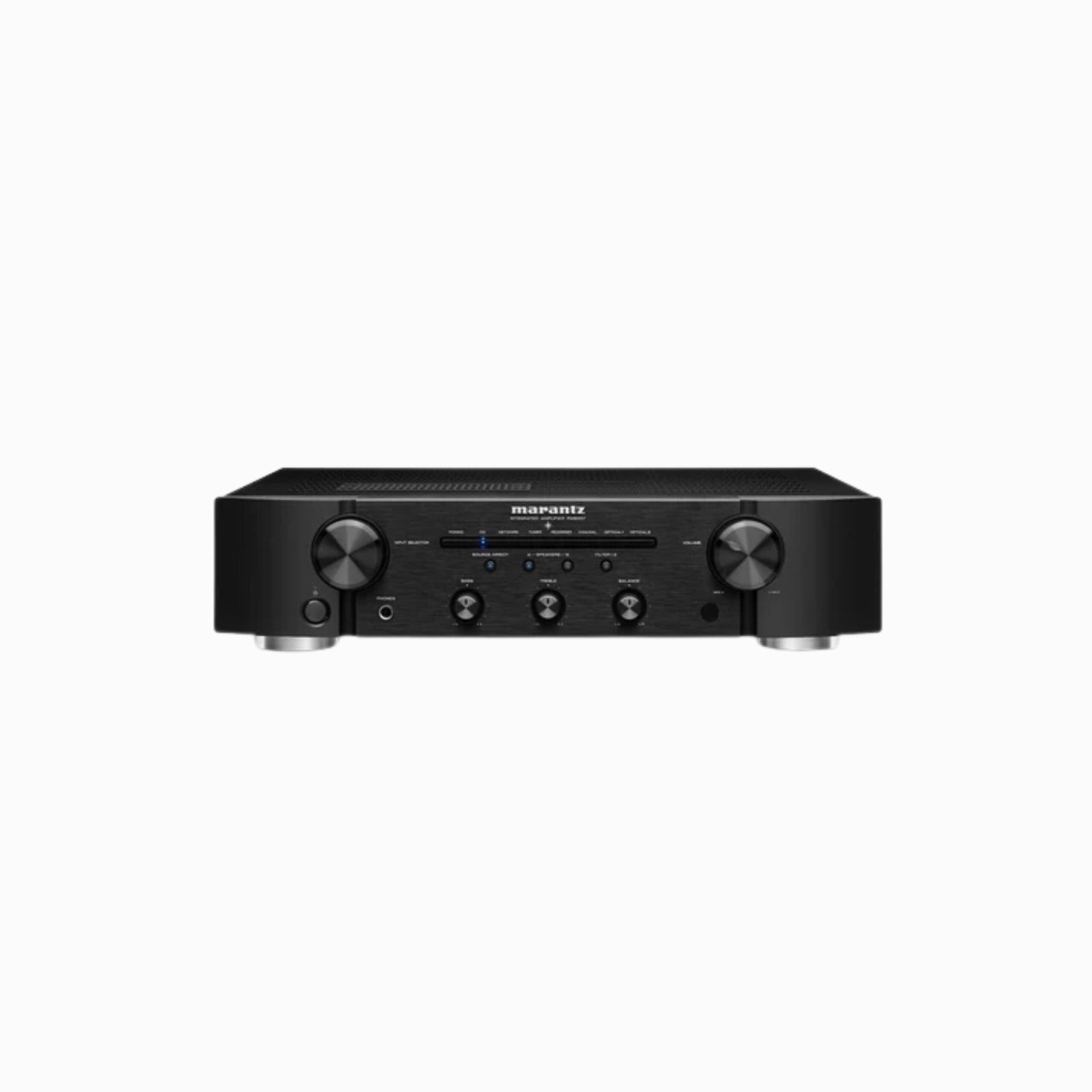

Marantz PM6007 Integrated Amplifier with Digital Connectivity

Key Specifications

Power Output: 45W per channel (8Ω), 60W per channel (4Ω)

Amplifier Design: Current-feedback topology with Marantz HDAM-SA3 modules

DAC: Built-in AK4490 high-resolution digital-to-analog converter

Digital Inputs: 1 coaxial, 2 optical (supports up to 192 kHz / 24-bit audio)

Analog Inputs: 5 RCA inputs, including a high-quality MM phono stage

Subwoofer Output: Yes (with fixed 150 Hz low-pass filter)

Tone Controls: Bass, treble, balance + “Source Direct” mode

Frequency Response: 10 Hz – 70 kHz

Power Supply: Toroidal transformer with high-current capability

Speaker Terminals: A/B dual speaker switching

Dimensions: 440 × 370 × 105 mm

Weight: ~7.6 kg

Description

Marantz PM6007 Integrated Amplifier with Digital Connectivity featuring an upgraded, high-quality DAC, digital inputs, and a newly revamped built-in phono equalizer, the Marantz PM6007 integrated amplifier features ample connectivity and creates a realistic listening experience for the most musical sound.

Warranty:

1-year manufacturer’s warranty.

Advanced technology
A two-channel integrated amplifier powered by a low-impedance toroidal power transformer, along with high-speed Schottky barrier diodes and high-current storage capacitors, delivers 45W (8Ohms, 20Hz-20kHz) of power per channel
Current Feedback Amplifier technology uses a high-current power supply by holding a large energy reserve to drive the speakers with wide-bandwidth and high-speed sound reproduction
Internal thermal compensation eliminates memory distortion for crystal-clear sound amplification in all conditions

Digital connectivity
Reference class AK4490 D/A converter lets you enjoy hi-res digital audio formats with up to 192kHz/24-bit for a truly immersive listening experience
The amplifier allows simple connection for both digital and analog audio sources, including a turntable, to experience exceptional dynamic sound without any distortion

Multiple connectivity options
Built-in phono pre-amp with FET input lets you enjoy your music from your turntable
The subwoofer output port makes it easy to pair your subwoofer to experience thumping bass with spectacular clarity
MM phono input lets you play your favorite records directly from any device you connect to the amplifier

Technical Specifications:

Power Consumption in W	155
Standby Consumption in W	0.3
Auto power off	Yes
Detachable Power Cable	Yes
Remote Control	RC004MCD
System Remote Function	Yes
Maximum Dimensions (W x D x H) in mm	440 x 370 x 105
Weight	7.6Kg
Power Output (8 / 4 Ohm RMS)	45 W / 60 W
Frequency Response	10 Hz x 70 kHz
Total Harmonic Distortion	0.08%
Damping Factor	100
Input Sensitivity: MM	2.2 mV / 47 kOhm
Input Sensitivity: MC	Yes
Signal to Noise Ratio MM / MC	83 dB
Input Sensitivity	200 mV / 20 kOhm
Input Sensitivity	Balanced High-level
Signal to Noise Ratio: High level	102dB(2V input)
Input Sensitivity: Power Amp Direct IN	Yes
Signal to Noise Ratio: Power Amp Direct IN	Yes
Audio Inputs	5
Digital in: USB-B / optical/coaxial / USB-A	2 / 1
Audio Outputs	1
Pre-out / Main-in	subwoofer
Gold Plated Cinch	Yes
Speaker A / B	Yes
Speaker Terminals	Metal (Gold) Screw
Number of terminals	4
D-Bus	Yes
Headphone Out	Yes
