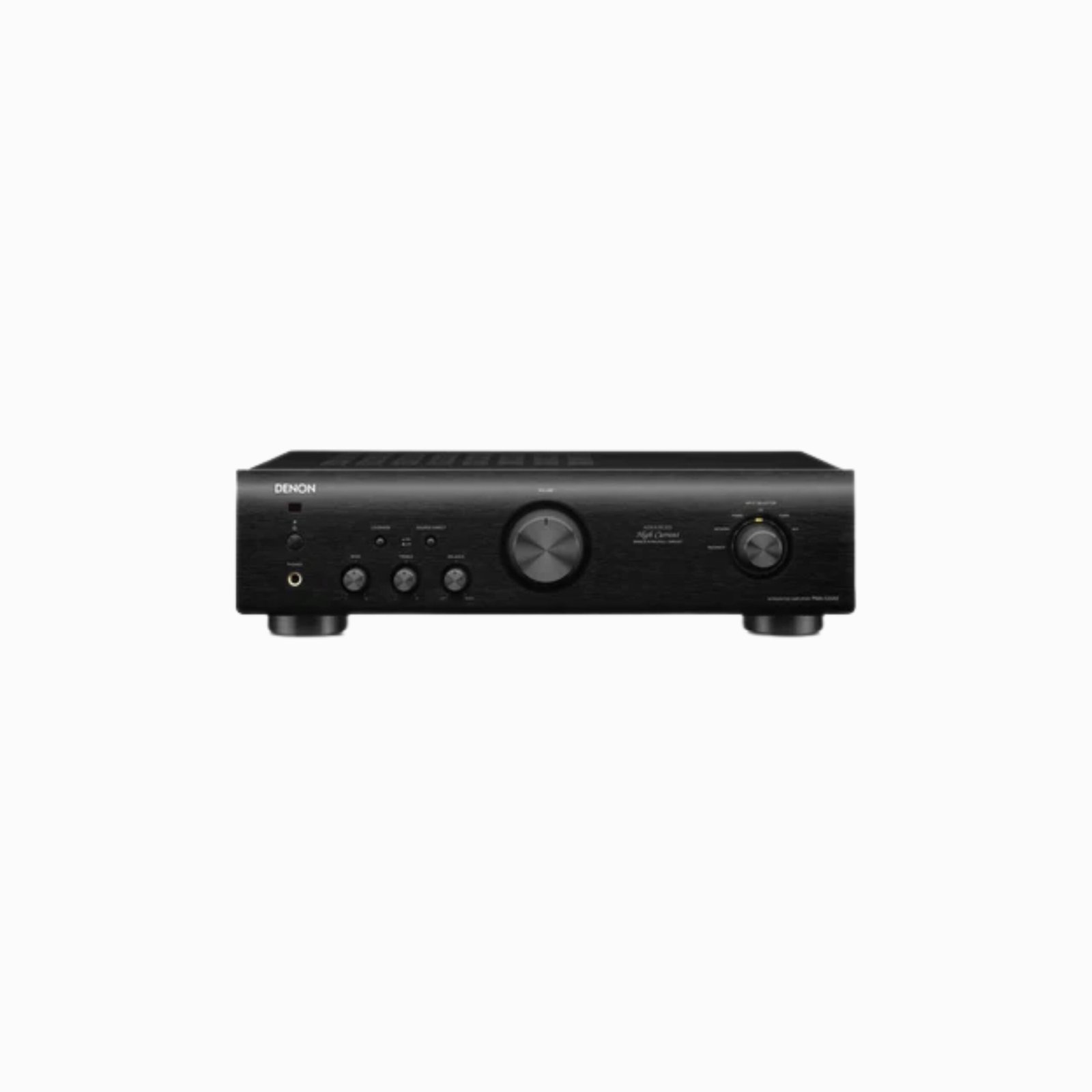

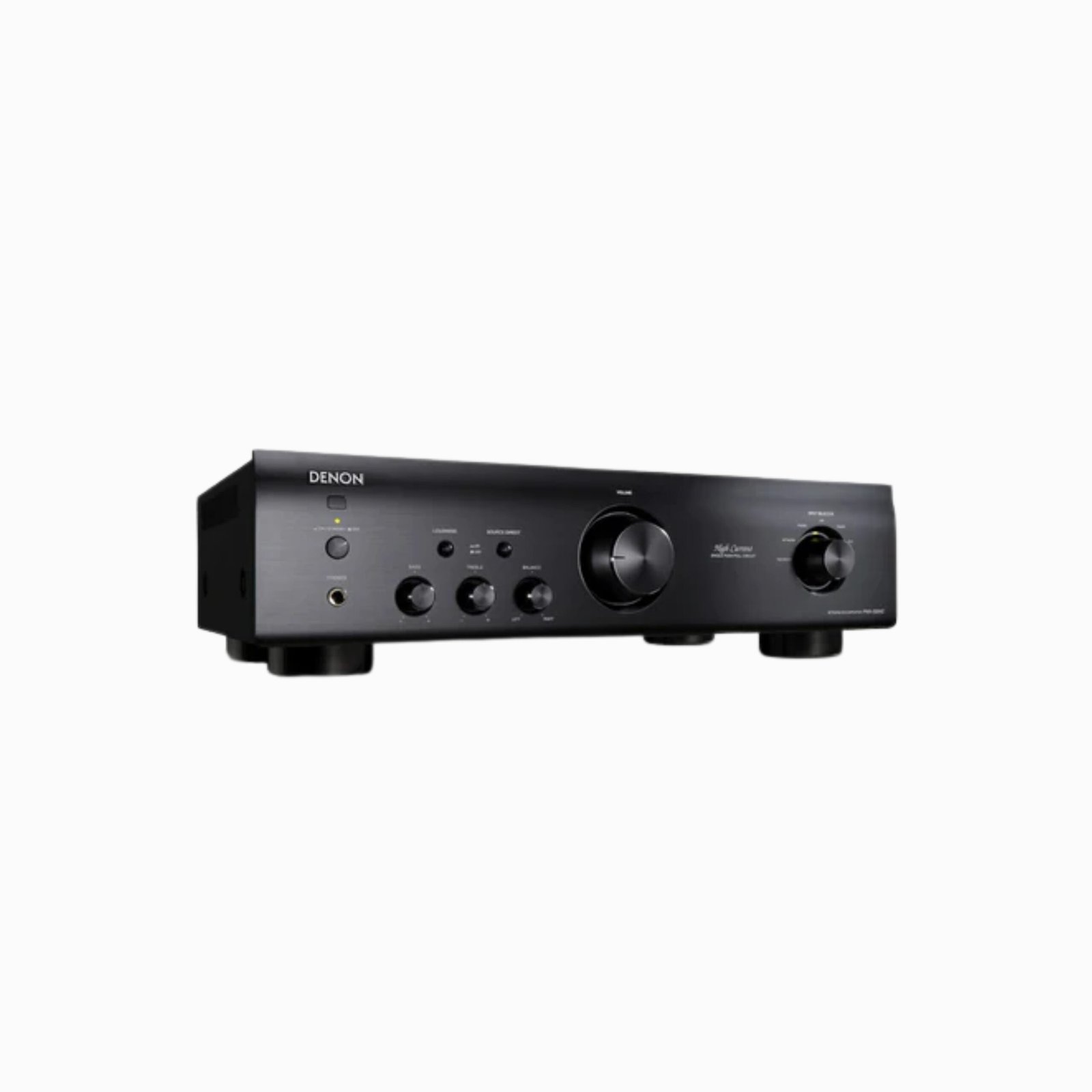

Denon PMA-520AE integrated amplifier features a High-Current Single-Push-Pull circuitry to achieve both strength and detail in music playback, which is Denon’s focus for its pure audio amplifiers

Warranty:

1-year manufacturer’s warranty

Features:

  • Improved sound quality
  • Newly designed system remote control
  • ECO-friendly with low power consumption in standby and auto power off
  • New, higher-quality speaker terminals

State-of-the-art Denon Solutions for Maximizing Content Quality

  • 70 W x 2 ch (4 ohms)
  • High Current (HC) Single-Push-Pull Circuit
  • Wide dynamic range, supporting high-grade audio sources
  • Main transformer with separate power supplies
  • Microprocessor stop mode
  • Vibration-resistant design with Direct Mechanical Ground Construction
  • European sound-tuned
  • Phono Equalizer Amp (MM)
  • Aluminum front panel

Ease-of-use

  • ECO-friendly with low power consumption in standby and auto power off
  • Remote also controls Denon CD players and network players
  • Front panel layout, designed for ease of use

Technical Specifications:

Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) 45 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 70 W
Total Harmonic Distortion 0.02%
Input Sensitivity: MM 2.5 mV / 47 Kohm
Signal to Noise Ratio: MM/MC 84 dB
Input Sensitivity: High level 110 mV / 30 Kohms
Signal to Noise Ratio: High level 105dB
Treble Control ± 8 dB at 10 kHz
Bass Control ± 8 dB at 100 Hz
