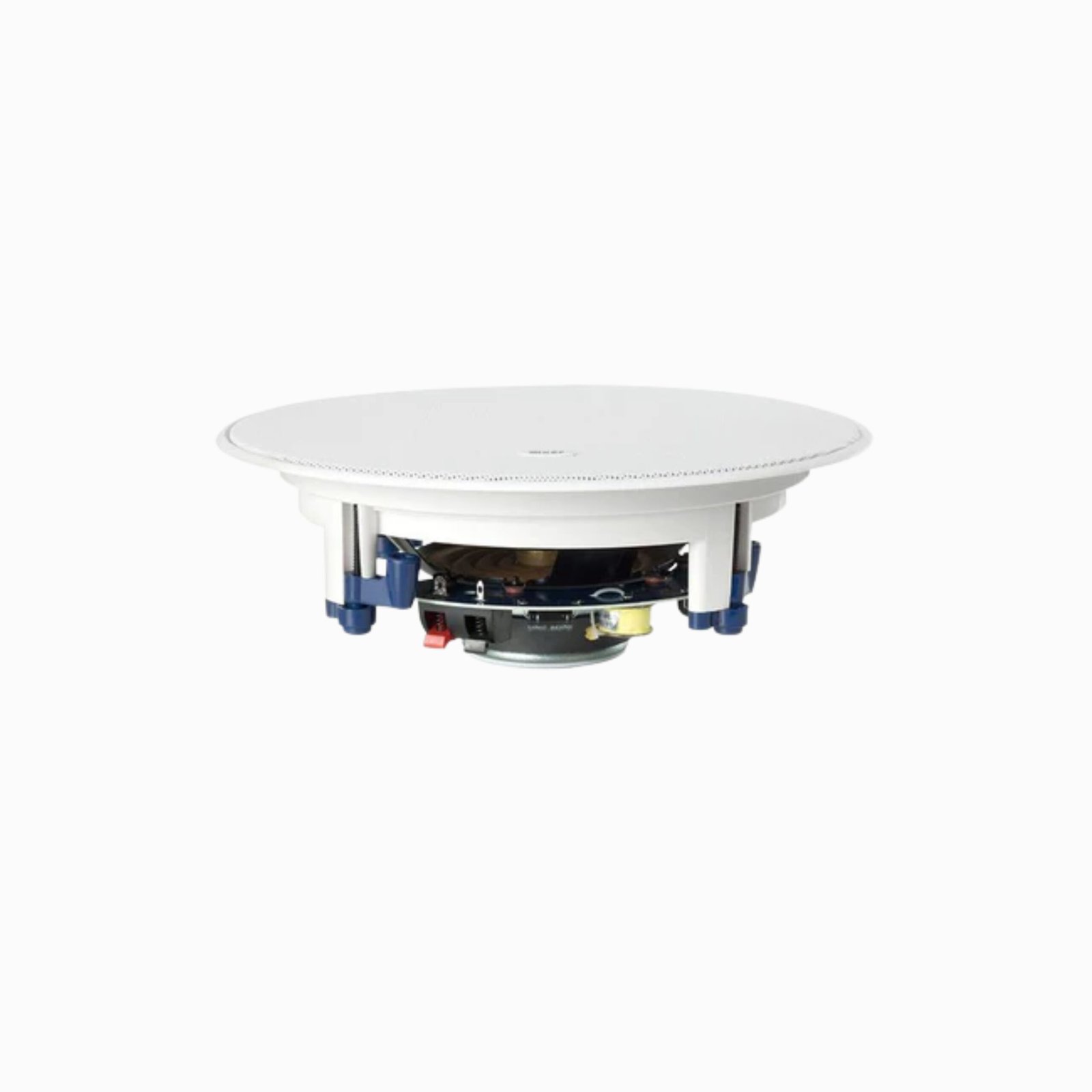

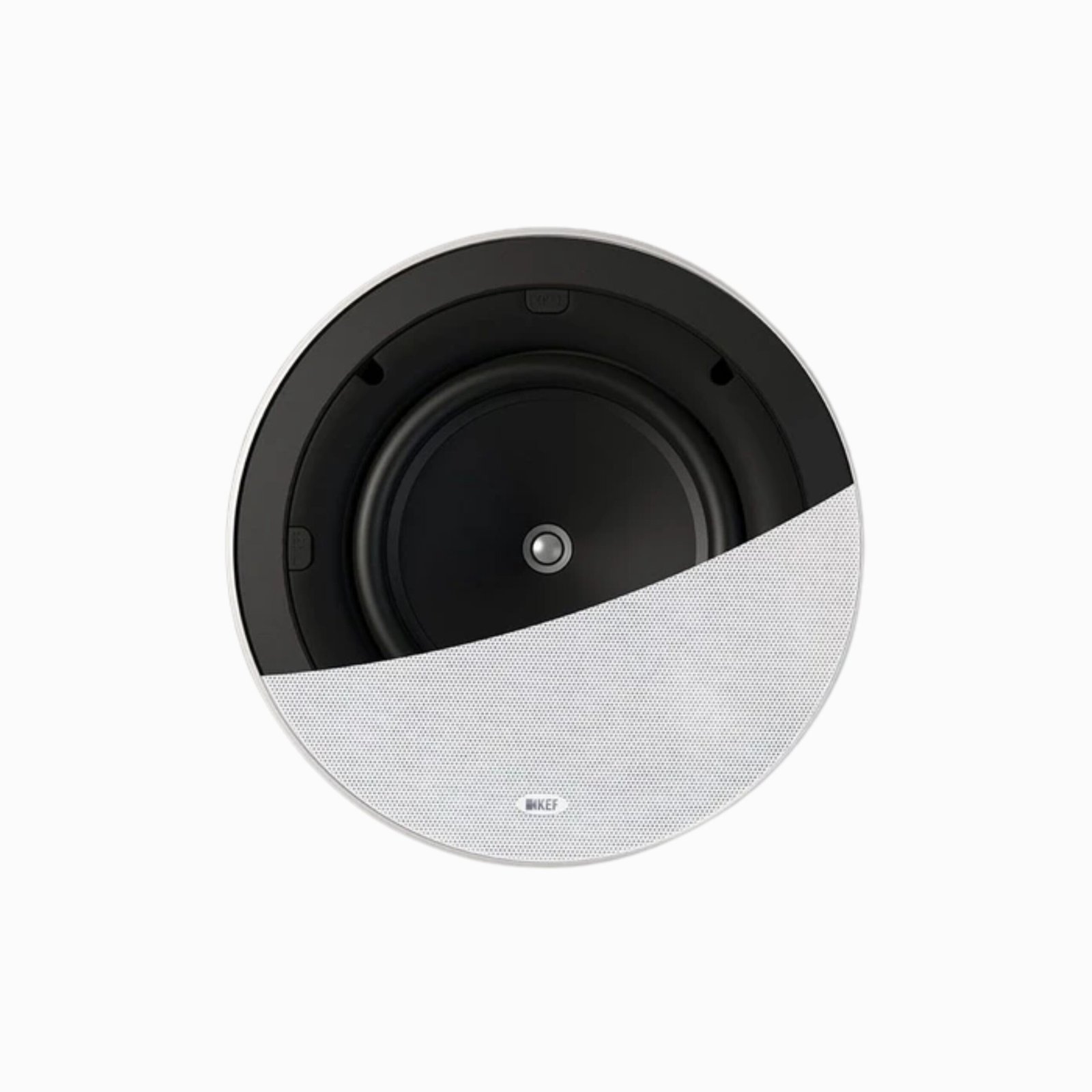

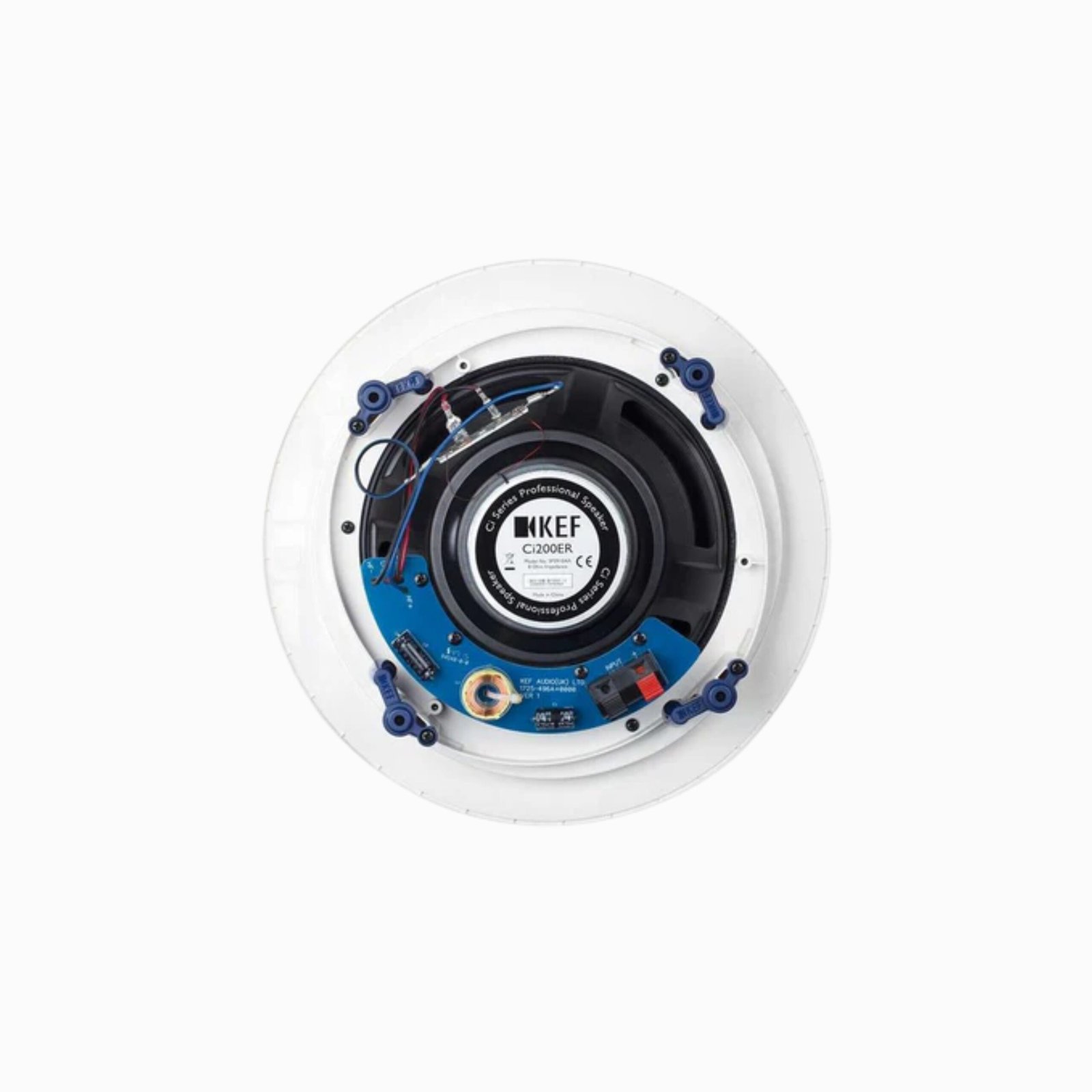

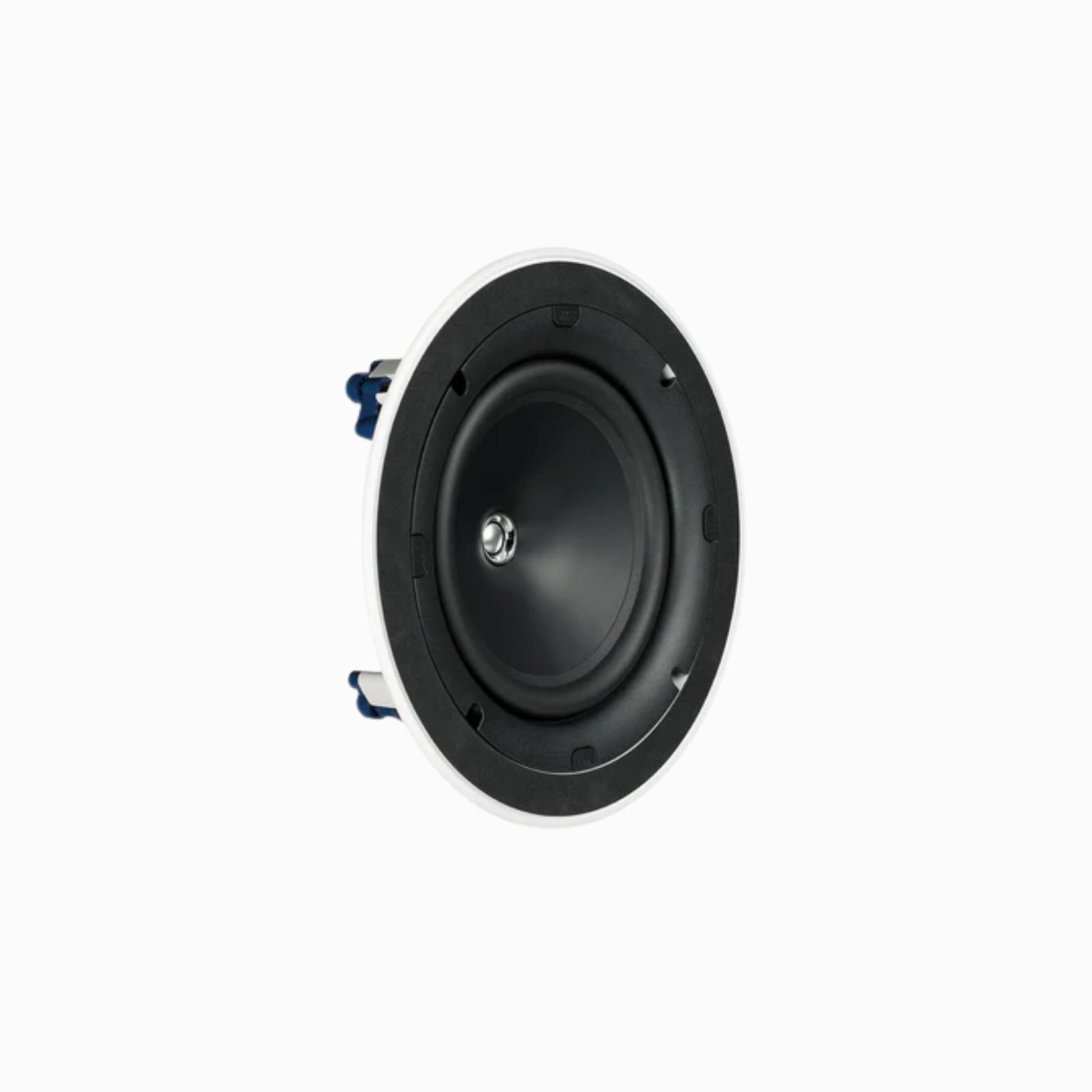

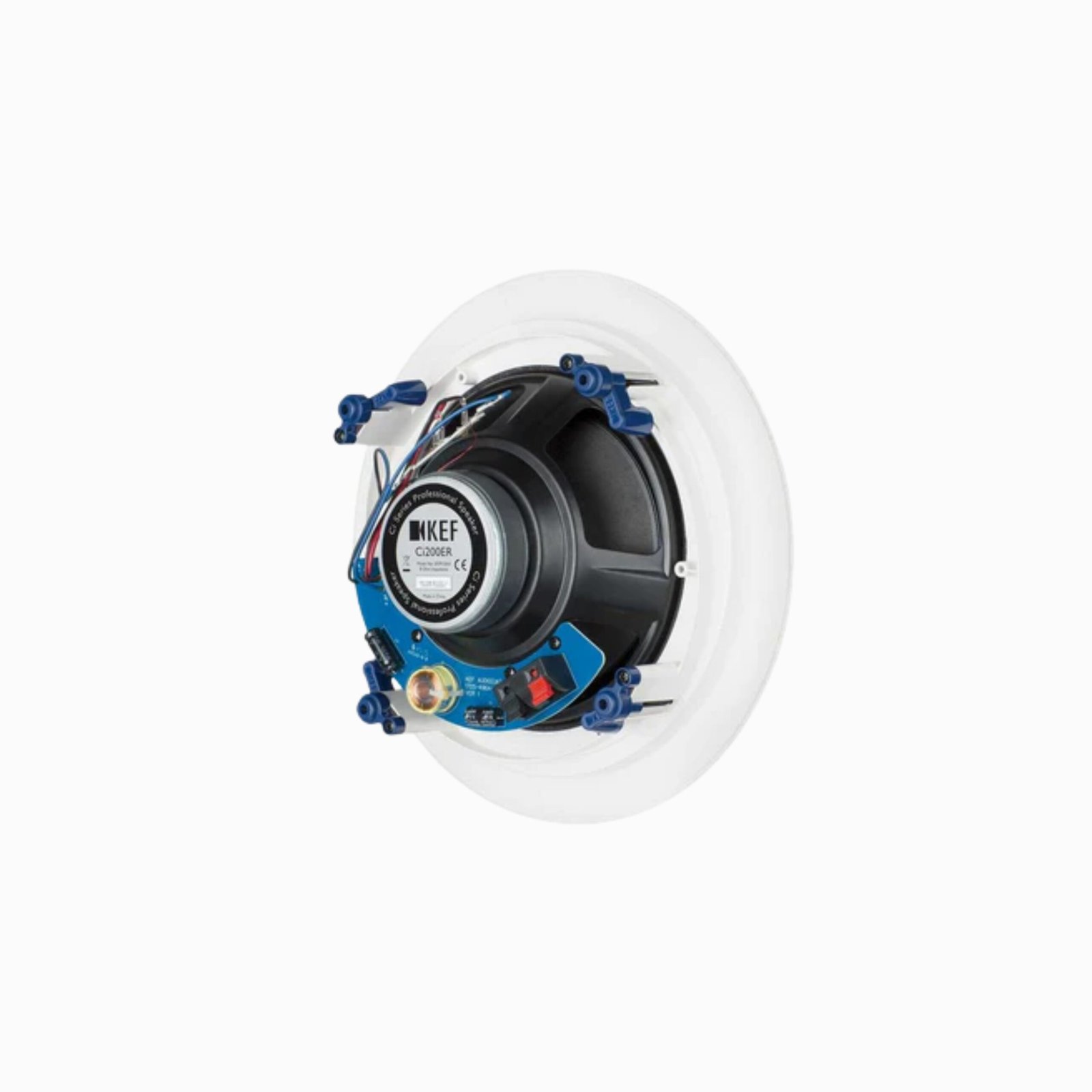

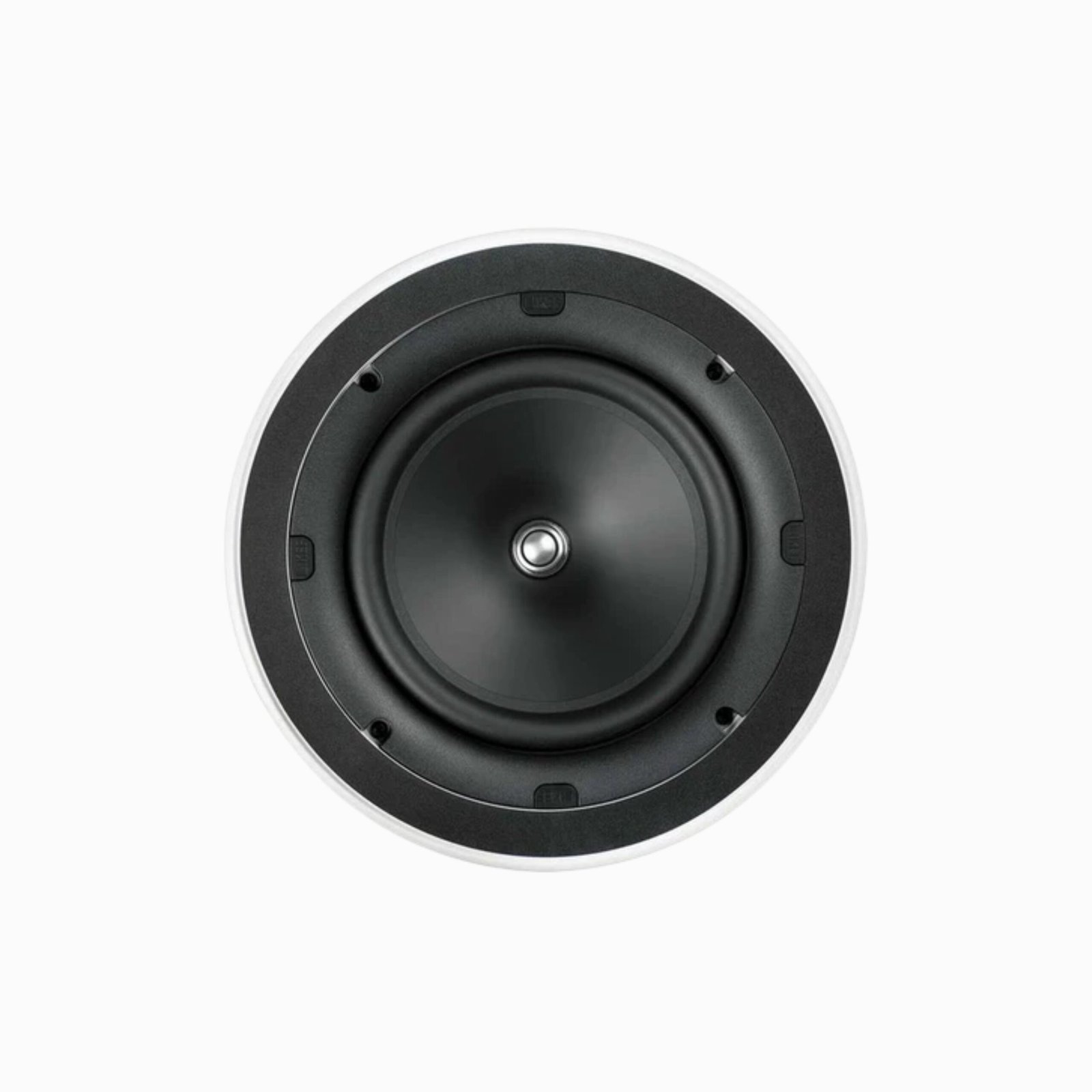

KEF Ci200ER In-Ceiling Speaker (Each)

Key Specifications & Features

In-ceiling / flush-mount architectural speaker, part of the Ci-E Series. KEF International+2Kef+2
Driver complement: 200 mm (approx 8″) low-frequency woofer + 16 mm (0.6″) aluminium dome tweeter in KEF’s Uni-Q® concentric (point-source) arrangement. Kef
Frequency response (±6 dB): approx 45 Hz – 20 kHz when open-back. KEF International+1
Sensitivity: 90 dB (2.83 V/1m) nominal. KEF International+1
Nominal Impedance: 8 Ω. Recommended amplifier power: 10-125 W. KEF International+1
Physical/mounting details: External diameter ~289.6 mm (11.4″), mounting depth ~103.3 mm (4.07″) from surface. Cut-out diameter ~240 mm (9.45″). KEF International+1
Weather-resistant / UV protected construction: The Ci-E series is made to meet “weatherresistant” standards; suitable for humid indoors or gentler outdoor/covered environments. KEF International+1

Description

Heard but not seen, with unprecedented value and performance.
KEF’s E series of architectural speakers is designed and manufactured to the same exacting standards as all of KEF’s architectural offerings and features KEF’s famed Uni-Q driver technology

Warranty:

2-year manufacturer’s warranty

Features:

The E Series also features KEF’s Ultra-Thin Bezel (UTB) technology, which offers the thinnest possible visible rim around the speaker assembly.
All KEF Ci architectural speakers, including the speakers in the E Series, are manufactured to Weather Resistant Construction standards.

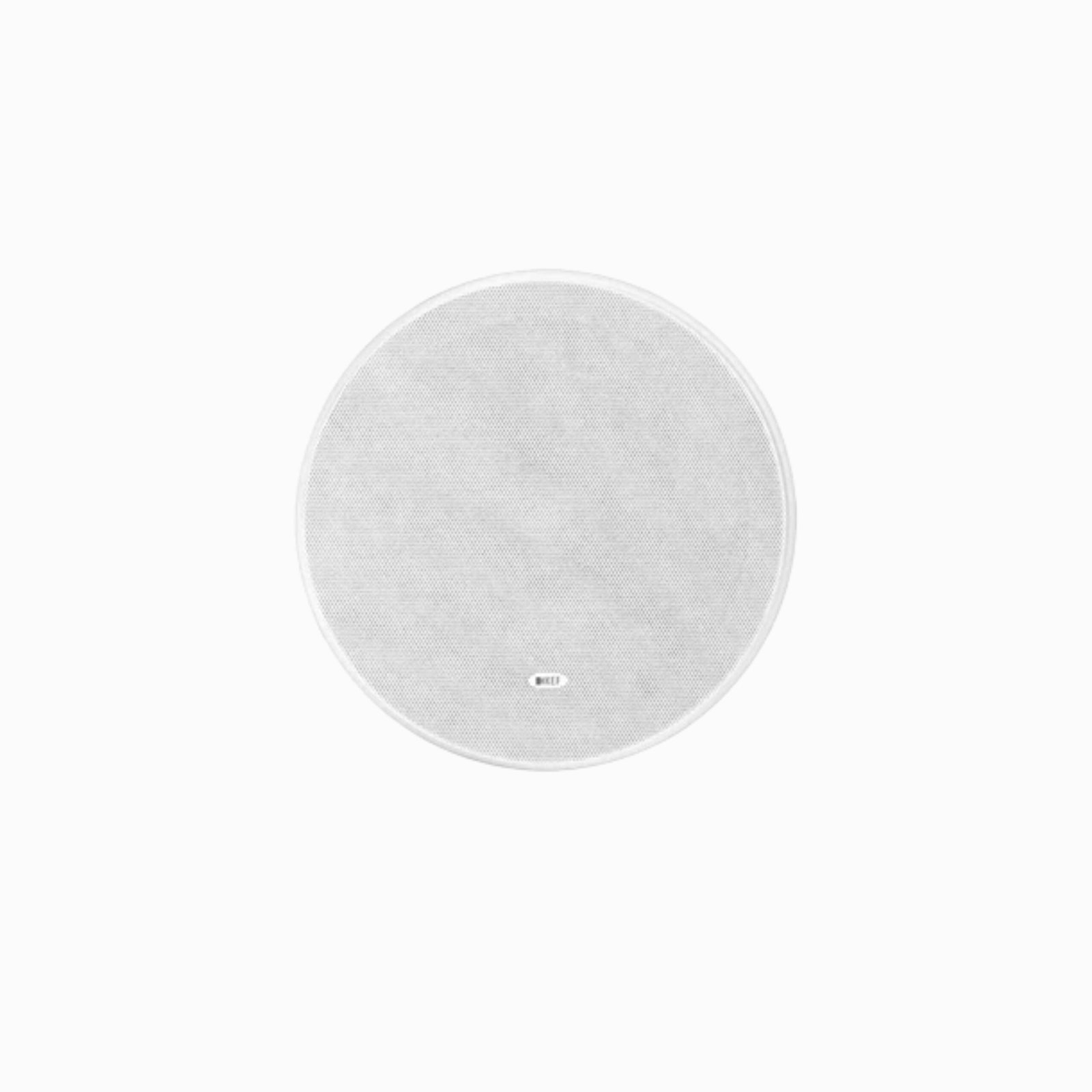

Magnetic Grille – For security and ease of installation, the grille attaches with a powerful magnetic circuit and can be painted to match any décor.
The speaker shall consist of a 200mm low-frequency woofer and a 16mm aluminum dome high-frequency tweeter mounted in a UV-protected ABS baffle with a paintable bezel of no more than 5mm in width.

Ci200ER
Heard but not seen, with unprecedented value and performance, KEF’s E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF’s architectural offerings and features KEF’s famed Uni-Q driver technology.

KEF’s Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF’s world-renowned sound and clarity without having to be positioned in the narrow “sweet spot” found with conventional speaker designs.

The E Series also features KEF’s Ultra-Thin Bezel (UTB) technology, which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.

All KEF Ci architectural speakers, including the speakers in the E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathrooms and kitchens.

Technical Specifications:

Ci200ER
Nominal Impedance	8 Ohms
Sensitivity	90dB (2.83V/ 1m)
Frequency Response	45Hz – 20kHz (±6dB) open-backed
Crossover Frequencies	2.8kHz
Drive Units	LF: 200mm (8in.) HF: 16mm (0.6in.)
Recommended Amplifier Power	10-125W
Product External Dimensions	Diameter: 289.6mm (11.4in.) Depth: 103.3mm (4.07in.)
Cut-Out Dimensions	Diameter: 240mm (9.45in.)
Mounting Thickness	Ceiling Thickness (Maximum): 37mm (1.46 in.) Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface	97.2mm (3.83in.)
Optional Rough In Frame	RIF200R
Net Weight	1.6kg (3.6lbs)
Unit Measurement	Piece
