KEF Ci160TR In-Ceiling Speaker (Each)

Key Specifications & Features

Ultra-shallow / flush-mount architectural speaker: mounting depth around 36mm from the surface. assets.kef.com+2KEF International+2

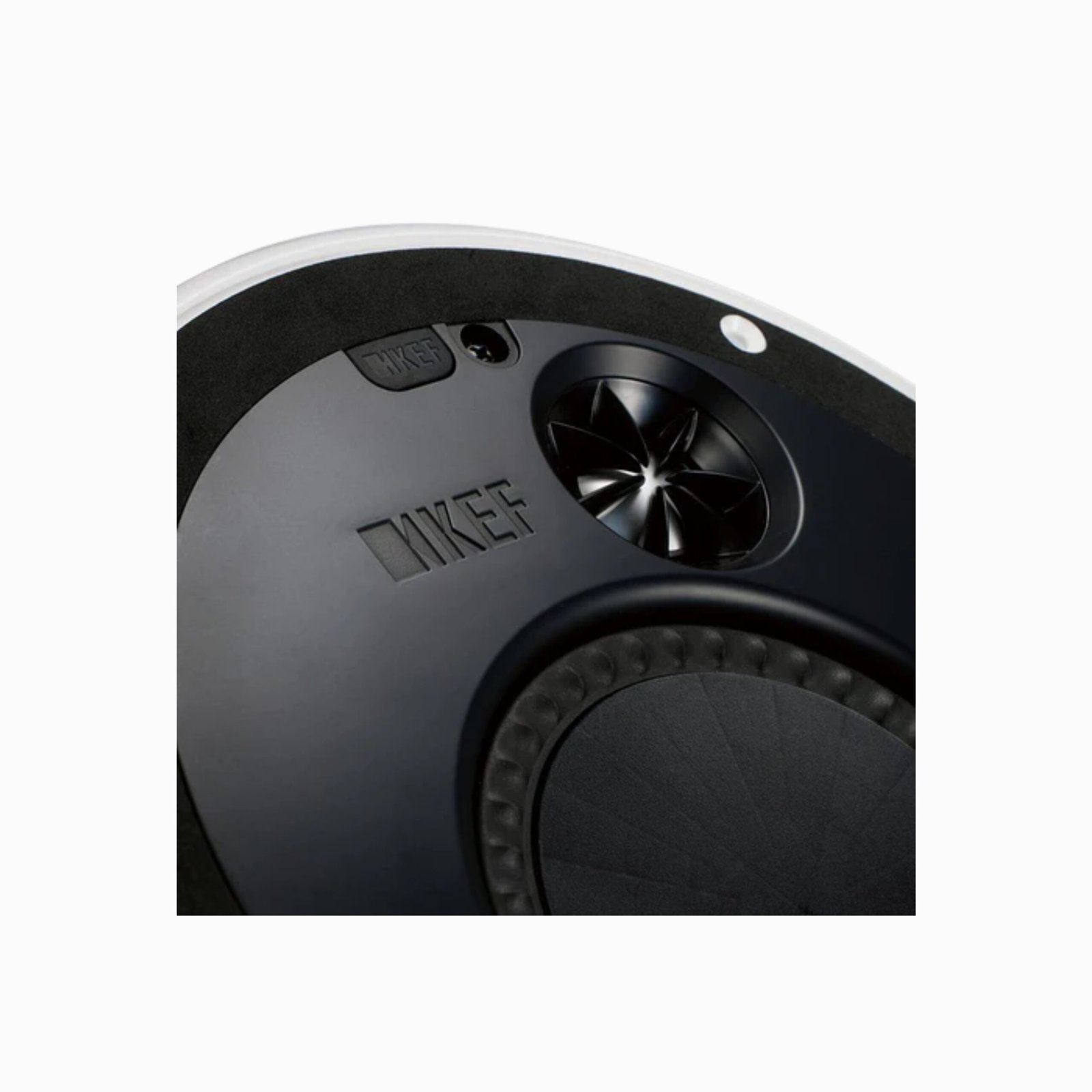

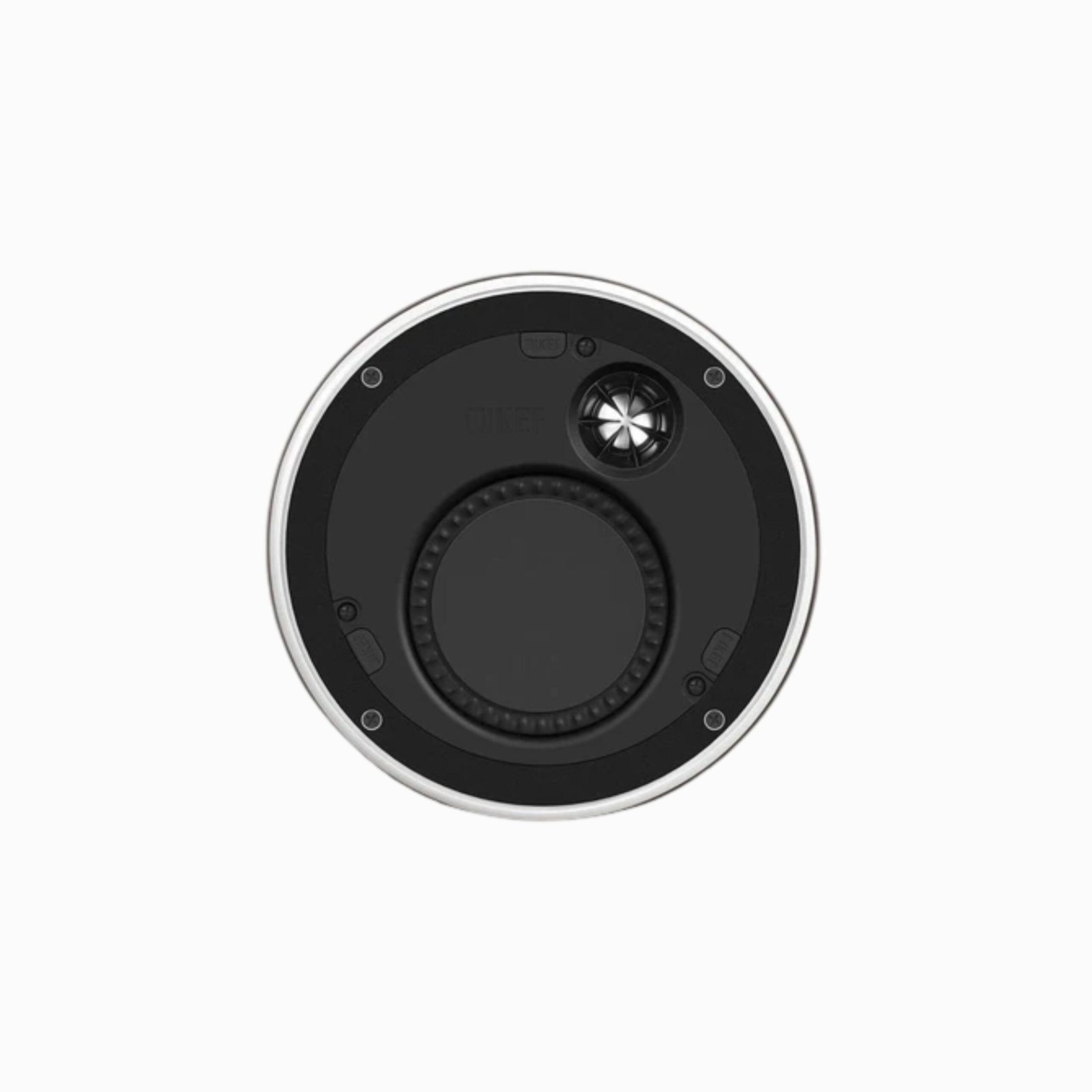

Drive units: 115 mm (4.5″) low-frequency/ mid-bass driver + 25 mm (1″) aluminium dome tweeter mounted in KEF’s Uni-Q® / Tangerine Waveguide arrangement for wider dispersion. assets.kef.com+1
Frequency response: approx 110Hz - 24kHz (±6dB) (open-back condition). KEF International
Sensitivity: 87 dB (2.83V/1 m) ; Nominal impedance: 8 Ω. KEF International+1
External dimensions: Diameter ~234.6mm, depth ~40mm (~1.57″) from the front of the ceiling. KEF Australia+1
Weather/Moisture resistance: Built to be UV-protected and moisture-resistant (suitable for more challenging environments) in many versions. assets.kef.com
Installation: Ultra-Thin Bezel (UTB) paintable grille; designed for flush aesthetic integration. KEF International

Description

Features KEF’s patented Uni-Q driver array
Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and your music system.

Warranty:

2-year manufacturer’s warranty

Features:

Less than 36mm mounting depth allows fitment to very restricted cavities
Ultra-low profile LF unit with excellent bass extension.
Vented tweeter with KEF’s unique ‘tangerine’ waveguide for natural HF response and wide, even dispersion.
A rigid flat diaphragm assures clean upper bass and mid-range response.

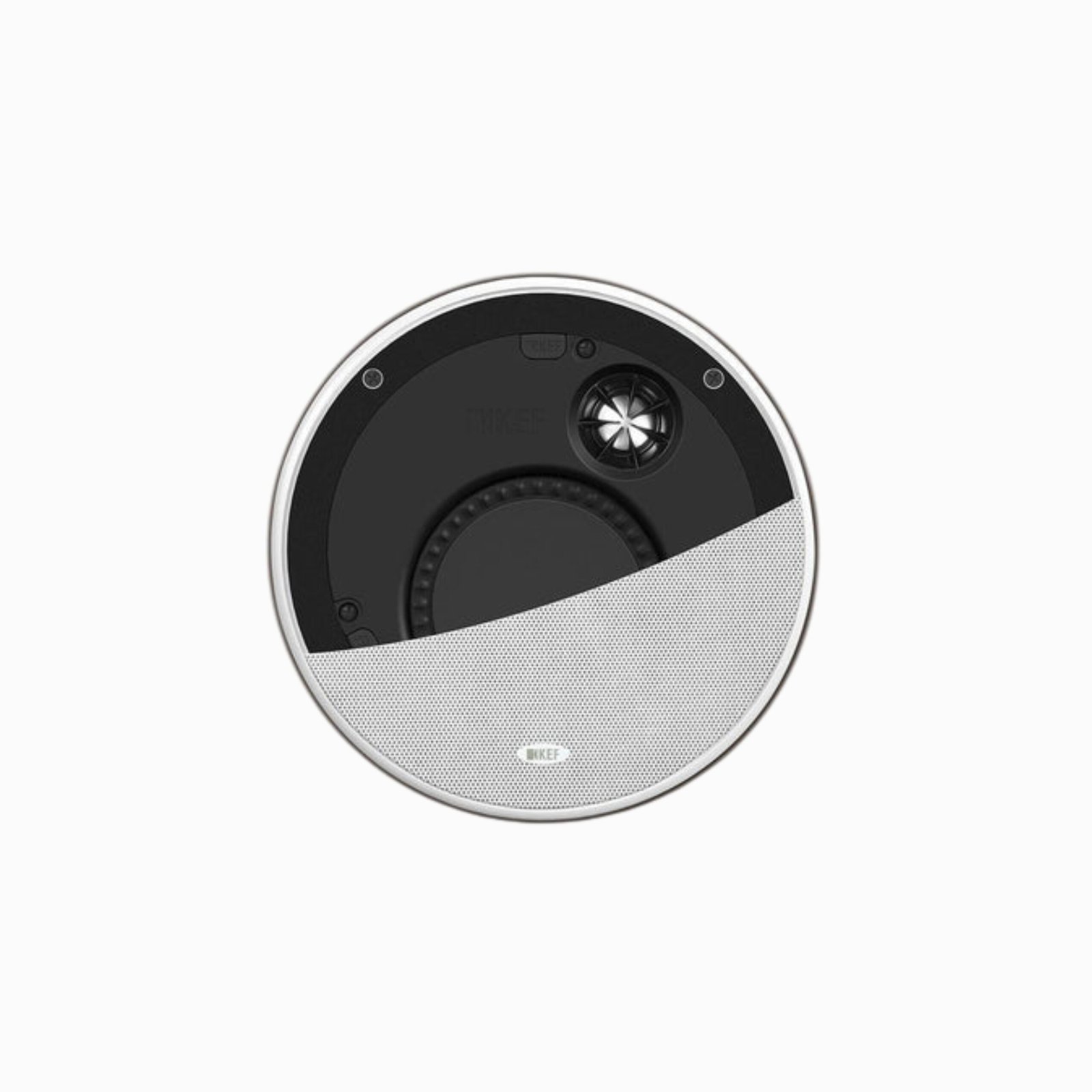

Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor.

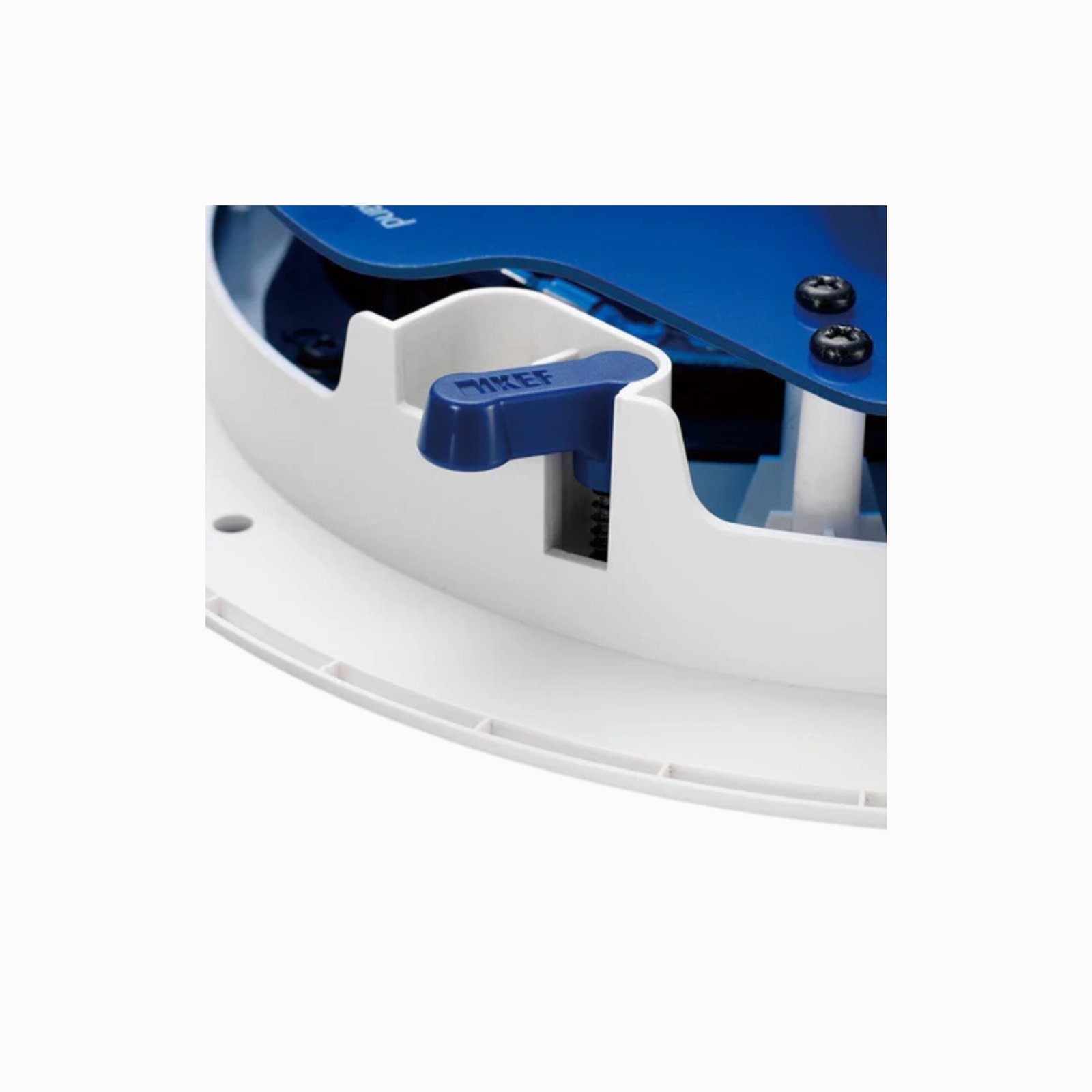

Fast, versatile installation on virtually any surface via dogleg or direct screw fastening.

Ci160TR

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. Tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality, where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

Technical Specifications:

Frequency Range	10 – 100 Watts RMS
Frequency Response	110Hz – 24kHz (±6dB) open backed
Nominal Impedance	8 ohms
Max Power	10-100W
Speaker Depth	Ultra Slim (50mm & Under)
Speaker Type	In-Ceiling
Width	235mm
Depth	40mm (1.57in)
Cut-out Dimensions	196mm (7.71in)
Mounting Depth from Surface	36mm (1.42in)
Weight (Kg)	1
