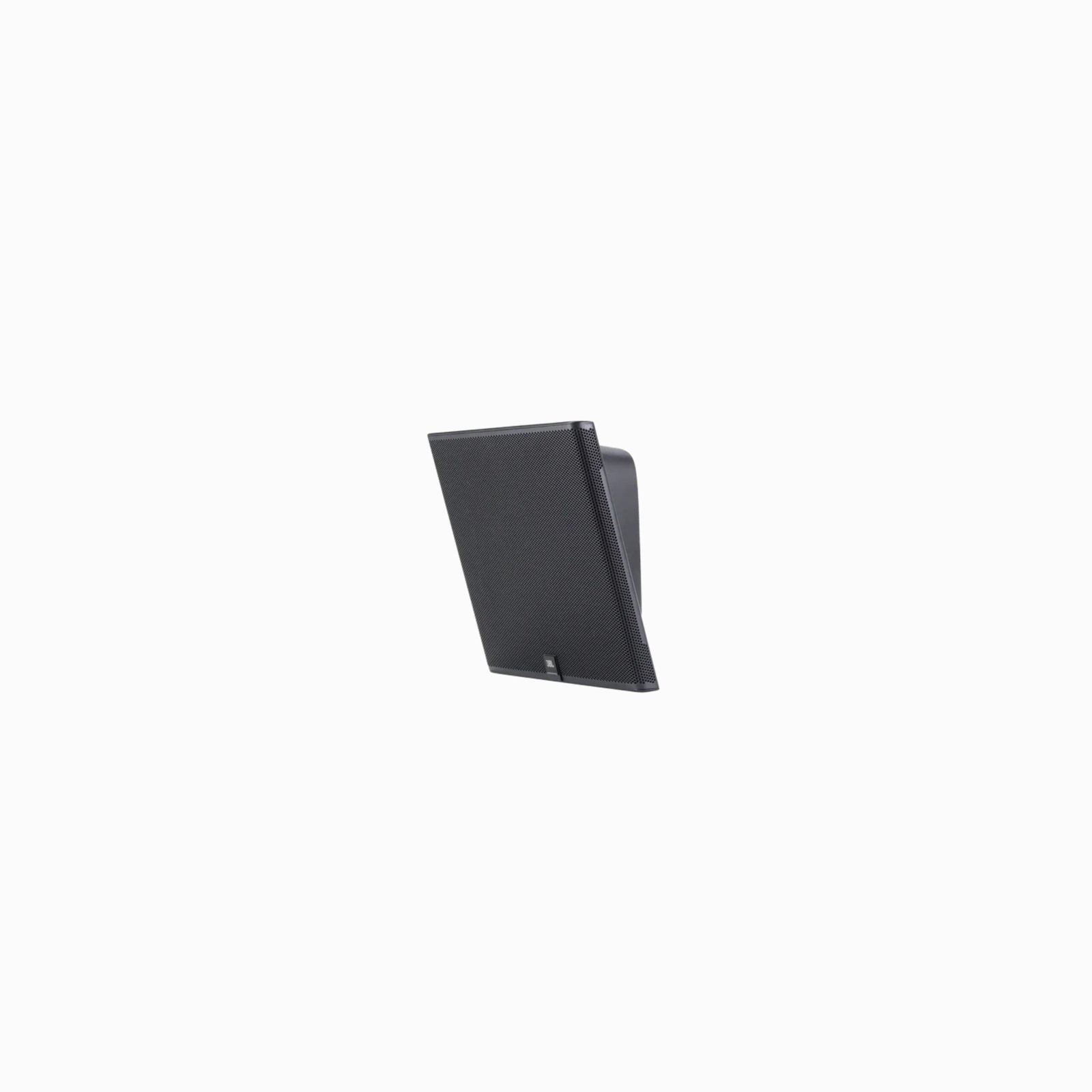

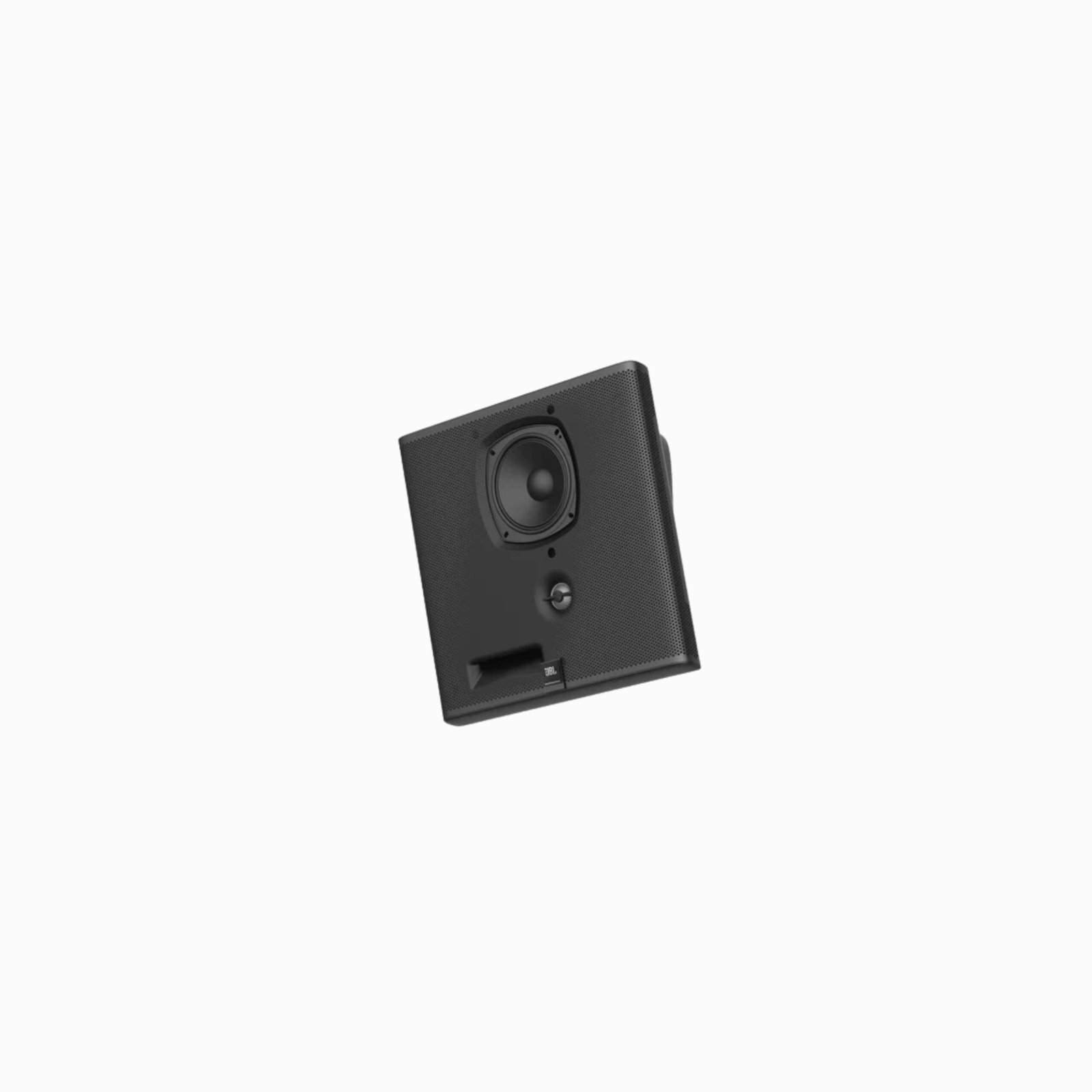

JBL SLP14/T - Slim Low-Profile On-Wall Speaker (Each)

Key Features

  • Slim, Low-Profile Design: Mounts directly on the wall with a shallow depth, perfect for installations behind TVs or in tight spaces

  • High-Quality JBL Sound: Balanced frequency response with clear midrange and defined highs for both music and speech

  • Two-Way Driver Configuration: Separate tweeter and woofer for improved clarity and imaging

  • Durable Construction: Built to maintain performance over time in installed audio environments

  • Flexible Mounting Options: Works well in horizontal or vertical orientation depending on placement needs

  • Single Unit: Sold individually, so you can purchase the exact number needed for your setup

Description

JBL SLP14/T – Slim Low-Profile On-Wall Speaker (Each)

Sleek, Low-Profile On-Wall Loudspeaker

The SLP14/T two-way on-wall loudspeaker provides rich, detailed, wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-end restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Features

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  • Power handling: 50W continuous pink noise, 100W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • The included slide-in wall bracket makes installation a breeze
  • The included rain cover protects the terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes



Specifications

Frequency Range (-10dB)
70 Hz – 20 kHz (on wall)
Frequency Response (+/-3 dB)
80 Hz – 18 kHz (on wall)
Power Rating
100W Continuous Program (2 hrs)
50W (200W peak) Continuous Pink Noise (2 hrs)
30W (120W peak) Continuous Pink Noise (100 hrs)
Sensitivity
85 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL
108 dB peak (102 dB continuous, 2 hr) @ 1m
Coverage Angle
140°H x 120°V
Directivity Factor (Q)
6.9
Directivity Index (DI)
8.4 dB
Nominal Impedance
8Ω (at 8Ω tap setting)
Transformer Taps
70V: 25 W, 12.5 W, 6.3 W, 3.2W
100V: 25 W, 12.5 W, 6.3 W
Driver
120 mm (4.5 in) woofer, polypropylene cone, 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 20 mm (0.79 in) titanium dome tweeter with neodymium magnet and aluminum former.
Terminals
4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
Enclosure Material
Polycarbonate + ABS Fireproof, UL94V-0 flammability rated
Color
Available in black or white (-WH). Paintable.
Dimensions
286mm W x 263mm H x H100mm D (11.3 x 10.4 x 3.9 in)
Net Weight
2.8kg (6.2 lbs)
Included Accessories
Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
