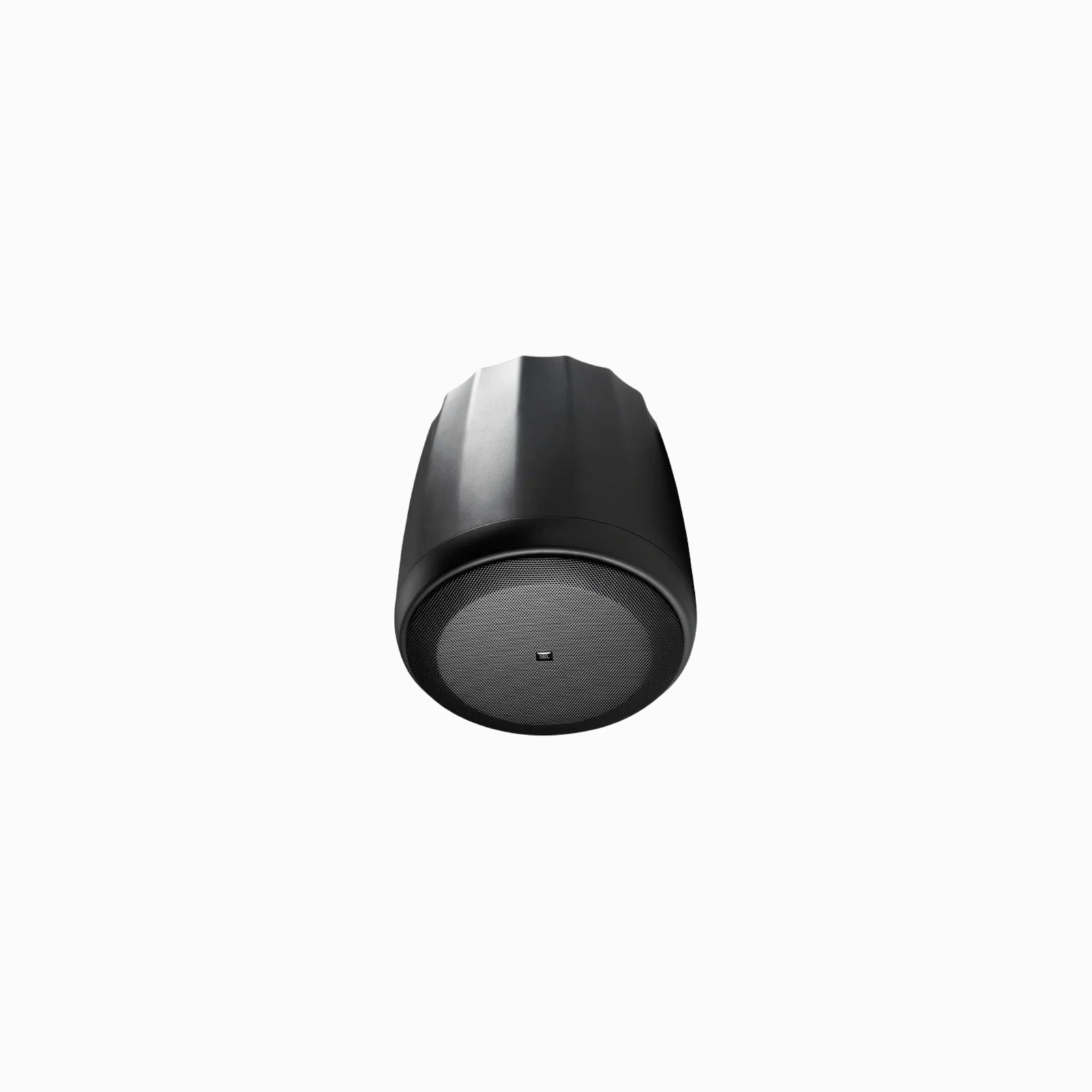

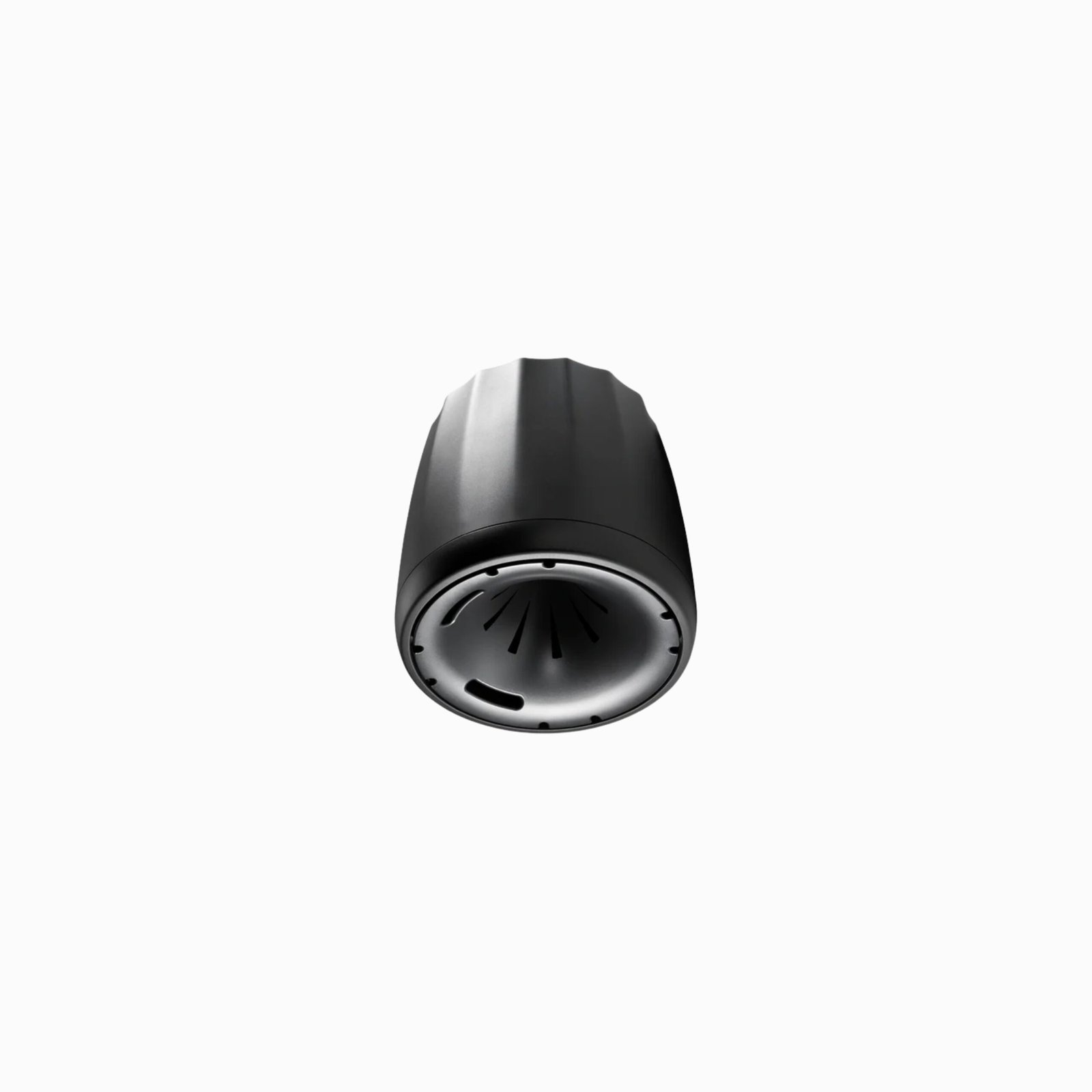

JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each)
JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each) - Image 2
JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each) - Image 3
JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each)
JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each)
JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each)
Category: Speaker

JBL Control 67 HC/T - 6.5 Inches Hi-Ceiling Pendant Speaker (Each)

Key Features

  • Hi-ceiling pendant speaker designed for commercial and large-space installations

  • 6.5-inch woofer paired with a high-frequency driver for balanced, clear audio

  • Wide dispersion for uniform sound coverage in open areas with high ceilings

  • Pendant-mount design allows flexible suspension positioning for optimal coverage

  • Weather-resistant and rugged construction for reliable performance in various environments

  • High power handling and sensitivity suitable for use with a range of amplifiers

  • Protective grille and durable enclosure for long-term durability

  • Ideal for background music, paging, and ambient sound in retail stores, restaurants, lobbies, airports, and other large public areas

  • Low visual profile that blends with architectural settings while delivering quality audio

Ask a question
Delivery & Return

Description

JBL Control 67 HC/T – 6.5 Inches Hi-Ceiling Pendant Speaker (Each)

Narrow 75° Coverage High Ceiling Pendant Speaker

Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues, and hotel atrium areas.

Features

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5″ (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms, and 60W multi-tap transformer
  • Black or white



Specifications

Frequency Range (-10dB)
 75 Hz – 17 kHz
Frequency Range (±3 dB)
 110 Hz – 16 kHz
Power Rating
 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity
 93 dB
Coverage Angle
 75° conical
Directivity Factor (Q)
 10.4
Directivity Index (DI)
 9.8 dB
Maximum SPL (1m)
 112 dB continuous pink noise, 118 dB peak
Impedance
 8 ohms
Transformer Taps
 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss
 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers
 LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure
 High-impact polystyrene
Grille
 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability
 Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

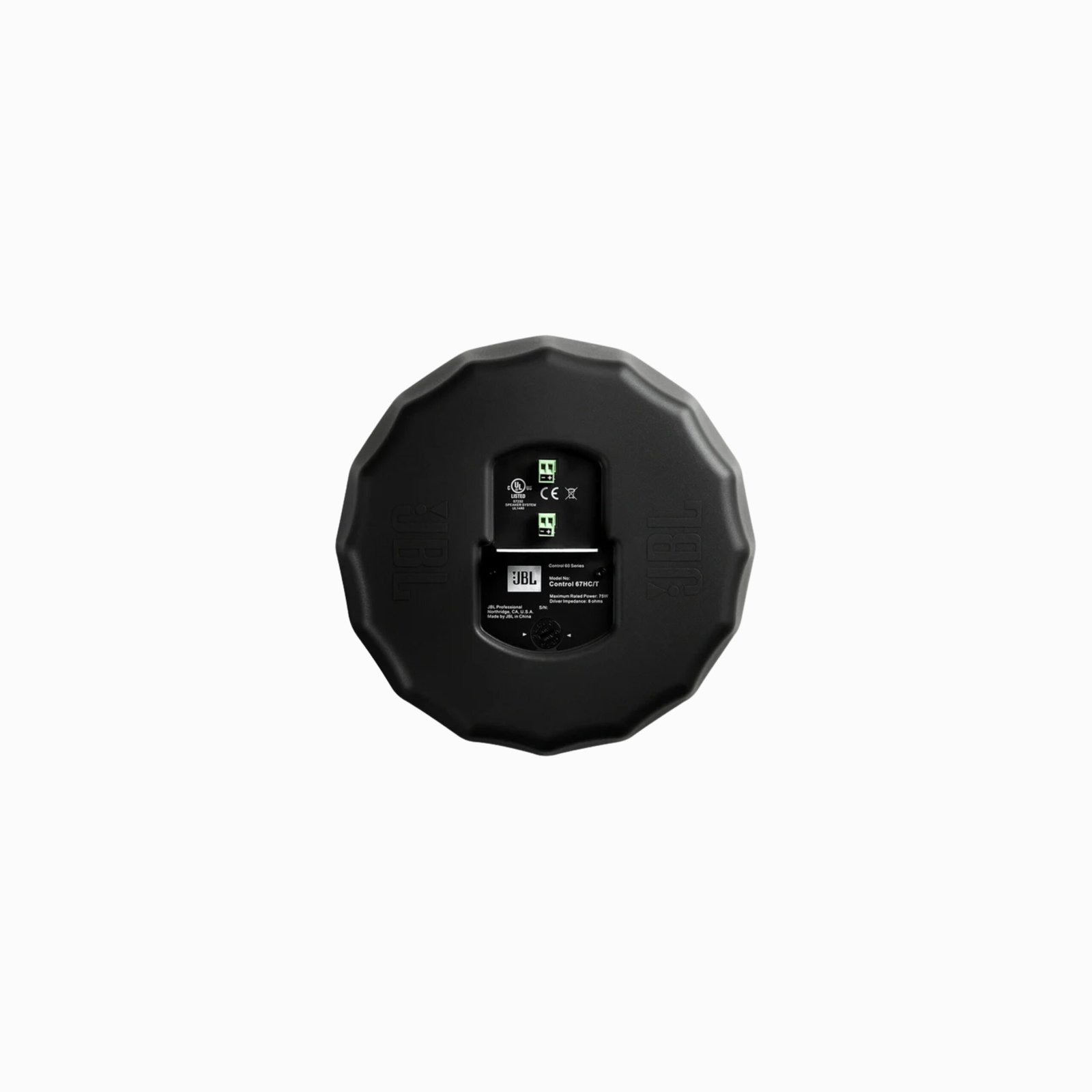

Input Connectors
 Two removable locking Euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension
 Two identical suspension systems (one as the main suspension cable and the other as a safety cable), each consisting of a 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have a SWL rating of 45 kg (99 lb).
Safety Agency
 Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D)
 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to the top of the suspension bracket.
Net Weight (each)
 5.9 kg (13 lbs)
Shipping Weight (pair)
 14.1 kg (31 lbs)
Included Accessories
 Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, and two rubber covers for euro-block connectors.
Optional Accessories
 MTC-PC60HC top panel / terminal cover
Colors
 Available in black or white (-WH). Paintable.
