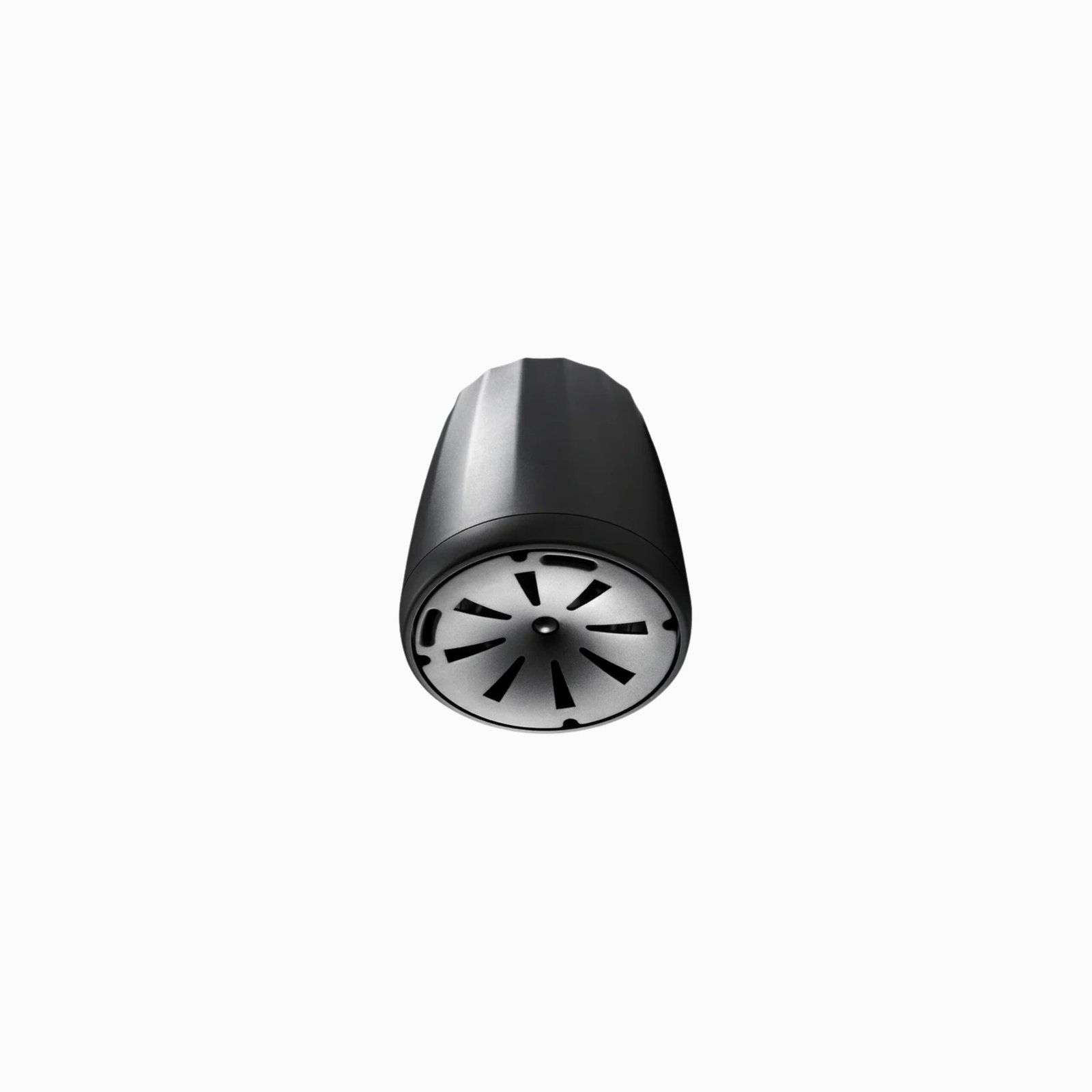

JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each)
JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each) - Image 2
JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each) - Image 3
JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each)
JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each)
JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each)
Category: Speaker

JBL Control 65P/T - 5.25 Inches Compact Full Range Pendant Speaker (Each)

Key Features

  • Compact full-range pendant speaker designed for suspended ceiling and open-space audio applications

  • 5.25-inch woofer with high-frequency driver for balanced, natural sound

  • Pendant mounting for flexible placement in spaces with high or open ceilings

  • Wide dispersion pattern for broad, even audio coverage

  • Durable construction with protective grille for long-lasting reliability

  • High sensitivity and power handling for use with a range of amplifiers and distributed audio systems

  • Professional-grade performance suitable for background music, paging, and ambient audio in retail spaces, restaurants, offices, and public venues

  • Compact, low-visual-impact design that integrates smoothly with architectural aesthetics

  • Easy installation for commercial and institutional environments

  • Ideal for ceiling-mounted distributed audio without compromising sound quality

Ask a question
Delivery & Return

Description

JBL Control 65P/T – 5.25 Inches Compact Full Range Pendant Speaker (Each)

Compact Full-Range Pendant Speaker

Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

Features

  • RBI Radiation Boundary Integrator Technology
  • 120° conical coverage
  • 5.25″ (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white



Specifications

Frequency Range (-10dB)
 55 Hz – 20 kHz
Frequency Range (±3 dB)
 78 Hz – 18 kHz
Power Rating
 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity
 86 dB
Coverage Angle
 120° conical
Directivity Factor (Q)
 5.3
Directivity Index (DI)
 7.2 dB
Maximum SPL (1m)
 105 dB continuous pink noise, 111 dB peak
Impedance
 8 ohms
Transformer Taps
 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss
 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers
 LF: 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fibreglass resin voice coil-former
HF: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminium voice coil former
Enclosure
 High-impact polystyrene
Grille
 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability
 Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors
 Two removable locking Euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension
 Two identical suspension systems (one as the main suspension cable and the other as the safety cable), each consisting of a 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have a SWL rating of 45 kg (99 lb).
Safety Agency
 Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D)
 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to the top of the suspension bracket.
Net Weight (each)
 3.7 kg (8 lbs)
Shipping Weight (pair)
 8.7 kg (19 lbs)
Included Accessories
 Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Optional Accessories
 MTC-PC60 top panel / terminal cover
Colors
 Available in black or white (-WH). Paintable.
