JBL Control 64P/T - Compact Full Range Pendant Speaker (Each)
JBL Control 64P/T - Compact Full Range Pendant Speaker (Each) - Image 2
JBL Control 64P/T - Compact Full Range Pendant Speaker (Each) - Image 3
JBL Control 64P/T - Compact Full Range Pendant Speaker (Each)
JBL Control 64P/T - Compact Full Range Pendant Speaker (Each)
JBL Control 64P/T - Compact Full Range Pendant Speaker (Each)
Category: Speaker

JBL Control 64P/T - Compact Full Range Pendant Speaker (Each)

Key Features

  • Compact full-range pendant speaker designed for suspended ceiling installations and open spaces

  • Balanced audio performance with a driver optimized for clear mids and highs

  • Pendant-mount design for flexible placement in environments with high or open ceilings

  • Wide dispersion for even sound coverage across listening areas

  • Durable construction with protective grille for long-lasting reliability

  • High sensitivity and power handling suitable for a variety of amplifiers and distributed audio systems

  • Professional-grade performance ideal for background music, paging, and ambient audio

  • Sleek, low-visual-impact design that blends with architectural aesthetics

  • Easy installation for commercial and institutional environments

  • Suited for retail spaces, restaurants, offices, lobbies, and public venues

Ask a question
Delivery & Return

Description

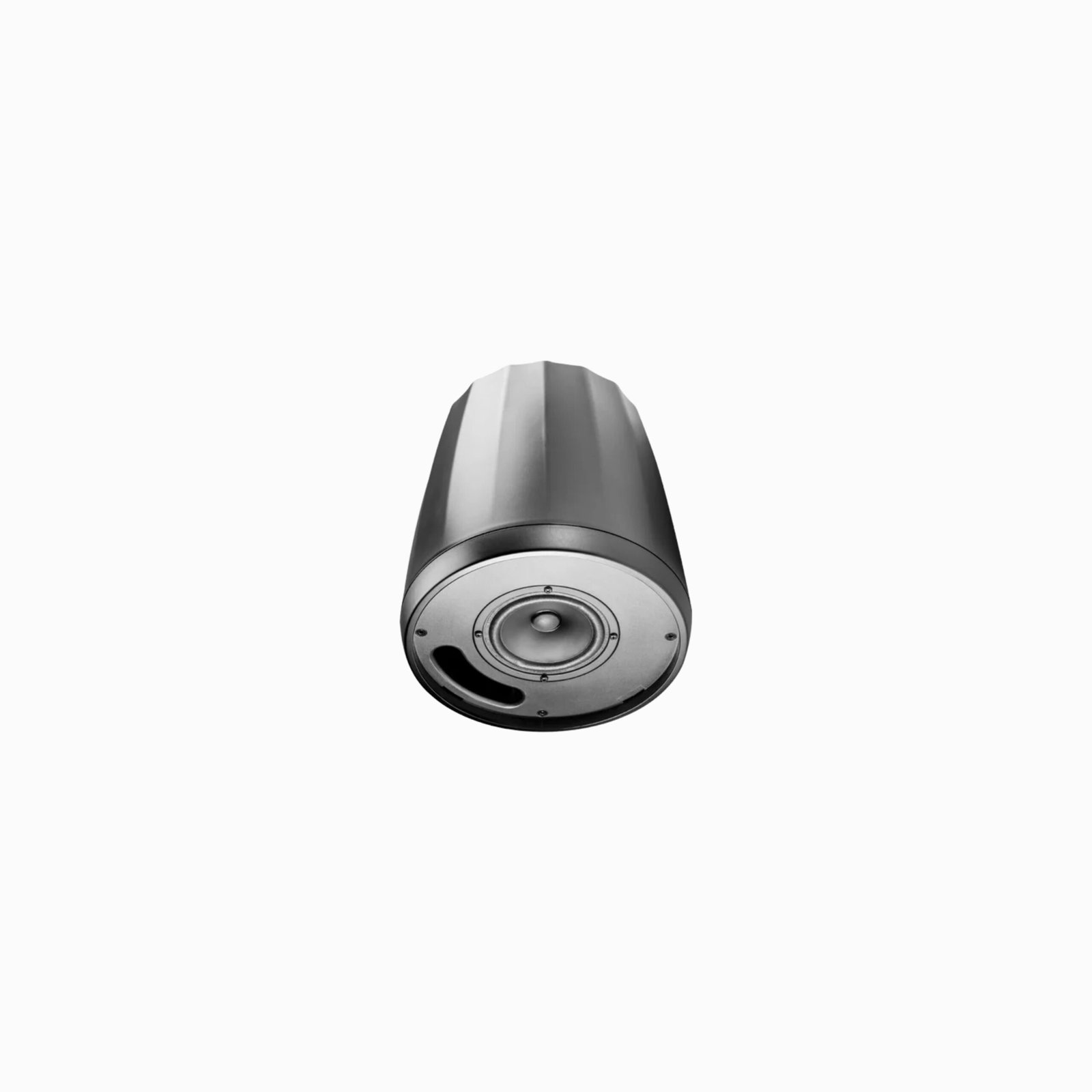

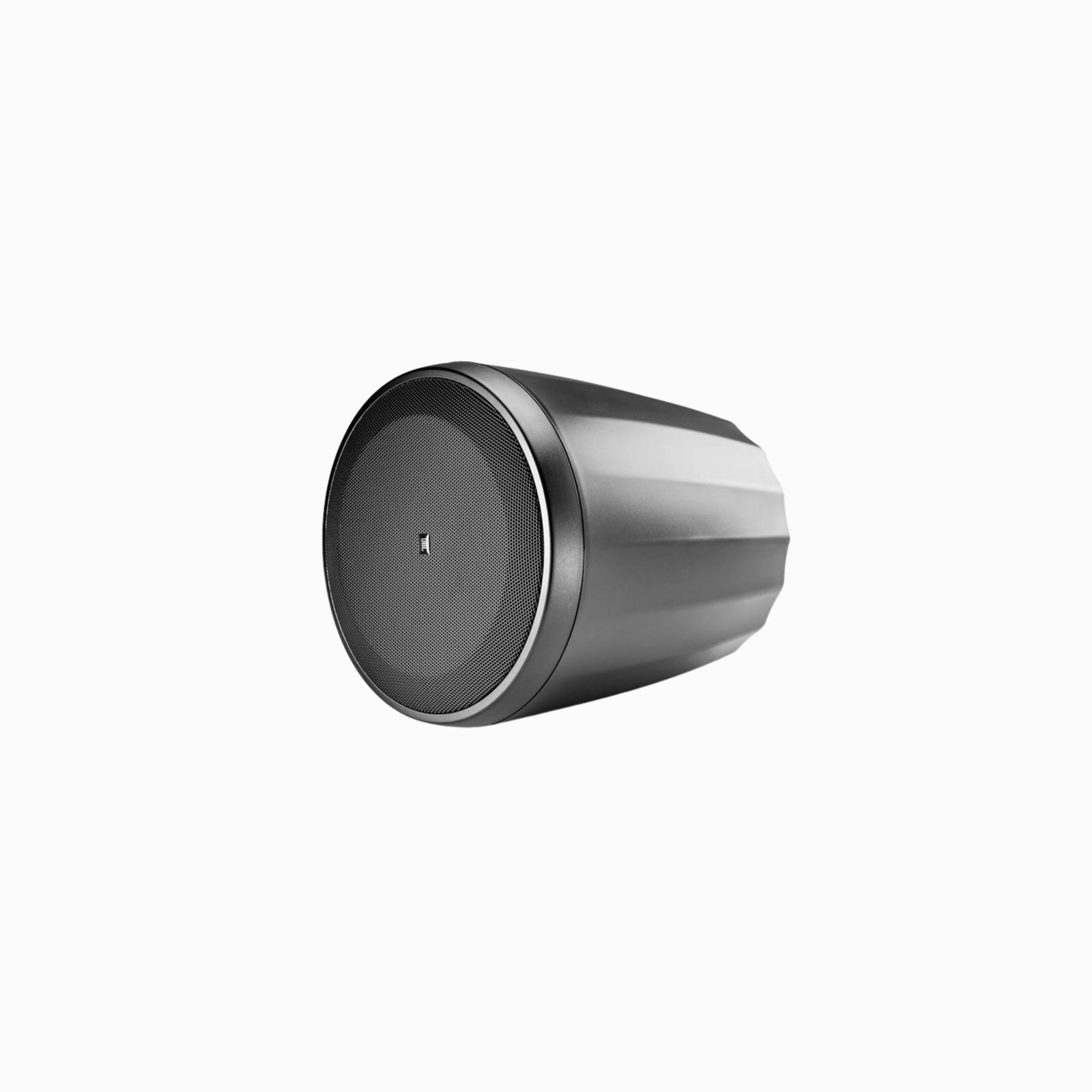

JBL Control 64P/T – Compact Full Range Pendant Speaker (Each)

Compact Full-Range Pendant Loudspeaker

The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.

Features

  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
  • Hanging hardware with a 4.5 m (15-foot) galvanised steel cable and an easy-to-adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
  • 8Ω and 70V/100V operation



Specifications

Frequency Range (-10dB)
 65 Hz – 15 kHz
Frequency Response (±3 dB)
 85Hz – 14 kHz
Power Rating
 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak), Continuous Pink Noise (100 hrs)
Maximum Input Voltage
 18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity
 88 dB Nominal
Coverage Angle
 120° conical
Directivity Factor (Q)
 6.2
Directivity Index (DI)
 7.3dB (averaged 1kHz – 16kHz)
Maximum SPL (1m)
 105 dB continuous pink noise, 111 dB peak
Impedance
 8Ω
Transformer Taps
 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
Transformer Insertion Loss
 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Drivers
 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure
 High-impact polystyrene
Grille
 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability
 Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
Input Connectors
 Two removable locking Euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension
 Two identical suspension systems (one as the main suspension cable and the other as the safety cable), each consisting of a 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have a SWL rating of 45 kg (99 lb).
Safety Agency
 Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D)
 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to the top of the suspension bracket.
Net Weight (each)
 2.35 kg (5.2 lbs)
Shipping Weight (pair)
 6.07 kg (13.4 lbs)
Included Accessories
 Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, and two rubber covers for euro-block connectors.
Optional Accessories
 MTC-PC60 top panel / terminal cover
Colors
 Available in black or white (-WH). Paintable
