Description

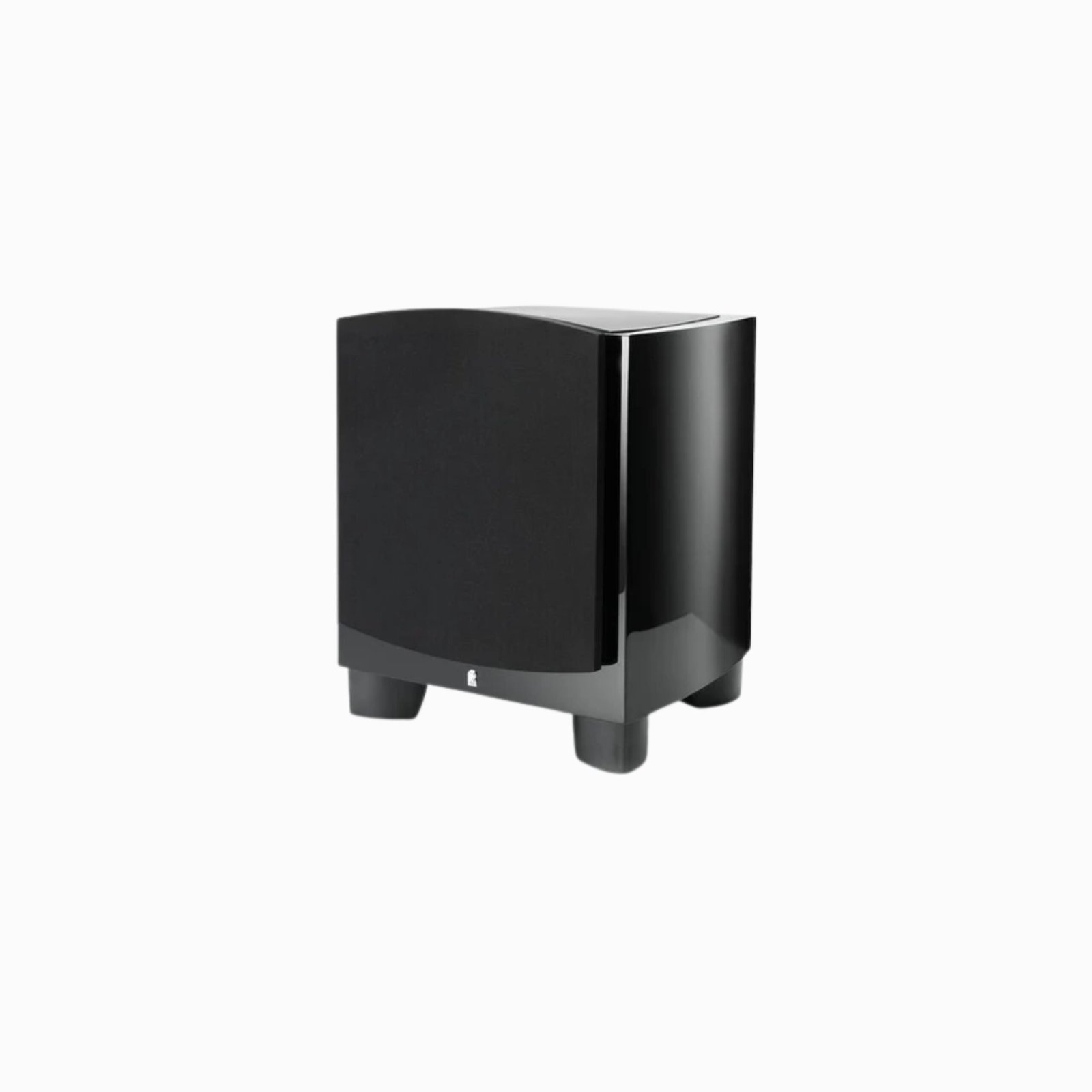

The Revel Performa3 B110v2 subwoofer sets a new standard for low-frequency detail, musicality, and refinement. Featuring brute force visceral impact and high fidelity bass performance of unprecedented sophistication, the B110v2 is a must-have for home entertainment systems.
Warranty:
1-year manufacturer’s warranty
Features:
- Revel Performa3 B110v2 subwoofer sets a new standard for low-frequency detail, musicality, and refinement.
- Featuring a new and improved woofer with 82% more linear excursion than the B110.
- A19.2 lb Klippel-optimized magnet assembly.
- 50 mm two-layer copper voice coil wound.
- Strategically oriented internal bracing virtually eliminates unwanted cabinet vibration.
The Revel Performa3 B110v2 is the newest generation of Revel’s popular and successful B110 subwoofer, outfitted with the latest advancements in acoustic science and technology. At the heart of the B110v2’s engineering is a new and improved woofer with 82% more linear excursion than the B110. The transducer’s 19.2 lb Klippel-optimized magnet assembly features a double-stacked ceramic 5 magnet with a flared vent for improved airflow. As a result, turbulence is reduced, the output is increased, and distortion is minimized. Additional cooling vents in the backplate increase power handling while reducing compression. The cast aluminum frame is fully vented to minimize acoustic losses from excessive backpressure. A 50mm two-layer copper voice coil wound on a high-heat-tolerant fiberglass former gives the transducer a significant range of travel. The parametric EQ is now localized on board, rather than software-based, for easy adjustments in real-time, as you listen. The elegant cabinet, available in premium high-gloss black, white, and walnut, is formed with contiguous wood layers to prevent splitting. Strategically oriented internal bracing virtually eliminates unwanted cabinet vibration, and thereby coloration. All Revel loudspeakers, including the B110V2, undergo double-blind, position-independent competitive tests during development, utilizing the latest psychoacoustic research and processes, to ensure that when you’re buying Revel, you’re buying the best.
Technical Specifications:
| Driver Components |
|
| Amplifier Power | 1000 Watts RMS |
| Height | 16.875” (428mm) |
| Width | 14.31” (404mm) |
| Depth | 13.44” (420mm) |
| Weight | 24.4Kg |
| Crossover Frequencies | 50Hz – 150Hz low-pass filter with LFE bypass |
| Input Sensitivity |
|
| Inputs | Balanced (XLR), unbalanced (RCA) |
| Low Frequency Extension (extended mode) | 24Hz (-10dB); 27Hz (-6dB); 30Hz (-3dB) |
| Low-frequency Extension (normal mode) | 27Hz (-10dB); 30Hz (-6dB); 34.4Hz (-3dB) |
| Enclosure Type | Sealed |
