Category: In-Wall Speakers

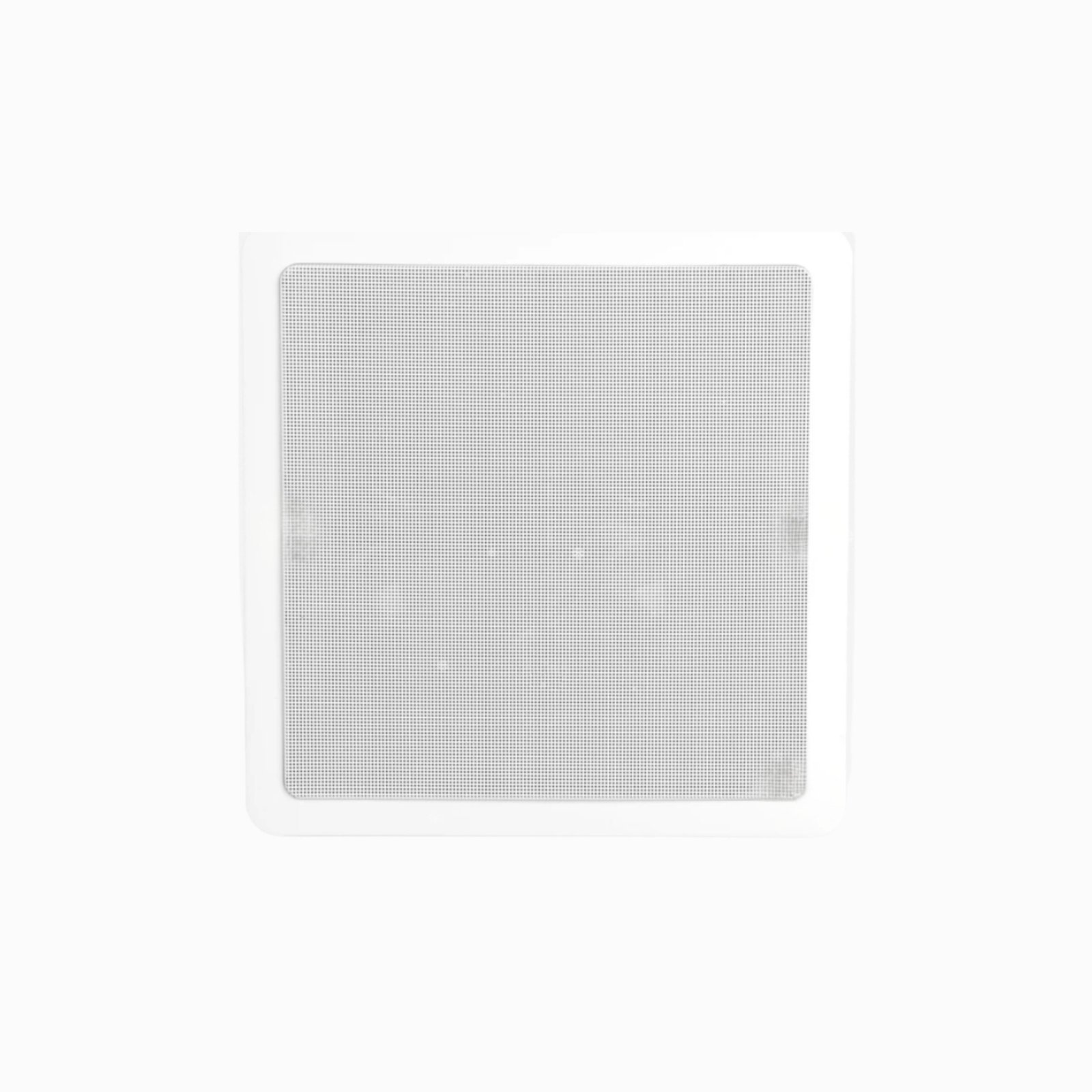

Definitive Technology UIW RCS III Reference In-Ceiling/In-Wall Bipolar Speaker (Each)

Key Features

  • Reference-grade bipolar architectural speaker designed for in-ceiling or in-wall installation in home theatre and music systems

  • Bipolar driver configuration radiates sound outward in two directions for a wide, immersive soundfield

  • High-quality Pure Aluminum Dome tweeters for extended, detailed high-frequency performance with low distortion

  • Dual mid/bass drivers provide balanced mids and robust low frequencies for fuller, rich audio

  • Flush-mount, paint-ready grille allows the speaker to blend seamlessly into walls or ceilings

  • Rigid, acoustically optimized baffle and frame design to minimize resonance and coloration

  • Excellent choice for surround channels, height channels, or diffuse ambient effects in multi-channel systems

  • Wide dispersion pattern ensures consistent sound coverage across the listening area

  • Compatible with a broad range of AV receivers and amplifiers for flexible system integration

  • Built for reliable, long-term performance in residential audio environments

  • Delivers refined clarity, expansive soundstage, and immersive audio from architectural installations

Description

Definitive Technology UIW RCS III Reference In-Ceiling/In-Wall Bipolar Speaker

UIW RCS III

  • Front row audio experiences come to life with patented Wave Launch technology
  • Breathtaking sound dynamics ring true with the pure aluminum dome tweeter
  • Minimal visibility and easy installation with six rotating dogleg clamps and hefty wood screws
  • Integrated wood enclosure creates greater audio performance with uncolored clarity

REMARKABLE AUDIO RIGHT BEFORE YOUR EARS

The in-ceiling UIW RCS III reshapes sound waves to make you believe you’re sitting front row center. Patented Wave Launch technology turns overhead speakers into works of engineering wonder, using precisely configured dual angle baffles to create acoustics that surround you anywhere in the room. With speakers that produce so much sound from such a minimal space, your ears never had it so good.

Key Features
Active Driver/Bass Radiator

In-ceiling speakers reach new heights with deep, dynamic low-frequency response and smooth, controlled roll-off for seamless blending with subwoofers.

Pure Aluminum

Smooth, high frequency response rings true from the pure aluminum dome tweeter set among high definition bass drivers with cast baskets.

Non-Resonant Sealed Medite

Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II supplies natural, uncolored midrange and tight, detailed bass.

Extraordinary Sonic Performance

The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.



Specifications

ACCESSORIES

Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self-Adhering Foam Gasket

SHIPPING CARTONS

Carton 1: 16″ (40.64 cm) h x 12″ (30.48 cm) w x 13.25″ (33.66 cm) d – 14 lbs (6.35 kg)
Nominal Impedance: 8 ohms

IN-CEILING SPEAKER

Qty Included: 1
Driver Complement
(1) 1″ (2.54 cm) d (Round) – Tweeter
(2) 4.5″ (11.43 cm) d (Round) – Mid/Woofer
(2) 5.25″ (13.34 cm) d (Round) – Bass Radiator
Weight: 13 lbs (5.9 kg)
Grille Dimensions: 11.5″ (29.21 cm) h x 11.5″ (29.21 cm) w

IN-CEILING MOUNT

Shape: Rectangle
Dimensions: 10.38″ (26.37 cm) h x 10.38″ (26.37 cm) w

INPUTS

Driver Complement
Audio Inputs
Ethernet: Yes
Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded – na

AUDIO QUALITY

Total Frequency Response: 30 Hz ? 30 Hz
Nominal Impedance: 8 ohms
Max Sensitivity (1 watt @ 1 meter): 92 dB

CROSSOVER

Peak Power Handling: 250 watts
A/V Receiver Crossover Settings: Small (60 Hz)
