Definitive Technology UIW RlS III Reference In-Wall Speaker (Each)

UIW RLS III

CLEARER HIGHS AND DEEPER LOWS WITH SUPERIOR AUDIO PERFORMANCE
The Reference Line Source III enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminum dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS III perfect for left, right, center or surround applications in home theaters or multichannel music systems.

Key Features
Pure Aluminum Tweeter
Smooth high frequency response rings true from a pure aluminum dome tweeter set among high definition bass/mid drivers.

Non-Resonant Sealed Medite
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS III reveals natural, uncolored midrange and tight, detailed bass.

Simple Stealth Installation
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RLS III is easily installed in both new and existing construction applications.

Extraordinary Sonic Performance
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.

OVERALL
Total Pieces: 1

ACCESSORIES
Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self-Adhering Foam Gasket

SHIPPING CARTONS
Carton 1: 30″ (76.2 cm) h x 9.5″ (24.13 cm) w x 9″ (22.86 cm) d – 16 lbs (7.26 kg)

IN-WALL SPEAKER
Qty Included: 1

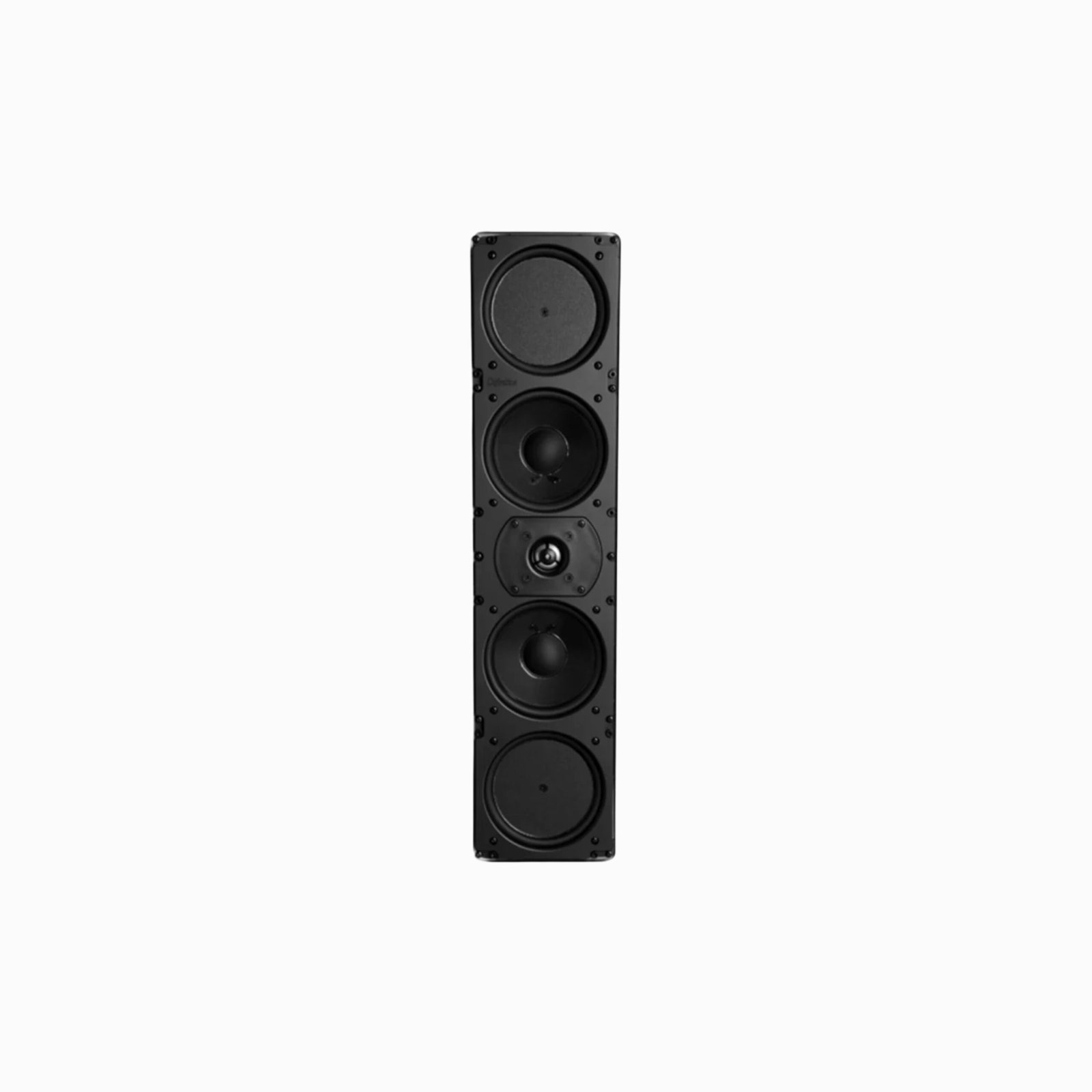

Driver Complement: (1) 1″ (2.54 cm) d (Round) – Tweeter
(2) 5.25″ (13.34 cm) d (Round) – Mid/Woofer
(2) 5.25″ (13.34 cm) d (Round) – Bass Radiator
Weight: 14.5 lbs (6.58 kg)

IN-WALL MOUNT
Shape: Rectangle
Dimensions: 23.75″ (60.33 cm) h x 5.88″ (14.94 cm) w
Clearnace Required for Mounting Dogs (add to each side of cutout): 0.88″ (2.24 cm)

INPUTS
Audio Inputs
Speaker Inputs: (1) Pair of Heavy Duty, Spring-Loaded – Gold-Plated

AUDIO QUALITY
Total Frequency Response: 24 Hz ? 30 Hz
Nominal Impedance: 8 ohms
Max Sensitivity (1 watt @ 1 meter): 92 dB

CROSSOVER
A/V Receiver Crossover Settings: Small (40 Hz)
