Bowers & Wilkins D805 D4 - 2-Way Bookshelf Speaker (Pair)

Key Features

  • 2-Way Bookshelf Speaker Design
    Combines a mid/bass driver and a tweeter in a compact enclosure for balanced, detailed sound suited to music and home theatre systems.

  • Decoupled Double-Dome Tweeter
    Delivers smooth, extended high frequencies with excellent clarity and minimal distortion for crisp vocal and instrumental detail.

  • Mid/Bass Driver
    Provides clear, natural midrange and controlled low frequencies for a rich, engaging listening experience.

  • Optimized Crossover Network
    Precisely manages frequency transitions between drivers for coherent, balanced sound reproduction across the audio spectrum.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly, improving stereo imaging and coverage throughout the listening area.

  • Rigid, Low-Resonance Cabinet
    Sturdy enclosure minimizes unwanted vibrations and coloration, enhancing clarity and definition.

  • Premium Build and Finish
    Sleek, high-quality construction that complements modern audio systems and interiors.

  • Flexible Placement Options
    Ideal for shelves, stands, or desktop placement in hi-fi setups or as front/surround speakers in smaller home theatre systems.

  • Easy Integration with AV Equipment
    Standard speaker terminals ensure straightforward connection to amplifiers and AV receivers.

  • Balanced, Natural Sound Signature
    Tuned to provide a refined and engaging audio experience with detailed highs, expressive mids, and tight lows.

Description

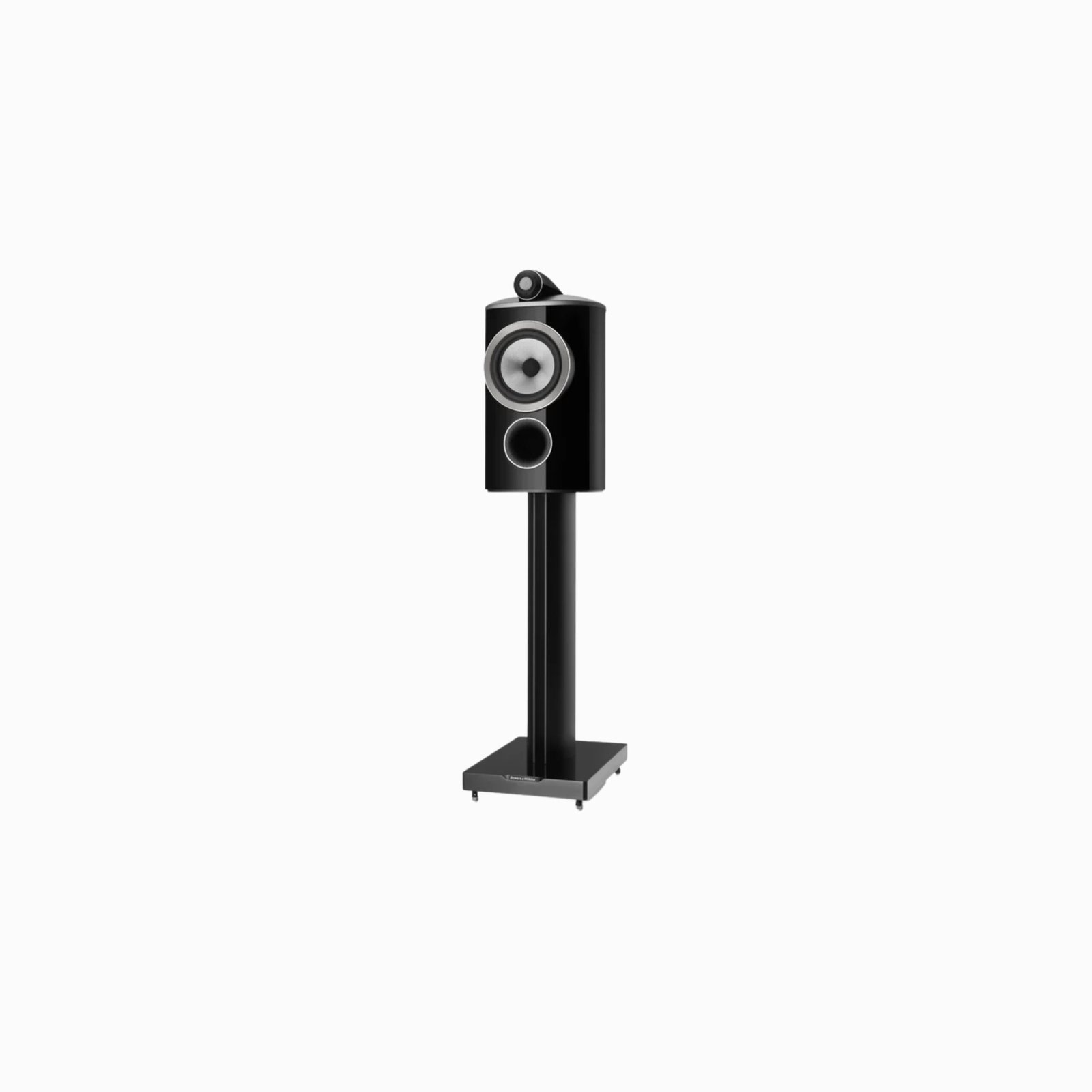

 805 D4

The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond™ range, but it’s still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top.

* Stand(s) not included.

Little Diamond

805 D4 might be smaller than its floor-standing siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminium bass pods and 165mm (6.5-in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.

Diamond dome tweeter

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.

Solid Body Tweeter assembly

Our newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Rear-mounted crossover

The new reverse-wrap orientation of the cabinet on 805 D4 means we can place its sensitive crossover components inside their own, dedicated space within the cabinet, which has critical benefits to both performance and serviceability. We’ve taken the opportunity to upgrade the speaker terminals, too.

The science of sound

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.

The 805 D4 is a masterclass in creating a truly magnificent soundstage that is always proportionate to the music being played and into which the speakers themselves simply vanish.



 Specifications

Size & weight

Dimensions
Height: 440mm (17.3 in)
Width: 240mm (9.4 in)
Depth: 373mm (14.7 in)
Net weight
15.55kg (34.3 lb)

Technical Details

Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuumâ„¢ cone bass/mid
Anti-Resonance plug
Matrixâ„¢
Flowport
Description
2-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø165mm (6.5in) Continuum cone bass midrange
Frequency range
34Hz to 35kHz
Frequency response
42Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
88dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 4.6Ω)
Recommended amplifier power
50W – 120W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
