Bowers & Wilkins CCM682- 8 Inches, 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to deliver balanced, full-range audio ideal for music, home theatre, and distributed audio installations.

  • 8-Inch Woofer Driver
    Larger driver provides deeper low-frequency performance and clear midrange response for richer, more impactful sound.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion for detailed audio reproduction.

  • Wide Sound Dispersion
    Engineered for broad and even audio coverage throughout the listening area, enhancing stereo imaging and immersion.

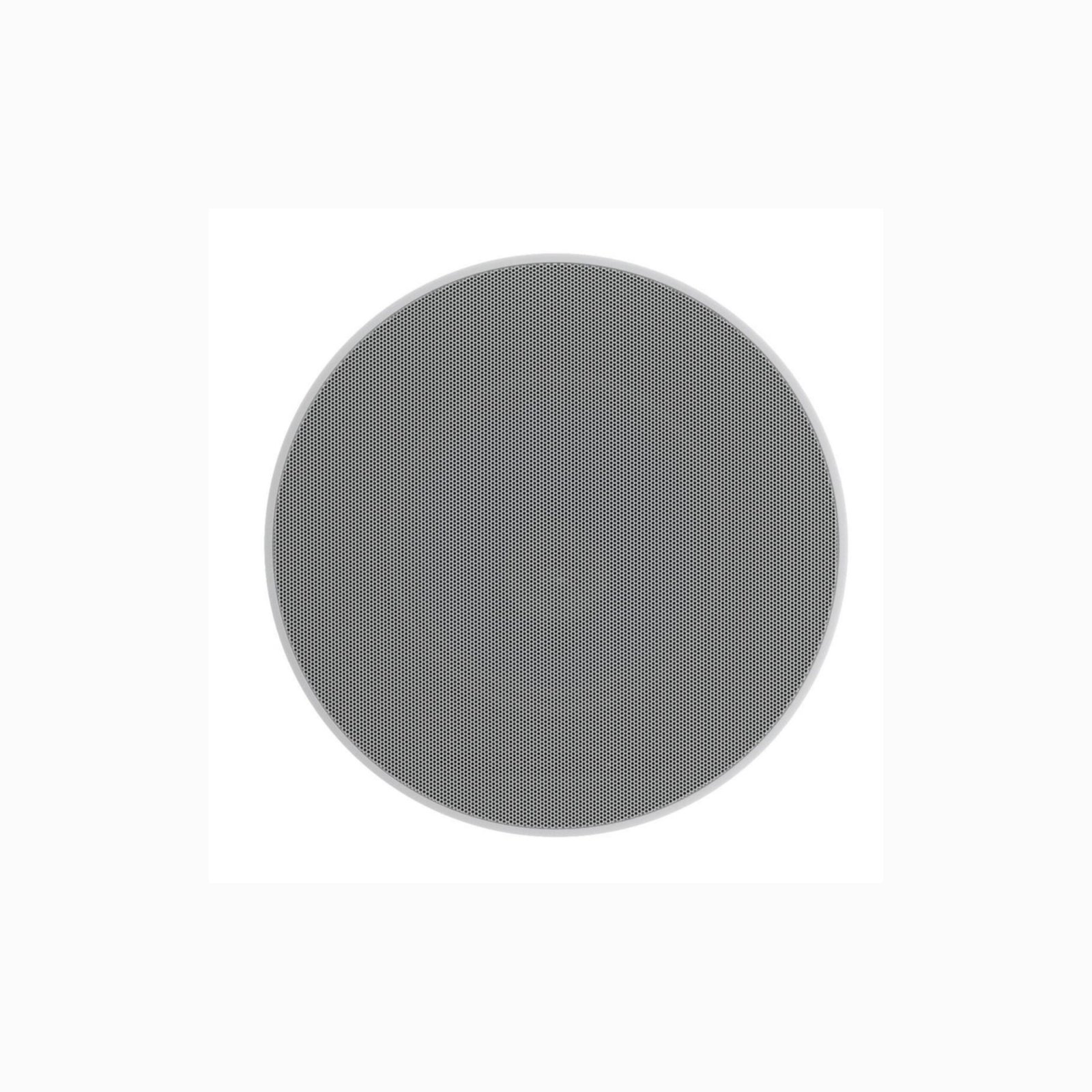

  • Low-Profile, Paintable Grille
    Sleek grille that blends into ceilings and can be painted to match room décor for a discreet, integrated look.

  • Optimized Crossover Network
    Precisely balances transitions between drivers for coherent and natural sound across the frequency range.

  • Flush-Mount Installation
    Designed for secure in-ceiling mounting with included hardware for a clean, flush finish.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transmission to adjacent spaces.

  • Durable Construction
    Built for reliable, long-lasting performance in residential or commercial environments.

  • Versatile Use
    Ideal for whole-home audio, background music zones, or main and surround channels in immersive home theatre setups.

Description

Bowers & Wilkins CCM 682

CWM Cinema 7 contains four top-quality drivers and a tweeter. It’s designed for use as a front left, center or right speaker – for serious power and audio quality, with simple installation.

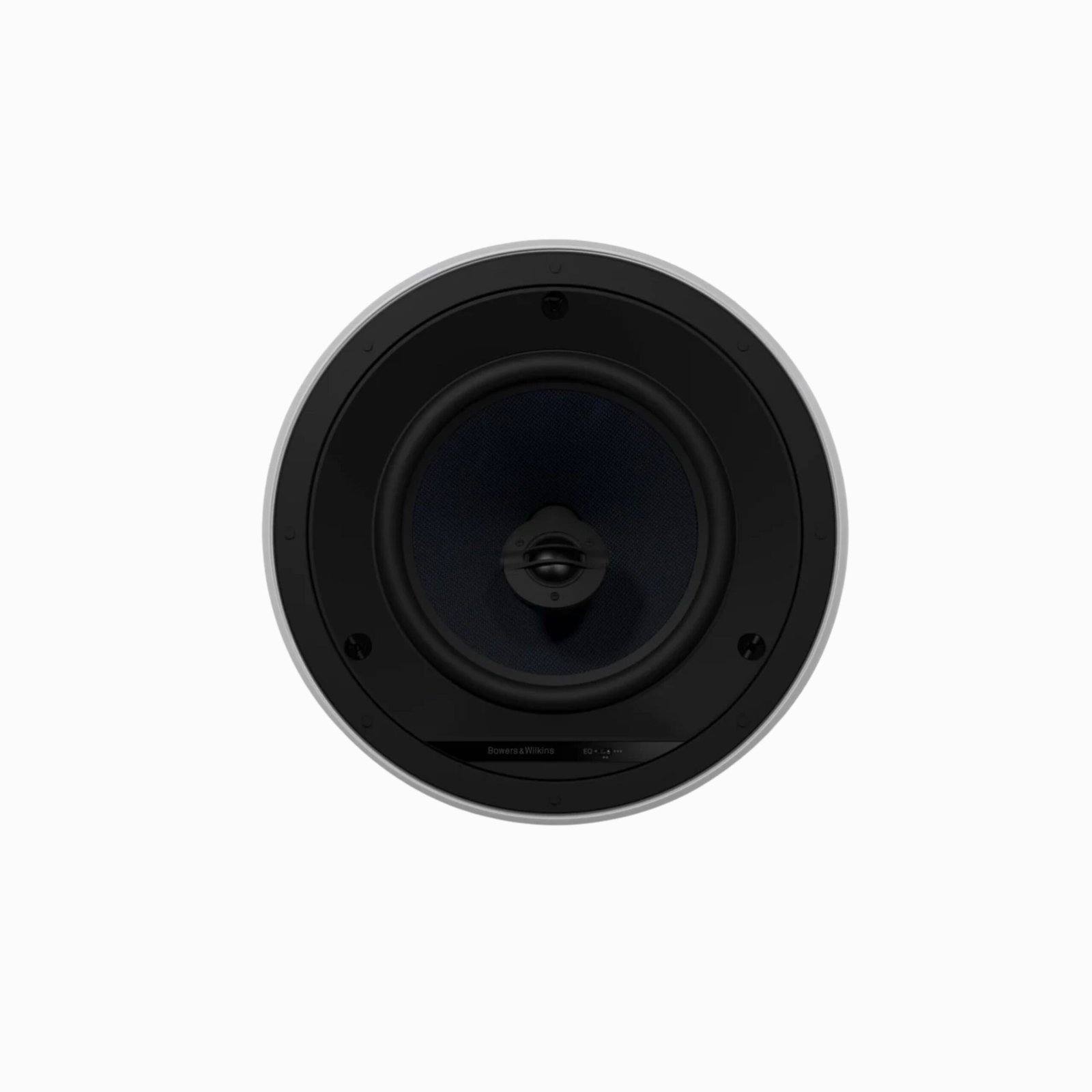

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Aramid Fibre cone bass/midrange driver and an aluminum dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminum tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off-axis response. The bass/midrange driver’s diecast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.



 Specifications

Description
2-way in-ceiling system
Drive Units
1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
1x ø150mm (8in) blue aramid fiber cone bass/midrange
Frequency Range (-6dB)
35Hz – 50kHz
Recommended Amp Power
25 – 150w
Sensitivity SPL (2.83V, 1m)
89dB
Impedance Nominal (min)
8 ohms (4.5 ohms)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 11.4 ”
Depth Behind Surface: 5.2 “
Cut-out Dimensions
Cut-out diameter: 9.8 ”
Protrusion: 0.2″
Pre-mount Kit
C8
Recommended Back Box
C6
Approximate Weight
Shipping: 10 lbs
UPC
714346310388
Series
CI 600 Series
Drivers
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
Impedance
8Ohms (minimum 4.5Ohms)
Sensitivity
89 dB
Total Amp Power
Recommended 25 – 150w
