Category: Subwoofer

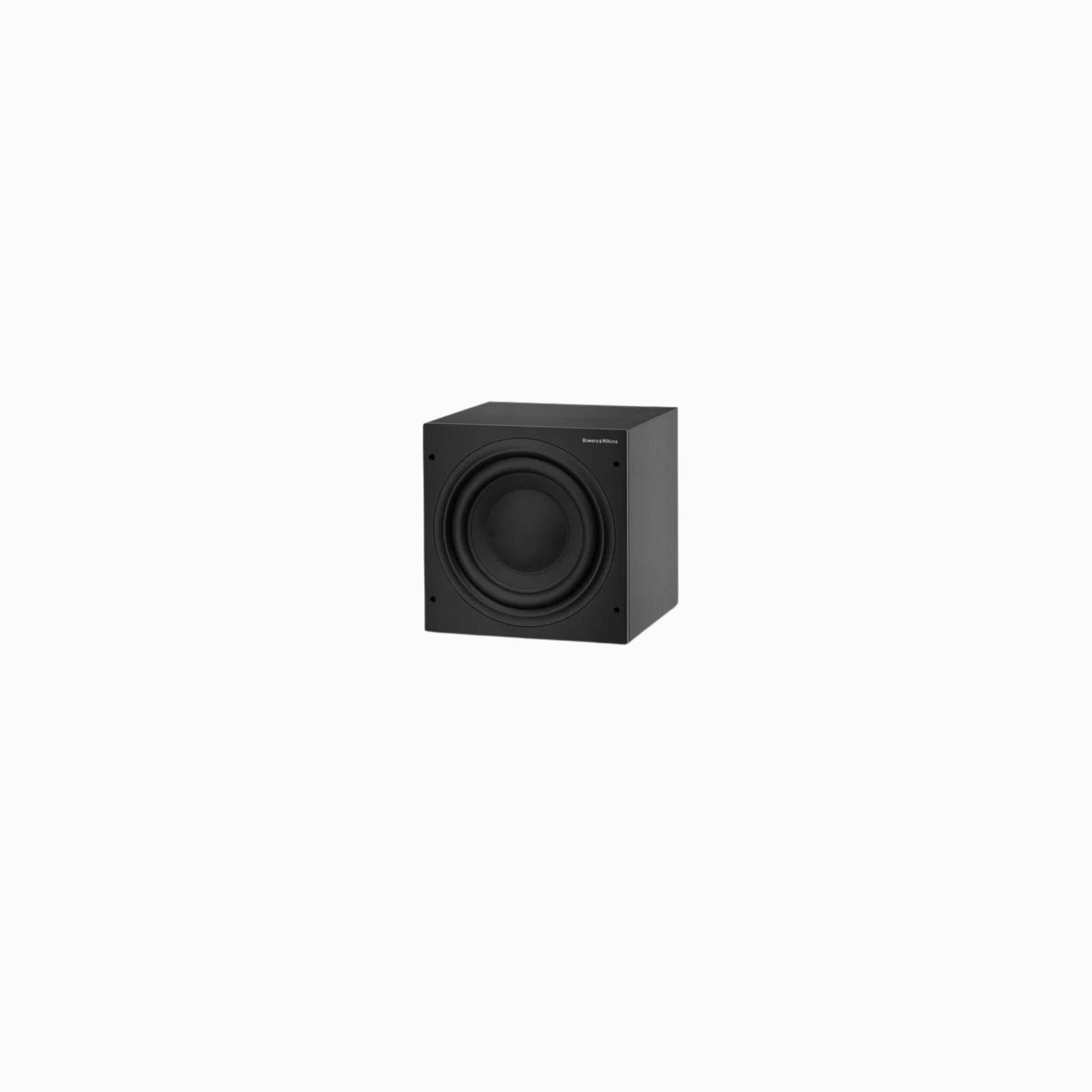

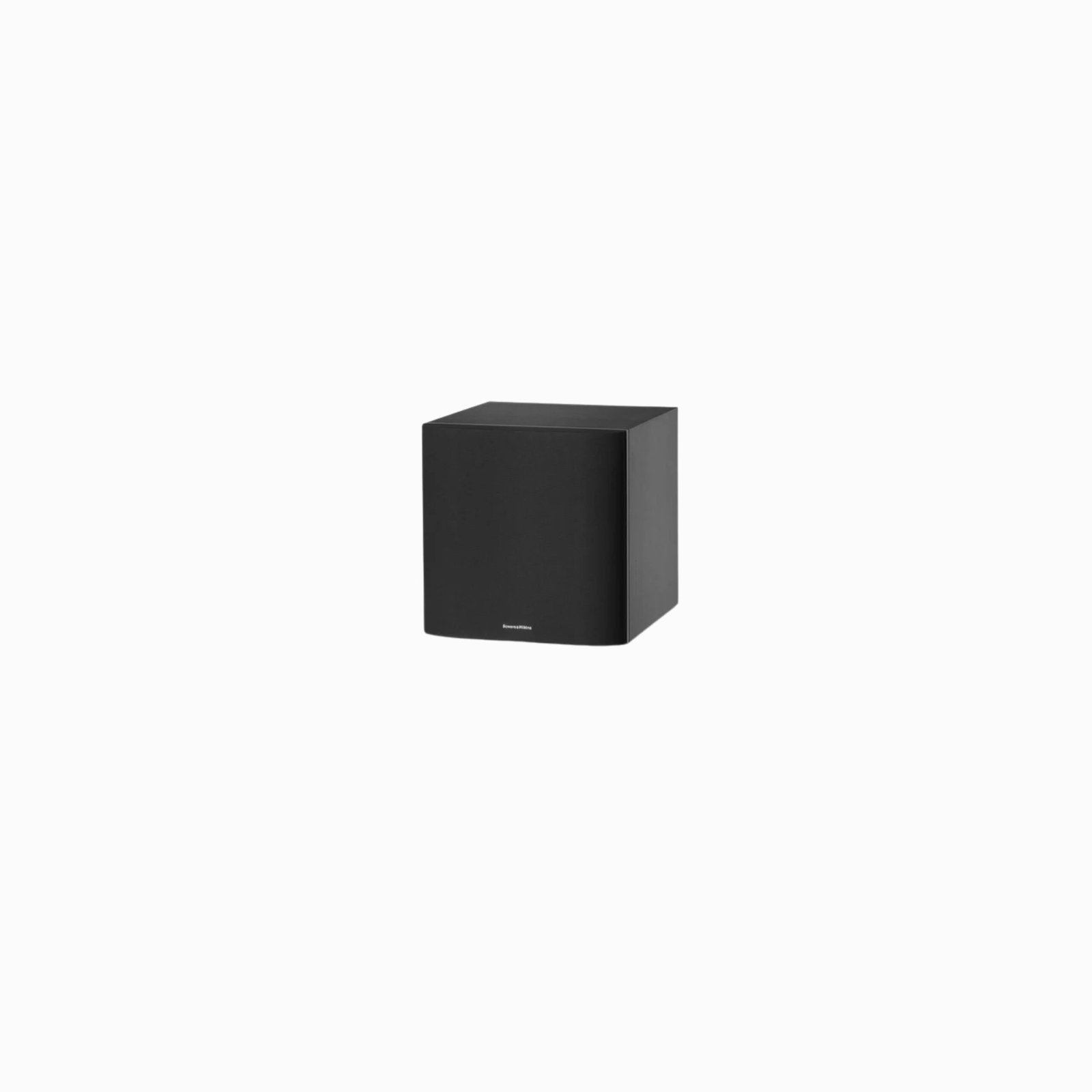

Bowers & Wilkins ASW610XP - 10 Inch Powered Subwoofer

Key Features

  • 10-Inch High-Performance Subwoofer Driver
    Engineered to deliver deep, controlled low-frequency output with excellent punch and definition for music and home theatre.

  • Powerful Built-In Amplifier
    High-output amplification ensures dynamic, distortion-free bass performance even at higher listening levels.

  • Sealed Cabinet Design
    Acoustic suspension enclosure provides tight, accurate bass with fast transient response and minimal overhang.

  • Kevlar® / High-Rigidity Cone Technology
    Rigid cone construction improves bass precision and reduces unwanted distortion.

  • Adjustable Crossover Control
    Allows precise matching with main speakers for seamless low-frequency integration.

  • Phase Control
    Helps align the subwoofer with other speakers in the system for optimal bass timing and impact.

  • Line-Level and Speaker-Level Inputs
    Flexible connectivity for easy integration with AV receivers, stereo amplifiers, and home theatre systems.

  • Auto On/Standby Function
    Automatically powers on when a signal is detected and enters standby when not in use, improving efficiency.

  • Rigid, Low-Resonance Cabinet
    Solid enclosure minimizes vibration and coloration, ensuring cleaner and more accurate bass reproduction.

  • Compact, Premium Design
    Space-efficient form factor with refined finish that fits easily into modern living rooms and dedicated home theatre setups.

Description

 ASW610XP

ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms.

Boost your bass

Tuned for powerful bass

A big driver isn’t enough: ASW610XP’s combines paper pulp, Aramid fiber and resin for stiffness and accuracy.

All the power you’ll need

ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation.



 Specifications

Size & weight

Dimensions
Height: 325mm (12.8in) not including feet or spikes
337mm (13.3in) including feet
353mm (13.9in) including spikes
Width: 325mm (12.8in)
Depth: 348mm (13.68in) not including grilles
375mm (14.8in) including grilles and controls
Net weight
18.65kg (41.12 lb)

Technical Details

Technical features
Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description
Active closed-box subwoofer system
Drive units
ø250mm (10 in) Paper / Aramid fibre cone long-throw
Frequency range
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)
Amplifier power output
500W
Power consumption
98W / 1W standby
Input impedance
33kΩ
Signal / Noise
>80dB
Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
