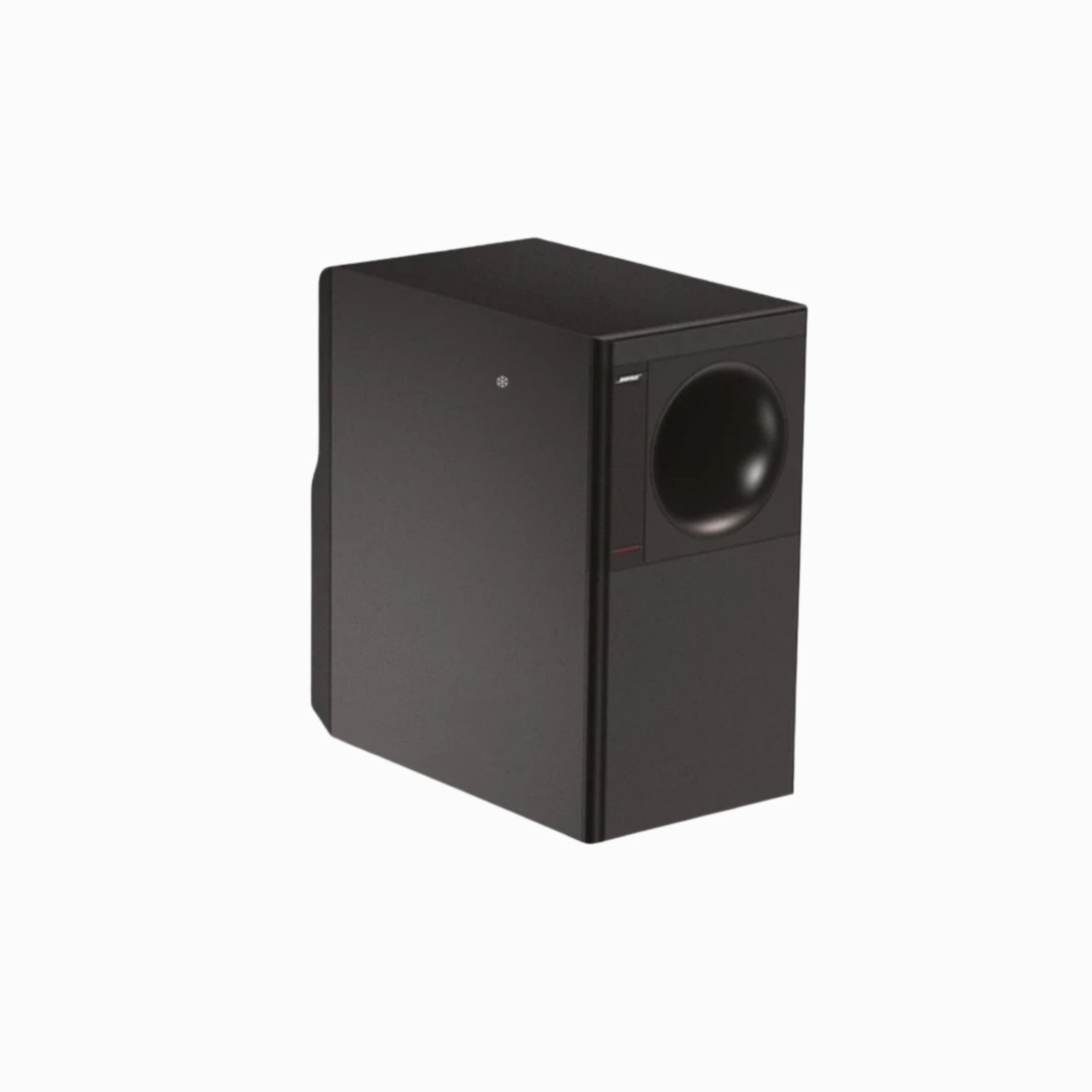

Bose FreeSpace 3 Bass-Module (Black)

Key Features

  • Compact Acoustimass bass module designed to extend low-frequency response in commercial audio systems

  • Delivers deep, non-localized bass for clear and balanced background music

  • Uses Bose Acoustimass technology to reduce distortion and enhance overall sound clarity

  • Optimized to work seamlessly with Bose FreeSpace 3 surface-mount and flush-mount satellite speakers

  • Supports modular system design, allowing multiple bass modules to be combined for higher output

  • Compatible with both low-impedance systems and 70V/100V distributed audio systems

  • Wide, omnidirectional bass dispersion for consistent sound coverage across large areas

  • Suitable for indoor installations such as retail stores, restaurants, hotels, offices, and lobbies

  • Durable black enclosure built for long-term commercial use

  • Flexible installation options for discreet placement within interiors

Description

FEATURES

loudspeaker featuring one 5.25″ (133mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications

Low-frequency

filters out audible distortion to deliver non-localized bass

Acoustimass speaker technology

to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired

Designed

allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module

Module design

70/100V or low impedance

Selectable



SPECifications

Technical Summary

50 Hz – 230 Hz

Frequency Response (+/-3 dB)

40 Hz – 315 Hz

Frequency Range (-10 dB)

Omni-directional below 200 Hz

Nominal Dispersion

70/100 V: 200 W (800 W peak) monoLow impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono

Long-Term Power Handling

Per channel: 76 dB SPL (Mono: 79 dB SPL)

Sensitivity (SPL / 1 W @ 1 m)

Per channel: 96 dB SPL (102 dB SPL peak)Mono: 102 dB SPL (108 dB SPL peak)

Maximum SPL @ 1 m

5 Ω mono direct (transformer bypassed)

Nominal Impedance
