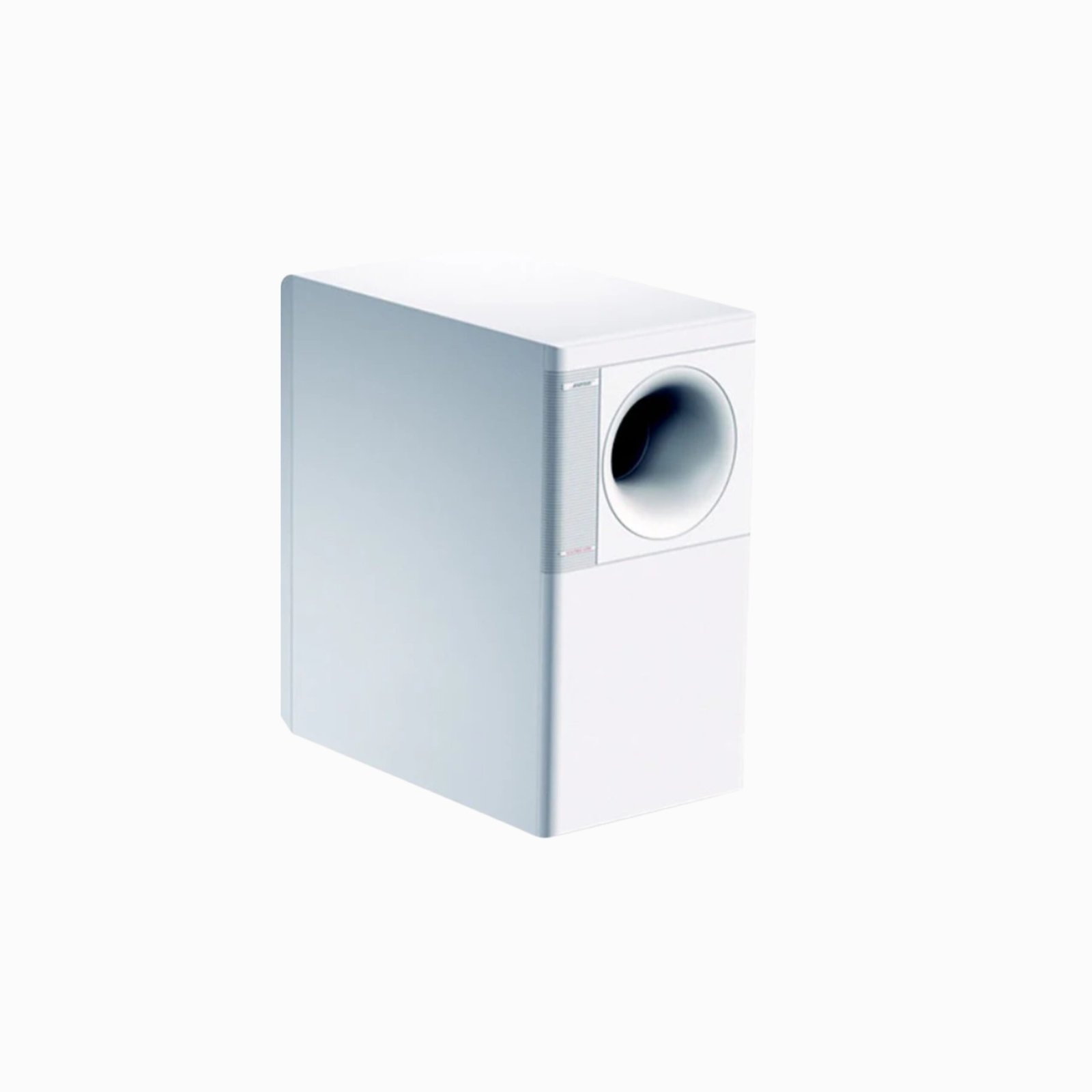

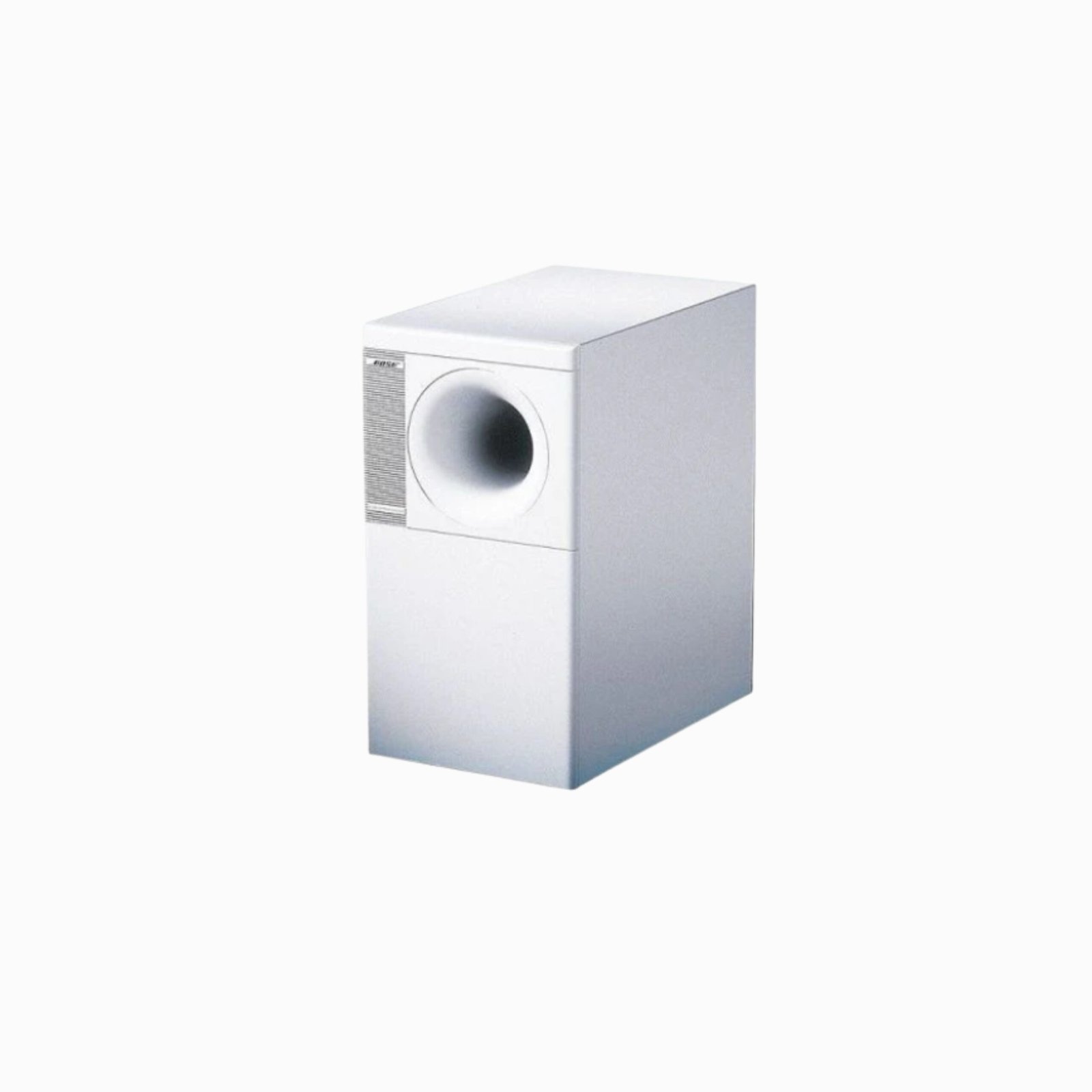

Bose FreeSpace 3 Bass-Module (White)

Key Features

Enhanced Low-Frequency Performance

  • Dedicated bass reinforcement to extend the low end of installed audio systems

  • Deep, controlled bass enhances music, movies, and ambient sound

  • Improves overall system balance when paired with high-frequency speakers

Powered Subwoofer Design

  • Built-in amplifier tailored for the FreeSpace 3 Bass-Module

  • Designed for easy integration without the need for separate amplification

Compact and Discreet

  • Small form factor that fits under counters, in cabinets, or in open ceiling spaces

  • White finish blends seamlessly with lighter décor and ceilings

Reliable Construction

  • Designed for long-term performance in both commercial and residential installations

  • Durable enclosure suitable for continuous use

Description

FEATURES

Low-frequency loudspeaker featuring one 5.25″ (133mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications

Acoustimass speaker technology filters out audible distortion to deliver non-localized bass

Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired

Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module

Selectable 70/100V or low impedance

Applications

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms

Additional Information



SPECS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz – 230 Hz

Frequency Range (-10 dB)
40 Hz – 315 Hz

Nominal Dispersion
Omni-directional below 200 Hz

Long-Term Power Handling
70/100 V: 200 W (800 W peak) mono
Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono

Sensitivity (SPL / 1 W @ 1 m)
Per channel: 76 dB SPL (Mono: 79 dB SPL)

Maximum SPL @ 1 m
Per channel: 96 dB SPL (102 dB SPL peak)
Mono: 102 dB SPL (108 dB SPL peak)

Nominal Impedance
5 Ω mono direct (transformer bypassed)
