Description

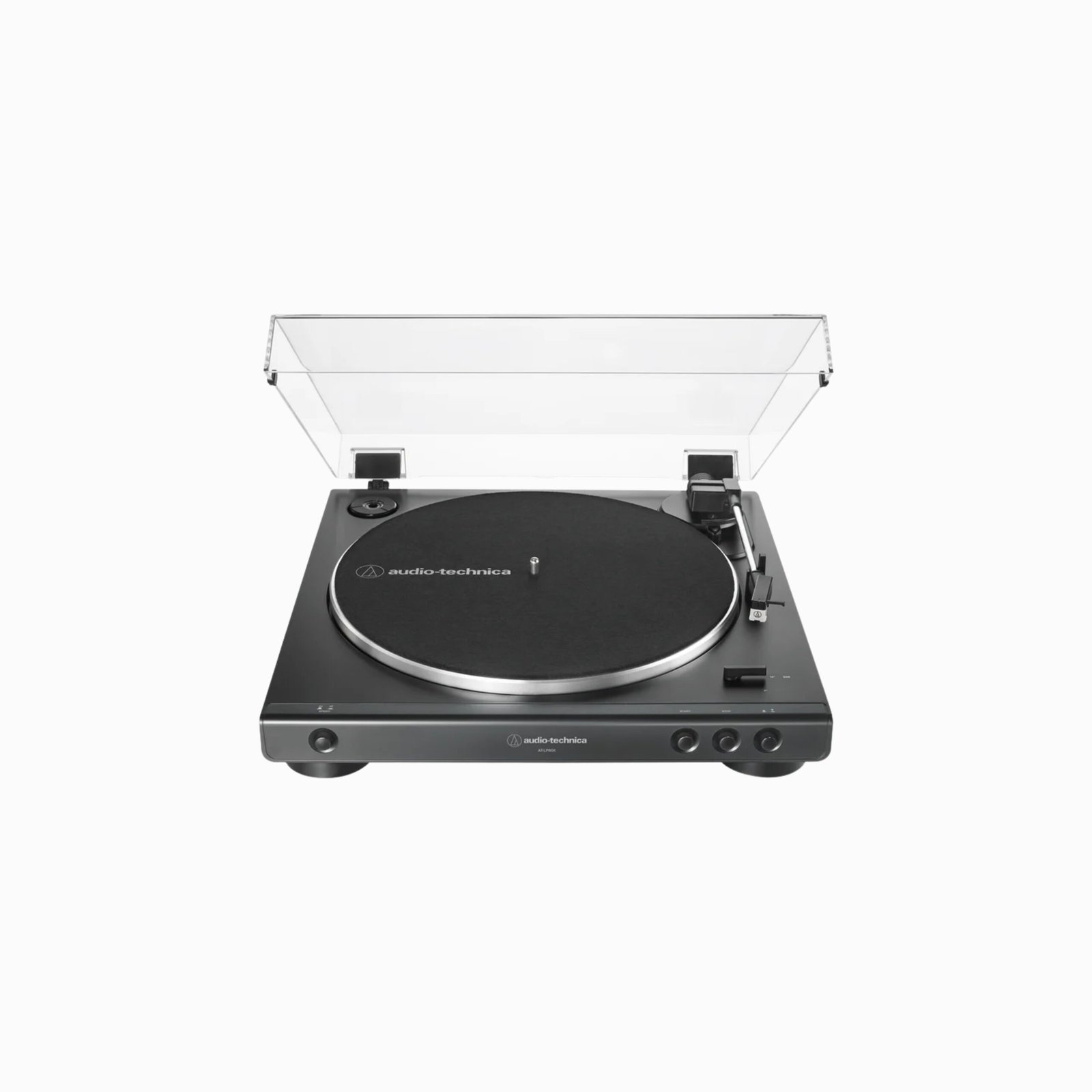

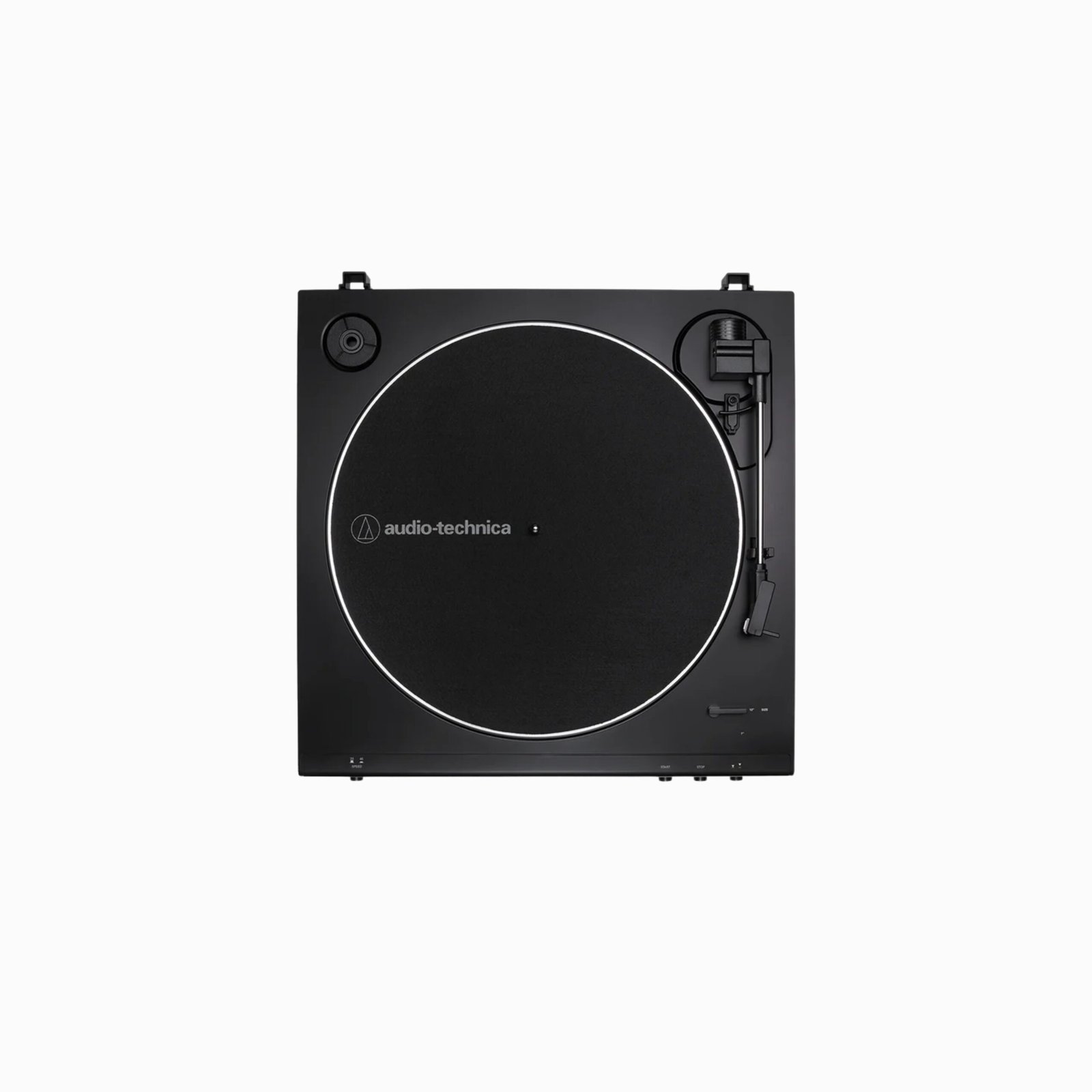

Audio Technica AT-LP60X – Fully Automatic Belt-Drive Turntable
AT-LP60X
Whether you’re just getting into records, rediscovering a record collection long since buried away, or simply adding a turntable to complete your system, the AT-LP60X fully automatic belt-drive turntable is an excellent choice. This affordable, easy-to-use turntable plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to your home stereo, powered speakers, computer, and other components, whether they have a dedicated phono input or not.
An update of the popular AT-LP60, the AT-LP60X features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis, where its impact on the signal chain is limited.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60X’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup.
The turntable comes with a detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and a removable
Venture into Vinyl
Discover (or rediscover) the wonder of vinyl records. This affordable, easy-to-use turntable is the perfect entry into the world of analog audio.
- Plays 33-1/3 and 45 RPM Records
- Built-in Switchable Phono Pre-amplifier
- Fully Automatic Operation
- Replaceable Stylus
Over 60 Years of Analogue Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
Features
- Experience the high-fidelity audio of vinyl
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- Anti-resonance, die-cast aluminum platter
- Redesigned tonearm base and headshell for improved tracking and reduced resonance
- Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Built-in switchable phono pre-amplifier for phono- or line-level output
- Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
Specifications
|
Type
|
fully automatic |
|---|---|
|
Motor
|
DC servo-controlled |
|
Drive Method
|
Belt-drive |
|
Speeds
|
33-1/3 RPM, 45 RPM |
|
Turntable Platter
|
Aluminium |
|
Wow and Flutter
|
Less than 0.25% (WTD) @ 3 kHz (JIS) |
|
Signal-to-Noise Ratio
|
>50 dB (DIN-B) |
|
Output Level
|
Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec |
|
Phono Pre-Amp Gain
|
36 dB nominal, RIAA equalized |
|
Power Supply Requirements
|
115/230V AC, 60/50 Hz |
|
Dimensions
|
359.5 mm x 97.5 mm x 373.3 mm |
|
Weight
|
2.6 kg |
|
Accessories Included
|
3.5 mm (1/8″) mini-plug (male) to dual RCA (male) output cable 45 RPM adapter Removable hinged dust cover |
