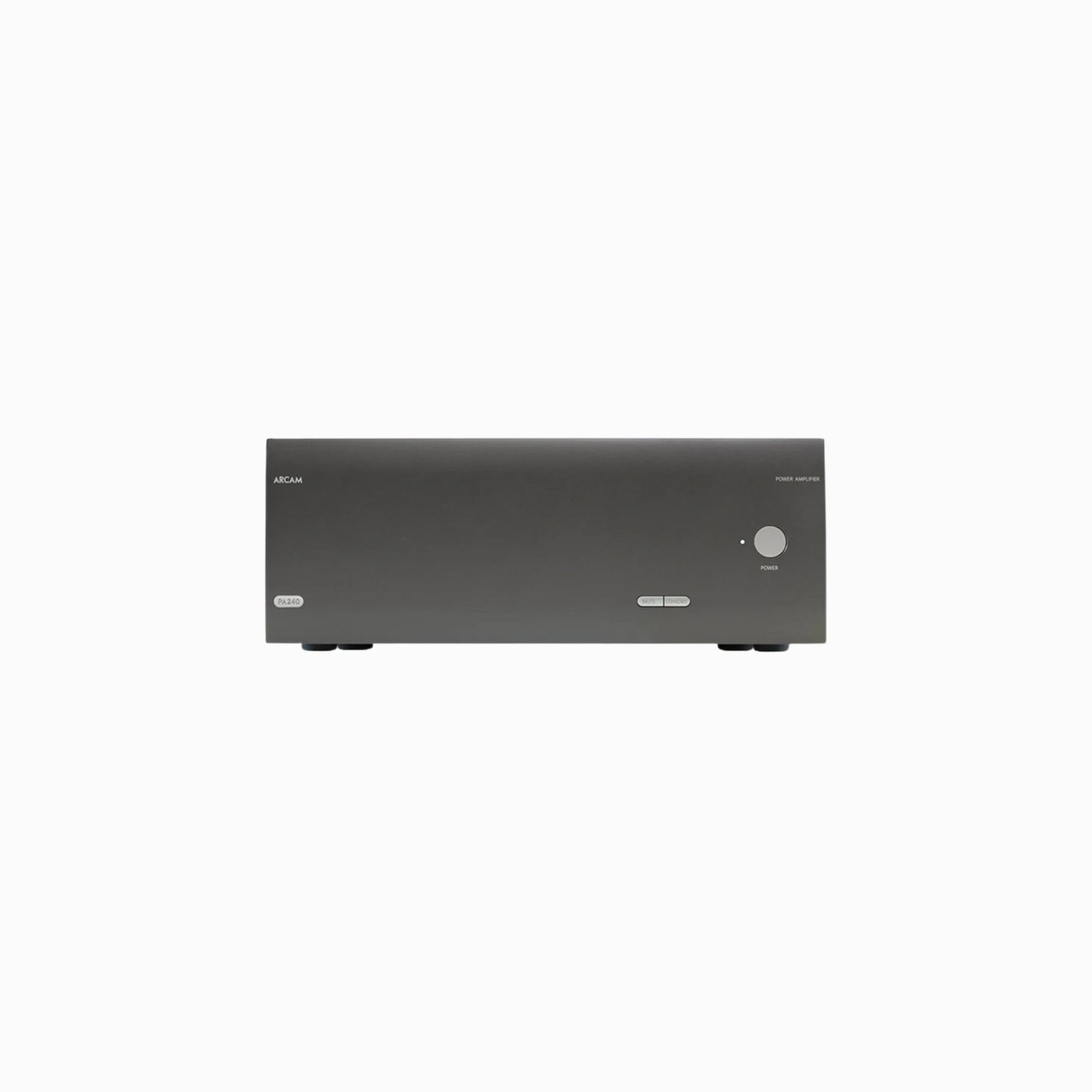

Arcam PA240 - Class G High Performance 2 Channel Power Amplifier

Key Features

  • Class G amplification delivers high efficiency and low distortion with improved dynamic headroom

  • Two high-current power channels ideal for driving demanding loudspeakers with clarity and control

  • Robust power delivery suitable for both music and home theatre applications

  • High-quality discrete audio circuitry for precise and detailed sound reproduction

  • Balanced XLR and unbalanced RCA inputs for flexible system connectivity

  • Parallel speaker outputs support bi-amping or multi-room configurations

  • Rigid, low-resonance chassis design reduces vibration and coloration

  • High-current power supply with large transformer and reservoir capacitors for stable performance at high output levels

  • Thermal and over-current protection for safe, reliable operation

  • Front-panel level controls for easy gain adjustment

  • Ideal as a stereo power amplifier for audiophile two-channel systems or as part of a larger A/V setup

Description

Arcam PA240

Class G Power Amplifier

PA240

Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components, including a toroidal-based power supply, acoustically damped chassis, paralleled transistor output stages, and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

PRODUCT DETAILS

  • 2 Channel Power Amplifier
  • 2 x 225W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
  • Class G amplification with 50W of class A operation
  • Toroidal transformer
  • Stereo, Dual Mono, or Bridged operation
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs



Specifications

2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz
380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz
790W
Harmonic distortion, 80% power, 8Ω at 1kHz
0.001%
Input sensitivity 200W / 8Ω
RCA Type 1.15V RMS, XLR Type 2.3V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω
110dB
Input impedance
10kΩ
Frequency response
20 – 20kHz +/-0.05dB
Mains voltage
110–120V or 220–240V, 50–60Hz
Power consumption (maximum)
1.5kW
Power consumption (idle, typical)
90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby)
<0.5W
Dimensions W x D x H (including feet, control knob, and speaker terminals)
433 x 425 x 177mm
Weight (net)
18kg
Weight (net)
18kg
Weight (packed)
19.7kg
