The preamplifier section features the latest implementation of AAVA volume control for further enhanced clarity. The instrumentation amplifier principle in the power amplification stage allows fully balanced signal transmission and realises a top-notch S/N ratio. Balanced Remote Sensing enables low impedance of output circuitry, resulting in a damping factor of 600. The power amplification stage uses power MOS-FETs in a triple parallel push-pull configuration, delivering 180 watts into 8 ohms for dynamic music enjoyment.

Warranty:

1-year manufacturer’s warranty

Features:

  • Revolutionary AAVA volume control
  • Power amplification stage with power MOS-FETs in triple parallel push-pull configuration
  • Rated output 180 watts into 8 ohms
  • Damping factor 600
  • The instrumentation amplifier principle in the power amplification stage allows fully balanced signal transmission
  • MCS+ topology and current feedback in the power amplification stage

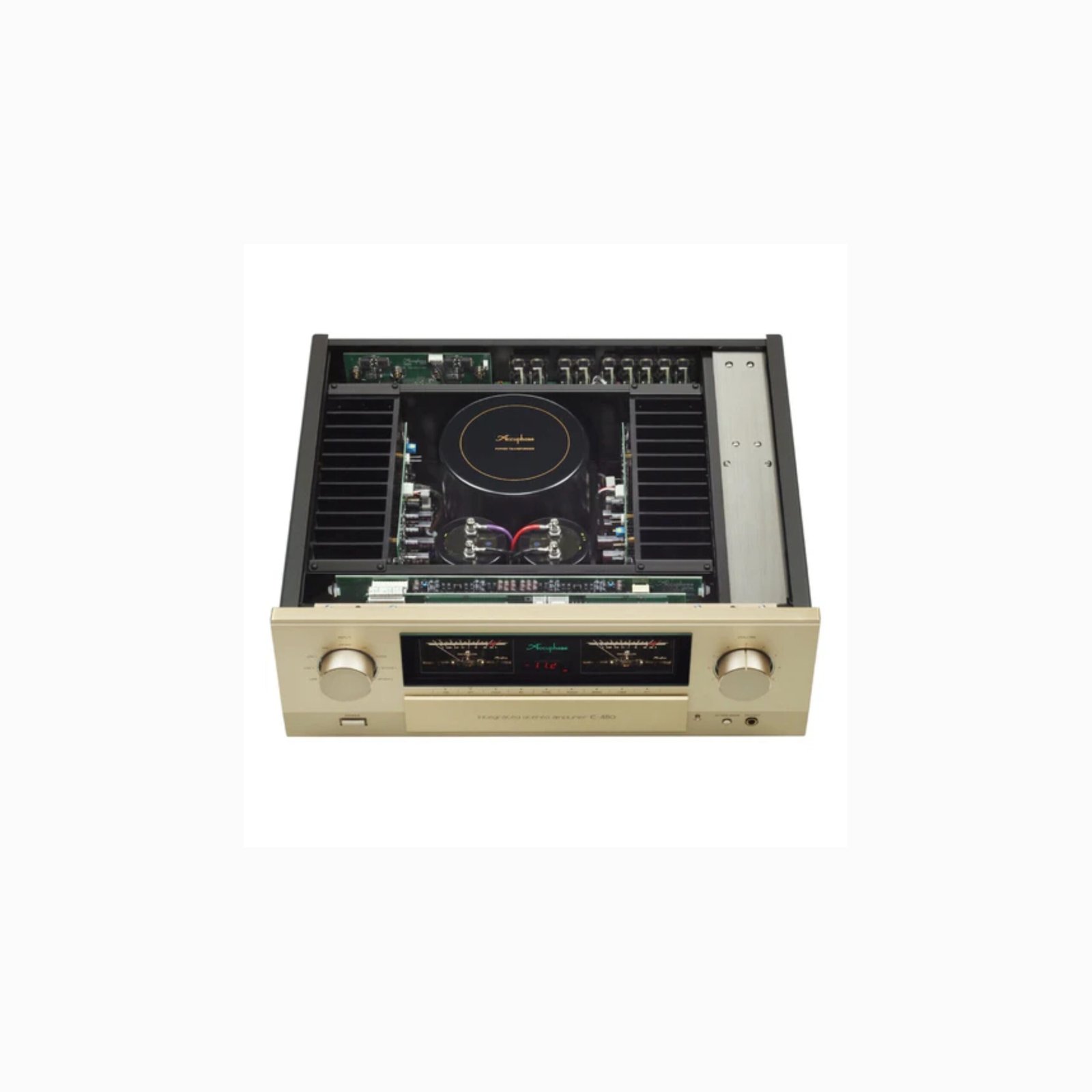

  • Strong power supply with a massive high-efficiency transformer and large filtering capacitors

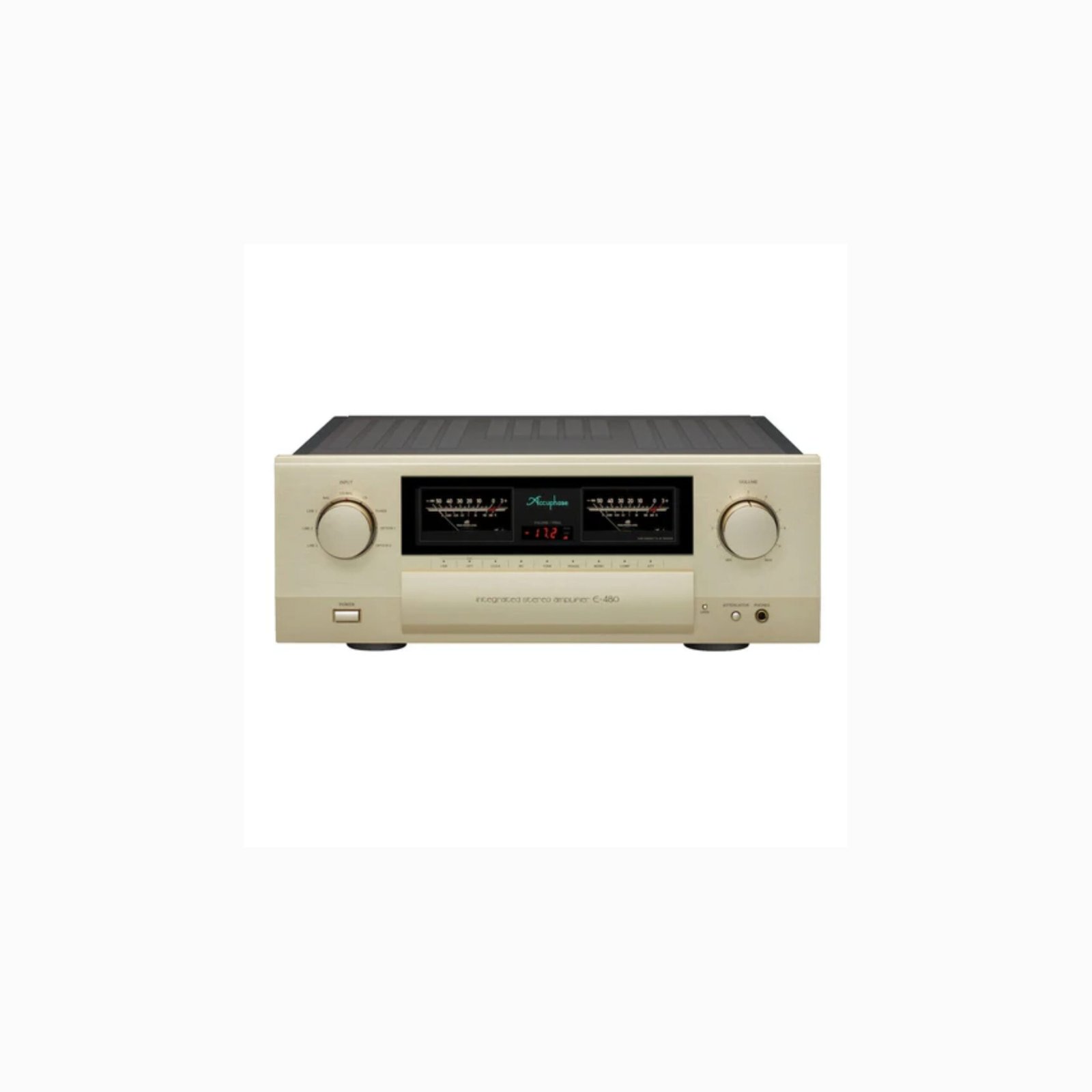

INTEGRATED STEREO AMPLIFIER
Since the E-303 launched in 1978, the high-power integrated amp has been at the core of the Accuphase product lineup. The E-480 is a successor model of E-470; it is the 11th generation of “Accuphase Core Product”. The E-480 Preamplifier section features the further evolved AAVA that enables accurate volume control. In the power amplifier section, a damping factor is further enhanced with precise and dynamic speaker driving ability. The preamplifier and power amplifier sections are kept entirely separate, and users can combine E-480 with other separate systems.

Option Boards
A range of sophisticated option boards opens up even more possibilities. The newly developed Digital Input Board DAC-40 features a USB port and support for high-bit, high-sampling frequency signals up to 192 kHz/24 bits. The newly developed Analog Disc Input Board AD-30 is also available, ideal for high-grade reproduction of analog records using either MC or MM phono cartridges.

Technical Specifications:

Rated Continuous Average Output Power (both channels operating simultaneously, 20-20000Hz)

Note: * 1-ohm operation possible with music signals only.

 260 W/ch 4-ohm load * 180 W/ch 8-ohm load 60 W/ch 4-ohm load 30 W/ch 8-ohm load
Total Harmonic Distortion (both channels operating simultaneously, 20-20000Hz) 0.05% 4 to 16 ohm load
Intermodulation Distortion 0.01%
Frequency Response HIGH LEVEL INPUT

At rated continuous average output: 20 – 20,000 Hz ＋0, –0.5 dB

MAIN IN

At rated continuous average output: 20 – 20,000 Hz ＋0, –0.2 dB

At 1 watt output: 3 – 150,000 Hz ＋0, –3.0 dB
Damping Factor 600 (with 8-ohm load, 50 Hz)
Input Sensitivity and Impedance Input Input sensitivity

For rated output for 1 Watt (EIA)

Input impedance HIGH LEVEL INPUT 190mV 14.2mV 20 kilohms BALANCED INPUT 190mV 14.2mV 40 kilohms MAIN IN LINE 1.51V 113mV 20 kilohms MAIN IN BAL 1.51mV 113mV 40 kilohms
Output voltage Impedance PRE OUTPUT 1.51V 50 ohms (at rated continuous average output)
Gain HIGH LEVEL INPUT → PRE OUTPUT: 18 dB

MAIN IN → OUTPUT: 28 dB
Tone Controls Turnover frequency and adjustment range

BASS: 300 Hz ±10 dB (50 Hz)

TREBLE: 3 kHz ±10 dB (20 kHz)
Loudness compensator #ERROR!
Attenuator -20dB
S/N Ratio,

Input-converted Noise

 Input S/N ratio at rated output

(A-weighted, with input shortened)

S/N ratio (EIA) HIGH LEVEL INPUT 109dB 97dB BALANCED INPUT 102dB 97dB MAIN IN 125dB 101dB
Power Meter Logarithmic type peak level display of output in dB or per cent

* With meter on/off switching function
Output Load Impedance 4 to 16 ohms
Stereo Headphones Suitable impedance: 8 ohms or higher
Power Requirements 120 V/220 V/230 V AC, 50/60 Hz (Voltage as indicated on rear panel)
Power Consumption 93W idle

425W in accordance with IEC 60065
Maximum Dimensions Width 465 mm ( 18.31″)

Height 181 mm ( 7.13″)

Depth 428 mm (16.85”)
Mass 24.6 kg (54.2 lbs) net

31.0 kg (68.3 lbs) in shipping cart
