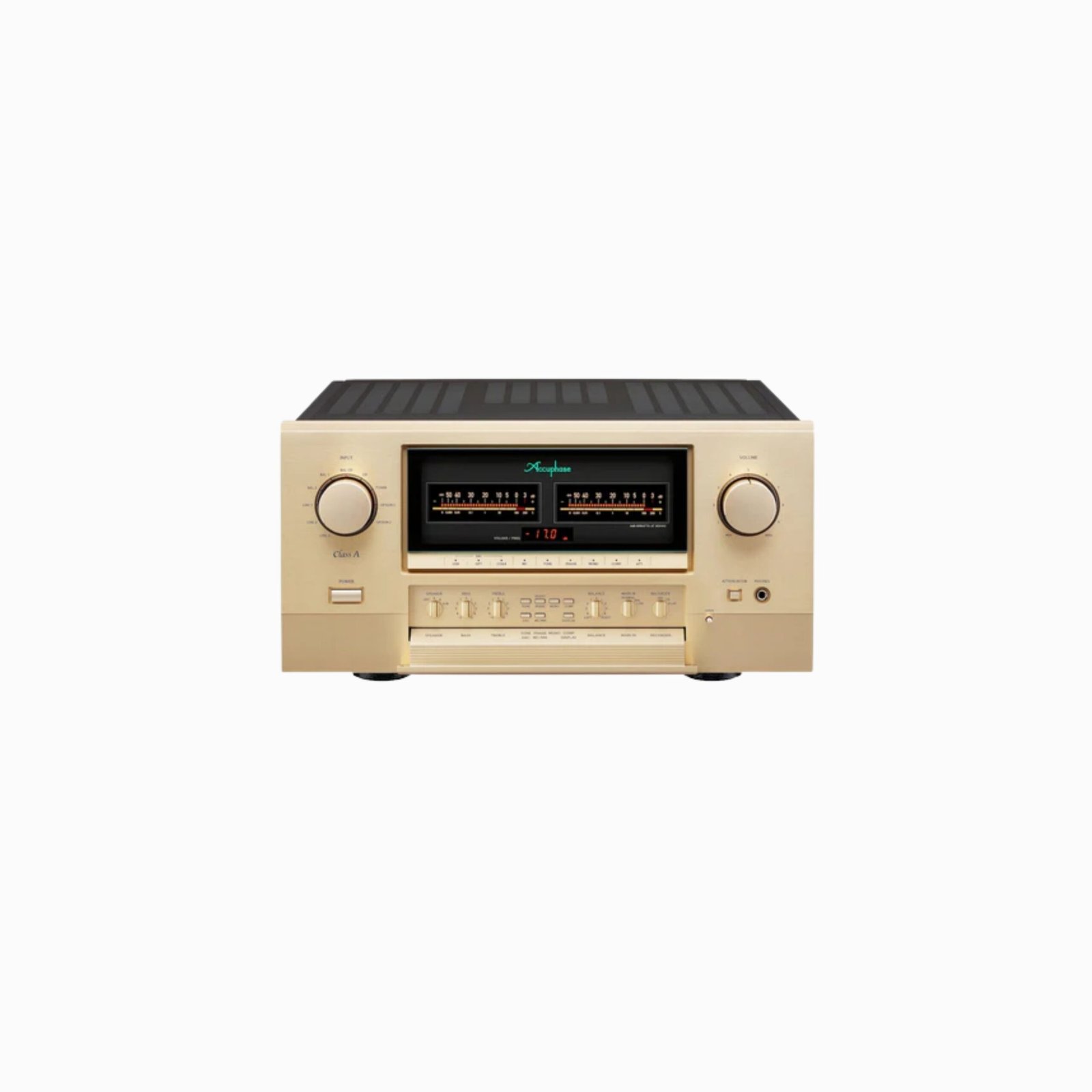

The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section features the impeccable Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier using a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The resulting quality is on a par with high-class separate-type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches the very heart of the music.

Warranty:

1-year manufacturer’s warranty

Features:

  • Integrated amplifier with a fully balanced configuration extending from the input to the output
  • Balanced AAVA type volume control
  • Power amplification stage configured as an instrumentation amplifier
  • Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
  • Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
  • 300 W output into a 1-ohm load (music signals)
  • The high damping factor of 1000
  • Strong power supply with a massive high-efficiency toroidal transformer and large filtering capacitors
  • Protection circuitry using MOS-FET switches

CLASS-A INTEGRATED STEREO AMPLIFIER
The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup from Accuphase. The preamplifier section features the impeccably balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier using a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The resulting quality is on a par with high-class separate-type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches the very heart of the music. The E-800 comes with two option slots for the Accuphase ‘Option Boards,’ such as the AD-30 phono preamp, or the DAC-40 digital to analog converter.

BALANCED AAVA TYPE VOLUME CONTROL
AAVA performs volume adjustment by making use of a combination of 16 current signals with different magnitudes, thereby eliminating signal degradation and impedance fluctuations and maintaining a high S/N ratio and low THD over the entire volume range. In the Balanced AAVA implementation of the E-800, two AAVA circuits are driven in a fully balanced configuration with a superior capability to eliminate external noise.

FORMIDABLE POWER AMPLIFICATION STAGE

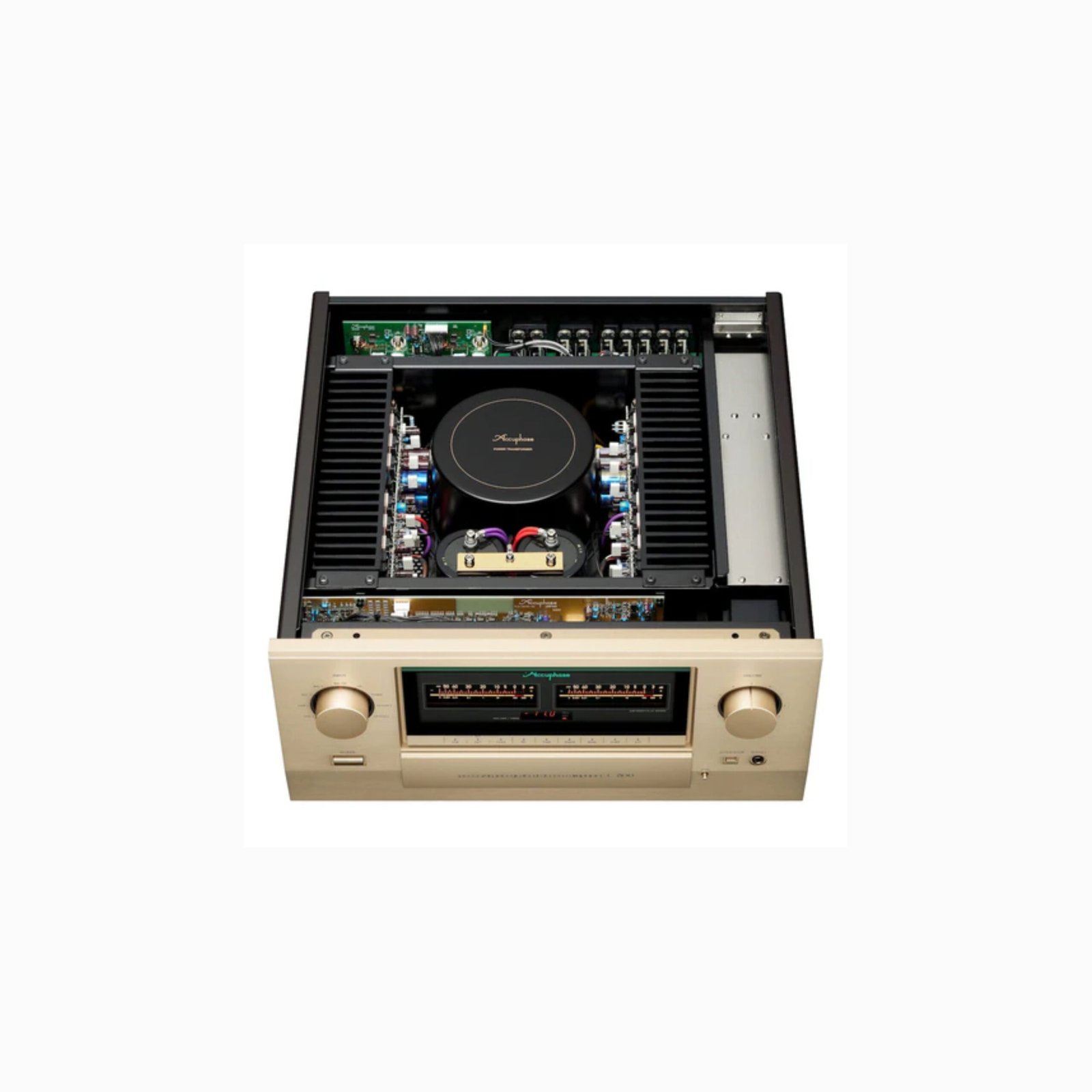

The power amplification circuitry mounted directly on a large heat sink employs a six-fold parallel push-pull configuration of power MOS-FETs driven in Class A. Two identical units arranged on the left and right sides of the chassis deliver impeccable power in a linear progression for the two channels: 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms. The amplifier can even supply 300 watts into 1 ohm (music signals).

POWER SUPPLY CIRCUITRY DESIGNED FOR OPTIMUM STABILITY
The strong power supply with a massive high-efficiency toroidal transformer and two large 60,000 μF filtering capacitors ensures a stable current supply at all times

THE HIGH DAMPING FACTOR BRINGS OUT THE FULL MUSICAL POTENTIAL OF LOUDSPEAKERS
Features such as Balanced Remote Sensing and MOSFET switches help to realize a damping factor of 1000. Superb motion control lets every loudspeaker perform at its very best.

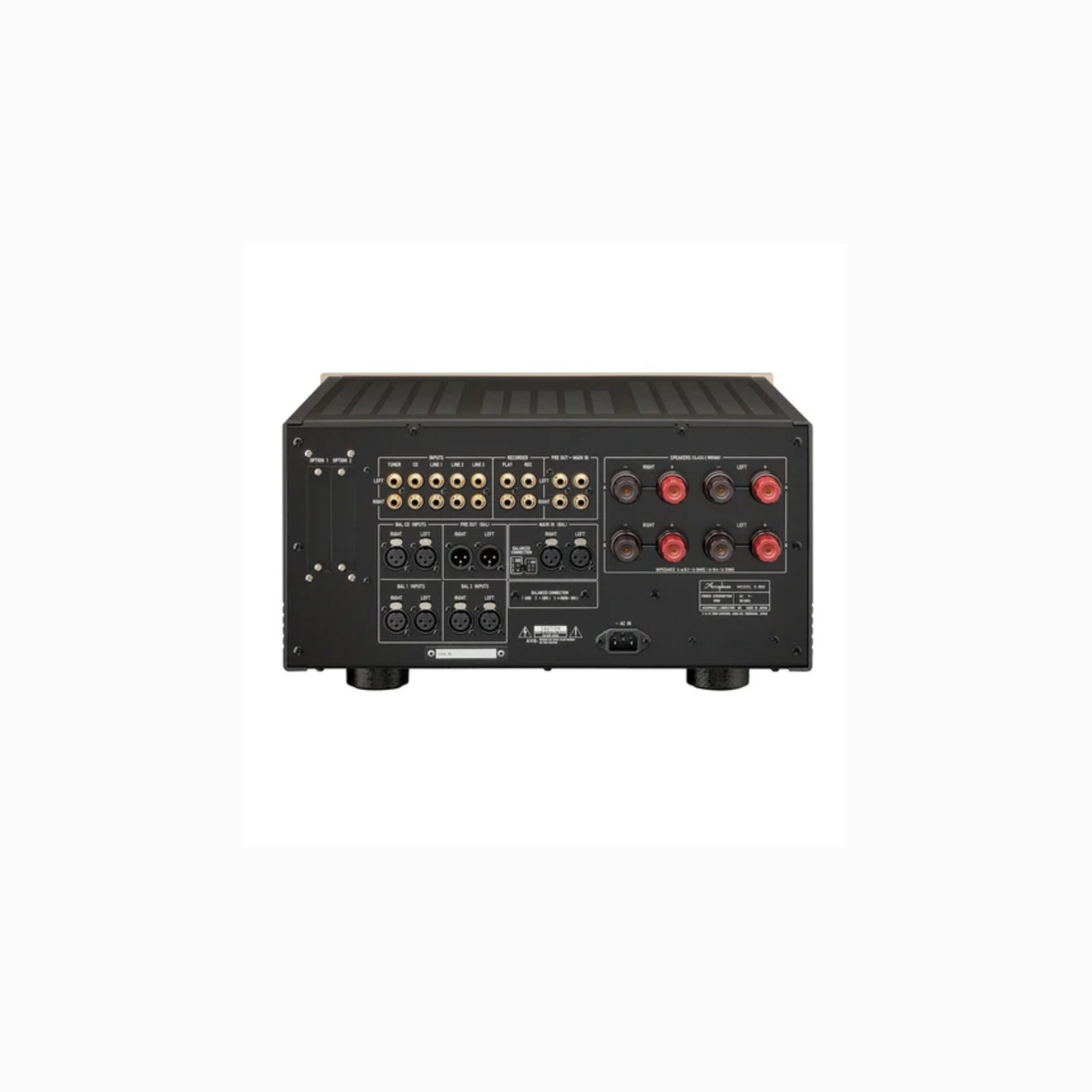

BALANCED I/O
Integrated amplifier with a fully balanced configuration extending from input to output.

Technical Specifications:

Continuous Average Output Power (both channels driven, 20-20,000 Hz) 300 watts per channel into 1 ohm, 200 watts per channel into 2 ohms, 100 watts per channel into 4 ohms, and 50 watts per channel into 8 ohms.
Intermodulation Distortion 0.01%g
Frequency Response HIGH LEVEL INPUT/POWER INPUT 20 – 20,000 Hz +0, -0.5 dB (for rated continuous average output), 3 – 150,000 Hz +0, -3.0 dB (for 1 watt output)
Damping Factor 1000 (For rated output with 8-ohm load, 50 Hz)
Output Voltage, Output Impedance (at rated continuous average output) PRE OUTPUT
Gain HIGH-LEVEL INPUT → PRE OUTPUT
Tone Controls: Turnover frequency and adjustment range BASS
Attenuator －20 dB
Power Level Meters Logarithmic compression, peak reading meters, output dB/% scale
Load Impedance 4 – 16 ohms
Stereo Headphones Suitable impedance
Power Requirements AC 120 V/220 V/230 V 50/60 Hz (Voltage as indicated on rear panel)
Power Consumption 180 watts idle, 390 watts by IEC 60065
Maximum Dimensions Width 465 mm x Height 239 mm x Depth 502 mm
Mass 36 kg net, 45 kg in the shipping carton
