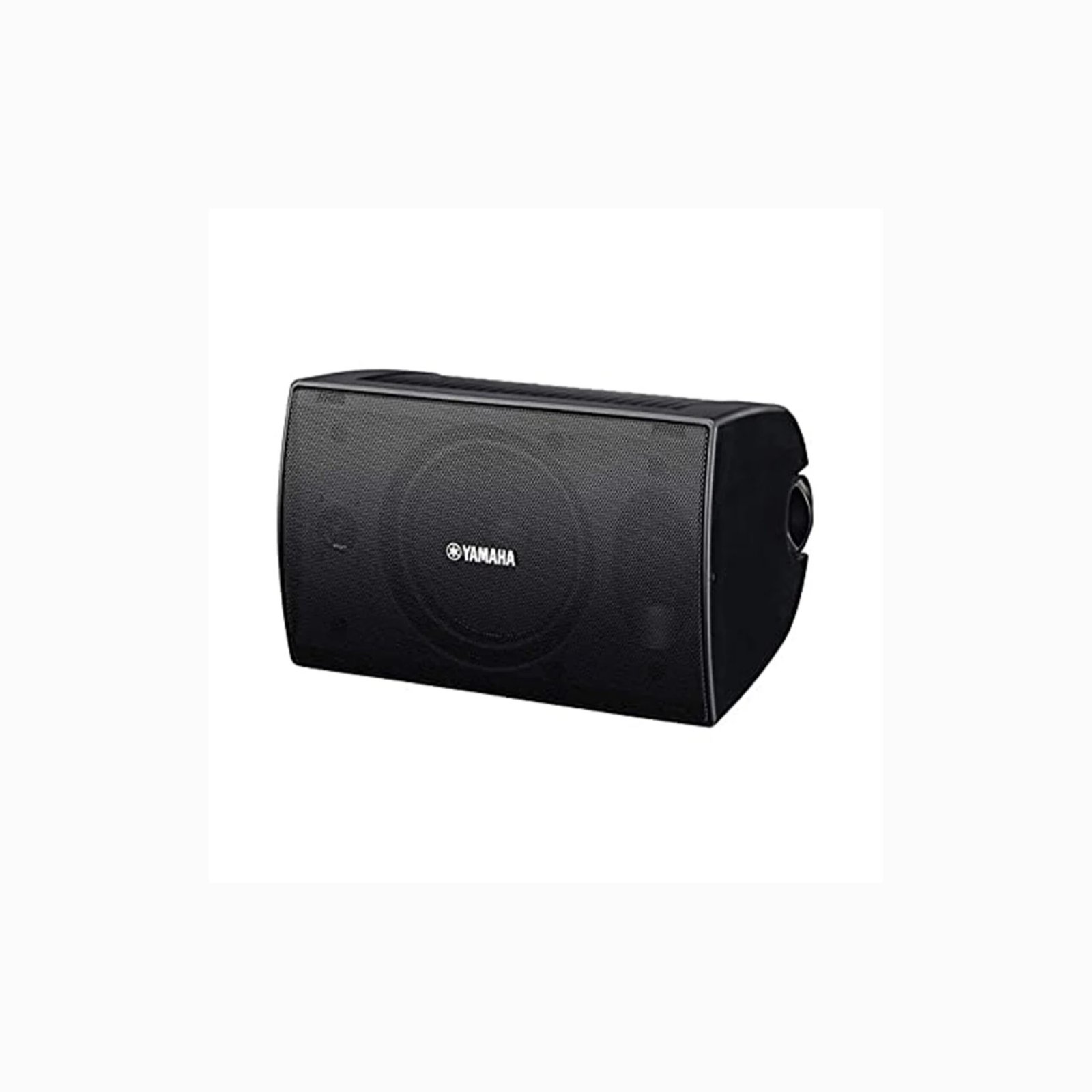

Yamaha VS6 Surface Mount Speaker (Pair)

- Key Features

  • 6.5-inch Full-Range Driver
  Produces smooth, natural sound with impressive clarity for both music and speech.

  • Wide Dispersion
  Covers larger areas evenly, ensuring consistent sound across the space.

  • Weather-Resistant Design (IPX3 Rated)
  Built for indoor and semi-outdoor use such as patios, lobbies, entrances, and commercial spaces.

  • Flexible Mounting Options
  Comes with a dedicated U-Bracket for vertical or horizontal installation.

  • High Power Handling
  Handles up to 150W Peak (90W Program), suitable for both background and foreground music.

  • Sleek Modern Finish
  Designed to blend seamlessly into any environment, available in Black or White.

  • Transformer Equipped (70V/100V)
  Ideal for distributed audio systems in commercial installations.

Description

Yamaha VS6 Surface Mount Speaker with a 6.5″ cone woofer and 1″ balanced dome tweeter. An exciting combination of beauty, ease of use and functional sophistication, the VS Series delivers high-quality sounds in all kinds of indoor and outdoor settings, especially suitable for locations where interior design is a major consideration. The VS Series caters perfectly to your sonic needs.

Warranty

1-year manufacturer’s warranty

Key Features:

Compact surface mount speakers with superior sound quality and sleek, functional design
6.5″ woofer and 1″ balanced dome tweeter
Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage
Internally mounted transformers allow operation in 70V or 100V distributed sound systems
Dedicated, colour-matched steel U-bracket enclosed for horizontal or vertical installation
An overload protection circuit is provided to protect the speaker components
Available in Black or White finish
Paintable enclosure and grill to match any decor

Benefits of Yamaha VS6 Surface Mount Speaker:

Easy Adaptability to Diverse Environments

The VS Series’ smart and compact construction makes it a top choice, particularly for locations where interior design is of paramount importance. Availability of black and white models makes it easy to match them with your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, making them an easy fit for outdoor usage, undercover.

Flexible Speaker Settings with the Dedicated U-Brackets

The speakers are supplied with dedicated, colour-matched brackets for hassle-free installation. The brackets can be set either horizontally or vertically, depending on where you would like to mount the speakers.

Internal Transformer Allows Operation in 70V or 100V Distributed Sound Systems

The tap selector switch is located on the rear panel to select the power tap of a 70V/100V line distributed system or an 8Ω sound system. It comes equipped with easy-to-operate settings, where all you have to do is rotate the tap selector with a screwdriver. The terminals and tap selector can be safeguarded using the supplied cover.

Technical Specifications of Yamaha VS6 Surface Mount Speaker:

Brand & Model #	Yamaha VS6
Frequency range (-10dB)	80Hz – 20kHz
Nominal Coverage	H – 90° V – 90°
Components	LF – 6.5″(160mm) cone driver HF – 1″(25mm) balanced dome tweeter
Crossover	15kHz
Power rating	NOISE: 25W PGM: 50W PEAK: 100W
Nominal Impedance	8Ω
Transformer taps	100V – 25W, 12.5W, 6.3W 70V – 25W, 12.5W, 6.3W, 3.1W
SPL	Sensitivity (1W; 1m on axis): 90dB SPL Peak (Calculated): 110dB SPL (100W)
I/O Connectors	2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm)
Shape	Rectangular
Cabinet material	HIPS, 94-HB
Finish	VS6: Black, VS6W: White
Flying and mounting hardware	U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
Waterproof	IEC60529 IPX3 splash-proof rating
Dimensions	W – 190 mm (7 1/2″) H – 308 mm (12 1/8″) D – 219 mm (8 5/8″)
Weight	2.8kg (6.2lbs)
Accessories	U-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw.
