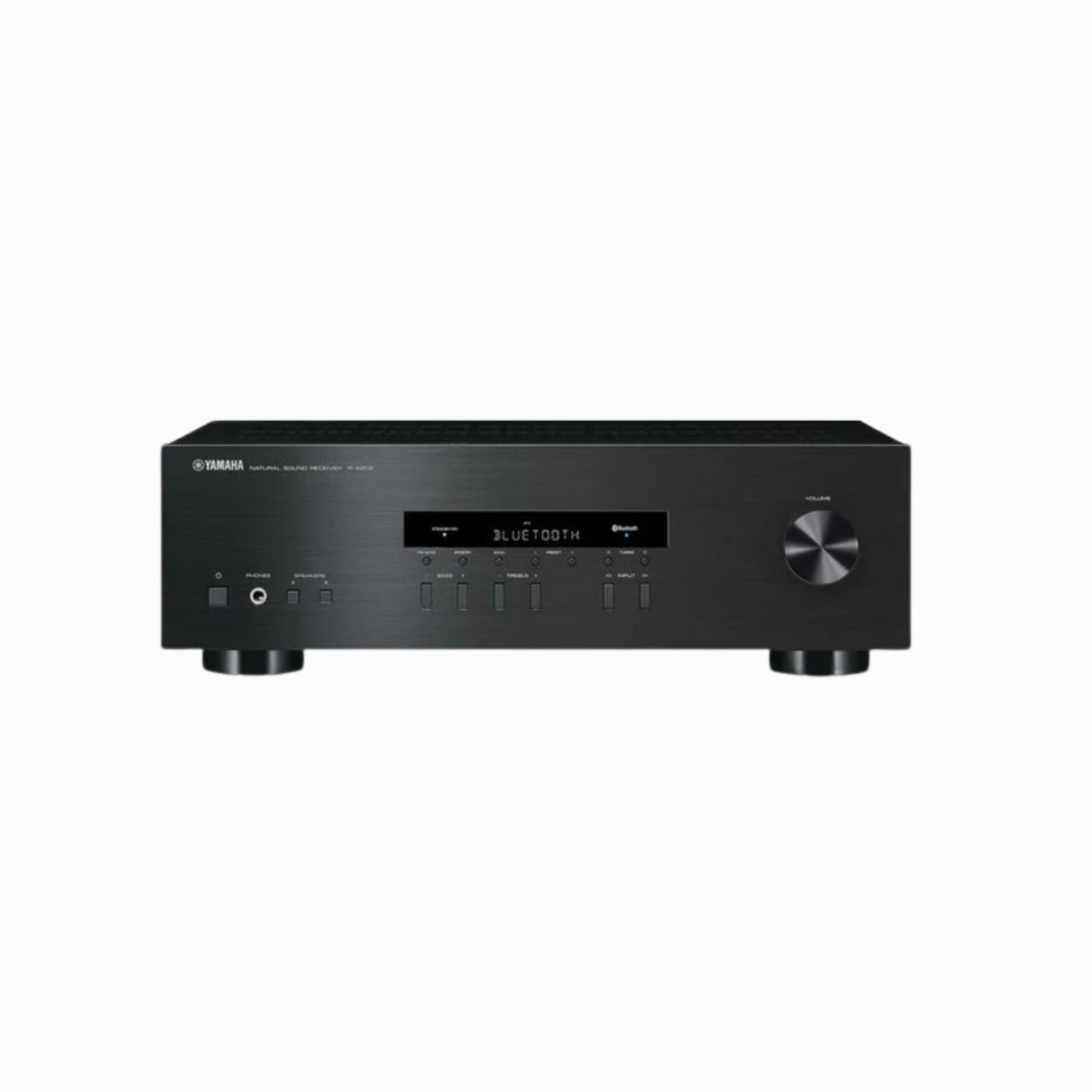

Yamaha RS-202 - Stereo Receiver

R-S202

Hi-Fi Receiver featuring the outstanding sound quality and clean design that Yamaha is famous for. Bluetooth® compatibility provides instant wireless access to all the music on your smartphone or other devices.

• Yamaha’s high sound quality, created by rich experience and tradition, and high technological expertise
• Bluetooth® compatible for wireless music streaming
• 40 station FM/AM preset tuning
• Simple and sophisticated design
• Speaker selector and speaker terminals for two systems
• Auto power standby function
• Simple design remote control
• Headphone terminal

Heritage of Technical Expertise

Rooted in technology and expertise. The R-S202 was created from years of experience and technological expertise in receiver design. With a music heritage that runs over 125 years deep, our passion and reputation for Hi-Fi was born from the music side and extended into electronics. The concept of natural sound is based on reproducing music as it would be experienced live. Built with scrupulous care from the circuit design to basic sound reproduction, the R-S202 reproduces high-quality, musically-rich sound for the entry-level consumer.



SPECIFICATIONS

Channels	2
Power Output per Channel	100 W at 8 Ohms / 40 Hz to 20 kHz / 0.2% THD 115 W at 4 Ohms / 1 kHz / 0.7% THD 140 W at 8 Ohms / 1 kHz / 10% THD
Dynamic Power per Channel	125 W at 8 Ohms 150 W at 6 Ohms 165 W at 4 Ohms 180 W at 2 Ohms
Frequency Response	20 Hz to 20 kHz ±0.5 dB
Speaker Impedance	8 Ohms

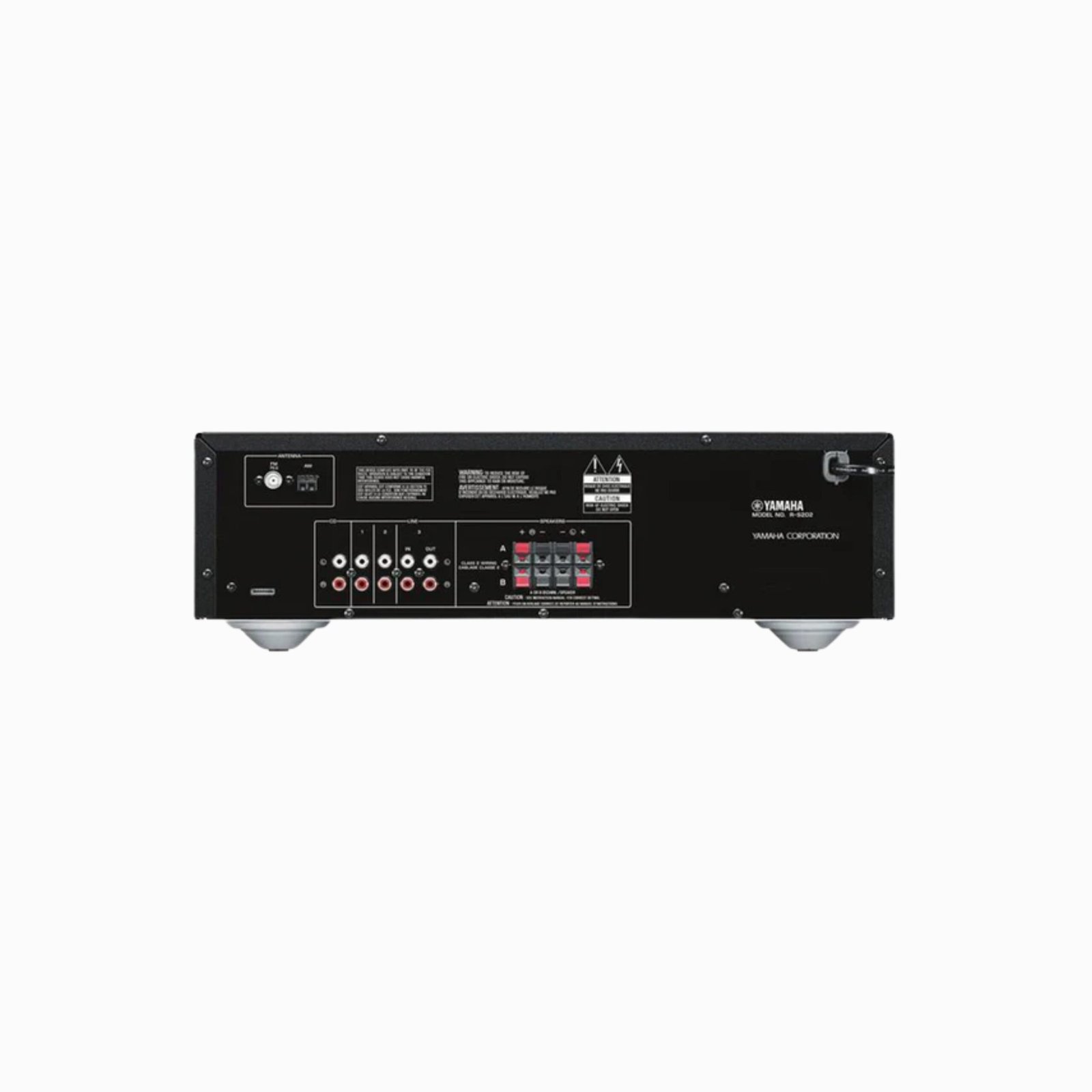

Rear A/V Inputs	4 x Stereo RCA
Rear A/V Outputs	1 x Stereo RCA
Front I/O	1 x 1/4″ / 6.35 mm Headphone Output
Other Rear I/O	1 x AM Antenna Terminal 1 x FM Antenna Terminal
Speaker Connectors	4 x Spring Clip Pairs
A/B Speaker Selection	Yes
Bluetooth	4.1
Bluetooth Profiles	A2DP AVRCP
Supported Audio Codecs	AAC, SBC
Number of Presets	40 Stations
Sensitivity	FM Mono at 50 dB: 3 µV / 20.8 dBf
Dimensions (W x H x D)	17.1 x 5.0 x 12.3″ / 435.0 x 141.0 x 322.0 mm
Weight	14.8 lb / 6.7 kg
