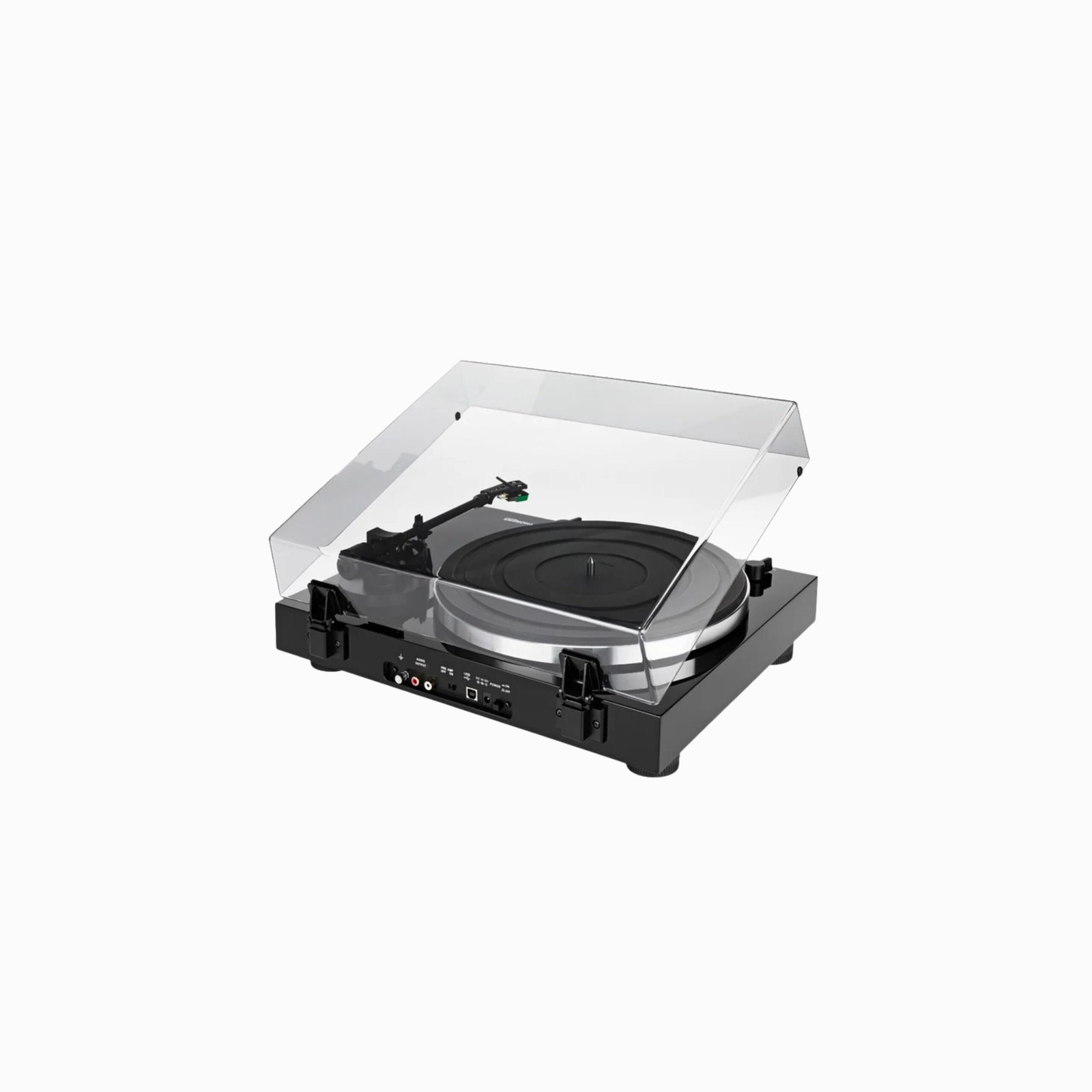

Thorens TD 202 Turntable with preamplifier Inbuilt

Key Features

Belt Drive Design

  • Precision belt-drive system minimizes motor vibration and noise for smoother, more accurate vinyl playback.

  • Ensures stable rotation and improved sound clarity.

Built-In Phono Preamplifier

  • An integrated phono stage allows direct connection to amplifiers, receivers, or powered speakers without a dedicated phono input.

  • Can be bypassed if you prefer using an external phono preamp.

Playback Speeds

  • Supports standard 33⅓ RPM and 45 RPM playback for compatibility with most vinyl records.

  • Easy speed selection for convenient operation.

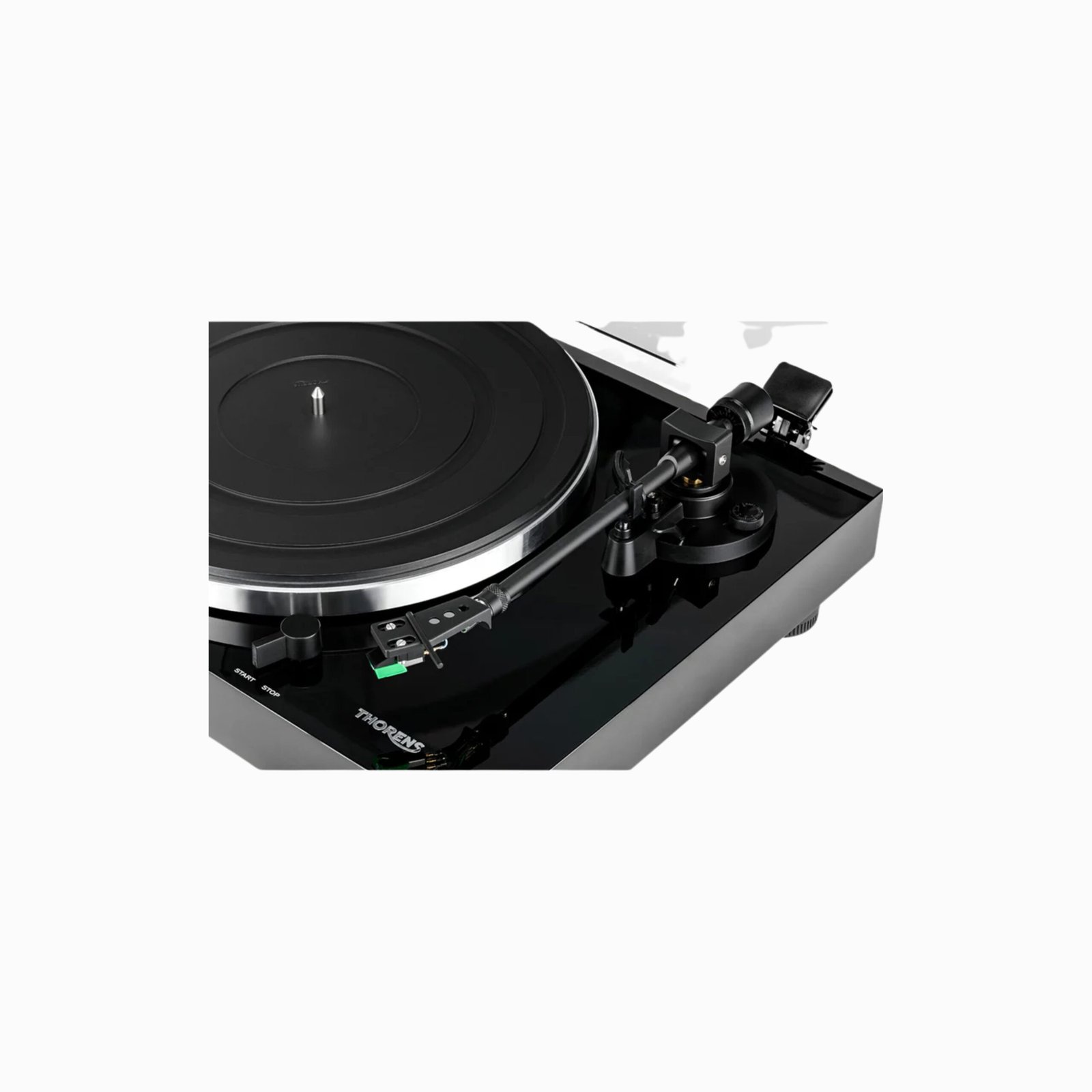

Tonearm & Tracking

  • High-quality tonearm with adjustable counterweight and anti-skate control for precise tracking.

  • Helps reduce distortion and record wear while maintaining detailed sound reproduction.

Cartridge Ready

  • Supplied with a factory-fitted cartridge for immediate use.

  • Allows cartridge upgrades to tailor sound quality to personal preference.

Connectivity

  • RCA output for connection to a wide range of audio systems.

  • Ground terminal included to minimize hum and interference.

User-Friendly Operation

  • Manual operation offers greater control for vinyl enthusiasts.

  • Transparent dust cover protects the platter and tonearm when not in use.

Design & Build Quality

  • Clean, modern Thorens styling with solid construction.

  • Vibration-damped chassis supports improved audio performance.

Description

Thorens TD 202 Turntable with preamplifier Inbuilt

Thorens TD 202 Turntable with MM Phono preamplifier and USB

New TD 202 completes the new series of manual plug-and-play turntables. Compared with its “smaller” brother TD 201, it comes with a more massive plinth and an AT 95E cartridge.

Special Features

The integrated phono stage includes an additional analogue/digital converter with USB out. So the record played will be automatically digitised and can easily be recorded on a computer using several kinds of recording software that can be downloaded from the web.

Additional Information



Specifications

Drive System
Belt
DriveMotor
DC Motor
Speed
33 1/3 RPM, 45 RPM
Rotation Speed Variation
+/–2%
Wow and Flutter
0.2%
Signal-to-Noise
Ratio
67dB or higher
(A-weighted, 20kHz LPF)
60dB or higher
(unweighted, 20kHz LPF)
Platter
Aluminum Die-cast
Diameter of Platter
12″, 300mm
Tonearm section
Aluminium tube
Type
Static Balance, Straight
Effective Arm Length
8.8″, 223.6mm
Stylus Pressure Range
0 to 4g
Supported Cartridge Weight
3.5 to 6.0g
Overhang
18.6mm
Anti-skating Adjustment
Supported
Cartridge sectionType
MM type (Audio-Technica AT-95E)
Stylus Construction
Bonded Diamond
Frequency Response
20Hz to 20kHz
Channel Separation
>18dB
Channel Balance
2.5dB
Vertical Tracking Angle
20 degrees
Supported Load Impedance
47k ohms
Output Voltage
2.5mV (1kHz, 3.54cm/sec.)
Stylus Pressure
2.0g +/–0.5g
Cartridge Weight
5.7g +/–0.5g
Head-shell Weight
11g (including Screws, Nuts and Wires)
OutputConnector
RCA Pin jack (Gold-plated)
Power
AC 100 to 240V, 50/60Hz
Power Consumption
1.5W (less than 0.5W at Standby)
Overall Dimensions(W x H x D)
420 x 355x 121mm
Weight
Approx.3.9 kg
