Teac PD-505T CD Transport (Black)

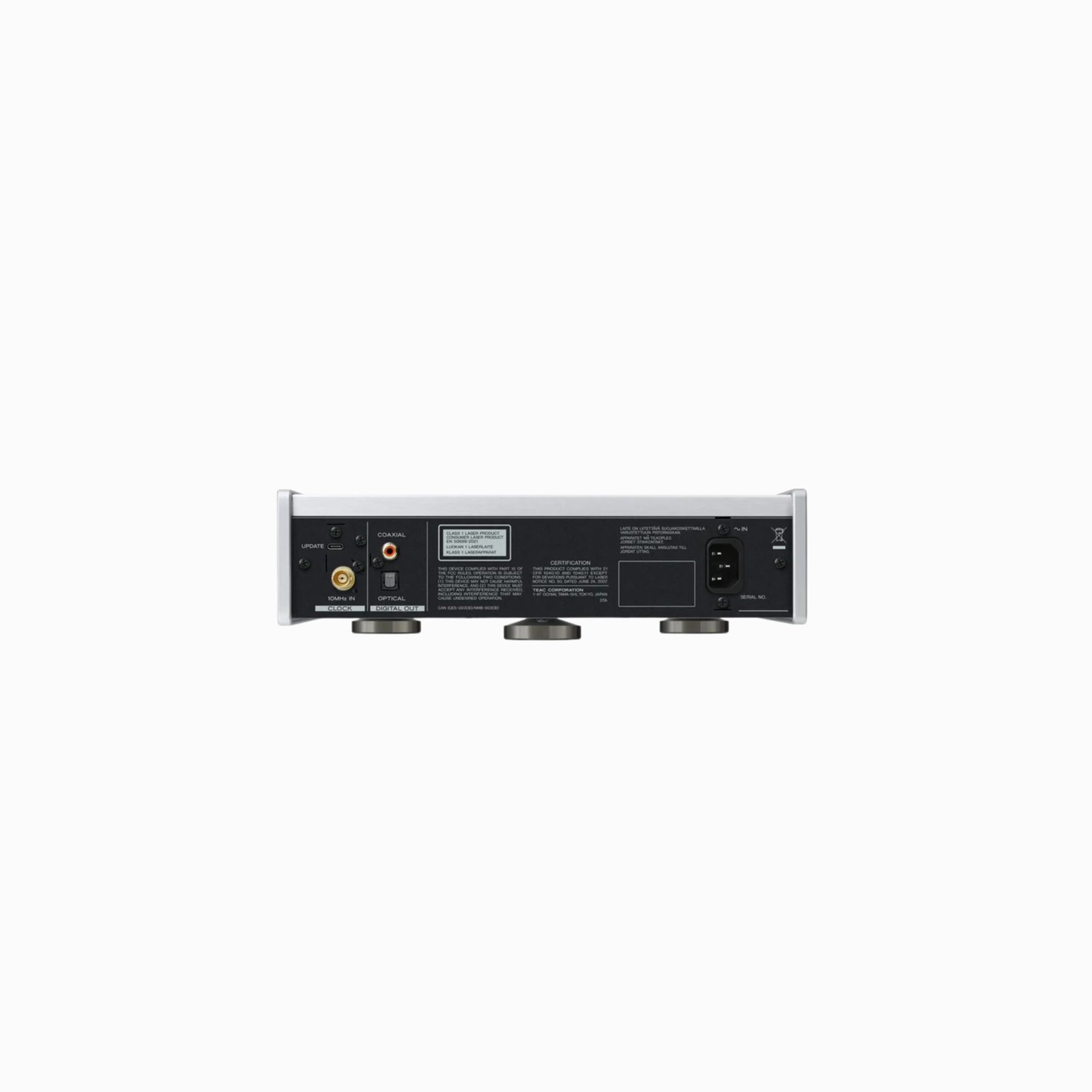

Teac PD-505T – CD TransportOutputs via coaxial (RCA) and optical (TOSLINK) connections, suitable for use with any quality external DAC.

High-Precision Digital Output
Allows synchronization with a master clock via a BNC connection for lower jitter and enhanced timing accuracy.

External Clock Input (10 MHz)
Designed to reduce vibrations, the CD mechanism is semi-floating and built within a strong all-metal enclosure.

Semi-Floating Drive & Chassis Design
Only ~4W during operation, dropping to nearly 0.3W in standby—efficient and cool running.

Very Low Power Draw
Measures about 290 × 84.5 × 248.8 mm, weighs around 4.0 kg, with an A4-sized footprint and durable 8mm aluminum side panels.

Compact, Rugged Build
Three-point “Stressless” feet ensure stable placement while allowing some isolation from surface irregularities.

Stressless Mounting Feet
Ships with remote control, AAA batteries, foot pads, and power cable—everything needed to start using immediately.

Accessories Included

Specification DetailsBrandTEACModelPD-505TProduct TypeHigh-End CD TransportDisc CompatibilityCD, CD-R, CD-RW (Audio Format)Drive MechanismTEAC’s Proprietary CD Drive with Center-Mounted CD ClampDigital Outputs1 × Coaxial (RCA), 1 × Optical (TOS-Link), 1 × TEAC LINK (for UD-505/NT-505)Clock SyncExternal Clock Input (10 MHz BNC)Error CorrectionHigh-Precision Error Correction CircuitryDisplayOLED Display with Track/Time InformationChassisSteel Body with Aluminum Panels, Vibration-Resistant DesignRemote ControlIncludedPower SupplyAC 100–240V, 50/60Hz (Switching Power Supply)Dimensions290 × 84.5 × 248.7 mmWeight4.2 kgColor/FinishBlack Aluminum Front PanelPackage ContentsPD-505T Transport, Remote Control, Power Cord, User ManualWarranty1 Year Manufacturer Warranty
