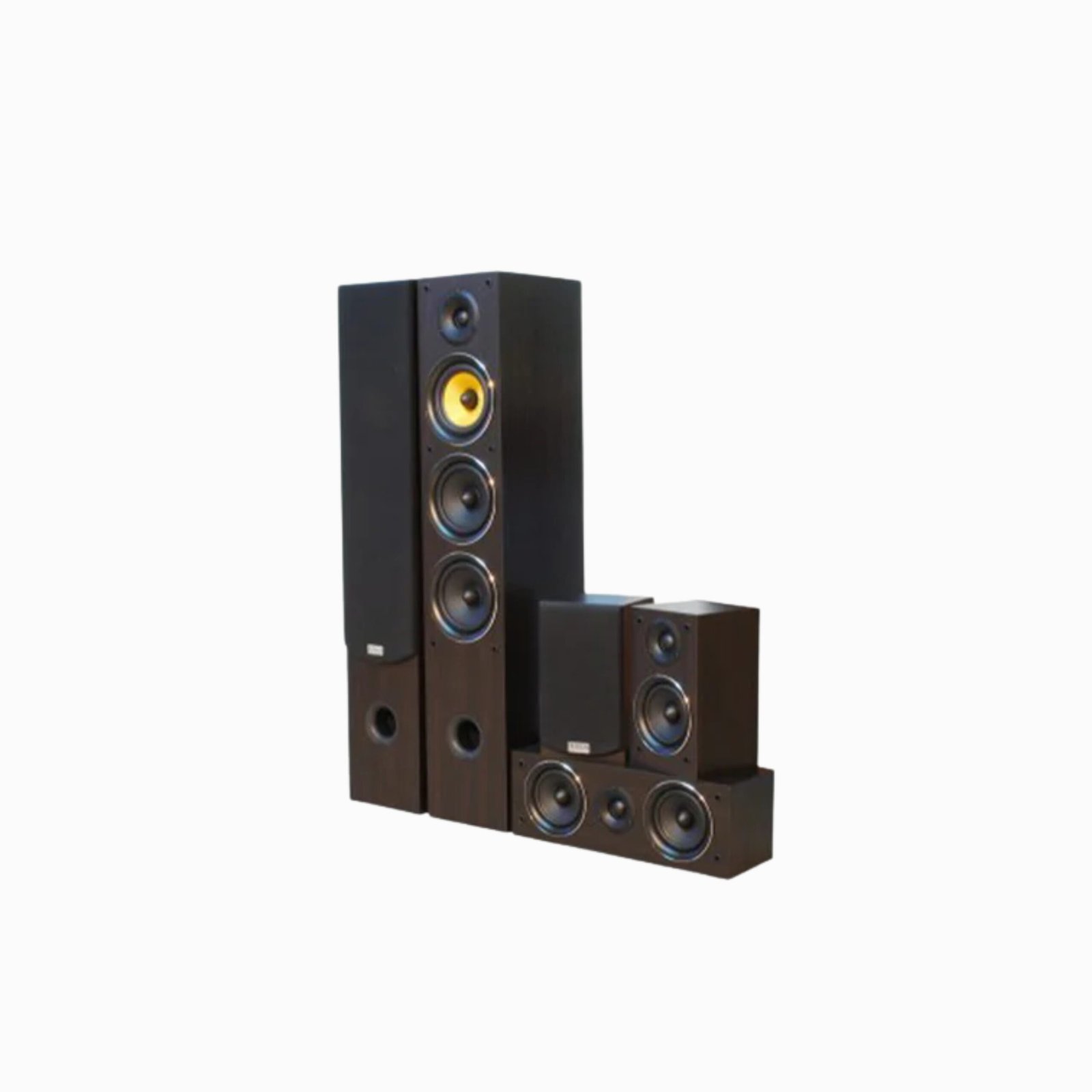

TAGA HARMONY TAV-506 V.2 5.0 Speaker Package Set

- Key Features

  This is the second version (V.2) of the TAV-506 series from TAGA Harmony: it’s been completely redesigned (not just cosmetically) for improved sound performance.

  The front floorstanding speakers feature a 3-way design with four drivers: a 1″ (25 mm) silk-dome tweeter with TWG (TAGA WaveGuide) faceplate, a midrange 133 mm (5.25″) driver and two bass drivers of the same size (133 mm) for strong low-end dynamics.

  The cabinets use “TLIE” (Taga Low Interference Enclosures) constructed from high-quality MDF boards (9 mm with a 12 mm front panel) to reduce cabinet resonance and unwanted vibration.

  Balanced performance for both stereo systems and home theatre: the set is designed to deliver “smooth, detailed and balanced performance with huge dynamics and rich, high-resolution sound throughout the whole frequency range.

  Versatile system: includes floorstanding front speakers, a center-channel speaker, and surround speakers, making it suitable for a 5.0 home theatre (without subwoofer) or full stereo + surround configuration.

Description

The second version of TAV-506 is not just the same model as before with only a few cosmetic changes, but a totally redesigned construction, which brings this speaker set a whole level up in terms of sound performance.

The main challenge for our designers and acoustic engineers was to combine high-quality sound in stereo systems (for front floorstanding speakers) and astonishingly dynamic resolution in home theatre.
It seems a very easy task to do, but only a few speaker companies can achieve it, and TAGA Harmony is one of them.

It is not only about utilizing the best components and design, but the real art behind the construction is the final adjustment of sound balance, which is where our acoustic engineers have shown their craftsmanship.

The final result is a smooth, detailed, and balanced performance with huge dynamics and rich, high-resolution sound throughout the whole frequency range.

Add to this an appealing, yet classic design – the TAV-506 v.2 is a perfect choice both for stereo and home theatre.

Additional Information

FRONT SPEAKER
Design	Floorstanding, 3-way 4 drivers TLIE enclosure
Power handling	20 – 120W (recommended amplifier power) 90W RMS
Frequency response	42Hz – 25kHz
Bassreflex	Front single
Impedance	6ohm
Sensitivity	89dB
High-frequency driver	25 mm (1″), TWG
Midrange driver	133 mm (5.25″)
Bass driver	2 x 133 mm (5.25″)
Dimensions (H x W x D)	90 x 17 x 23.5 cm (excl. spikes)
Weight	10.2 kg / pc.

CENTER SPEAKER
Design	Center, 2-way, 3 drivers
Power handling	20 – 100W recommended amplifier power 50W RMS
Frequency response	55Hz – 25kHz
Bassreflex	Rear double
Impedance	6ohm
Sensitivity	88dB
High-frequency driver	25 mm (1″), TWG
Bass-Midrange driver	2 x 102 mm (4″)
Features/accessories	Wall mounts
Dimensions (H x W x D)	14 x 40 x 14.5 cm
Weight	2.8 kg / pc.

SURROUND SPEAKER
Design	Surround, 2-way, 2 drivers
Power handling	20 – 100W (recommended amplifier power) 50W RMS
Frequency response	55Hz – 25kHz
Bassreflex	Rear single
Impedance	6ohm
Sensitivity	86dB
High-frequency driver	25 mm (1″), TWG
Bass-Midrange driver	102 mm (4″)
Features/accessories	Wall mount
Dimensions (H x W x D)	24.5 x 14 x 14.5 cm
Weight	1.75 kg / pc.
