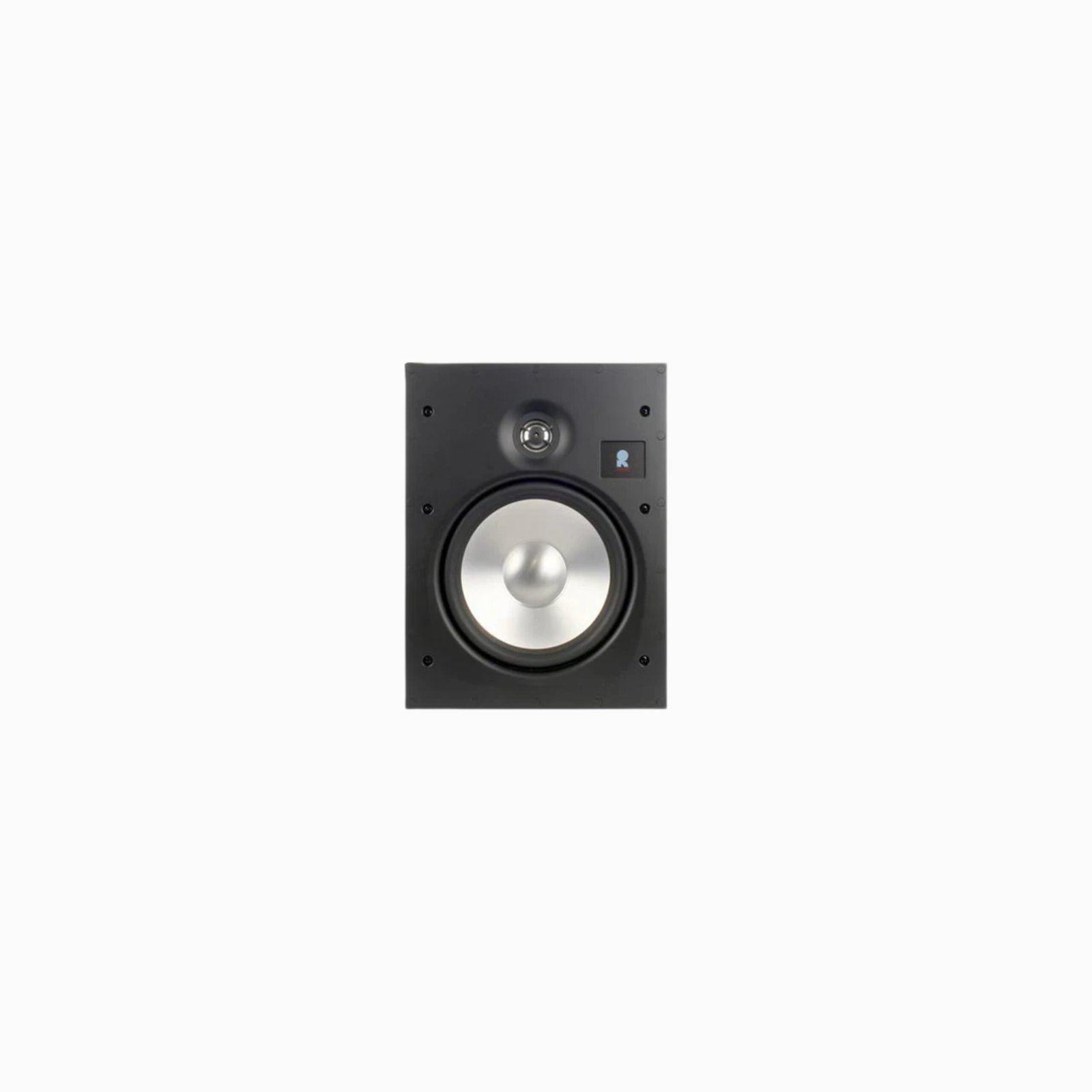

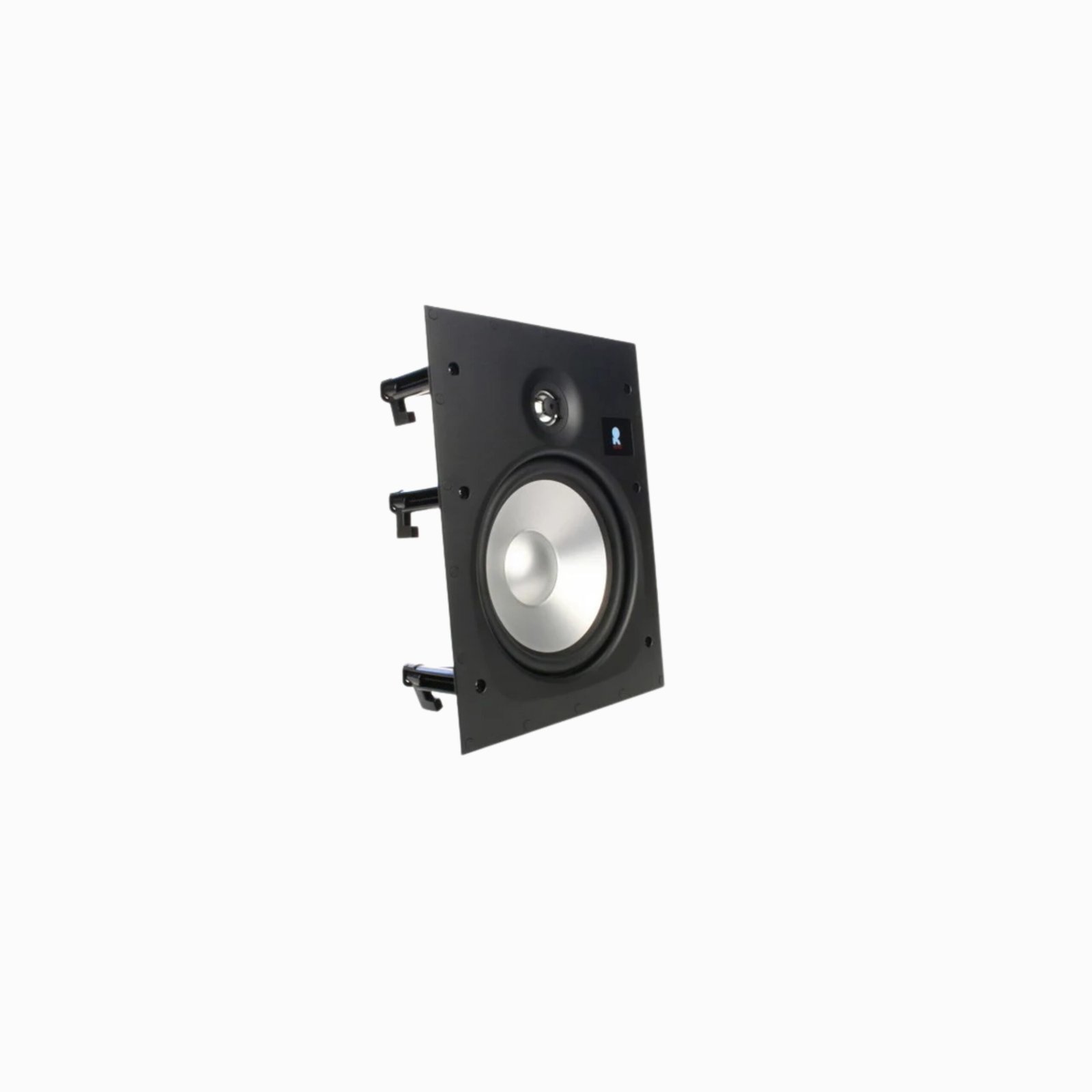

Revel W583 -In-wall speaker (Each)

Key Features

Performance & Sound Quality

High-performance two-way in-wall speaker designed for accurate, natural sound reproduction
Aluminum dome tweeter delivers smooth, detailed, and extended high-frequency response
Large cone woofer provides clear midrange and strong, controlled bass performance
Carefully engineered crossover ensures seamless integration between drivers and balanced tonal accuracy

Cabinet & Build

Slim, low-profile in-wall design for discreet, flush installation
Rigid baffle and internal construction help reduce resonance and sound coloration
Paintable grille allows the speaker to blend seamlessly with interior décor

Installation & Compatibility

Designed for flush in-wall mounting in custom audio and home theatre setups
Compatible with a wide range of amplifiers and AV receivers
Optimized impedance and sensitivity for reliable performance in residential systems
Supplied with mounting hardware and cut-out template for installation

Application

Ideal for premium home theatre systems, surround channels, and whole-home audio
Delivers clear, articulate sound while remaining visually unobtrusive in wall installations

Description

An acoustically adaptable in-wall speaker

Revel’s W583 in-wall speaker combines accurate sound with versatile installation options. Its 1″ aluminum dome tweeter is aimable, so you can direct sound towards your listening position. The tweeter also has a three-position output level switch, which lets you tailor the sound to the acoustics of your room.

The W583 is an excellent choice for an in-wall stereo system, or as the left or right channel of a Revel home theater system. It’s an 8″ woofer that blends smoothly with the tweeter, providing solid bass and natural midrange.

The Revel W583 in-wall speaker features a three-position tweeter level control, which cuts or boosts high-frequency output to suit your room’s acoustics.

Trickle-down technology

The W583 benefits from the research and design work that went into Revel’s higher-end in-wall speakers. For instance, the speaker’s integrated tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend seamlessly.

The W583 also features high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty ensures excellent long-term performance.

Who is Revel?

Revel is a high-performance audio company within the global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work takes place at Harman’s state-of-the-art speaker R&D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

ideal for an in-wall music system or as the left or right channel of a home theater system

8″ micro-ceramic composite (MCC) woofer with cast-aluminum frame

long-throw woofer design with rubber surround for high output and low distortion

1″ aluminum dome tweeter

three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room’s acoustics

integrated waveguide provides excellent on- and off-axis performance

tweeter is aimable to direct high-frequency details towards you

high-order crossover network delivers accurate timbre reproduction

includes paintable zero-bezel magnetic grilles

sensitivity: 89 dB

recommended amplifier power: 10-135 watts

cutout dimensions: 8-15/16″W x 11-15/16″H

overall dimensions: 9-15/16″W x 12-15/16″H

mounting depth: 3-13/16″

weight: 6.4 lbs.
