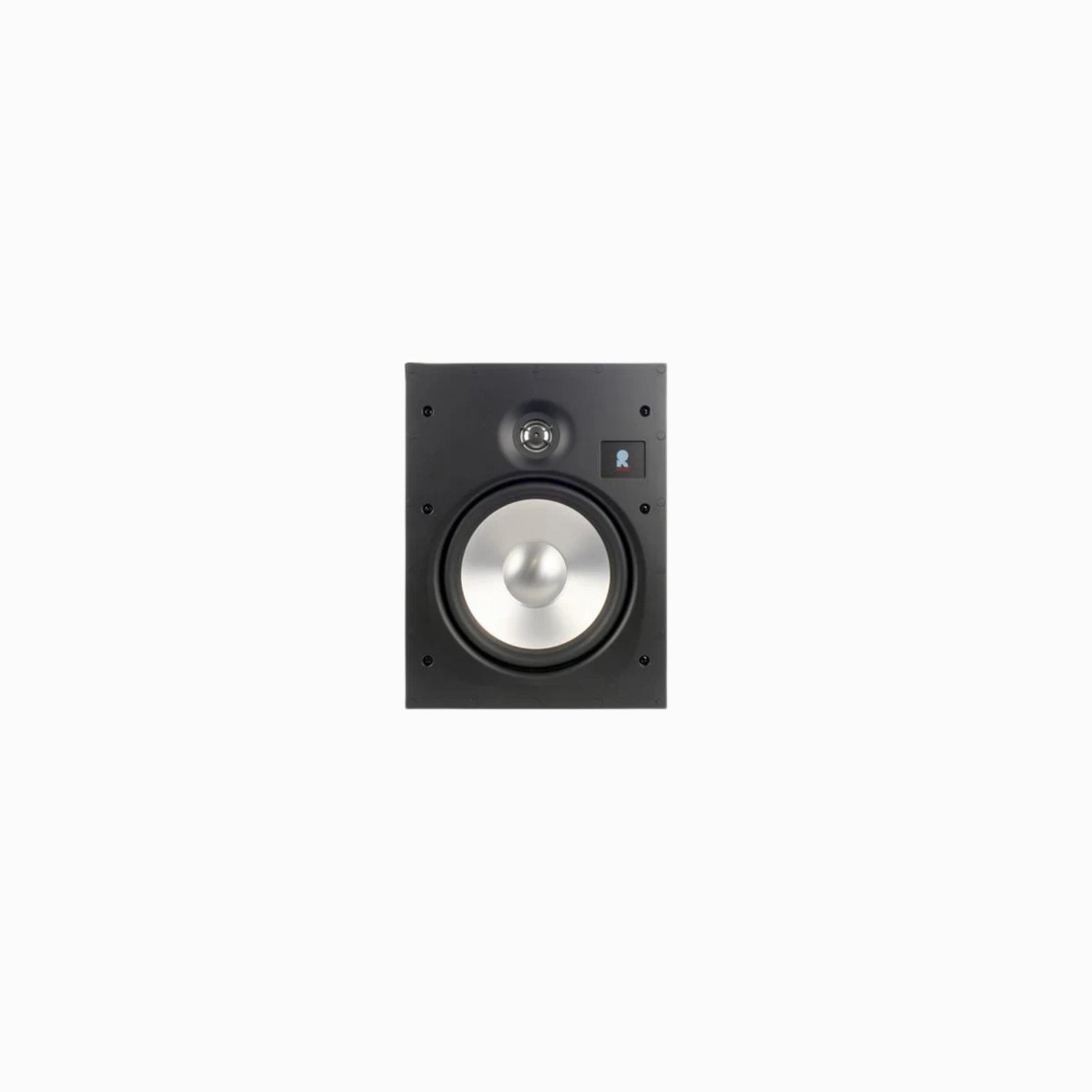

Revel W383 -In-wall speaker (Each)

Key Features

Performance & Sound Quality

Two-way in-wall speaker design with a dedicated tweeter and woofer for balanced, natural audio
Aluminum dome tweeter for smooth, detailed high-frequency response
Cone woofer for accurate midrange and controlled low-frequency performance
Precisely engineered crossover network for seamless driver integration and consistent tonal balance

Cabinet & Build

Low-profile in-wall enclosure for discreet, flush mounting
Rigid construction with internal bracing to minimize resonance and coloration
Designed to blend into wall surfaces for a clean, unobtrusive appearance

Installation & Compatibility

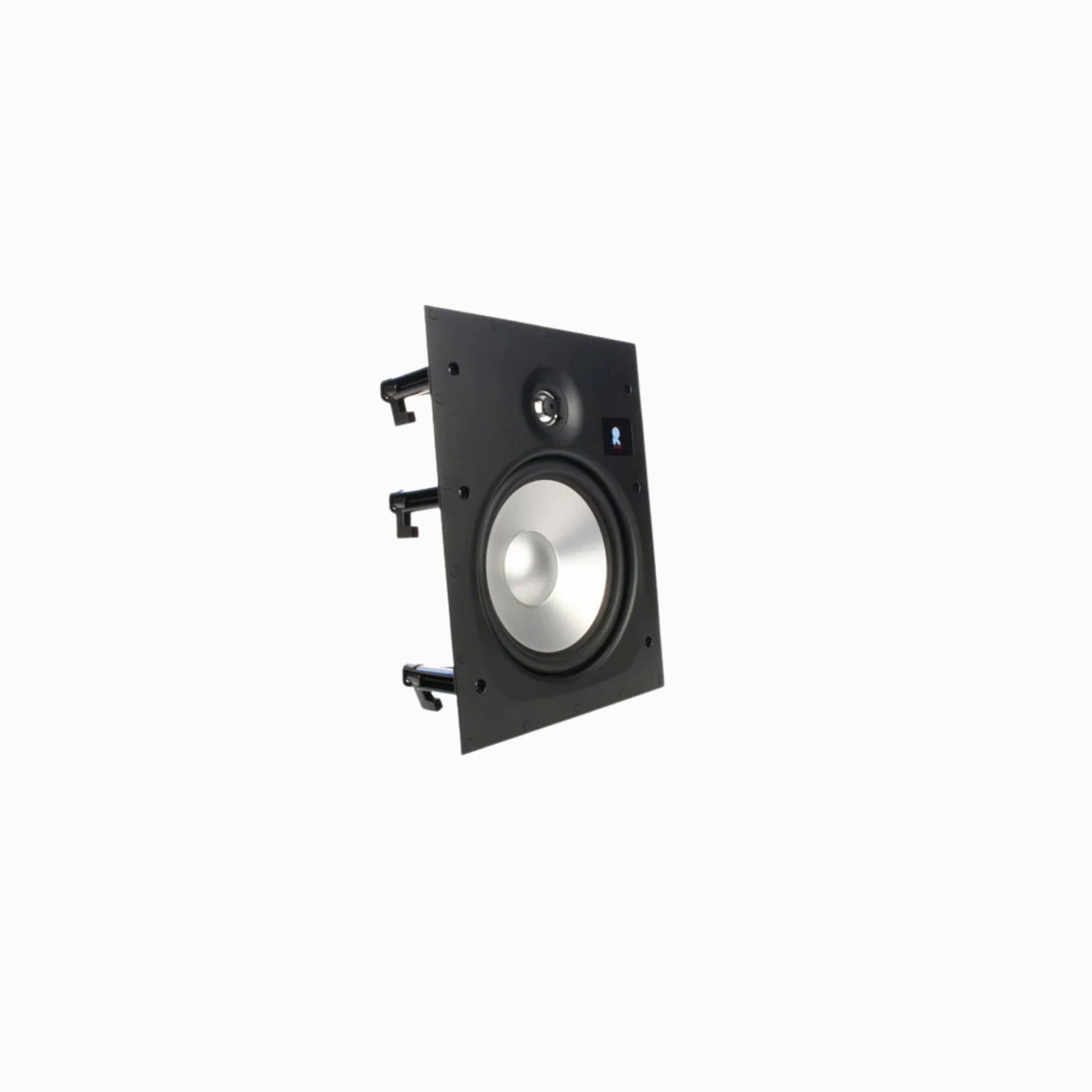

Designed for easy flush in-wall installation with included mounting hardware and cut-out template
Works with a wide range of amplifiers and AV receivers
Impedance and sensitivity optimized for typical home audio use

Application

Ideal for custom in-wall audio systems, surround sound channels, or whole-home distributed audio
Delivers clear, articulate sound while remaining visually subtle in wall installations

Description

Awesome in-wall sound from Revel

Revel’s W383 in-wall speaker offers accurate sound at a solid value. This model is a step-up from their entry-level W283, and it features an improved 8″ micro-ceramic composite (MCC) woofer for better bass and midrange performance. This speaker is an excellent choice for an in-wall stereo system, or as a left or right channel in a Revel home theater system.

The Revel W383 in-wall speaker features an integrated tweeter waveguide, which provides excellent performance across a wide listening area.

Trickle-down technology

The W383 benefits from the research and design work that went into Revel’s higher-end in-wall speakers. For instance, the speaker’s tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend seamlessly.

The W383 also features high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty guarantees excellent long-term performance.

Who is Revel?

Revel is a high-performance audio company within the global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work takes place at Harman’s state-of-the-art speaker R&D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.
ideal for an in-wall music system or as the left or right channel of a home theater system
8″ micro-ceramic composite (MCC) woofer with cast-polymer frame
long-throw woofer design with rubber surround for high output and low distortion
1″ aluminum dome tweeter
Integrated waveguide provides excellent on- and off-axis performance
Tweeter is aimable to direct high-frequency details towards you

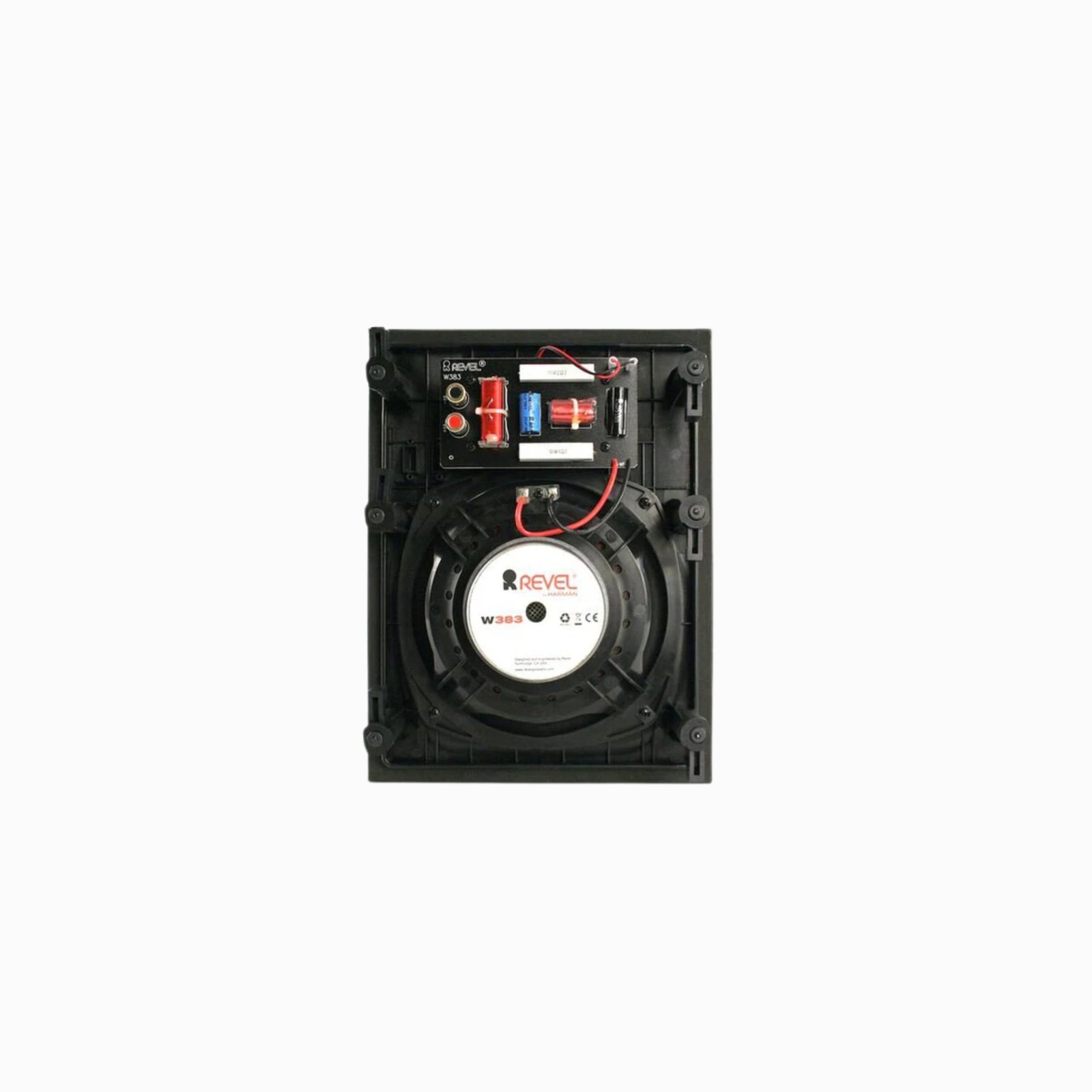

high-order crossover network delivers accurate timbre reproduction
paintable zero-bezel magnetic grille
sensitivity: 89 dB
Recommended amplifier power: 10-125 watts
cutout dimensions: 8-15/16″W x 11-15/16″H
overall dimensions: 9-15/16″W x 12-15/16″H
mounting depth: 3-3/4″
weight: 4.9 lbs.
