Description
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Warranty:
1-year manufacturer’s warranty
Features:
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off-axis
-
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Benefits:
Elite overhead sound from Revel

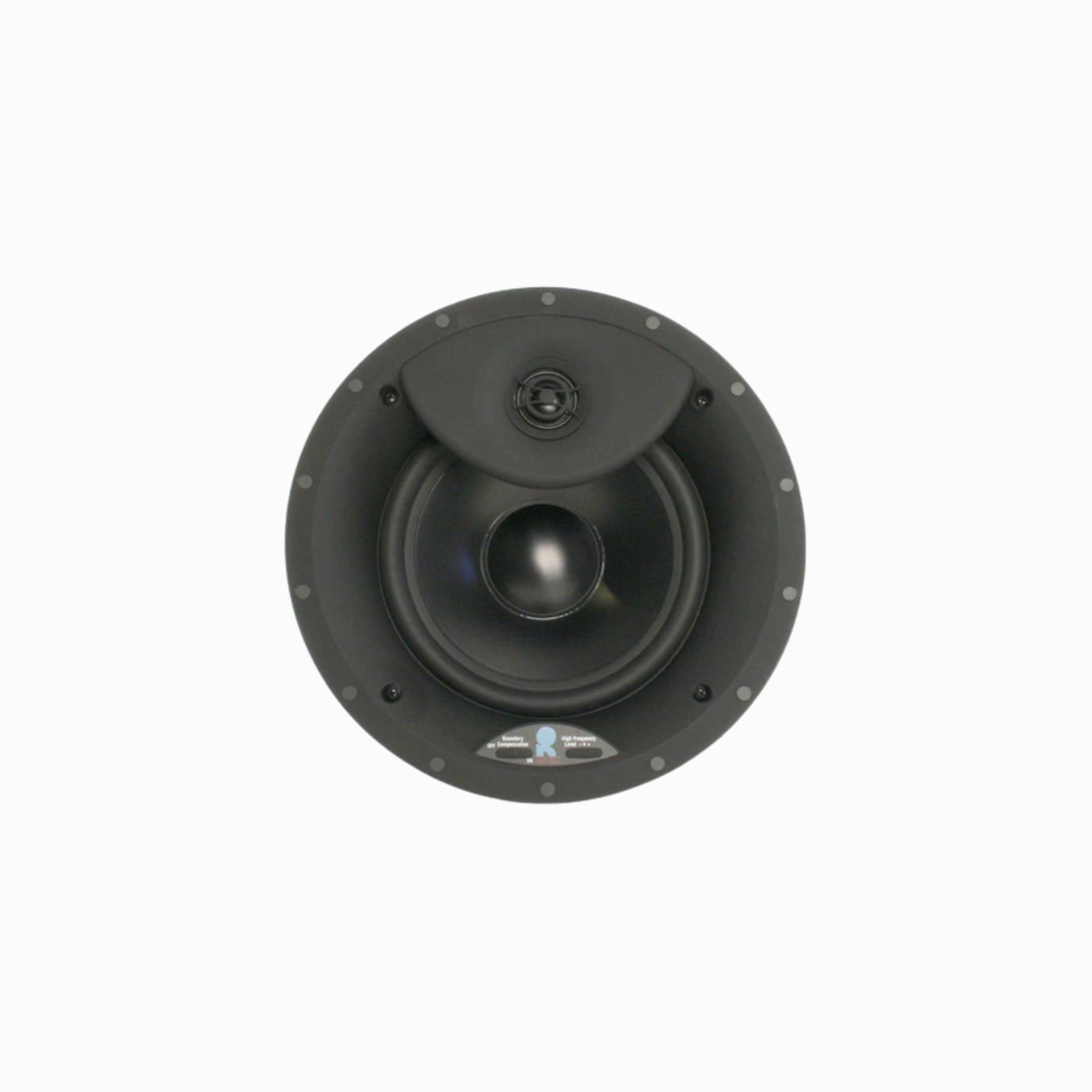

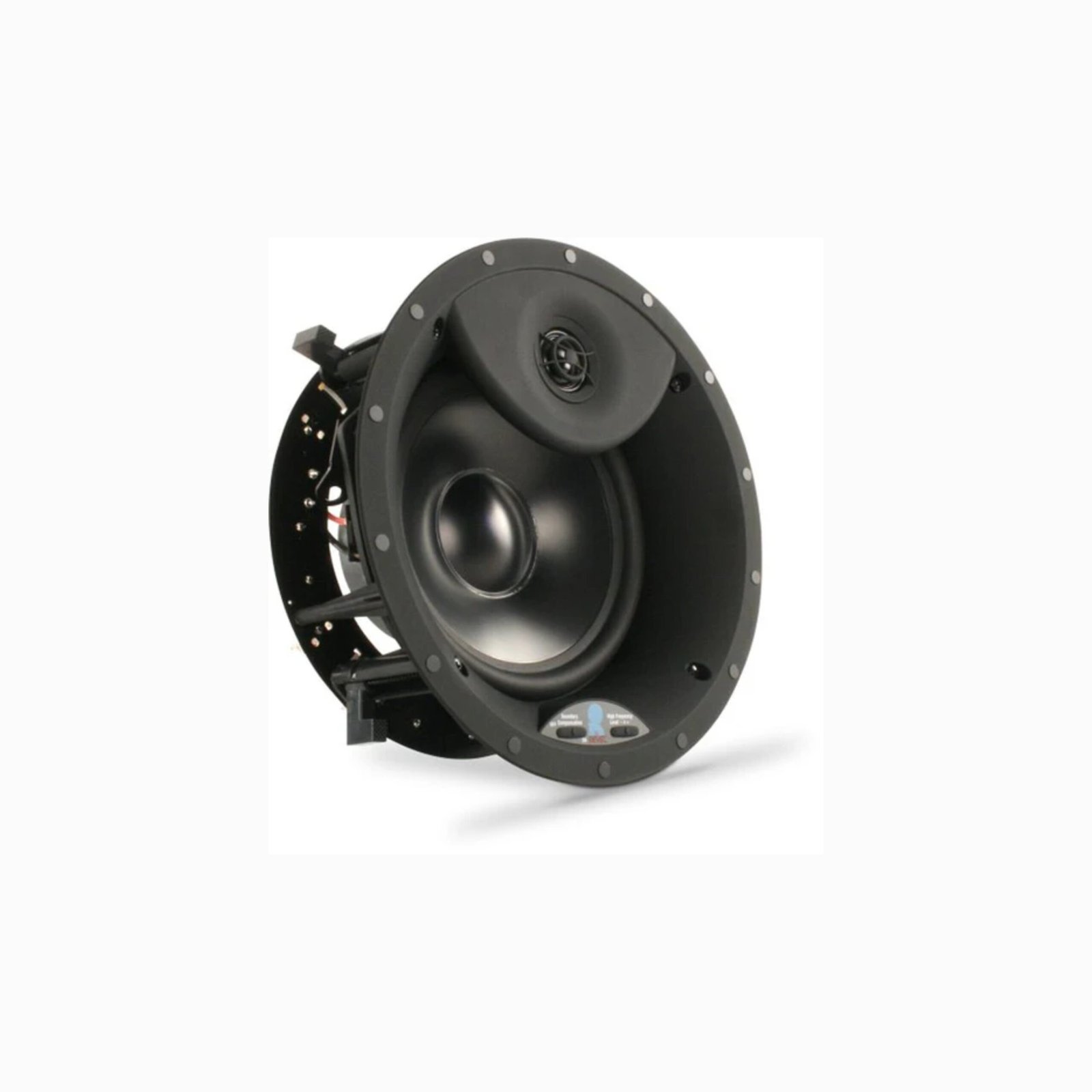

Revel’s C783 is the best 8″ speaker in the company’s in-ceiling lineup. You get outstanding Revel performance that can be tailored to your room. Its 1″ aluminum dome tweeter has a three-position output level switch, which lets you cut or boost the high frequencies. And a boundary compensation switch lets you adjust low-frequency output when the speaker is placed near a wall, to prevent potential boominess.
The Revel C783 in-ceiling speaker offers both tweeter and woofer adjustments to tailor its sound to your room.
High-quality design for long-term performance

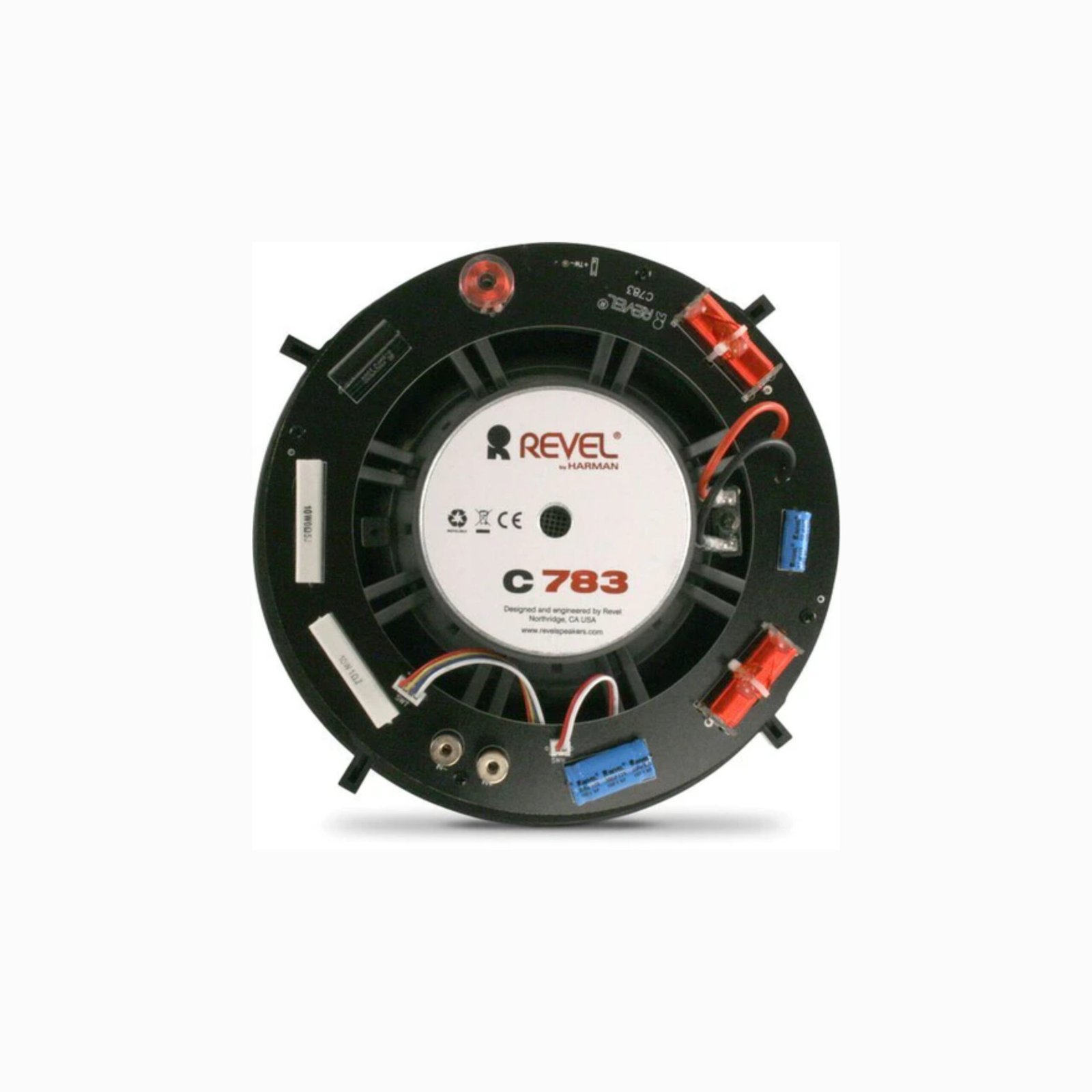

The C783 has a few other notable design highlights. Its tweeter waveguide helps provide great sound for listeners directly under the speaker, as well as those positioned off to the side. Its high-order crossover network allows the woofer and tweeter to blend seamlessly. High-quality push-post input terminals provide a solid connection with your speaker wire.

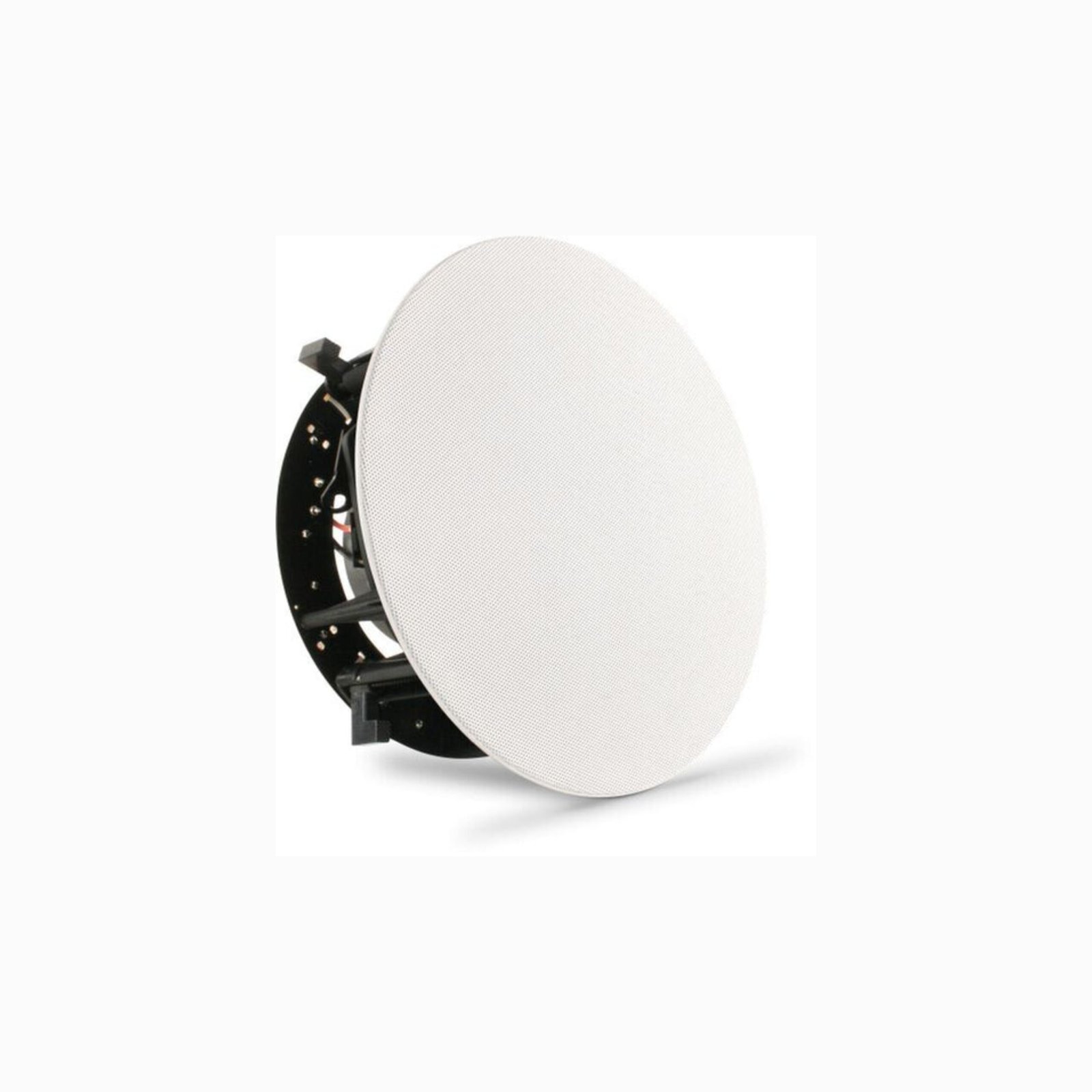

The C783 even comes with square and round grilles to match your décor. A lifetime warranty ensures excellent long-term performance.
Ideal for music and movies
The C783 is a great choice for a high-end in-ceiling stereo system. Or use this speaker as an overhead effects channel as part of a Revel home theater system. You’ll enjoy the rich, full-bodied sound with all of your favorite content.
DIY installation
If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.
Technical Specifications:
| Height |
|
| Width | Square grille finished, Width 10.7″ (27.2 cm) |
| Depth | Mounting depth 5.2″ (13.2 cm) |
| Weight | 1.4Kg |
| Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7″ (27.2 cm) |
| High-Frequency Driver Components | 1″ aluminum dome swiveling high-output tweeter with wave |
| Low-Frequency Extension | High-Frequency Extension 3-position HF level control / Low-Frequency Extension LF boundary compensation |
| Low-Frequency Driver Components |
|
| Mounting |
|
| Recommended Amplifier Power | 10 – 150 Watts RMS |
