Description
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Warranty:
1-year manufacturer’s warranty.
Features:
-
Long-throw woofers with rubber surround provide high output with low distortion
-
A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off-axis
-
A high-order crossover network delivers accurate timbre reproduction
-
The boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Benefits:
Revel’s entry-level in-ceiling speaker is value-packed

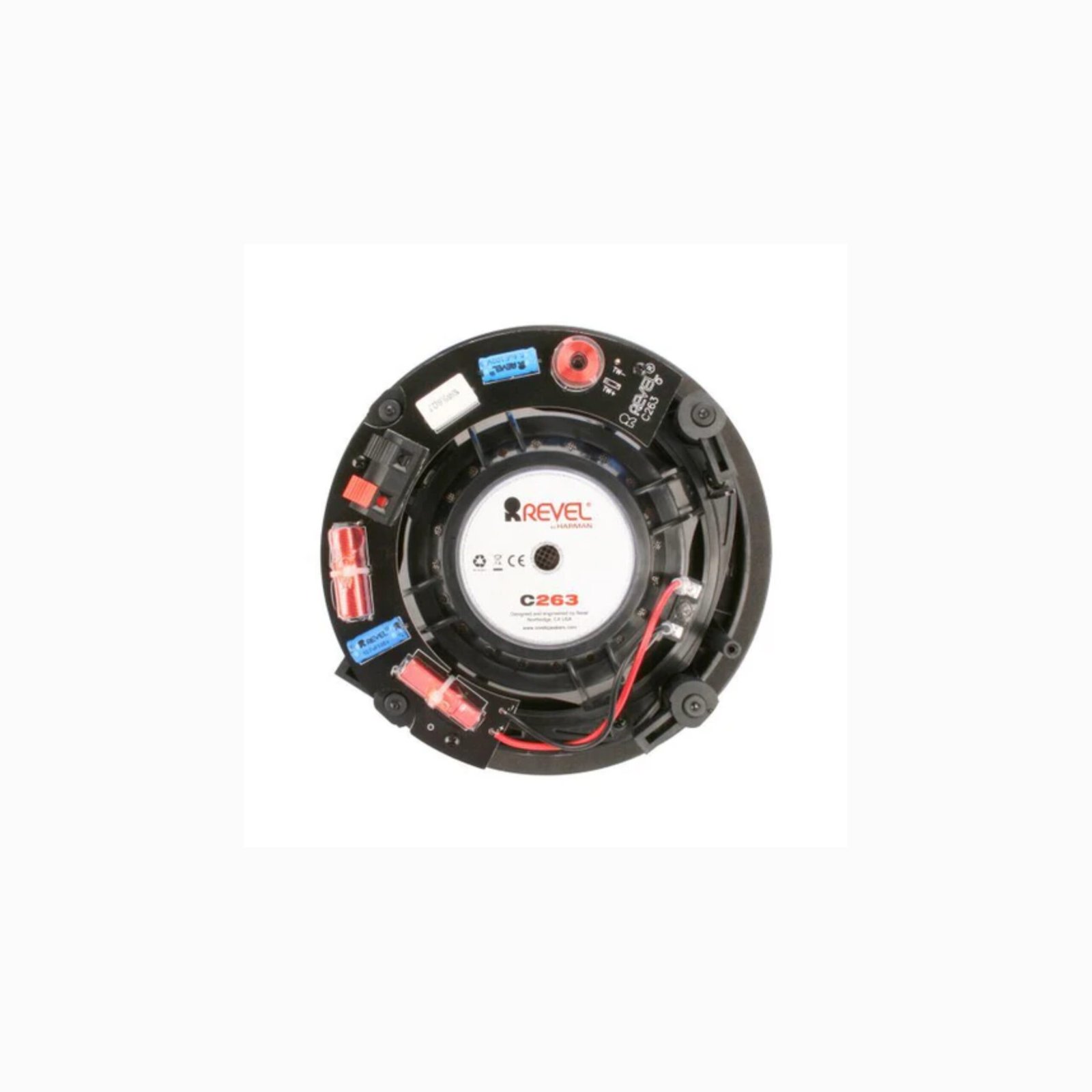

Revel offers a wide range of high-performance in-ceiling speakers for stereo and home theater systems. The C263 is their least expensive model, but it shares some of the same technologies as Revel’s higher-end speakers, including an integrated tweeter waveguide that provides great sound for listeners directly under the speaker as well as those positioned off to the side. And its high-order crossover network allows the woofer and tweeter to blend seamlessly.

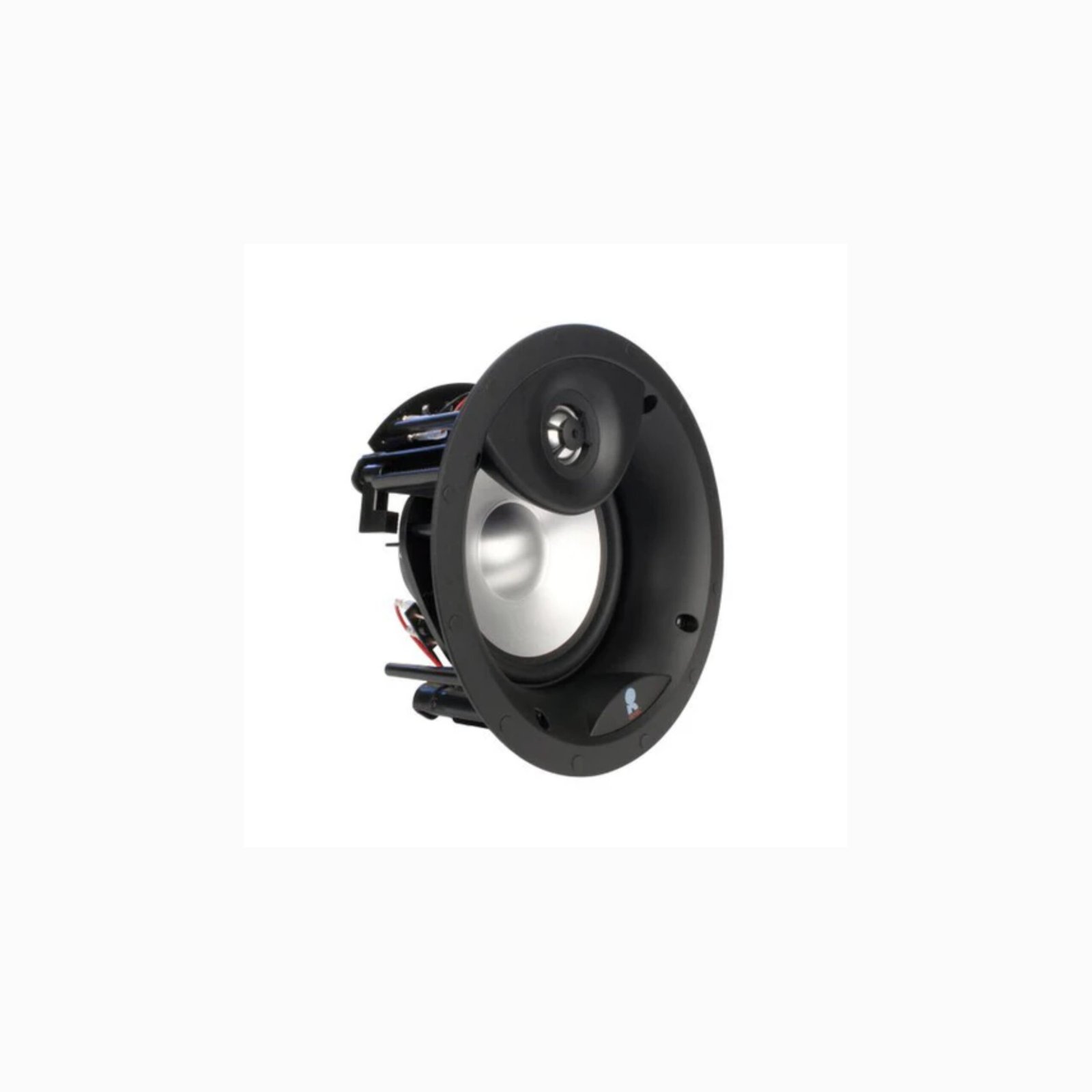

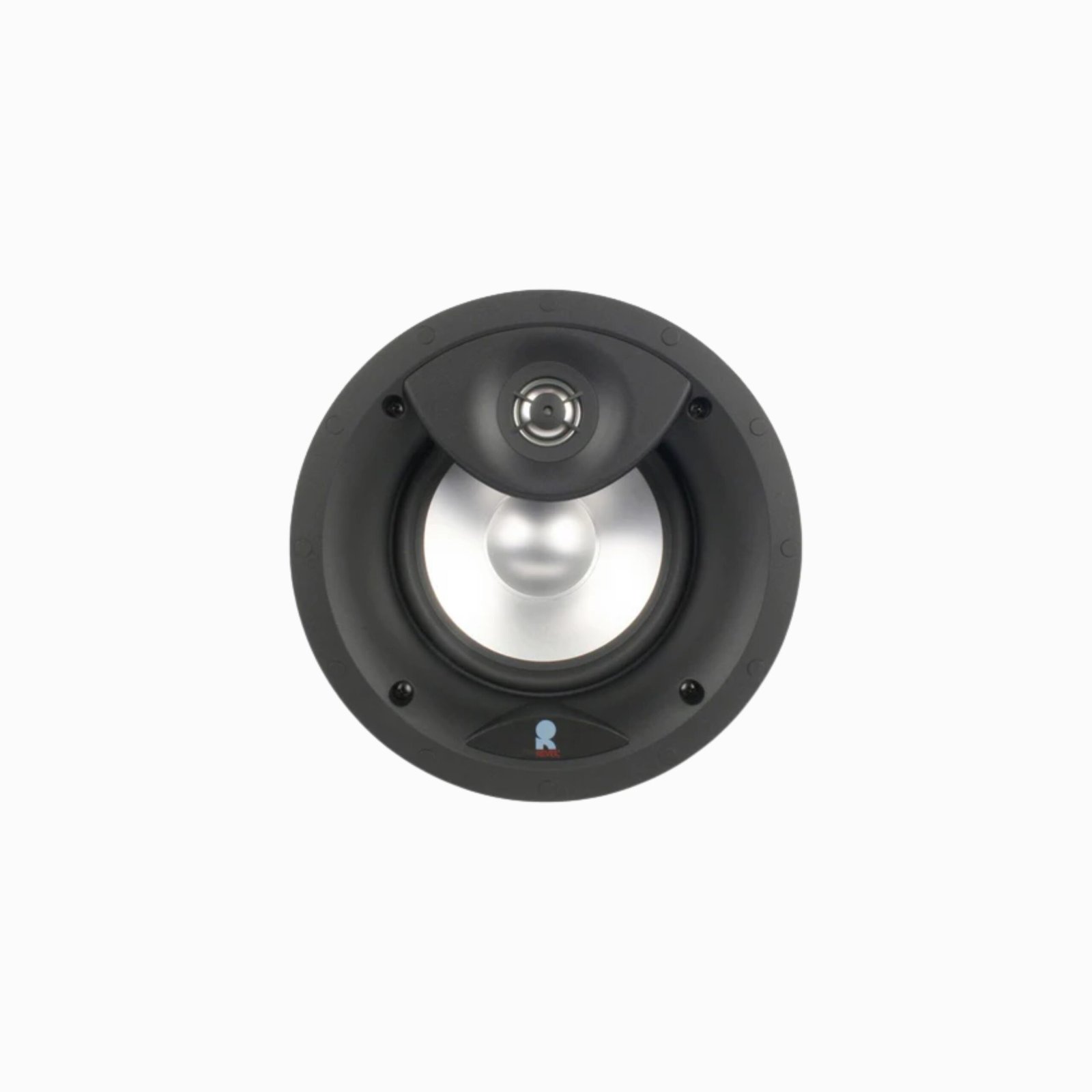

The Revel C263 in-ceiling speaker features an integrated tweeter waveguide, which provides excellent on- and off-axis listening performance.
Space-saving long-term performance
Looking for a clear, natural sound without the bulk of a traditional box speaker? The C263 is a great choice for a stealthy stereo system or as an overhead effects channel of a surround sound system. A lifetime warranty ensures excellent long-term performance.
DIY installation

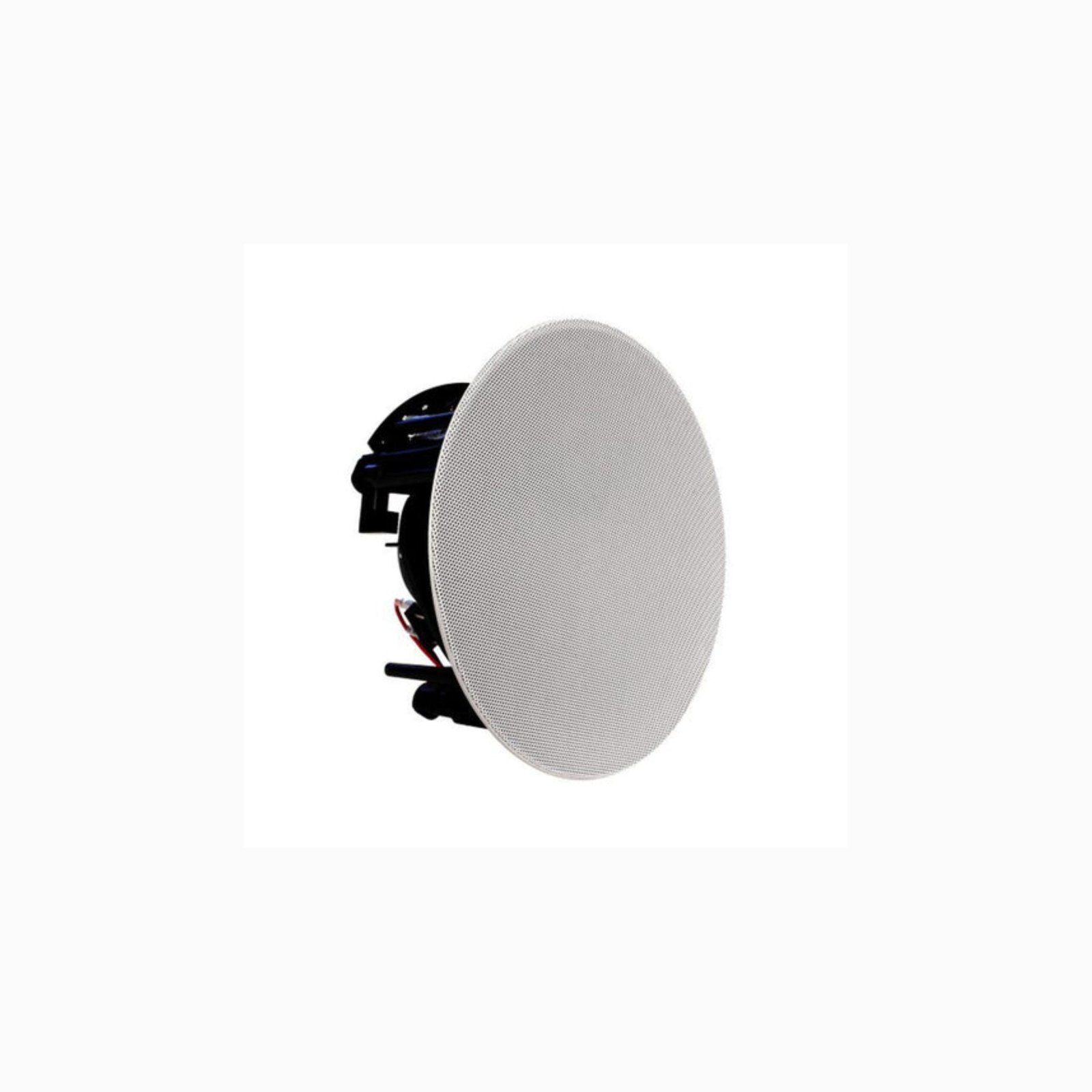

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor
Technical Specifications:
| Height | Cutout dimensions (dia.) 8” (20.3 cm) Square grille finished Height 9.1” (23.1 cm) |
| Width | Square grille finished Width 9.1” (23.1 cm) |
| Depth | Mounting Depth 4.8” (120mm) |
| Weight | 3.1 lb (1.4 kg) / Shipping weight 4.6 lb (2.1 kg) |
| High-Frequency Driver Components | 1” Aluminum-Dome Tweeter with Waveguide |
| Low-Frequency Extension | 6-1/2” Aluminum Cone, Cast-Polymer Frame Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5” – 2.0” (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 100 Watts RMS |
