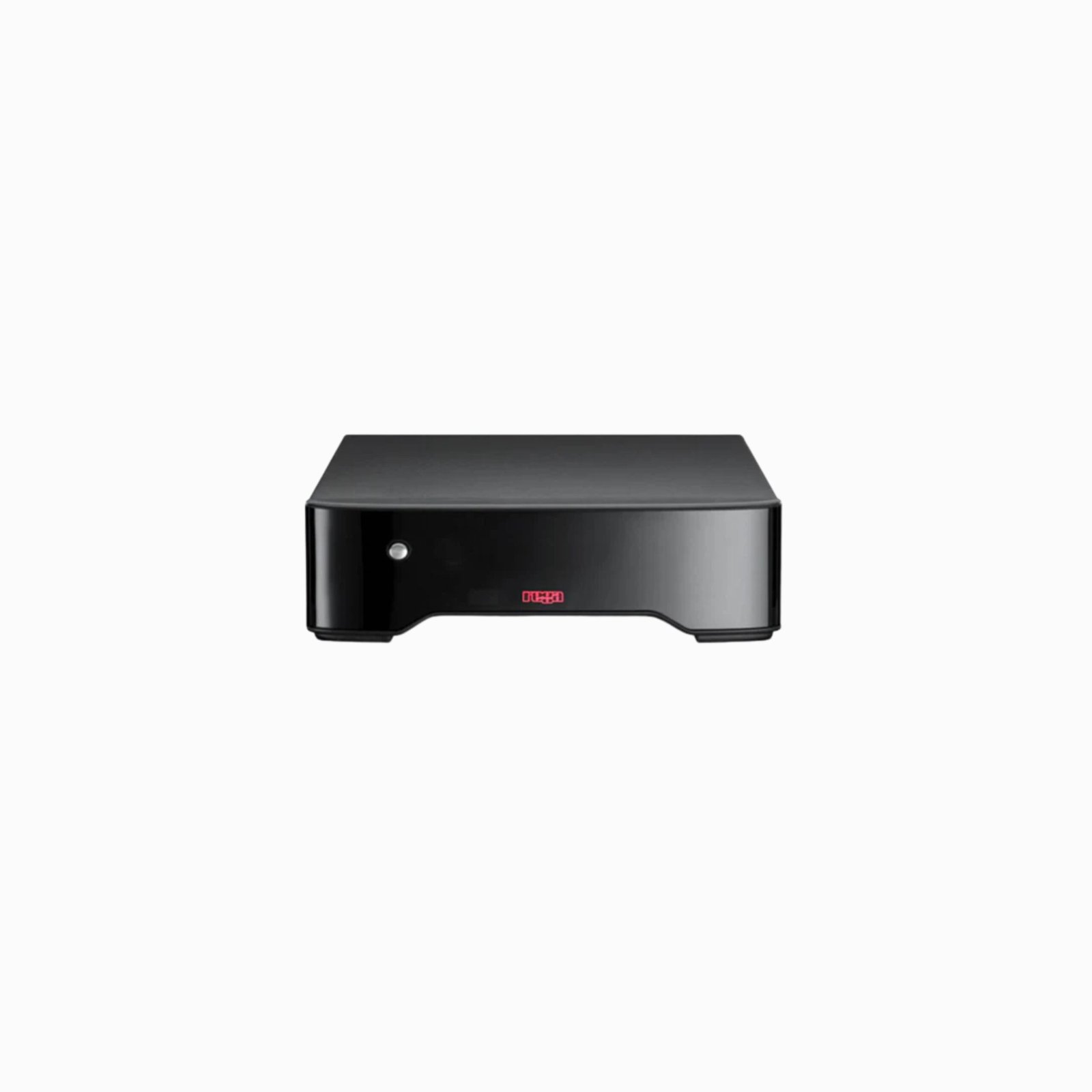

REGA-FONO MC Phono stage

Key Features

  • High-performance phono pre-amplifier specifically designed for moving coil (MC) cartridges

  • Precision RIAA equalization for accurate and musical vinyl playback

  • Low-noise, high-gain circuitry optimized for low-output MC signals

  • Excellent signal amplification with minimal distortion and improved detail retrieval

  • Simple plug-and-play setup with intuitive controls

  • Robust analogue design and quality components for reliable performance

  • Enhances dynamics, clarity, and depth compared with standard turntable outputs

  • Compact and space-efficient form factor suitable for hi-fi systems

  • Ideal choice for audiophiles seeking rich, refined vinyl sound from MC cartridges

Description

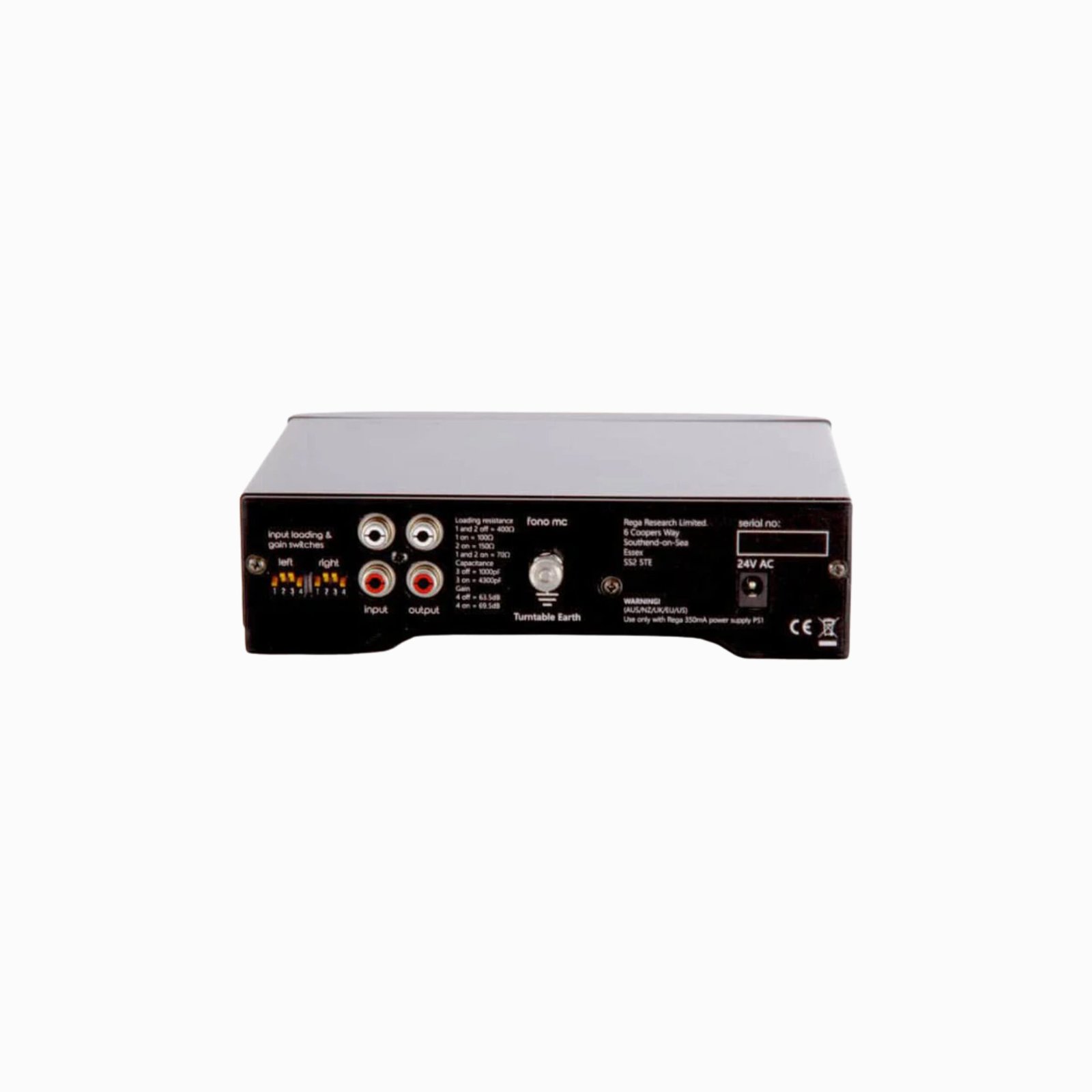

  • The Fono MC is an exceptionally high quality MC phono stage designed to maximise the potential of any MC cartridge. Although specifically to compliment the latest Rega range of  moving coils you will find full adjustability for loading is available via dip switches conveniently placed on the rear panel with two different gain settings located on the back panel making the Fono MC compatible with most low output MC cartridges.



    The Fono disk stage is designed to amplify the signal from a moving coil cartridge to a level which can feed into a 200mV line level input on a standard hi-fi amplifier.



    Specifications

    Output impedance = 200Ω
    Recommended minimum output load resistance = 5K
    Frequency response (50KΩ output load) = 13Hz (-3dB) to 100KHz (-0.3dB)
    RIAA accuracy (50KΩ output load) = Better than +/-0.2dB 100Hz to 100KHz
    Power requirements = 24V AC at 150mA maximum. Only to be used with Rega PS1.



    Input sensitivity (for 200mV output)
    4 off = 133uV
    4 on = 67uV



    Input loading resistance
    1 and 2 off = 400Ω
    1 on = 100Ω
    2 on = 150Ω
    1 and 2 on = 70Ω



    Input loading capacitance
    3 off = 1000pF
    3 on = 4300pF
    Gain (at 1KHz)
    4 off = 63.5dB
    4 on = 69.5dB



    Maximum input level (at 1KHz)
    4 off = 6.7mV
    4 on = 3.4mV



    Load settings for adjustable MC stages

    Impedance -100ohm
    Capacitance – 1000pF
    Gain setting – High (‘On’ position for Rega phono stages)
