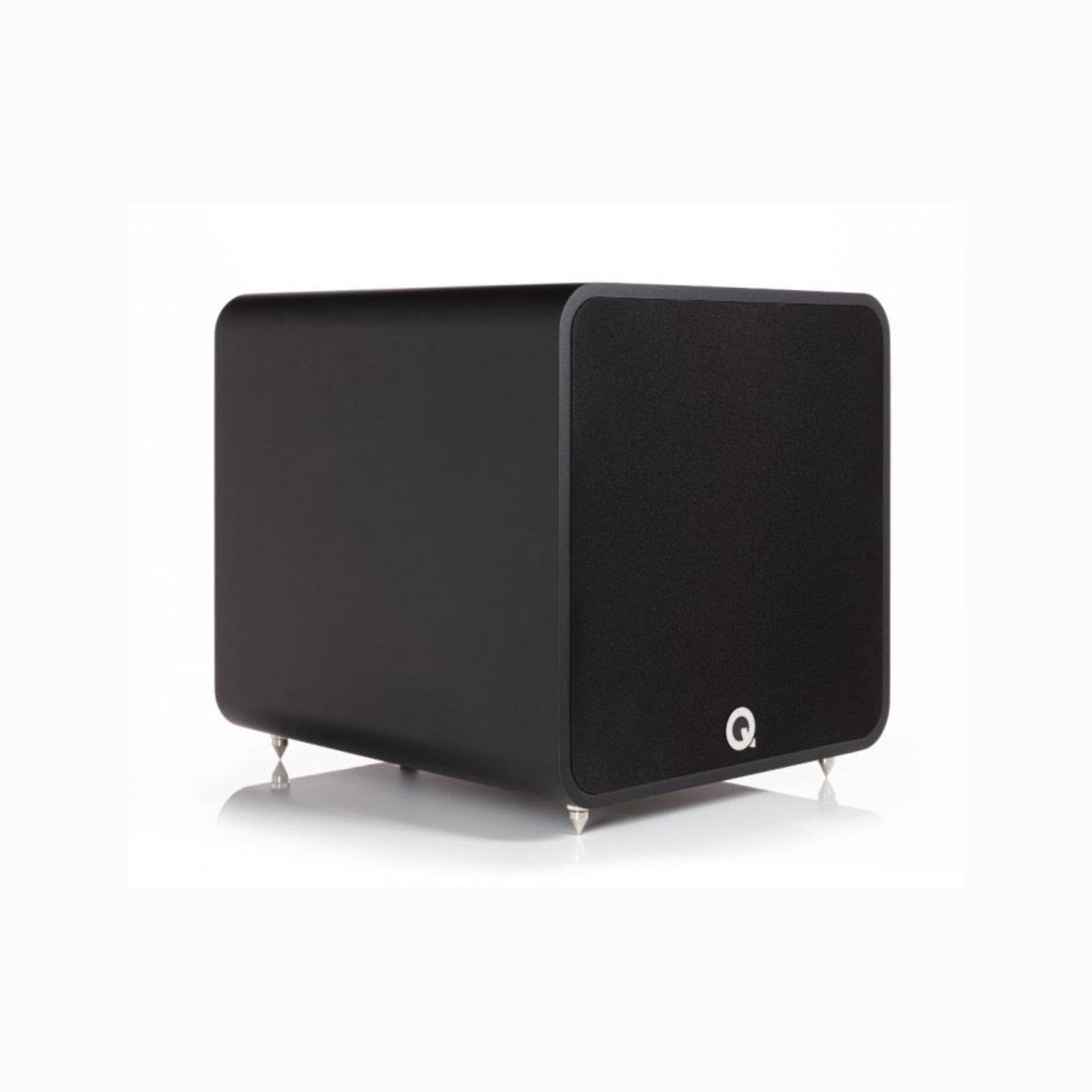

Q Acoustics QB12 Subwoofer

Features:

The Q Acoustics QB12 is a high-performance active subwoofer designed to deliver deep, controlled bass for music and home cinema.
Features a 12-inch long-throw driver engineered to produce powerful low-frequency output with precision.
Equipped with a high-efficiency 220W Class D amplifier for clean, dynamic, and distortion-free bass performance.
Built with a reinforced, low-resonance cabinet structure to reduce vibration and maintain clarity.
Offers adjustable crossover settings, phase control, and gain options for seamless integration with various audio systems.
Suitable for medium to large rooms where impactful, room-filling bass is desired.
Designed to complement Q Acoustics speaker ranges but compatible with any quality AV or stereo setup.

Description

Q Acoustics QB12 Subwoofer

The Q Acoustics QB12 Subwoofer is the first Q Acoustics subwoofer to feature a 12-inch driver. The big long-throw driver is powered by an ultra-low-distortion 220-watt Class D amplifier for tight, powerful bass response, and features a 50mm voice coil for minimal thermal compression. Equally at home with Q Acoustics’ Concept and 3000i range of stereo and centre speakers, Q B12 is designed to be equally adept at reproducing big Hollywood action moments as it is the deep, subtle textures of bass instruments.

From the subtlest nuance to all-action volcano

220 watts of Class D power driving a long-throw 12-inch drive unit sounds like a recipe for action. And that’s exactly what it is – no Hollywood blockbuster soundtrack features explosions too loud, too deep, or too powerful for Q B12 to handle. But power is nothing without control, and Q B12 is just as comfortable describing the nuances of a double bass or an electronic kick-drum.

Strength and control

Q B12’s sealed, ‘infinite baffle’ cabinet is cleverly braced to deliver maximum stiffness to its motor system and, as a consequence, minimum influence on those deep bass sounds. Mechanical stability = aural satisfaction.

Ease, simplicity, and performance

A reinforced MDF cabinet with a 36mm-thick baffle, a recessed and hidden terminal panel. Adjustable spiked feet with rubber caps. A choice of elegant, understated finishes. Q B12 is a simple and easy-to-position and set up, as it is invigorating to listen to.

Specifications of the Q Acoustics Q B12 Subwoofer

Drive unit: 305mm (12in) high-excursion and stiffness paper, straight-sided cone.
Peak Amplifier Power: 440 W
Continuous Amplifier Power: 220 W
Power type: Class D
Frequency range: 28 Hz – 300 Hz
Crossover frequency range: 70 Hz – 225 Hz
Input impedance: 13 kΩ
Input sensitivity: 150 mV
Enclosure type: Infinite baffle
Enclosure material: MDF
Dimensions: 40 x 40 x 44.6 cm (hwd)
Weight: 18.5 kg
