Key Features

Audio & Amplification

2-channel stereo integrated amplifier for passive speakers
Output power up to 50 W per channel at 4 ohms and 30 W per channel at 8 ohms
Clean and dynamic sound with low distortion
Designed for bookshelf and compact floor-standing speakers

Wireless Streaming & Networking

Built-in Wi-Fi for network audio streaming
Bluetooth 5.0 for direct wireless playback from smartphones, tablets, and laptops
Ethernet port for a stable wired network connection
Supports multi-room audio when paired with compatible devices

Inputs & Outputs

Analog line-level input for external sources such as TV or CD player
Line output for connecting an active subwoofer or external amplifier

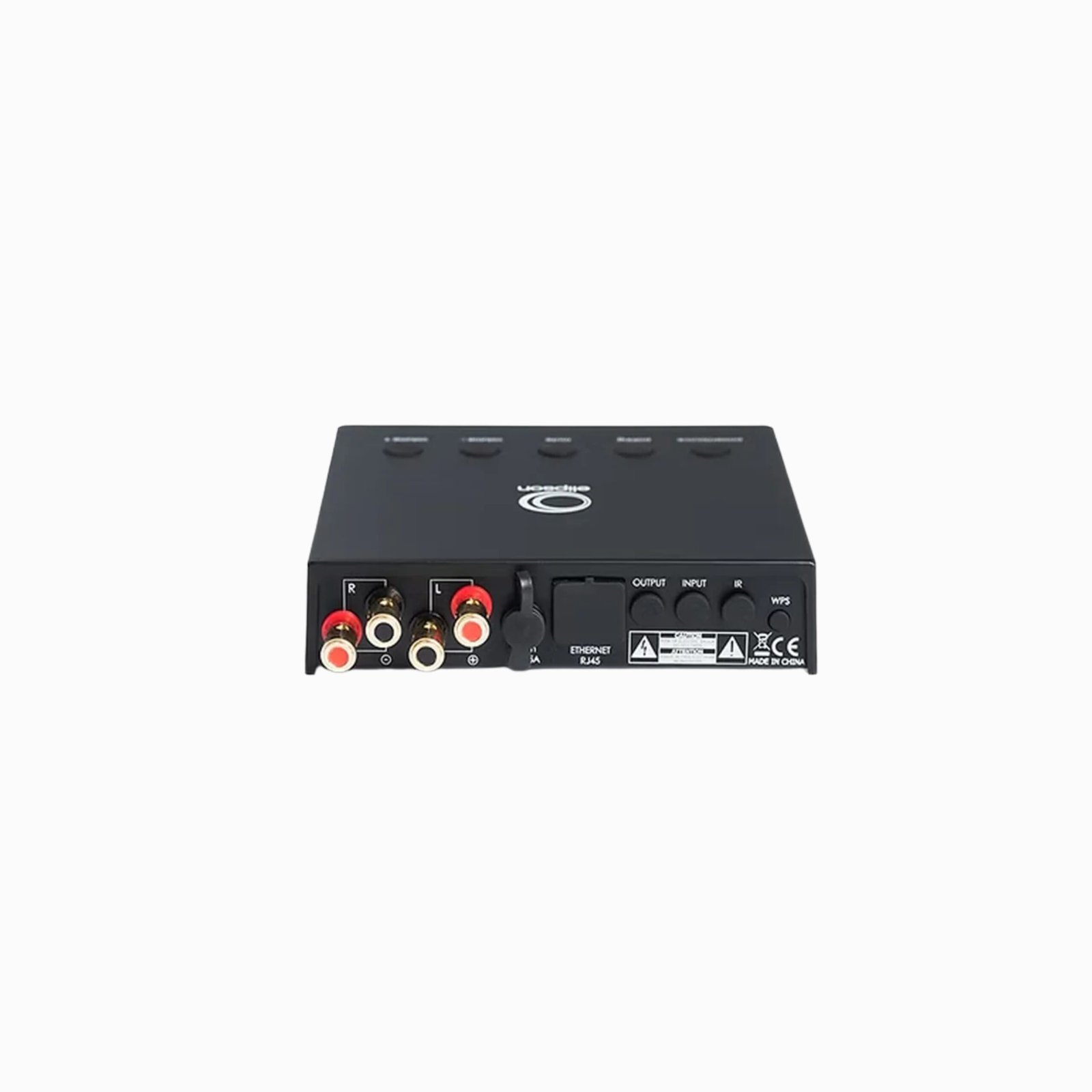

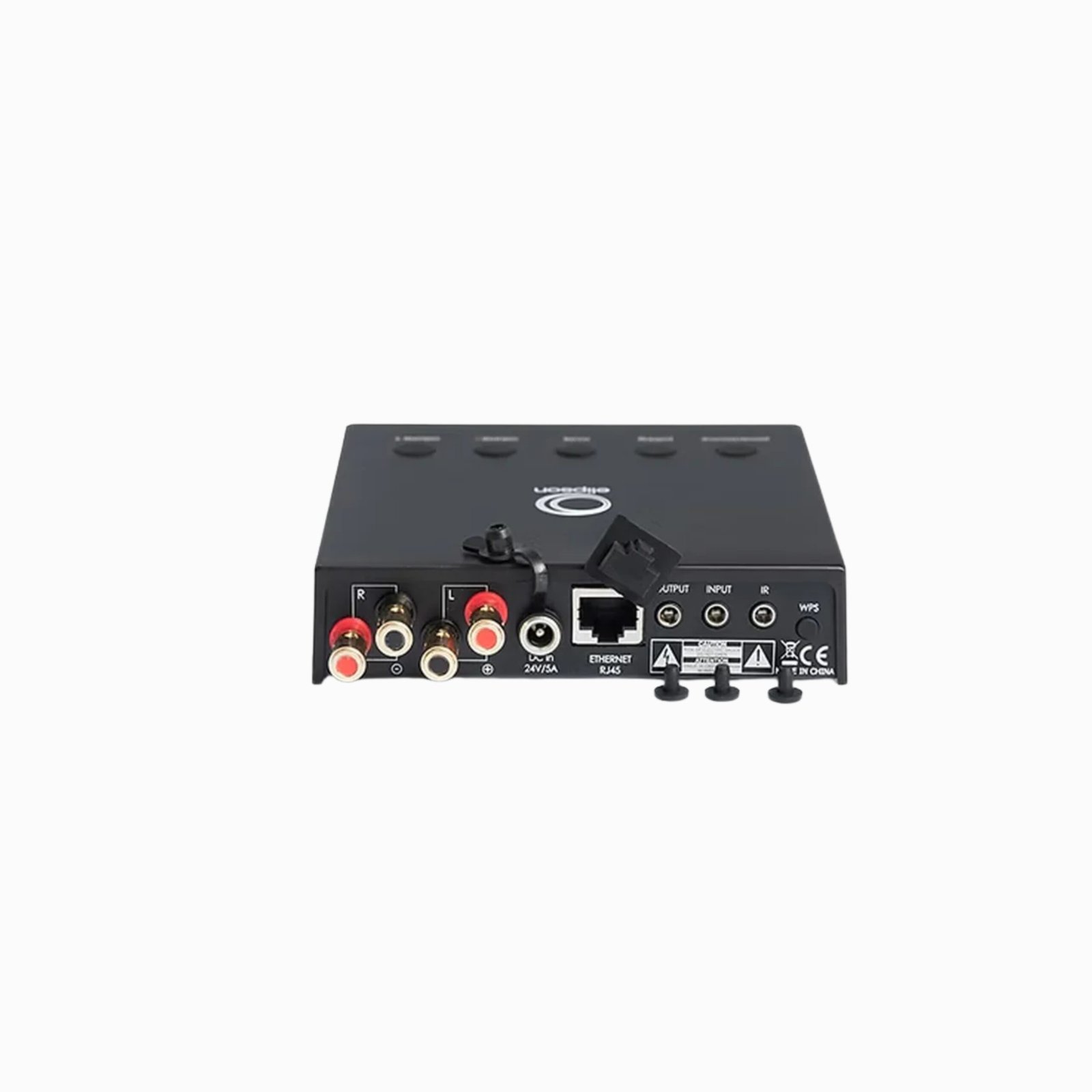

Speaker binding posts for secure speaker connection

Control & Usability

App-based control via smartphone or tablet

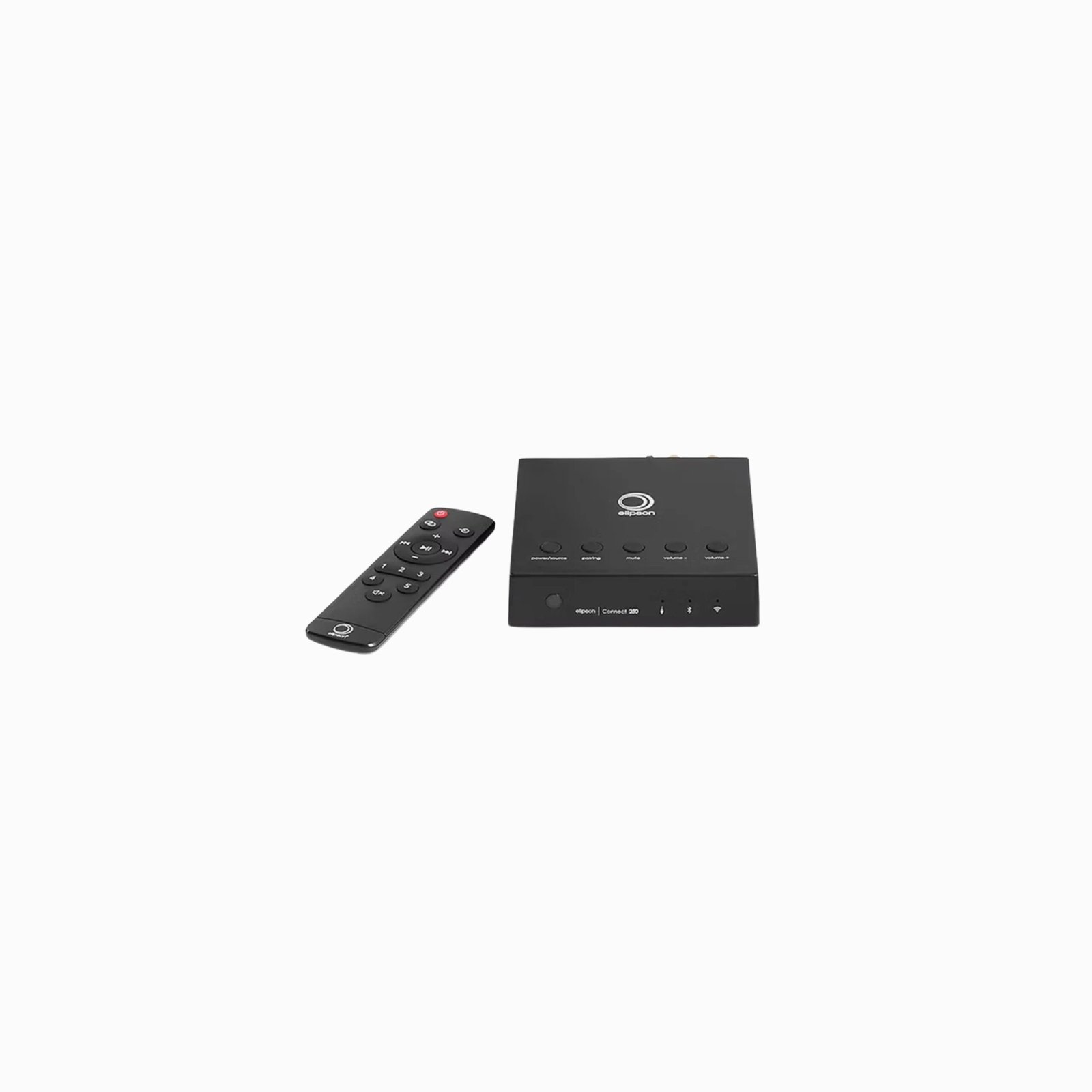

Included infrared remote control for basic operation
Simple setup and intuitive user interface

Design & Installation

Compact and discreet design for flexible placement
Suitable for shelf, cabinet, or wall installation
Mounting accessories included

Power & Efficiency

External power supply for efficient operation
Low power consumption in standby mode

Description

Norstone Connect 250 – Wireless Streaming Amplifier

DESCRIPTION

It will allow you to easily amplify a pair of passive speakers and stream your music via Bluetooth or Wi-Fi network from any platform or stored music files.

The Connect 250 is particularly well-suited to be integrated into any environment, even if it is damp, thanks to the two brackets that allow it to be fixed to a wall or false ceiling. The remote infra-red cable supplied will facilitate its integration.

The Elipson BT application (Android and iOS) allows you to rename each Connect 250 that appears on your Bluetooth network. It is, of course, compatible with the other products in the ELIPSON CONNECT range, for multi-room use.

Specifications

Number of output channels	2
Power (W / channel) – 4 ohms – 1 kHz	50 W @ 1% THD+N
Power (W / channel) – 8 ohms – 1 kHz	30 W @ 1% THD+N
Input sensitivity	~300 mV – at full power
Maximum input voltage (RMS)	1.5 V
Signal to Noise Ratio (SNR) at THD+N < 1%, f = 1 kHz, Gain = 20 dB	102 dB
Total Harmonic Distortion THD+N @ 1kHz	< 0.1%.
Resolution	44.1kHz/24bit
Bluetooth & Codec Version	5.0 – SBC Network Wi-Fi 2.4 GHz IEEE 802.11 b/g/n – Ethernet Simultaneous streaming to multiple devices up to 10 rooms, depending on network quality
Main operating voltage	24V/5A DC
Power consumption in standby mode	< 0.5 W
Dimensions W x H x D	120 x 30 x 120 mm
Power supply dimensions W x H x D	40 x 170 x 65 mm
Weight – without power supply and accessories	240 g
Dimensions W x H x D	240 x 100 x 180 mm
Gross weight	1.1 kg
