Key Features

Power & Amplification

120 W total output power
Delivers clean, reliable amplification for small to medium venues
Suitable for public address, background music, and event use

Inputs & Mixing

8 input channels for flexible source connection
Multiple microphone and line inputs
Independent level controls for each input

Controls & Features

Master volume control
Bass and treble tone controls for sound shaping
Optional priority function for paging or announcements

Connectivity

Microphone inputs with dedicated controls
Line inputs for external audio devices

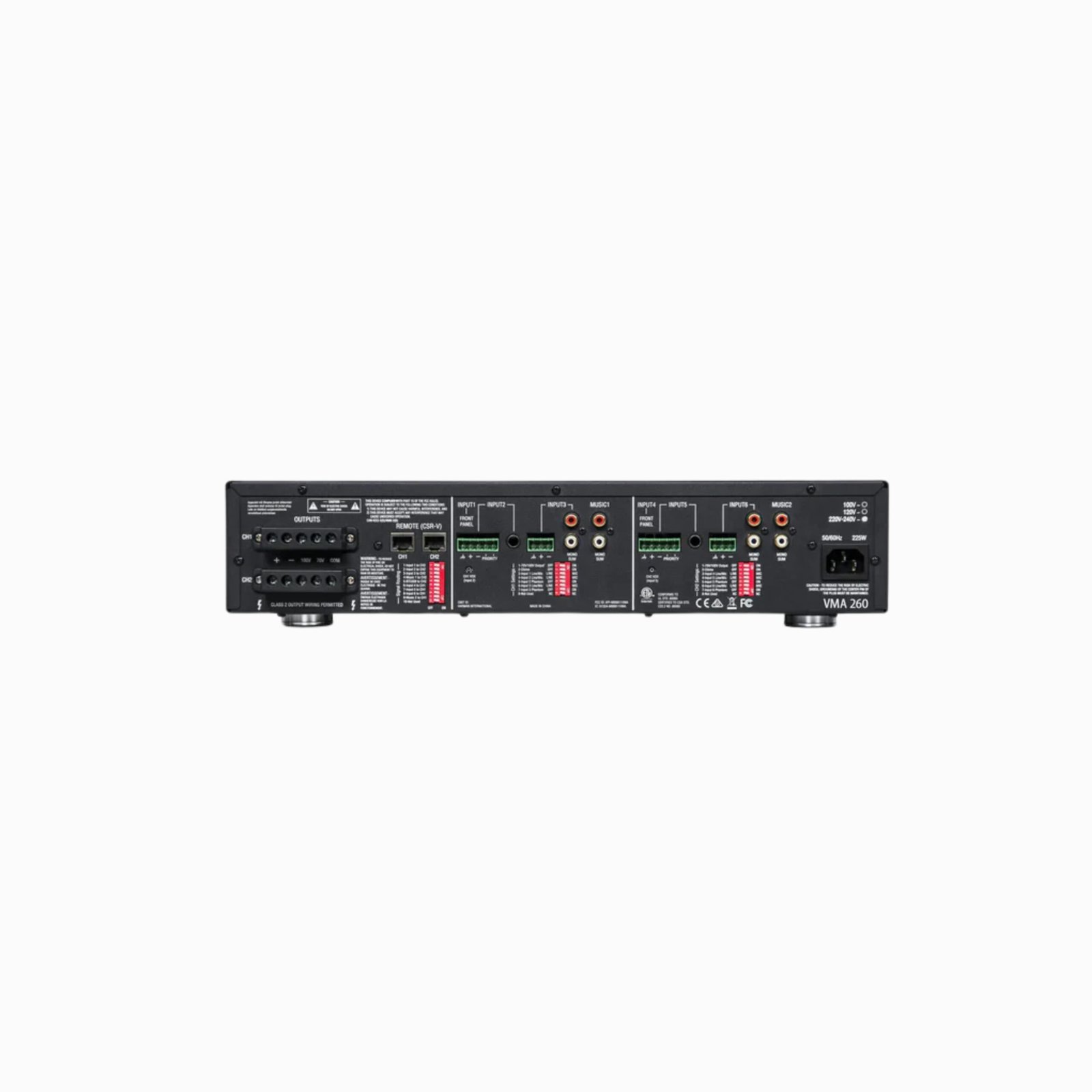

Speaker output terminals for easy installation

Build & Design

Rugged construction for reliability
Compact form factor for rack or shelf mounting

Use Cases

Ideal for small auditoriums, conference rooms, classrooms, shops, and houses of worship
Flexible for background music, PA announcements, and events

Description

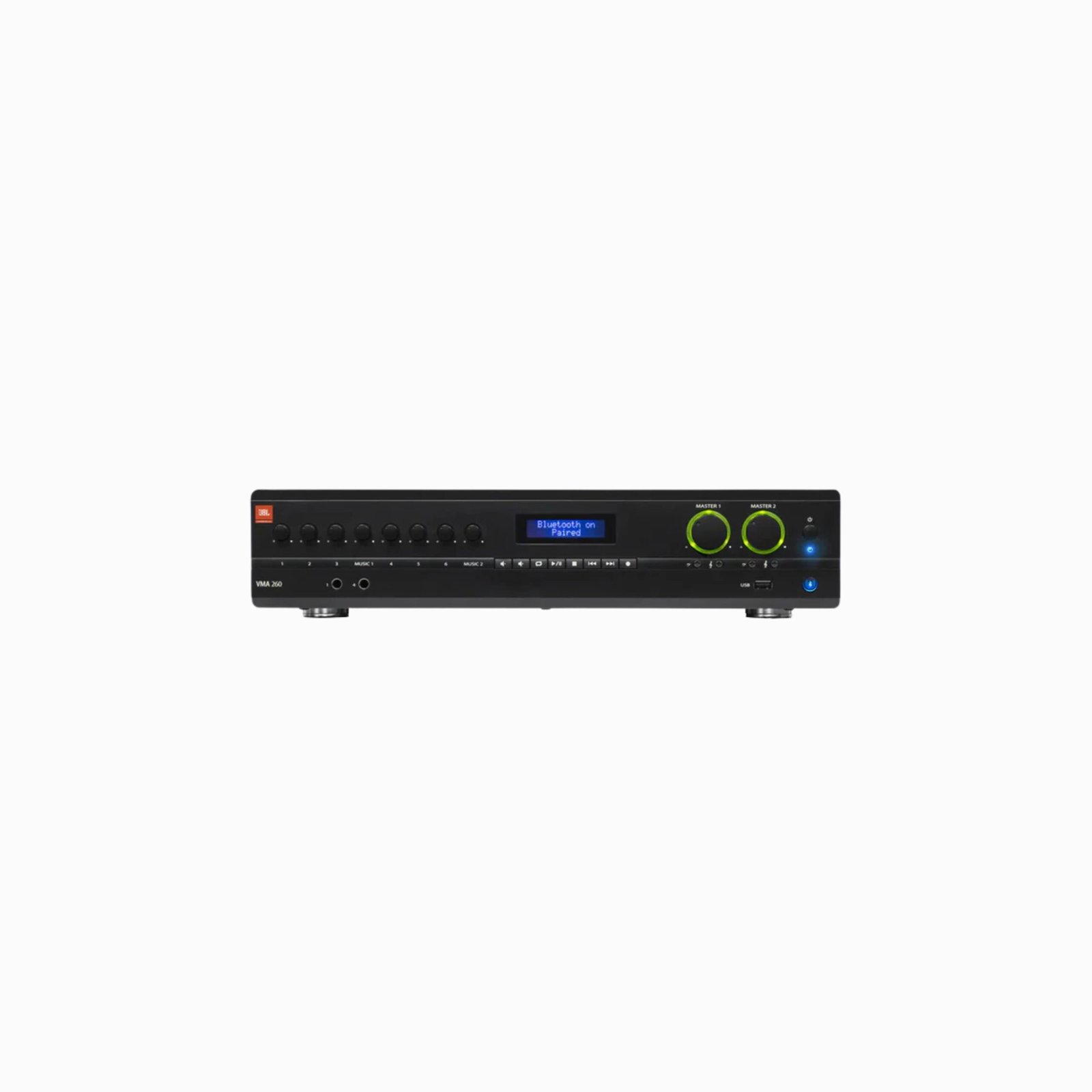

JBL VMA2120 – 8-Input, 120 Watts Mixer/Amplifier

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features

8 inputs with 2 outputs of 60 or 120 watts of power
Independent bass and treble controls for each output channel
100V and 70V output, or 4Ω/8Ω
Paging Chime, and Priority muting
Works with JBL CSR-V wall controllers
Balanced mic/line inputs; RCA (.775V) inputs
Rack mounting hardware included

Specifications

Max Output Power per Channel	into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD – VMA260: 60W VMA2120: 120W
Insertion Loss	(70V & 100V outputs) 1dB maximum
Number of Inputs	8
Number of Outputs	2
Tone Controls	(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity	(to obtain full rated power into an 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response	(measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz – 20kHz, +/-2dB; 70V/100V Outputs: 80Hz – 15kHz +/-3dB
Total Harmonic Distortion (THD)	(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz – 20kHz
Signal to Noise Ratio	(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance	(nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
Phantom Power	27VDC
Crosstalk	(reference rated power, volume at mid position, 1kHz) -70 dB
Nominal AC Line Voltages	100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance	(Low Impedance Output, 70V Output, 100V Output) VMA260: 4 Ω, 80 Ω,160 Ω VMA2120: 4 Ω, 40 Ω, 80 Ω
Operating Temperature/Humidity	0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature	-20°C to 85°C
Net Weight	VMA260: 25.5 lb (11.6 kg) VMA2120: 29.3 lb (13.3 kg)
Dimensions	Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
Shipping Weight	VMA260: 30.8 lb (14 kg) VMA2120: 34.5 lb (15.7 kg)
